A+ Server 4124GQ-TNMI (Complete System Only)

A+ Products Systems GPU [ 4124GQ-TNMI ]

Universal 4U Dual Processor(AMD) GPU System with AMD Instinct™ MI250 OAM Accelerators, Infinity Fabric™ Link GPU-GPU Interconnect with Redundant 3000W Titanium Level Power Supplies




Integrated Board
H12DGQ-NT6 motherboard
H12DGQ-NT6

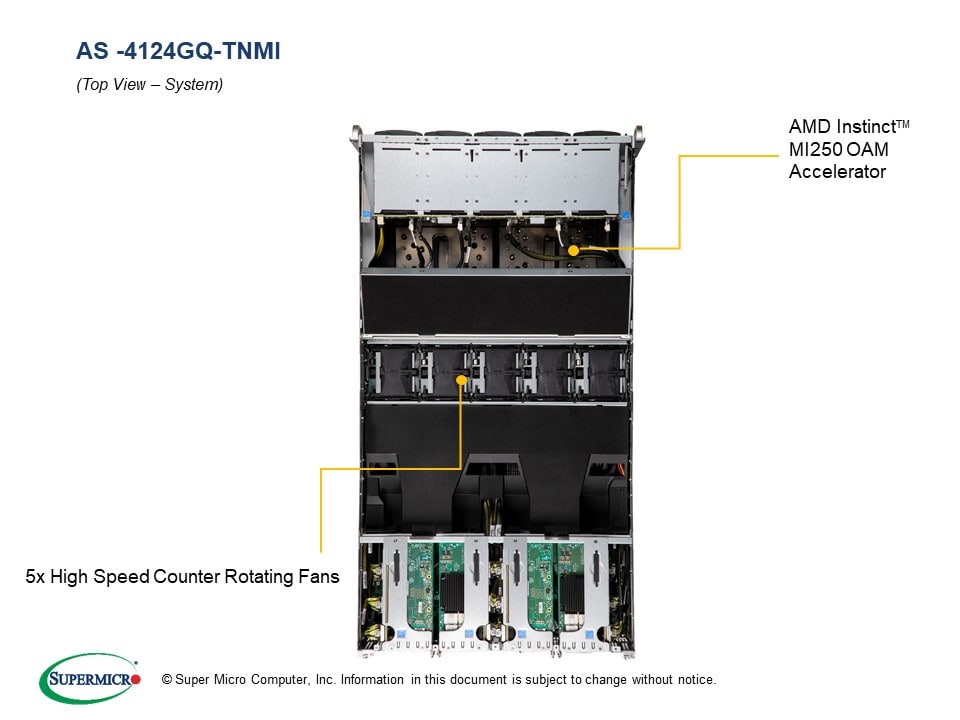

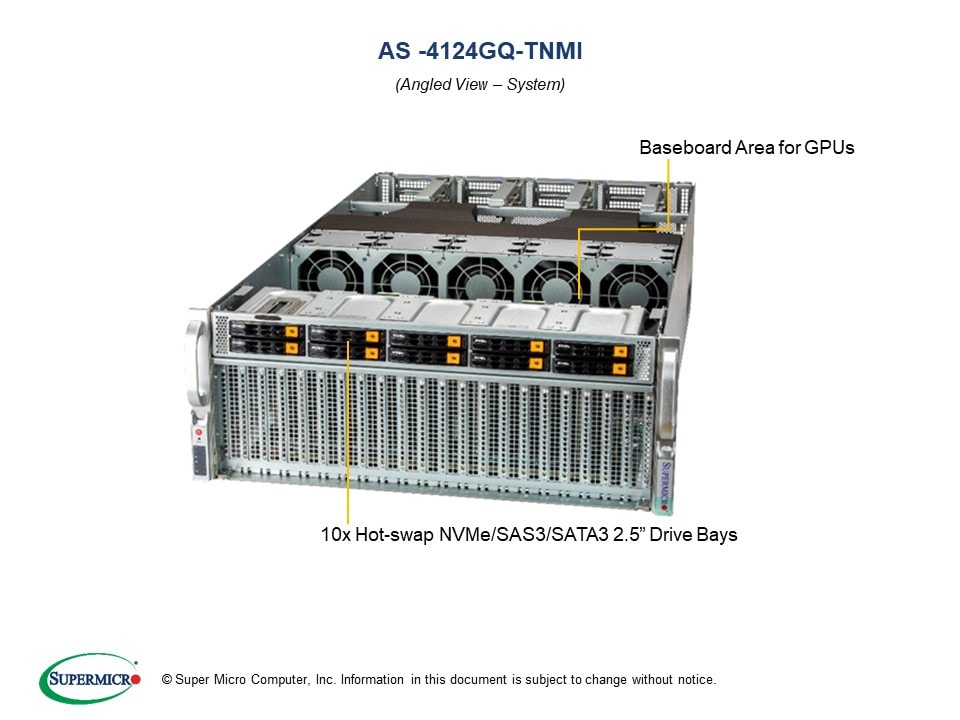

Views: | Top View | Angled View |

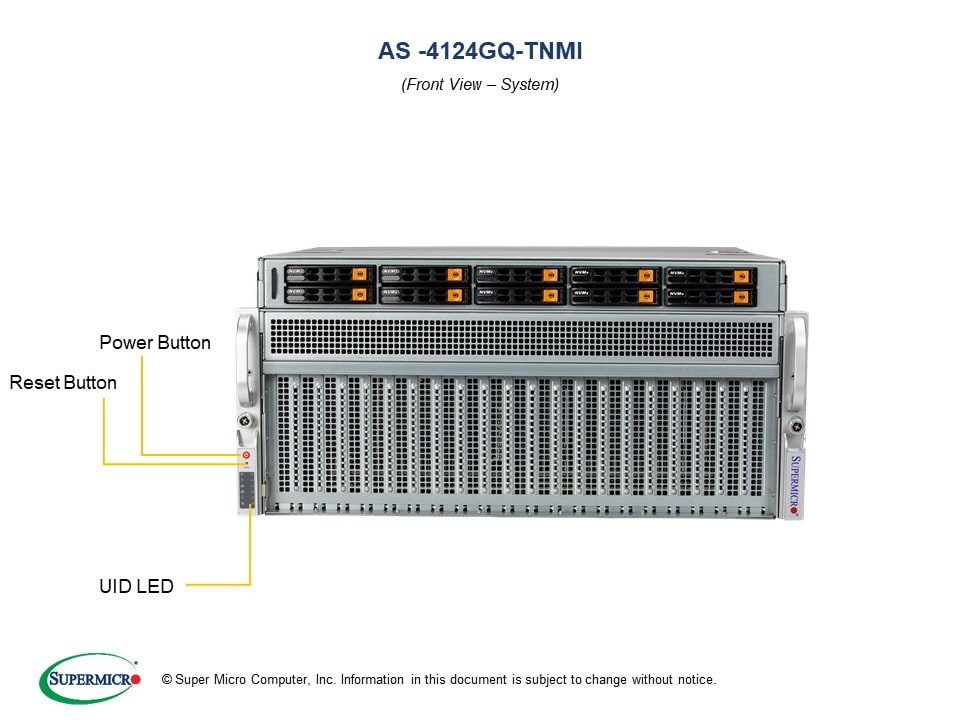

| Front View | Rear View |


Key Applications
- High Performance Computing
- AI / Deep Learning


Key Features
1. Supports AMD Instinct™ MI200 Series Accelerators with AMD Infinity™ Fabric™ GPU-GPU Interconnect, 1:1 GPU-to-NIC ratio
2. Supports MI250 OAM Accelerator with 128GB (HBM2e) and Infinity Interconnect
3. Dual AMD EPYC™ 7003 Series Processors
4. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
5. 8 PCI-E 4.0 x16 via PLX
2 PCI-E 4.0 x16 LP via CPUs (for 5U SKU)
6. 10 hot-swap 2.5" U.2 NVMe/SATA/SAS hybrid drive bays
7. 1 dedicated IPMI LAN Port
8. 5 hot-swap heavy-duty cooling fans

AMD EPYC + Instinct
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with fully-populated universal baseboard GPUs, minimum 2 CPUs, Min of 512GB Memory, 1 Storage device, and 1 NIC included in IO board).
Service: OSNBD3 is highly recommended.

Drivers & Utilities BIOS IPMI Tested Memory NVMe Options Tested AOC Manuals OS Certification Matrix Drive Options

Product SKUs
AS -4124GQ-TNMI
  • A+ Server 4124GQ-TNMI
Motherboard

Super H12DGQ-NT6
Processor
CPU
  • Dual AMD EPYC™ 7003 Series Processors
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 128 Cores (64 cores, 128 threads per CPU)
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
GPU
Supported GPUs
  • AMD Instinct™ MI250 OAM Accelerator
CPU-GPU Interconnect
  • PCI-E 4.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • AMD Infinity Fabric™
System Memory
Memory Capacity
  • 32 DIMM slots
  • Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
Memory Type
  • 3200MHz ECC DDR4 RDIMM/LRDIMM
On-Board Devices
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps)
Network Controllers
  • Provided via IO Board
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2600 BMC
Input / Output
SATA
  • 12 SATA3 (6Gbps) ports
NVMe
  • 10 NVMe
LAN
  • Via IO Board
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.1 Gen1 ports (front)
Video
  • 1 VGA Connector (front)
COM Port
  • 1 COM port (header)
System BIOS
BIOS Type
  • AMI 256Mb SPI Flash ROM
Management
Software
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-458GTS-R3K06P
Note
  • *5U with 1U height module kit.
Dimensions
Height
  • 6.91" (175.6mm)
Width
  • 17.67" (449mm)
Depth
  • 32.79" (833mm)
Package
  • 14.57" (370mm) H x 27.55" (700mm) W x 49.60" (1260mm) D
Weight
  • Net Weight: 166.0 lbs (75.3 kg)
  • Gross Weight: 225.0 lbs (102.1 kg)
Drive Bays / Storage
Hot-swap
  • 10 hot-swap 2.5" U.2 NVMe/SATA/SAS hybrid drive bays
Expansion Slots
PCI-Express
  • 8 PCI-E 4.0 x16 via PLX
  • 2 PCI-E 4.0 x16 LP via CPUs (for 5U SKU)
Note
  • *8 PCI-E 4.0 slots in 4U. 2 additional PCI-E 4.0 slots in 5U with 1U height module kit supporting 2 AIOM cards or 2 PCI-E cards.
System Cooling
Fans
  • 5 x hot-swap 11.5K RPM heavy duty fans

Power Supply
4x 3000W Redundant Titanium Level Power Supplies
Dimension
(W x H x L)
  • 106.5 x 82.4 x 203.5 mm
Certification Titanium Level96% Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

Part Number
 Qty
 Description
Motherboard / Chassis MBD-H12DGQ-NT6-P
CSE-458GTS-R3K06P 		1
1 		Super H12DGQ-NT6 Motherboard
CSE-458GTS-R3K06P Chassis
Backplane BPN-SAS3-LB16A-N10 1 1U 10-Slot SFF Hybrid Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors
Cable 1 CBL-0223L 4 BLADE PWS POWER CORD C-19 TO C-20, PBF
Cable 2 CBL-CDAT-0680-55 1 NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
Cable 3 CBL-MCIO-1242L4E1 1 MCIO x8 (STR) to SlimSASLP x8 (STR),42CM,85Ohm,RoHS
Cable 4 CBL-MCIO-1242L4E2 1 MCIO x8 (STR) to SlimSASLP x8 (STR),46CM,85Ohm,RoHS
Cable 5 CBL-MCIO-1242L4E3 1 MCIO x8 (STR) to SlimSASLP x8 (STR),43CM,85Ohm,RoHS
Cable 6 CBL-MCIO-1242L4E4 1 MCIO x8 (STR) to SlimSASLP x8 (STR),35CM,85Ohm,RoHS
Cable 7 CBL-MCIO-1243L4H1 1 MCIO x8 (STR) to SlimSASLP x8 (STR),43CM,85Ohm,RoHS
Cable 8 CBL-MCIO-1243L4H2 1 MCIO x8 (STR) to SlimSASLP x8 (STR),47CM,85Ohm,RoHS
Cable 9 CBL-MCIO-1243L4H3 1 MCIO x8 (STR) to SlimSASLP x8 (STR),41CM,85Ohm,RoHS
Cable 10 CBL-MCIO-1243L4H4 1 MCIO x8 (STR) to SlimSASLP x8 (STR),32CM,85Ohm,RoHS
Cable 11 CBL-MCIO-1245L4G2 4 MCIO x8 (STR) to SlimSASLP x8 (STR),49CM,85Ohm,RoHS
Cable 12 CBL-MCIO-1246L4F2 4 MCIO x8 (STR) to SlimSASLP x8 (STR),49CM,85Ohm,RoHS
Cable 13 CBL-PWEX-1114-20 1 Microfit,(2X4 to 2X4),PH3.0,20CM,9A/pin,RoHS
Cable 14 CBL-PWEX-1114-30 3 Microfit,2x4, PH3.0 to Microfit,2x4, PH3.0,30CM,9A/pin,
Cable 15 CBL-PWEX-1141B-82 1 MicroHi(2x4 to 2x4), PH3.0, 82cm, 10.5A/p, 16AWG, RoHS,
Cable 16 CBL-SAST-1205LP3-85 2 SlimSASLP x8 (STR) to SlimSAS x8 (STR),70CM,85Ohm,RoHS
Cable 17 CBL-SAST-1205LP4-85 2 SlimSASLP x8 (STR) to SlimSAS x8 (STR),70CM,85Ohm,RoHS
Cable 18 CBL-SAST-1264LP-85 1 SlimlineLP x8 (STR) to Slimline x8 (STR),64CM,85 OHM,RoHS
Cable 19 CBL-SAST-1267FLP-85 2 Slimline x8 (STR) to SlimlineLP x8 (STR),FFC,67CM,85 OHM
Cable 20 CBL-SAST-1272-100 2 Slimline x4 (STR) to Slimline x4 (STR),72CM,100 OHM,RoHS
Cable 21 CBL-SAST-1277S3-100 1 SlimSAS x4 (STR to STR),77CM,100 OHM,RoHS
Air Shroud MCP-310-45801-0B 1 Black Plastic Motherboard Air Shroud for CSE-458G
Riser Card RSC-G-66G5S 2 1U LHS GPU Riser card with two PCI-E 5.0 X16 slots,HF,RoHS
Riser Card RSC-GR-66G5S 2 1U RHS GPU Riser card with two PCI-E 5.0 X16 slots,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P1043V 2 1U standard AMD CPU Heat Sink
*Power Supply PWS-3K06G-2R 4 AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A
*Power Distributor PDB-PT458G-48 1 Input 4 powers with 54V and 12V also 12Vsb pass through board
*Fan FAN-0219L4-1 5 80x80x80 mm, 14.2K-15K RPM Counter-rotating, Hot-swappable Fan
*Drive Tray(s) MCP-220-00167-0B 10 Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
*Rail Set MCP-290-00057-0N 1 Rail set, quick/quick, default for 4U 17.2" W
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
Part Number Qty Description
Extra 1U (for 5U w/AIOM or 5U PCI-E) MCP-460-45801-0N - 1U height module kit for CSE-458G
Required Kit for 5U w/AIOM AOM-AIOM-2X8-P 2 AIOM Board (cable solution)
CBL-PWEX-1099-34 1 FLAT,IDC 2X11F/P1.27 TO IDC 2X11F/P1.27,NCSI,0.5A,35CM
CBL-OTHR-1117 2 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin
CBL-SAST-1245LP-85 4 SlimSASLP (x8 STR to x8 STR),43CM,85 OHM
Required Kit for 5U PCI-E RSC-G-6G5 2 1U LHS GPU Riser card with one PCI-E 5.0 X16 slot
CBL-MCIO-1208L5-J 2 MCIO to SlimSASLP) x8,STR,8CM,G5,32AWG,85Ohm
CBL-MCIO-1208L5-X 2 (MCIO to SlimSASLP) x8,STR,8CM,G5,32AWG,85Ohm
CBL-PWEX-0973-30 2 (MicroFit 2x4 to MicroHi 2x2),PH3.0,30cm,9A/p,18AWG
MI250 GPU Kit GPU-AMDMI250-OAM-0029H 4 AMD Instinct MI250 OAM 64GBx2 530W HBM2e PCIe Gen5
CBL-PWEX-1280 2 Microfit,(2X5 to 2X5),PH3.0,53CM,54V,9A/pin,16AWG
CBL-MCIO-1278F1-85 2 MCIO X16,124p to 2 SlimSAS X8,78/78cm, FFC, 30AWG
CBL-MCIO-1278F2-85 2 MCIO X16,124p to 2 SlimSAS X8,78/78cm, FFC, 30AWG
CBL-MCIO-1278F3-85 2 MCIO X16,124p to 2 SlimSAS X8,78/78cm, FFC, 30AWG
CBL-MCIO-1278F4-85 2 MCIO X16,124p to 2 SlimSAS X8,78/78cm, FFC, 30AWG
MCP-310-45802-0B 1 Black 4pcs mylar airshroud kit for MI200 installion in CSE-458G
MCP-240-45801-0N 1 Metal stiffener bracket for MI200 UBB assembly
Global Services & Support OS4HR3/2/1
OSNBD3/2/1 		-
- 		3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
