MicroBlade Server System MBS-314E-6119M (Complete System Only)

  Products  MicroBlade   [ MBS-314E-6119M ]









Integrated Blade Module
MBI-6119M-T2N

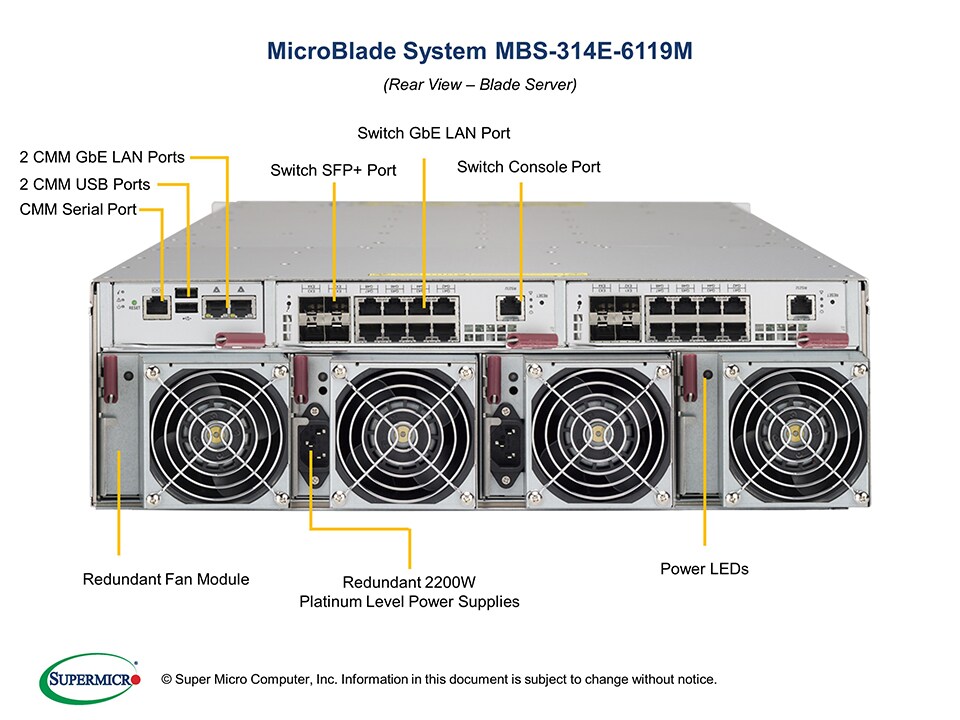

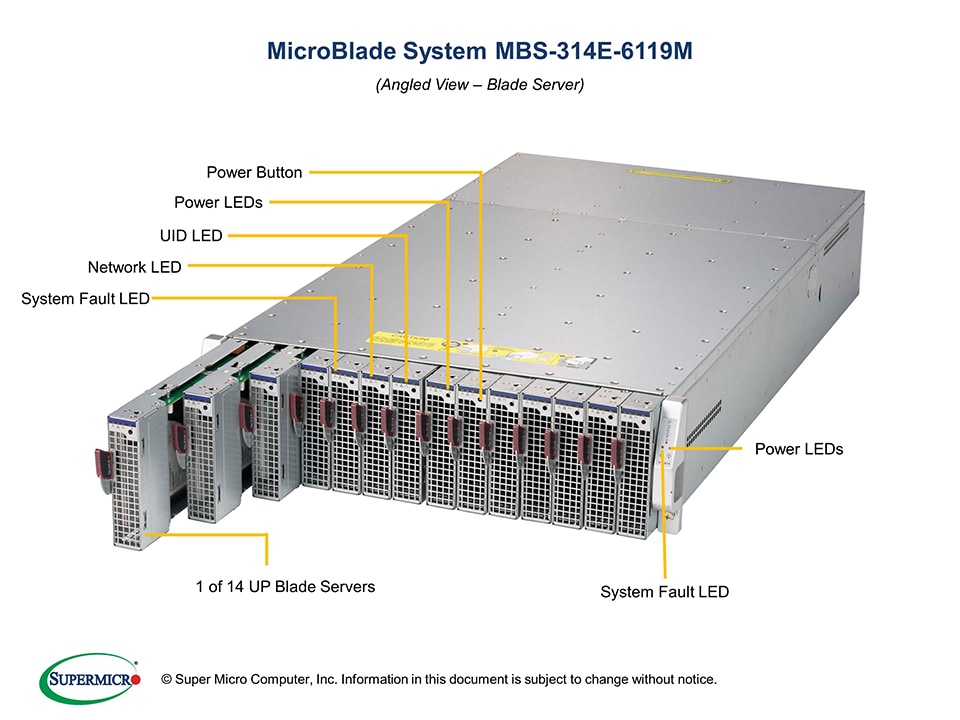

Views: | Angled View | Rear View |

| Angled Node View | Top Node View |





Key Applications
  - Cyber Security
  - Cloud Service - Dedicated Hosting
  - Cloud Service - Dynamic Front End Web
  - Visual & Audio - Media Delivery Transcoding
  - Semiconductor - RTL simulation


Key Features

1. 196 UP nodes per 42U Rack
2. 14 UP nodes in 3U
3. Per blade supports Intel® Xeon®

    processor E-2100, E-2200 series
4. Per blade support up to 128GB DDR4 memory
5. Per blade support up to 2.5" NVMe

    /SATA3 drives and M.2 SATA3/NVMe

    2280/22110 (M.2 key: M-Key)
6. Per System supports 1GbE LAN and

    two switch modules for redundancy
7. Per system supports Central Management Module
8. Front-loading nodes for easy and servicing
9. N+1 or N+N power redundancy with

    Titanium level efficiency (96%)
10. Vapor chamber heatsinks
11. Out of Band (OOB)

    software management licenses



Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 14 CPUs, 28 DIMMs).

 Drivers & Utilities  BIOS / IPMI  Manuals  Quick-References Guide  Tested Memory  Tested HDD  Tested NVMe  Tested M.2 List   OS Certification Matrix  Download Driver CD





Product SKUs
MicroBlade Server System
  • MBS-314E-6119M
MicroBlade Sled
Motherboard

Switch Module
MBM-GEM-004
  • Broadcom BCM56151 1GbE Switch
  • 4x 10Gbps SFP+ and 8x 1Gbps RJ45 uplinks
  • 40x 1Gbps downlinks
  • 1 Console port
Details

Central Management Module (CMM)
MBM-CMM-FIO
  • CMM with Front IO support
Details

Processor (per node)
CPU
  • Single Socket H4 (LGA 1151),

    CPU TDP support up to 95W
  • Support Intel® Xeon® processor E-2100 / E-2200 series
Cores
  • Up to 8 cores, 12 threads

System Memory (per node)
Memory Capacity
  • 4 DDR4 DIMM sockets
  • Supports up to 128GB DDR4 ECC VLP UDIMM
Memory Type
  • 2666MHz ECC DDR4 UDIMM
DIMM Sizes
  • 32GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors

      (using ECC memory)

On-Board Devices (per node)
Chipset
  • Intel® C246 chipset
Network Controllers
  • Dual 1GbE LAN ports
IPMI
  • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

System BIOS
BIOS Type
  • 128Mb Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • SMBIOS 2.7.1
Dimensions
Height
  • 5.215" (132.5mm)
Width
  • 17.67" (449mm)
Depth
  • 36.10" (917mm)
Weight
  • Gross Weight: 120.3 lbs (54.57 kg)
Available Color
  • Silver Grey

Front Panel
LEDs
  • Power LED
  • Fault LED
  • Network Activity LED
  • UID / KVM LED

Drive Bays (per node)
Internal
  • 2x 2.5" NVMe/SATA3 drives
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4
  • M.2 Form Factor: 2280/22110
  • M.2 Key: M-Key
Others
  • 1x SATA DOM

Input / Output
TPM
  • 1 TPM Header

Operating Environment / Compliance
Environmental Spec.
  • Operating Temperature:

       10°C to 38°C (50°F to 100.4°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)

Electromagnetic Compatibility (EMC)
United States / Canada
  • FCC- Emissions (US) Verification
Europe
  • EN55022 - Emissions
  • EN55024 - Immunity
  • EN61000-3-2 - Harmonics
  • EN61000-3-3 - Voltage Flicker
  • CE - EMC Directive 89/336/EEC
Parts List - (Items Included)
  Part Number Qty Description
Server Enclosure MBE-314E-222 1 [NR]Enterprise MicroBlade3U w/ 2x 2200W PSU
MicroBlade Sled MBI-6119M-T2N 14 Intel Coffee Lake E-2100 support up to 2x2.5 SATA/NVMe
Switch MBM-GEM-004 2 Broadcom 1G switch for Microblade with 10G and 1G uplinks
CMM MBM-CMM-FIO 1 MicroBlade Chassis Management Module with Front IO support
Heatsink / Retention SNK-P1040V 14 Low Profile CPU Heat Sink for MicroBlade Server
Software SFT-OOB-LIC 14 OOB Management Package (per node license)
Optional Parts List (per node)
  Part Number Qty Description
TPM security module

(optional, not included)
AOM-TPM-9670V
AOM-TPM-9671V
1 TPM module (Vertical) TPM 2.0
TPM module (Vertical) TPM 1.2.
SATA DOM MEM-IDSAHM3A-016G

MEM-IDSAHM3A-032G

MEM-IDSAHM3A-064G

MEM-IDSAHM3A-128G
1 SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal

SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal

SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal

SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
