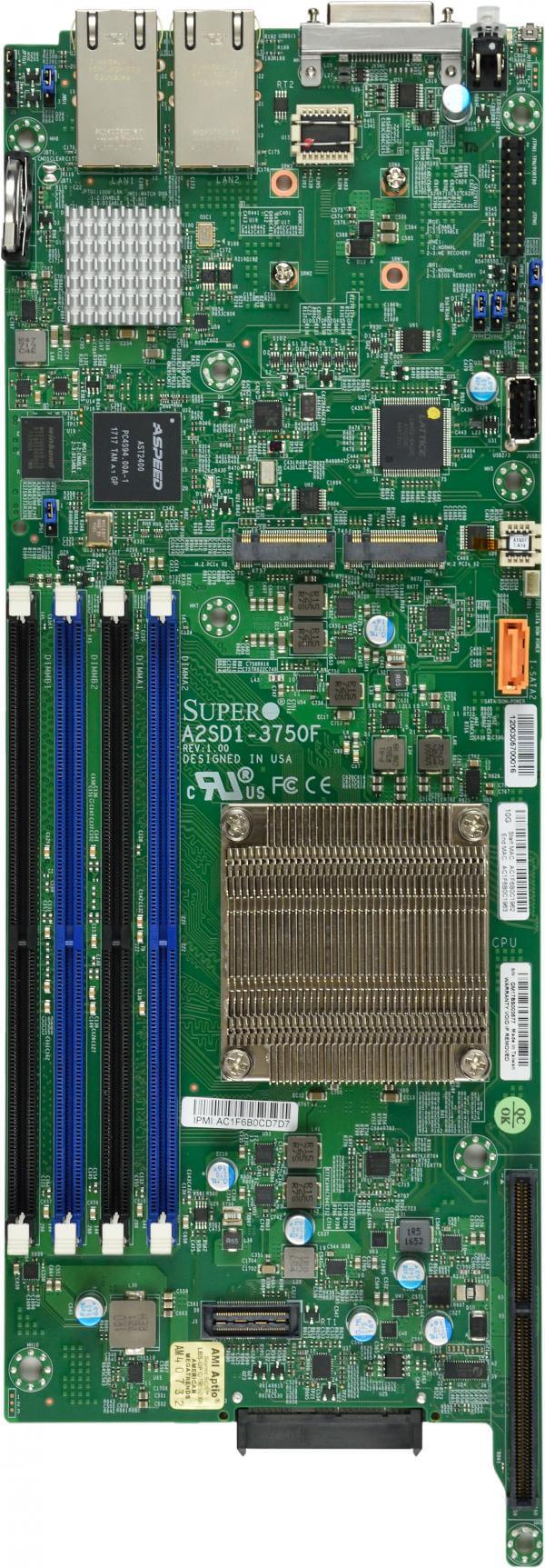

A2SD1-3955F

MicroCloud

Key Features


  1. Intel® Atom® Processor C3955.
    Single Socket FCBGA-1310 supported, CPU TDP support Up to 32W TDP
  2. Dual LAN with Intel® C3000 SoC
  3. , DDR4-2400MHz, DDR4-2400MHzUp to , in 4 DIMM slotsUp to 128GB Registered ECC VLP RDIMM, DDR4-2400MHz;
    _x000D_ Up to 128GB Unbuffered ECC/non-ECC VLP UDIMM, DDR4-2400MHz, in 4 DIMM slots

  4. M.2 Interface: 2 SATA/PCI-E 3.0 x2
    M.2 Form Factor: 2260/2280
    M.2 Key: M-Key,
    2 PCI-E 3.0 NVMe x4 Internal Port(s)
  5. SoC controller for 4 SATA3 (6 Gbps) ports;
  6. 1 VGA port
  7. System on Chip



Resources
Specifications
Product SKUs
MBD-A2SD1-3955F
  • A2SD1-3955F

Physical Stats
Form Factor
  • Proprietary
Dimension
  • 4.6" x 11.7" (11.68cm x 29.72cm)

Processor
CPU
  • Intel® Atom® Processor C3955
  • Single Socket FCBGA-1310 supported, CPU TDP supports Up to 32W TDP
Core
  • Up to 16 cores, 16 threads / 16MB Cache

System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB ECC Registered RDIMM, DDR4-2400MHz; Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz
  • Up to 128GB Registered ECC VLP RDIMM, DDR4-2400MHz Up to 128GB Unbuffered ECC/non-ECC VLP UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type
  • 2400/2133/1866/1600MHz ECC/non-ECC DDR4 RDIMM Unbuffered and /
DIMM Sizes
  • 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
  • 1.35V

On-Board Devices
Chipset
  • System on Chip
SATA
  • SoC controller for 4 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2400 BMC
Graphics
  • ASPEED AST2400 BMC
Network Controllers
  • Dual LAN with Intel® C3000 SoC

Input / Output
LAN
  • 2 RJ45 10GBase-T ports
USB
  • 1 USB 2.0 port(s) (1 Type A)
Video Output
  • 1 VGA port(s)
DOM
  • 1 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • N/A
M.2
  • M.2 Interface: 2 SATA/PCI-E 3.0 x2
  • Form Factor: 2260/2280
  • Key: M-Key

System BIOS
BIOS Type
  • 128MB SPI Flash EEPROM with AMI BIOS

Management
Software

PC Health Monitoring
Voltage
  • VBAT, Memory, HT, +5V standby, +5V, +3.3V, +12V, +1.8V
Temperature
  • CPU thermal trip support
Other Features
  • UID
  • RoHS

Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-A2SD1-3955F 1 A2SD1-3955F Motherboard
Server (Optimized for A2SD1-3955F)
Server Name
SYS-5039MA16-H12RFT
A2SD1-3955F (For SuperServer Only)
