SuperServer 5039MA16-H12RFT

  Products  Systems   MicroCloud   [ 5039MA16-H12RFT ]





Integrated Board
Super A2SD1-3955F

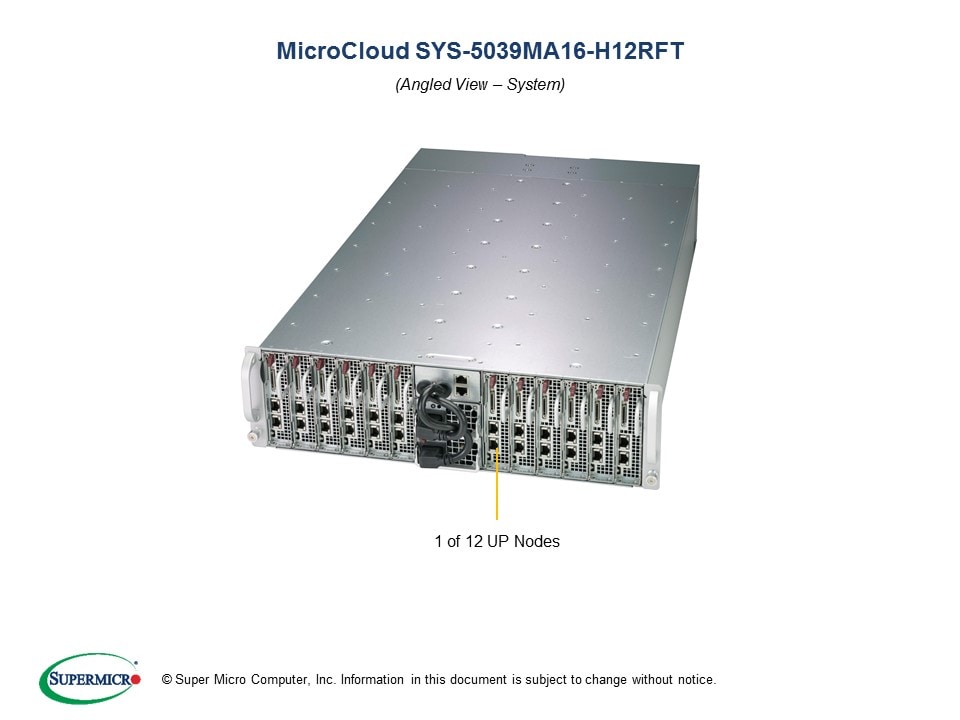

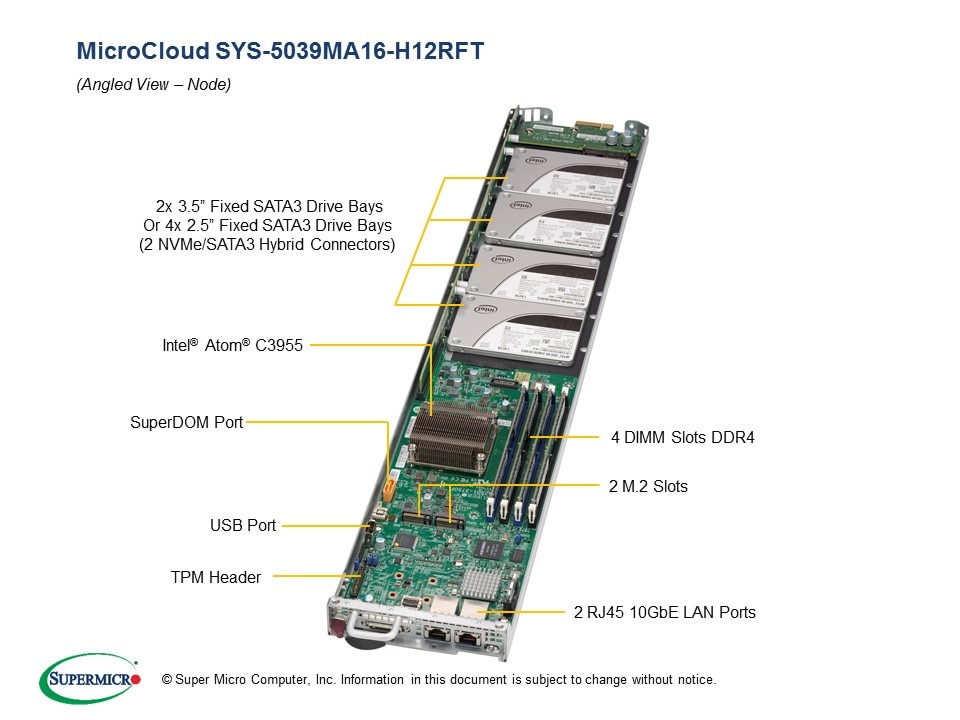

Views: | Angled View | Node View |

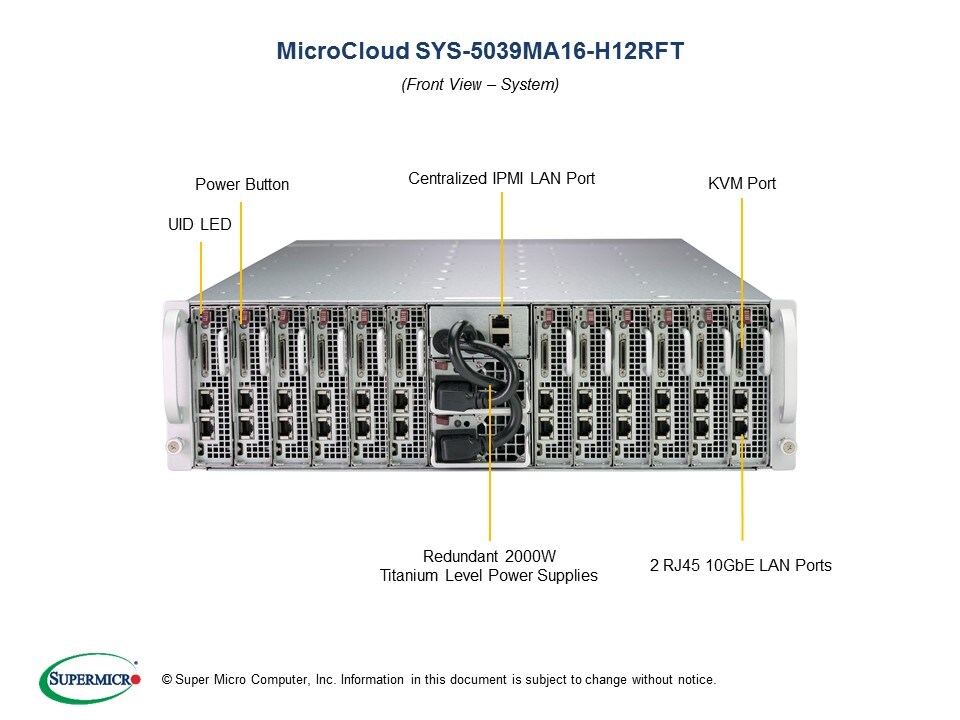

| Front View | Rear View |

 Key Features (per node)
• Cloud Computing
• Web Cache
• Web Hosting, VM
• Social Networking
• Corporate-WINS, DNS, Print, Login
1. Single socket FCBGA1310 supports
    Intel® Atom® Processor C3955,
    CPU TDP support 32W
2. 2x 3.5" SATA3 or 4x 2.5" SATA3 or
    2x 2.5" NVME + 2x 2.5" SATA3 or
    2x 2.5" NVME + 1x 3.5" SATA3
3. Up to 128GB DDR4 VLP ECC RDIMM or
    64GB ECC UDIMM, 2400MHz support
    in 4 slots
4. 2x 10GBase-T LAN ports via C3000 SoC
5. 4 heavy duty 9cm hot-swap fans with
    optimal cooling zone (per system)
6. 2000W Redundant power supplies
    Titanium Level Certified (per system)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Drive Options

Product SKUs
SuperServer
  • SYS-5039MA16-H12RFT (Black)

Motherboard
Super A2SD1-3955F

Processor/Cache
CPU
  • Intel® Atom® Processor C3955
  • Single Socket FCBGA1310 supported, CPU TDP support 32W
Cores / Cache
  • 16 cores, 16 threads / 16MB cache

System Memory (per node)
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 128GB DDR4 VLP Registered ECC memory (RDIMM) in 4 DIMM slots
  • Up to 64GB DDR4 VLP ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
Memory Type
  • 2400MHz/2133MHz ECC DDR4 (VLP) SDRAM 72-bit, 288-pin gold-plated UDIMMs
DIMM Sizes
  • 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V, 1.35V

On-Board Devices (per node)
Chipset
  • Intel® C3000 chipset
SATA
  • SATA3 (6Gbps) via SoC
Graphics
  • ASPEED AST2400 BMC

Input / Output (per node)
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
Video
  • 1 VGA port

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS

Front Window (each node)
Switch
  • Power / UID
Chassis
Form Factor
  • 3U
Model
  • CSE-939HE-R2K04BP

Dimensions and Weight
Height
  • 5.21" (132.5 mm)
Width
  • 17.5" (444.5 mm)
Depth
  • 29.5" (749.3 mm)
Package
  • 16.1" (H) x 28.35" (W) x 42.36" (D)
Weight
  • Net Weight: 95lbs (43.09kg)
  • Net Weight w/ 2.5" HDDs: 115lbs (52.16kg)
  • Net Weight w/ 3.5" HDDs: 132lbs (59.87kg)
  • Gross Weight: 125lbs (56.70kg)
Color
  • Black

Drive Bays (per node)
Internal
  • 2x 3.5" SATA3 OR 4x 2.5" SATA3 HDDs OR 2x 2.5" NVMe + 2x 3.5" SATA3 OR 2x 2.5" NVMe + 1x 3.5" SATA3; up to 48x 2.5" drives total
  • Enterprise SATA HDD only recommended

System Cooling
Fans
  • 4 Heavy duty 9cm fans with optimal cooling zone

Power Supply (76mm Width)
2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow
Total Output Power
  • 1000W: 100 – 127Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
  • Max: 150A / Min: 0A (200Vac-220Vac)
  • Max: 165A / Min: 0A (220Vac-230Vac)
  • Max: 166.7A / Min: 0A (230Vac-240Vac)
  • Max: 166.7A / Min: 0A (200-240 Vac)
    (UL/cUL only)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level96%    Titanium Level
    [ Test Report ]

PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, HT, Memory, VBAT
Temperature
  • CPU thermal trip support
Other Features
  • RoHS, UID

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-A2SD1-3955F
CSE-939HE-R2K04BP 		12
1		 Super A2SD1-3955F Motherboard
3U Chassis
Add-on Card / Module AOM-BPN-MC12S-P 12 AOM-BPN-MC12S
Add-on Card / Module AOM-GEM-001-P 1 [NR]AOM-GEM-001-O-P
Add-on Card / Module AOM-LAN-MC12S-P 1 [NR]AOM-LAN-MC12S-P
Add-on Card / Module AOM-PDB-MC12S-P 12 AOM-PDB-MC12S
Backplane BPN-SAS-939HS 1 12-port 3U (CSE-939HS) 12-node MicroCloud hot swappable midplane
Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Cable 2 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Rail set MCP-290-41803-0N 1 set Rail set support 28.5" to 33.7" depth rail,RoHS/REACH,PBF
Power Supply PWS-2K04F-1R 2 AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, 360x76x40 mm,HF,RoHS/REACH


Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
