SuperServer 1018R-WR

  Products  Systems   WIO   [ 1018R-WR ]

SYS-1018R-WR



Integrated Board
Super X10SRW-F

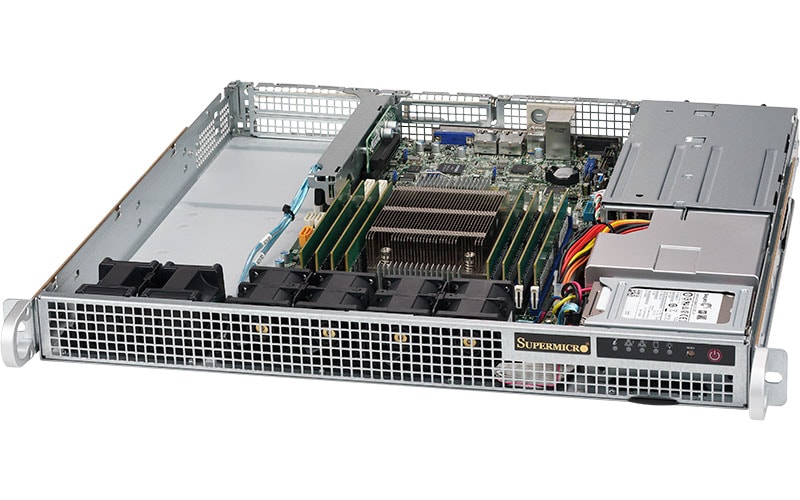

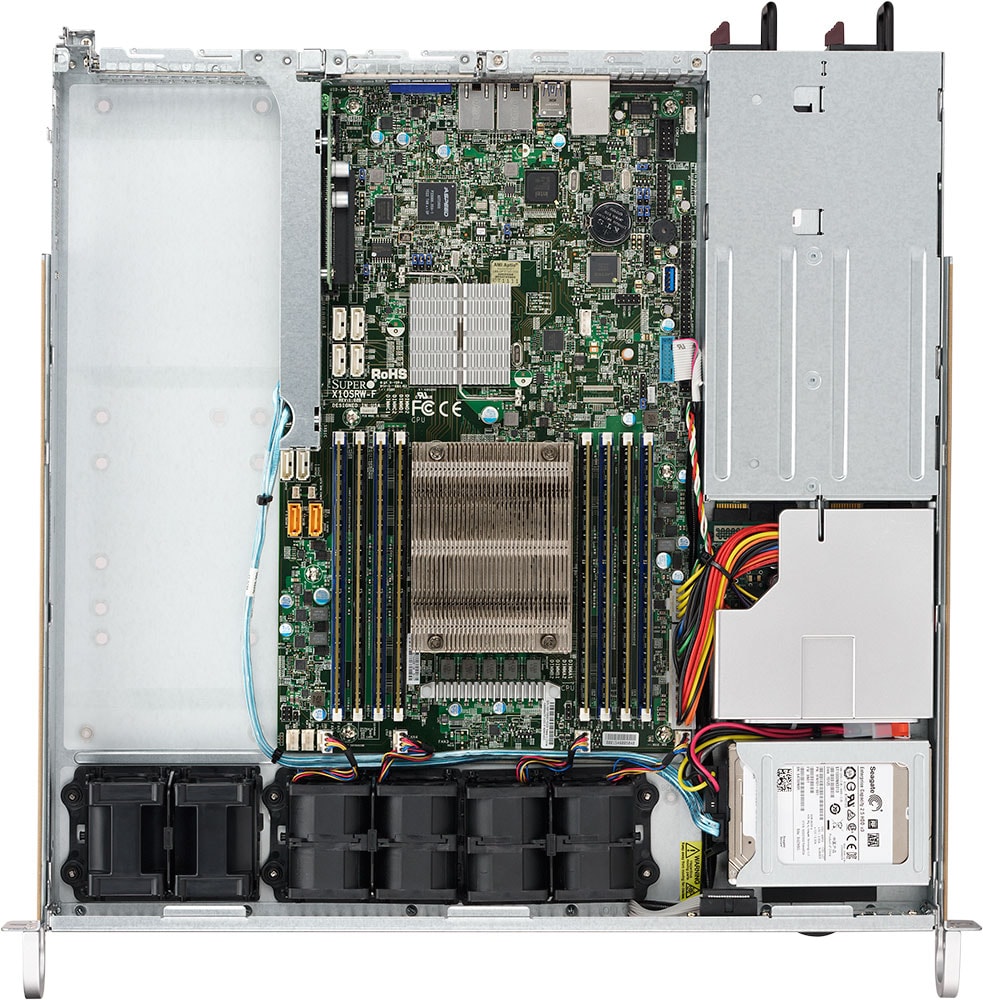

Views: | Angled View | Top View |
| Front View | Rear View |


Key Features
• Appliance Server, WIO
• Embedded Applications

1. Single socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 and E5-1600 v4/ v3 family
2. Up to 1TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 8x DIMM slots
3. 2x PCI-E 3.0 x16 Left Riser slot;
    1x PCI-E 3.0 x8 LP slot
4. Intel® i350-AM2 Dual port GbE LAN
5. Integrated IPMI 2.0 and KVM with
    Dedicated LAN
6. 2x 2.5" fixed drive bays
7. 400W Redundant Power Supplies
    Platinum Level Certified


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals   Quick-References Guide  Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-1018R-WR
  • SuperServer 1018R-WR (Black)

Motherboard

Super X10SRW-F

Processor
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3, E5-1600 v4/ v3 family (up to 145W TDP **)
  • Single Socket R3 (LGA 2011)
Core / Cache
  • Up to 22 Cores / Up to 55MB Cache
Note BIOS version 2.0 or above is required
Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC 3DS LRDIMM
  • Up to 512GB ECC LRDIMM
  • Up to 256GB ECC RDIMM
Memory Type
  • 2400/ 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs
DIMM Sizes
  • 3DS LRDIMM: 128GB
  • LRDIMM: 64GB, 32GB
  • RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) via C612 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC with 10/100/1000Mbps
Network Controllers
  • Intel® i350-AM2 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 10x SATA3 (6Gbps) ports
  • SATA DOM Power Connector
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (rear)
  • 2x USB 2.0 ports (rear)
  • 2x USB 3.0 ports (front)
VGA
  • 1x VGA port
Serial Port / Header
  • 2x COM ports (1 rear, 1 header)
DOM
  • 2x SuperDOM (Disk on Module) ports

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • 6x 4-pin fan headers
  • 4x fans w/ tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU & chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • System Information LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 16.9" (429mm)
Package
  • 23.8" (W) x 8" (H) x 27" (L)
Weight
  • Gross Weight: 27 lbs (12.25 kg)
  • Net Weight: 15.5 lbs (7.03 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Information LED

Expansion Slots
PCI-Express
  • Left Riser: 2x PCI-E 3.0 x16 slots
  • 1x PCI-E 3.0 x8 LP slot

Drive Bays
Internal
  • 2x 2.5" fixed drive bays

System Cooling
Fans
  • 4x 40x56mm PWM Cooling Fans
  • 2x Optional fans for AOC cooling

AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power
  • 400W
Dimension
(W x H x L)
  • 54.5 x 40 x 220 mm
Input
  • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
  • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V
  • Max: 33A / Min: 0.5A
+5V sb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
Certification Platinum Level Certified
Platinum Level Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup

Management
Software
  • IPMI (Intelligent Platform Management Interface) v2.0 with KVM support
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI / ACPM Power Management
  • Main Switch Override Mechanism
  • Power-on mode for AC power recovery
  • Internal/External modem ring-on

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10SRW-F
CSE-514-R407W
1
1
Super X10SRW-F Motherboard
1U Chassis
Air Shroud MCP-310-19007-0N 1 SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
Cable 1 CBL-0082L 1 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
Cable 2 CBL-0227L 1 SATA,INT,ROUND,ST-RA,48CM,26AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1879-QRG 1 X10SRW-F, CSE-514-R407W
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Heatsink / Retention SNK-P0047PS 1 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-407P-1R 2 AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
Fan FAN-0156L4 or
FAN-0086L4
4 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M
Optional Parts List

Part Number
Qty
Description
SATA Cable for 2nd HDD CBL-0227L 1 48cm 30AWG SATA straight to RA cable
GPU Optional Parts FAN-0141L4
CBL-0424L
CBL-0296L
1
1
1
40x40x56mm 20.5K RPM, Counter-rotation fan
8 pin to Daul 6+2 pin GPU power extenstion, 40cm
4pin to 4pin fan extension cord for PWM fan 23cm
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-STGN-i2S
AOC-STGF-i2S
AOC-STG-B4S
AOC-STGS-i2T
-
-
-
-
-
-
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
TPM security module AOM-TPM-9665V
AOM-TPM-9655V
1
1
TPM 2.0, vertical form factor
TPM 1.2, vertical form factor
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
