SuperServer 1028R-WMRT
Products
Systems
WIO
[
1028R-WMRT
]
Integrated Board
Super X10DRW-ET
Views: |
Angled View
|

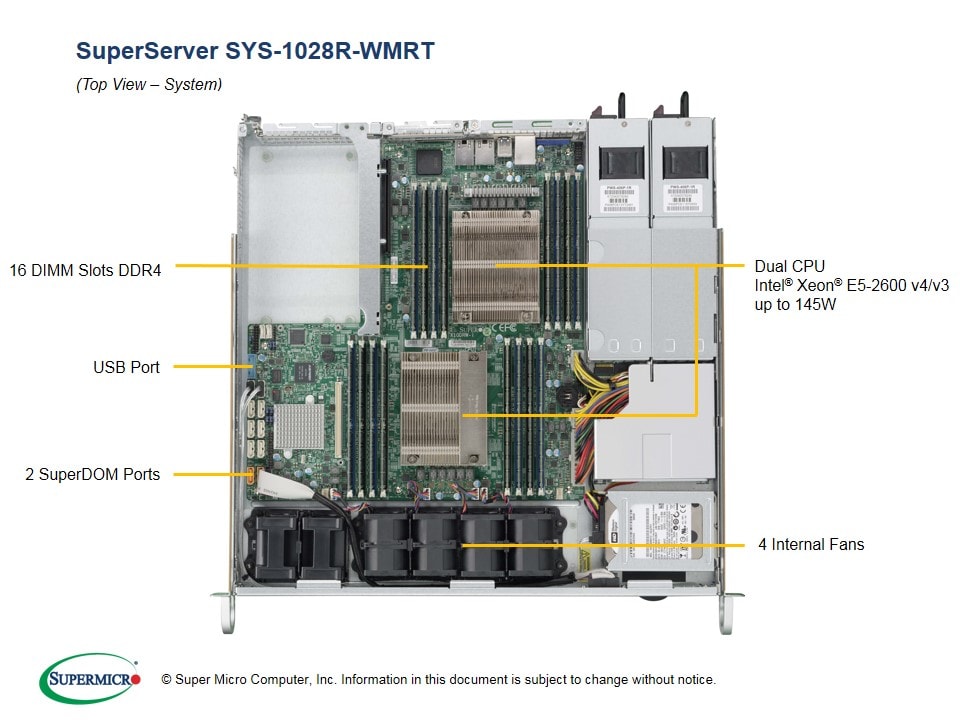

Top View
|
|

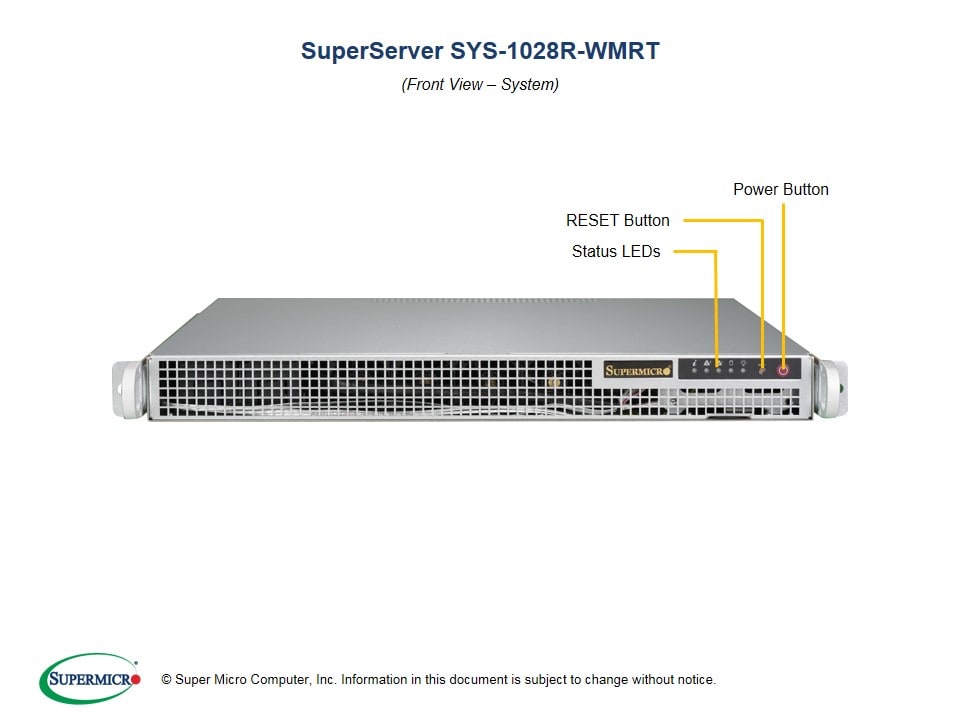

Front View
|

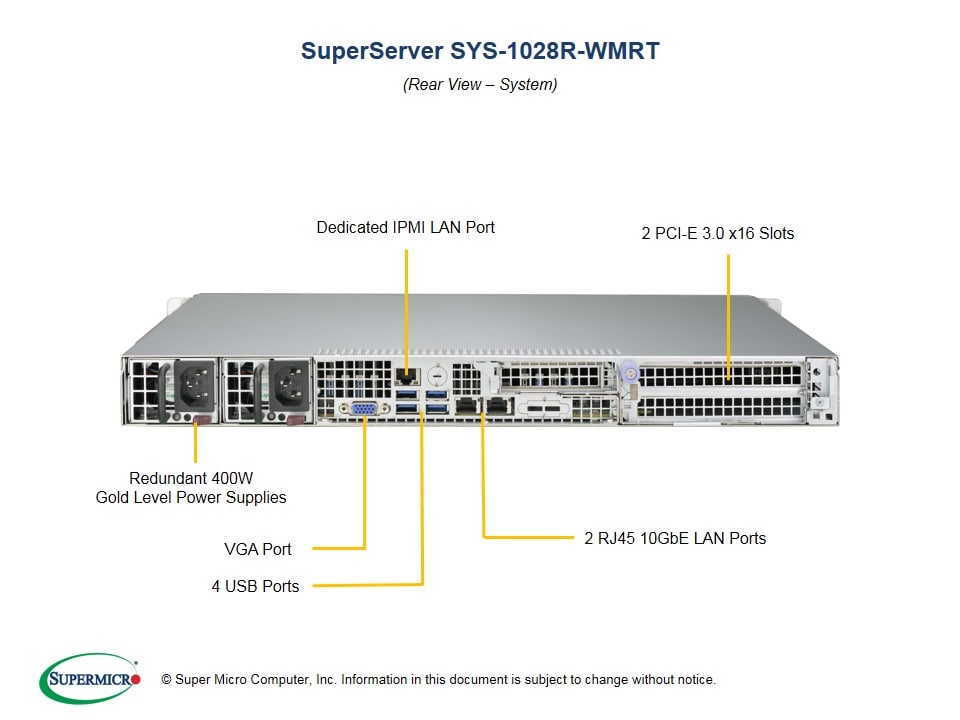

Rear View
|
Key Features
Short Depth 16.9", WIO
1. Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600
v4
†
/ v3 family; QPI up to 9.6GT/s
2. Up to
2TB
†
ECC 3DS LRDIMM , up to
DDR4-
2400
†
MHz ; 16x DIMM slots
3. 2x PCI-E 3.0 x16 (FHHL) slots
4. 2x 2.5" Fixed drive bays w/ bracket
5. Intel® X540 Dual port 10GBase-T
6. Integrated IPMI 2.0 and KVM with
Dedicated LAN
7. I/O ports: 2x SuperDOM, 1x VGA,
1x COM, 2x USB 3.0, 4x USB 2.0
8. 400W Redundant Power Supplies
Gold Level
; BBP option
Drivers & Utilities
BIOS
IPMI
Tested Memory
Manuals
OS Certification Matrix
Quick-References Guide
Drive Options
Network Card (AOC) Matrix
Product SKUs
SYS-1028R-WMRT
SuperServer 1028R-WMRT
Motherboard
Super X10DRW-ET
Processor/Cache
CPU
Intel® Xeon® processor E5-2600
v4
†
/ v3 family (up to 145W TDP)
*
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to
22 Cores
†
/ Up to
55MB
†
Cache
System Bus
QPI up to 9.6 GT/s
Note
†
BIOS version 2.0 or above is required
Note
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
16x 288-pin DDR4 DIMM slots
Up to 2TB
†
ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
2400
†
/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
3DS LRDIMM: 128GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel® C612 chipset
SATA
SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel® X540 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Video
ASPEED AST2400 BMC
Input / Output
Serial ATA
10x SATA3 (6Gbps) ports
LAN
2x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port
USB
2x USB 3.0 ports (via header)
4x USB 2.0 ports (rear)
VGA
1x VGA port
Serial Port / Header
1x Header
Chassis
Form Factor
1U Rackmount
Model
CSE-514-R400W
Dimensions
Height
1.7" (43mm)
Width
17.2" (437mm)
Depth
16.9" (429mm)
Weight
Net Weight: 16.5 lbs (7.48 kg)
Gross Weight: 27 lbs (12.25 kg)
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Expansion Slots
PCI-Express
2x PCI-E 3.0 x16 Full-height, Half-length slots
Drive Bays
Internal
2x 2.5" Fixed drive bays with bracket
System Cooling
Fans
4x 40x56mm PWM fan; 2x fans for AOC cooling
Power Supply
400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I
2
C, and PFC
AC Input
100-240V, 50-60Hz, 6-3A
DC Output
+5V standby: 3A
+12V: 33A
DC Output
With Power Distributor
+5V: 25A
+3.3V: 25A
-12V: 0.6A
Certification
Gold Certified
System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)
Part Number
Qty
Description
Motherboard / Chassis
MBD-X10DRW-ET
CSE-514-R400W
1
1
Super X10DRW-ET Motherboard
1U Chassis
Cable 1
CBL-0484L
2
SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2
CBL-0082L
1
Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
Label
LBL-0108
1
CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual
MNL-1723-QRG
1
QRG for 1028R-WMR(T),HF,RoHS/REACH
Riser Card
RSC-R1UW-2E16
1
1U LHS WIO Riser card with two PCI-E x16 slots
Heatsink / Retention
SNK-P0047PSC
1
1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
Heatsink / Retention
SNK-P0057PS
1
1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply
PWS-407P-1R
2
AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
Optional Parts List
Part Number
Qty
Description
AOC Fans
FAN-0156L4
2
40x40x56 mm 13K-11K RPM Counter-rotating Fan
Global Services & Support
OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software
SFT-OOB-LIC
•
1
OOB Management Package (per node license)
Software
SFT-DCMS-Single
1
DataCenter Management Package (per node license)
Hide Parts List
Terms & Conditions
|
Privacy
|
Investor Relations
|
Jobs
|
Site Map
SuperServer®
|
Motherboard
|
Chassis
|
Rack Cabinet
|
SuperBlade®
|
Embedded
|
Networking
|
Storage
|
Accessories
|
AMD Solution
|
Power Supplies
Copyright © 2019 Super Micro Computer, Inc.
Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
Breadcrumb
Home
»
Global SKU
Select your language
English
繁體中文
簡体中文
日本語
