SuperServer 1028R-WTNR

  Products  Systems   WIO   [ 1028R-WTNR ]




Integrated Board
Super X10DRW-N

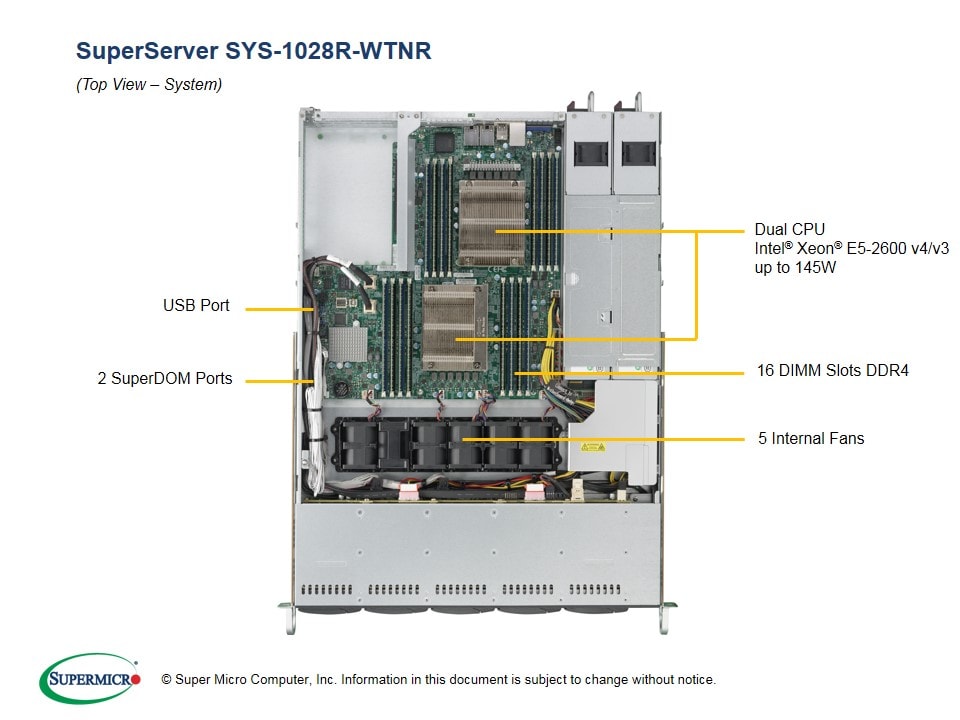

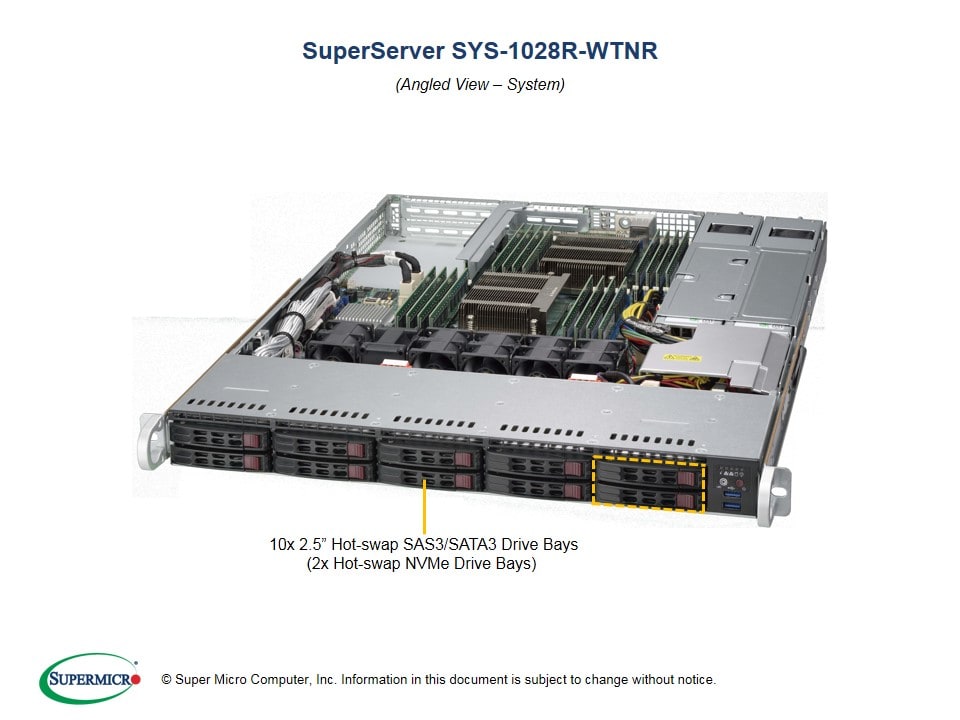

Views: | Angled View | Top View |

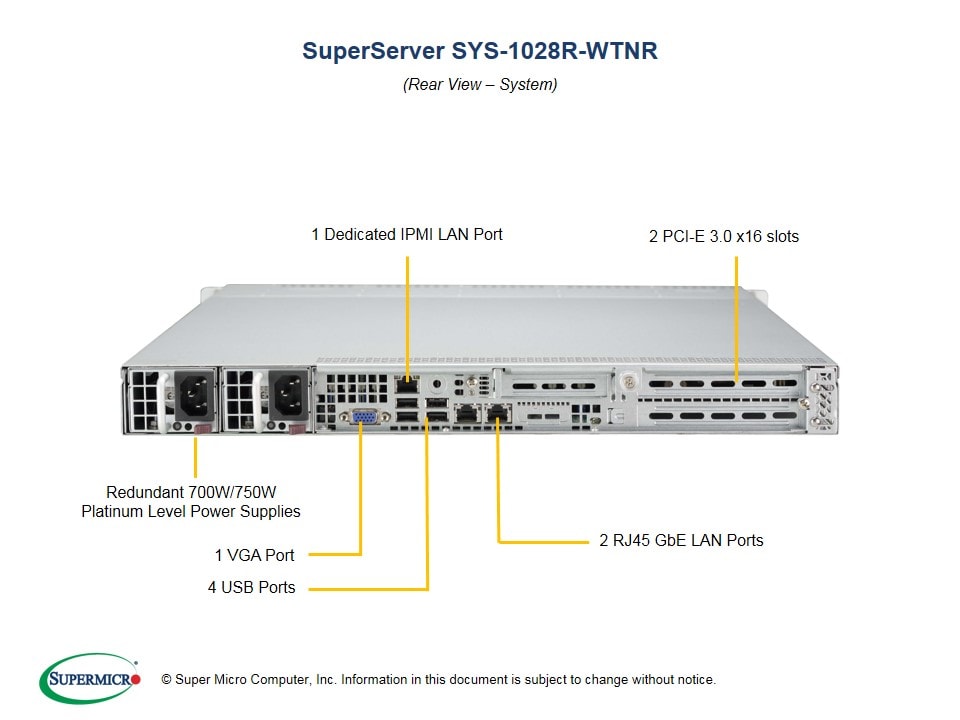

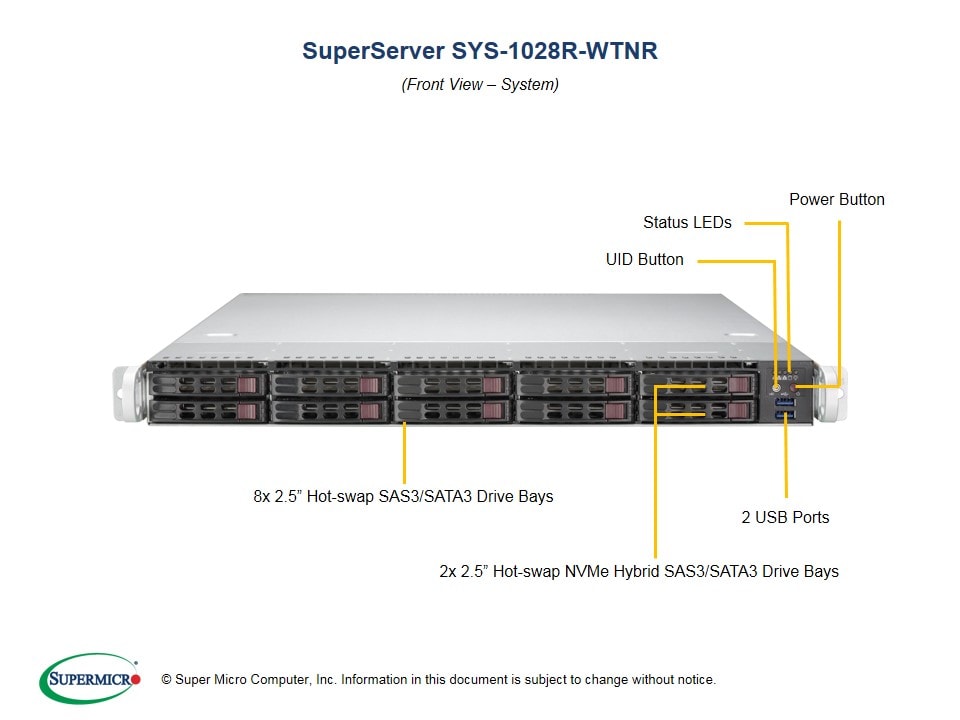

| Front View | Rear View |

 Key Features
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 16x DIMM slots
3. 2 PCI-E 3.0 x16 (FHHL) slots
4. 10 Hot-swap 2.5" SAS/SATA HDD
    bays (default 8 SATA3, 2 NVMe or SATA2)
5. Intel® i350-AM2 Dual port GbE LAN
6. I/O ports: 2 SuperDOM, 1 VGA,
    1 COM, 2 USB 3.0 (front),
    4 USB 2.0 (rear)
7. 2 SuperDOM (Disk on Module) ports
8. 700W Redundant Power Supplies
    Platinum Level High-efficiency

 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-1028R-WTNR
  • SuperServer 1028R-WTNR (Black)

Motherboard

Super X10DRW-N

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet Controller
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video
  • ASPEED AST2400 BMC

Input / Output
Serial ATA
  • 8 SATA3 (6 Gbps) ports and 2 NVMe/SATA3 hybrid ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (front via header)
  • 4x USB 2.0 ports (rear)
Video
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 header
DOM
  • 2x SuperDOM (Disk on Module) ports

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • 6x fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • System Information LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 23.5" (597mm)
Gross Weight
  • 46 lbs (20.9kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 full-height, half-length slots

Drive Bays
Hot-swap
  • 8x SATA3 (6Gbps) ports and 2x NVMe/SATA3 hybrid ports (connected to onboard storage controller)

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans
  • 5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control

AC/DC240V Input Redundant Power Supply
700W/750W Redundant Power Supplies with PMBus
Total Output Power
  • 700W/750W
Dimension
(W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100 - 140Vac / 8 - 6A / 50-60Hz
  • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
  • 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V
  • Max: 58A / Min: 0.5A (100 - 140Vac)
  • Max: 62A / Min: 0.5A (200 - 240Vac)
  • Max: 62A / Min: 0.5A (200 - 240Vdc)
    (CB/CCC Only)
+5V sb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
Certification Platinum Level Certified
  Platinum Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Management
Software
Power Configurations
  • ACPI / APM Power Management
  • Power-on mode for AC power recovery

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X10DRW-N
CSE-116AC2-R706WB		 1
1		 Super X10DRW-N Motherboard
1U Chassis
Backplane BPN-SAS3-116A-N2 1 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-0484L 2 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2 CBL-SAST-0590 2 MINI SAS HD,INT,PCIe NVMe SSD, 70CM,30AWG
Cable 3 CBL-SAST-0631 2 MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,55CM,55CM SB,30AWG
Cable 4 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
Drive Tray(s) MCP-220-00127-0B 2 Black gen-3 2.5 NVMe drive tray, Orange tab with lock (for hotswap NVMe drive),HF,RoHS/REACH
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1724-QRG 1 QRG for 1028R-WTNR(T),HF
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Heatsink / Retention SNK-P0047PSC 1 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
Heatsink / Retention SNK-P0057PS 1 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-706P-1R 2 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
Fan FAN-0101L4 5 40x56, 4 Pin PWM
Rail Set MCP-290-00063-0N 1 set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
Optional Parts List
  Part Number Qty Description
NVMe Drive Tray with Lock MCP-220-00127-0B -
 Black gen-3 2.5" NVMe drive tray (Orange tab. PUSH button with key lock)
CacheVault(s) BTR-CV3108-1U1

BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N		 1
-

-
 CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location
SuperCap for
AOC-S2208L-H8IR		 BTR-0024LH-LSI00297 & BKT-BBU-BRACKET-05
BTR-0024LH-LSI00297 & MCP-240-00127-0N		 -
-
 SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for PCI-E location
SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for 2.5" HDD location
Storage Controller
Card(s) & Cables(s)		 AOC-S3108L-H8IR-16DD
& 2x CBL-SAST-0531
AOC-S3008L-L8i &
2x CBL-SAST-0531
AOC-S3008L-L8e &
2x CBL-SAST-0531
AOC-S2308L-L8e &
2x CBL-SAST-0507-01
AOC-S2308L-L8i &
2x CBL-SAST-0507-01
AOC-S2208L-H8iR &
2x CBL-SAST-0507-01 		- Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;
RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10
Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;
HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 122HDD;
HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10
Standard LP, 8 internal ports (6Gb/s) Gen-3, 240HDD;
RAID 0, 1, 5, 6, 10, 50, 60
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-SG-i2
AOC-SG-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STG-i2T
AOC-STG-i2 		- Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB
Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB
Front Bezel MCP-210-11601-0B 1 Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support)
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
