| SYS-1028TP-DC0FR |
- SuperServer 1028TP-DC0FR (Black)
|
|
|
CPU |
- Intel® Xeon® processor E5-2600
v4†/
v3 family
(up to 145W TDP)
*
- Dual Socket R3 (LGA 2011)
|
Cores / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
System Bus |
|
Note |
† BIOS version 2.0 or above is required |
Note |
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
|
|
|
Memory Capacity |

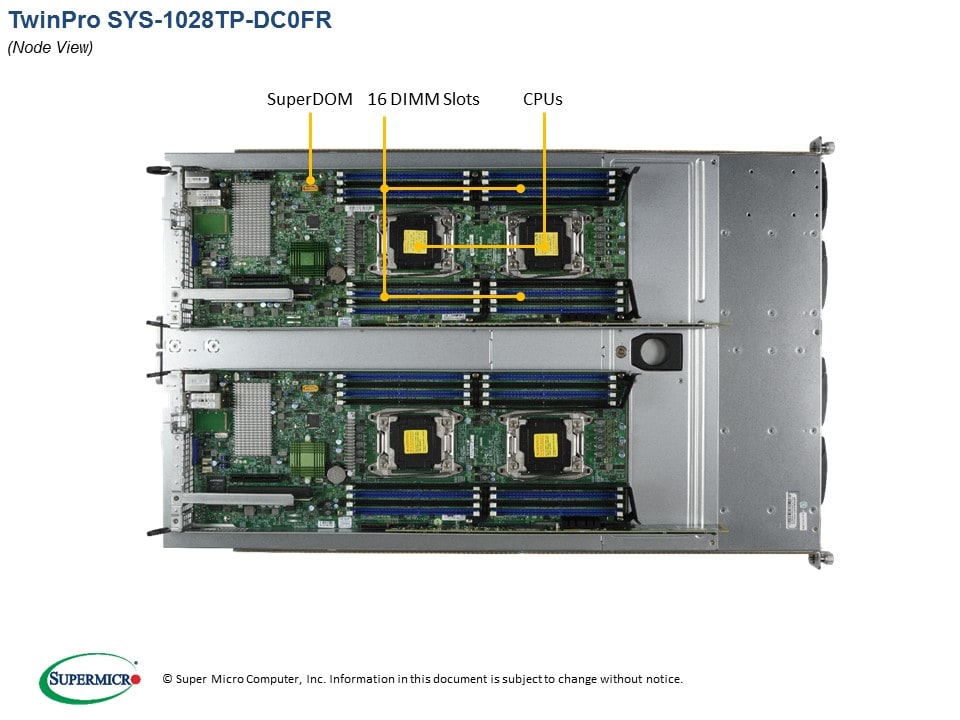

- 16x 288-pin DDR4 DIMM slots
- Up to 2TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
|
Memory Type |
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
|
DIMM Sizes |
- RDIMM:
64GB, 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
|
Memory Voltage |
|
Error Detection |
- Corrects single-bit errors
|
|
|
Chipset |
|
Infiniband |
- Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller
|
SAS |
- Broadcom 3008 SAS3 (12Gbps) controller;
SW RAID 0, 1, 10 support
|
IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
Network Controllers |
- Intel® i350 Dual Port Gigabit Ethernet
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- 1x Realtek RTL8201N PHY (dedicated IPMI)
|
Graphics |
|
|
|
SAS |
|
LAN |

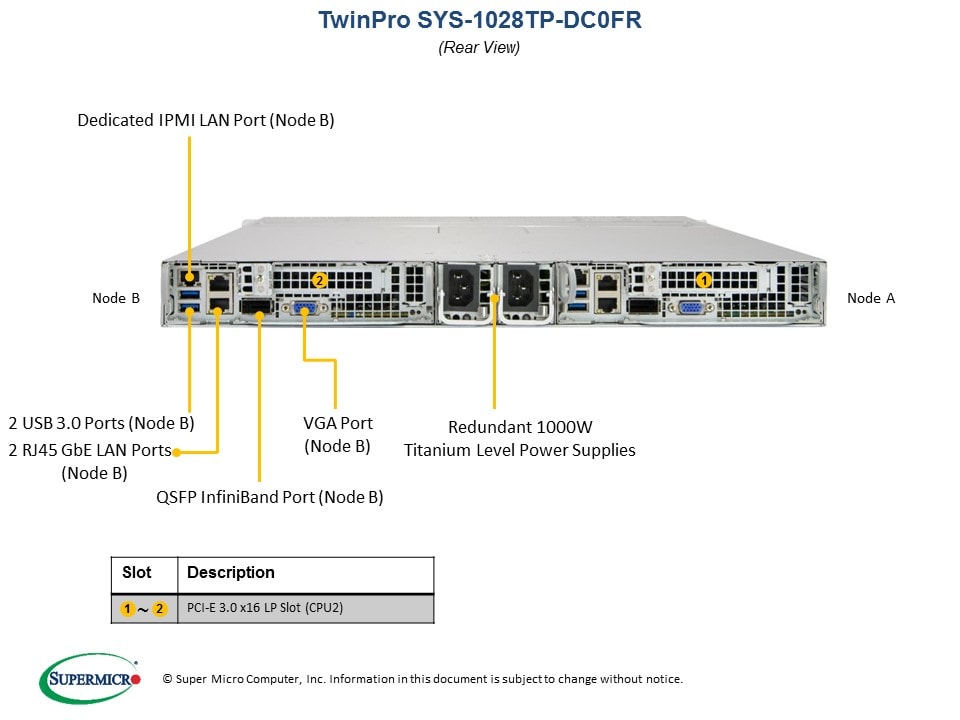

- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
Infiniband |
- 1x external QSFP Infiniband connector
|
USB |
|
VGA |
|
Serial Port / Header |
- 1x Fast UART 16550 port / 1 Header (internal)
|
Others |
- 1x SATADOM support on the motherboard
|
|
|
| |
| Form Factor |
|
Model |
|
| |
| Width |
|
Height |
|
Depth |
|
Weight |
- Gross Weight: 48.1 lbs (21.9 kg)
- Net Weight: 33.5 lbs (15.2 kg)
|
Package (HxWxD) |
- 8" (203mm) x 29.6" (752mm) x 38.4" (975mm)
|
Available Colors |
|
| |
| Buttons |
- Power On/Off button
- UID button/LED
|
LEDs |
- Power status LED
- Network activity LED
- Universal Information (UID) LED
|
|
|
PCI-Express |
- 1x PCI-E 3.0 x16 Low-profile slot
|
0 Slot |
|
| |
| Hot-swap |

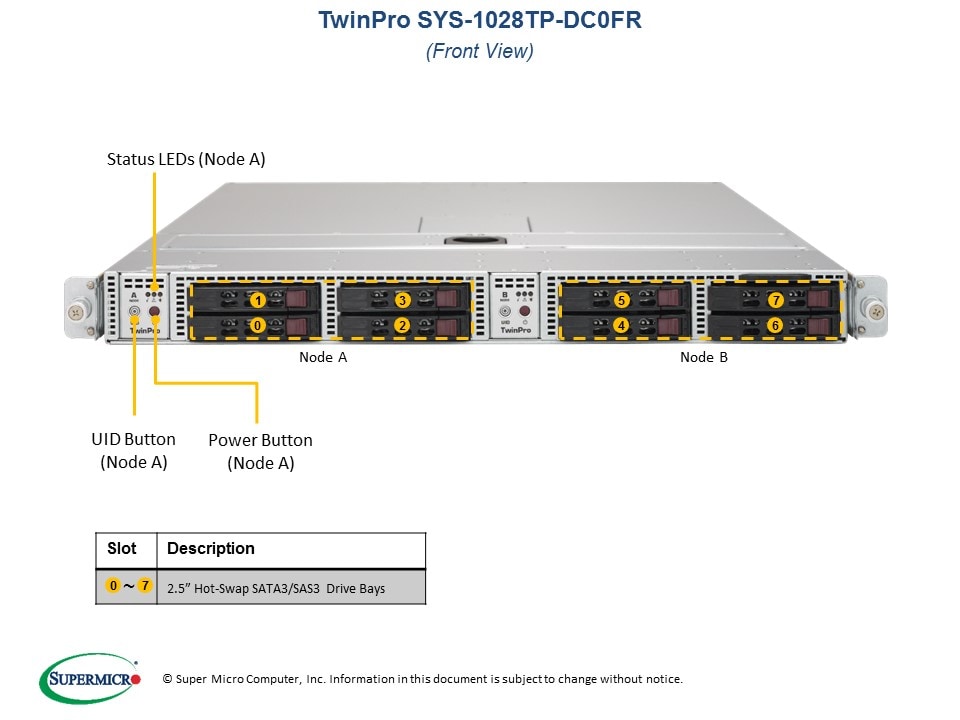

- 4x 2.5" Hot-swap SAS3 drive bays
|
| |
| Fans |
- 3x heavy duty counter rotating fans with air shroud and optimal fan speed control
|
| |

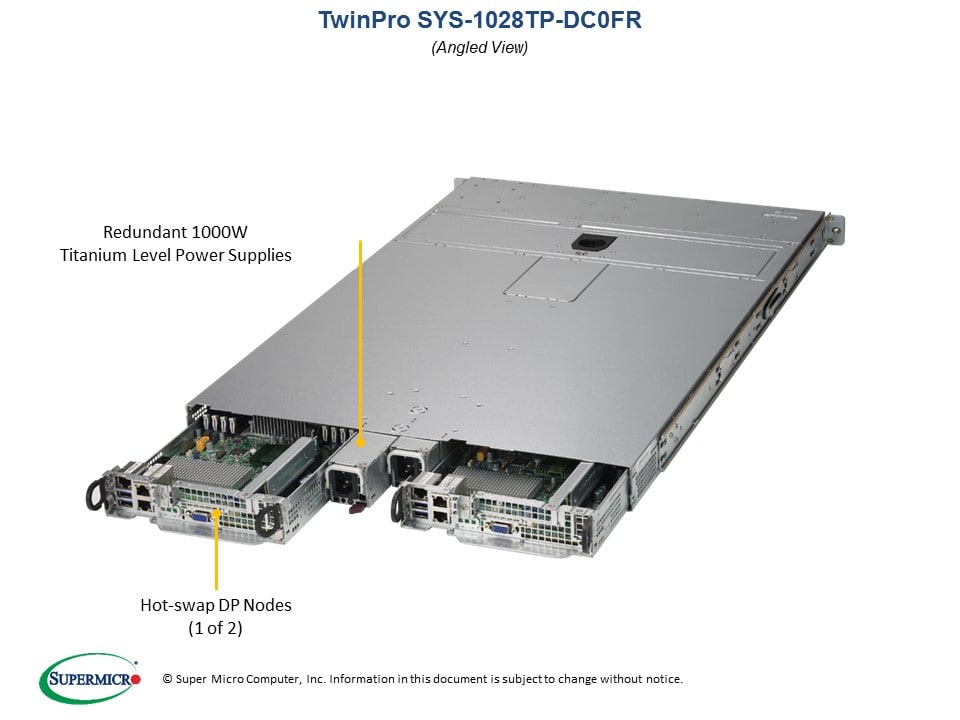

1000W 1U Redundant Power Supplies with PMBus |
Total Output Power |
- 800W: 100 – 127Vac
- 1000W: 200 – 240Vac
|
Dimension (W x H x L) |
|
Input |
- 100-127Vac / 9-7.5A / 50-60Hz
- 200-240Vac / 6-5A / 50-60Hz
|
+12V |
- Max: 66.7A / Min: 0A (100-127Vac)
- Max: 83A / Min: 0A (200-240Vac)
|
+5Vsb |
|
Output Type |
- Gold Finger Connector (16 Power Pin, 14 Signal Pin)
|
Certification |
Titanium Level [ Test Report ]
|
|
|
BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
- UEFI
|
| |
| RoHS
|
|
Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
| |
|
See Parts List
|
|
|
|
| |
| |
Part Number |
Qty |
Description |
Global Services & Support |
OS4HR3/2/1 OSNBD3/2/1 |
- - |
3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service |
Software |
SFT-OOB-LIC • |
1 |
OOB Management Package (per node license) |
Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
TPM security module (optional, not included) |
AOM-TPM-9655V AOM-TPM-9655H |
- |
TPM module with Infineon 9655, RoHS/REACH,PBF; Vertical or Horizontal depends on the server |
SuperDOM |
- |
- |
Supermicro SATA DOM Solutions [Details] |
Network Card(s) |
AOC-PTG-I1S
AOC-S40G-i2Q
AOC-SGP-i2
AOC-SGP-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STGN-i1S
AOC-STG-i2T
AOC-STG-i2 |
-
-
-
-
-
-
-
-
- |
Proprietary 1-port 10GbE controller w/ SFP+, based on Intel 82599EN
Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB |
