SuperServer 1028TP-DTR

  Products  Systems   1U TwinPro™   [ 1028TP-DTR ]





Integrated Board
Super X10DRT-P

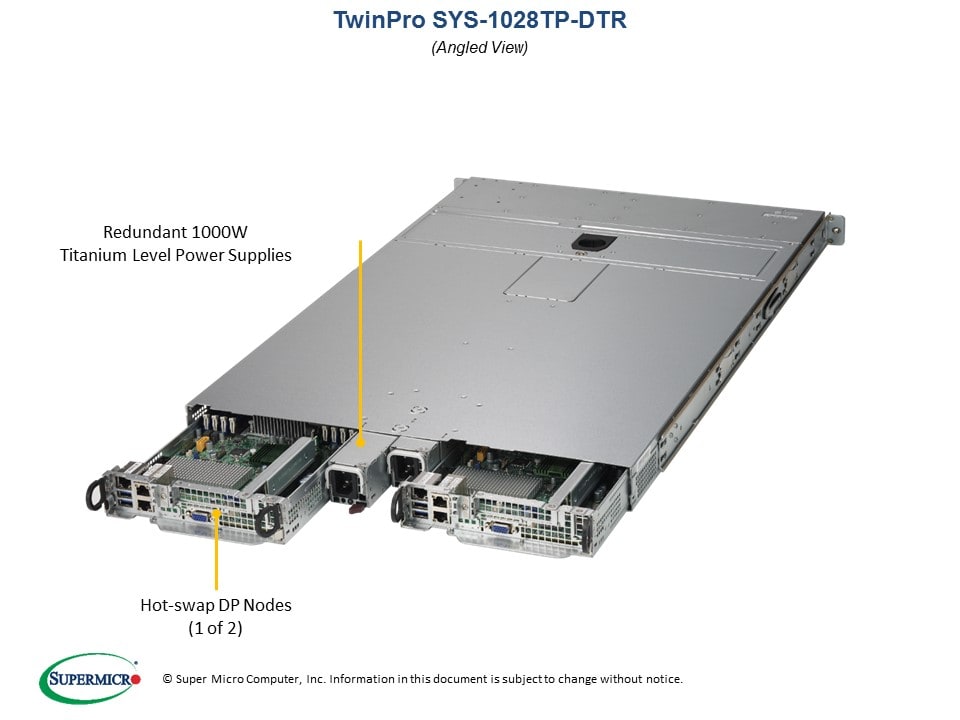

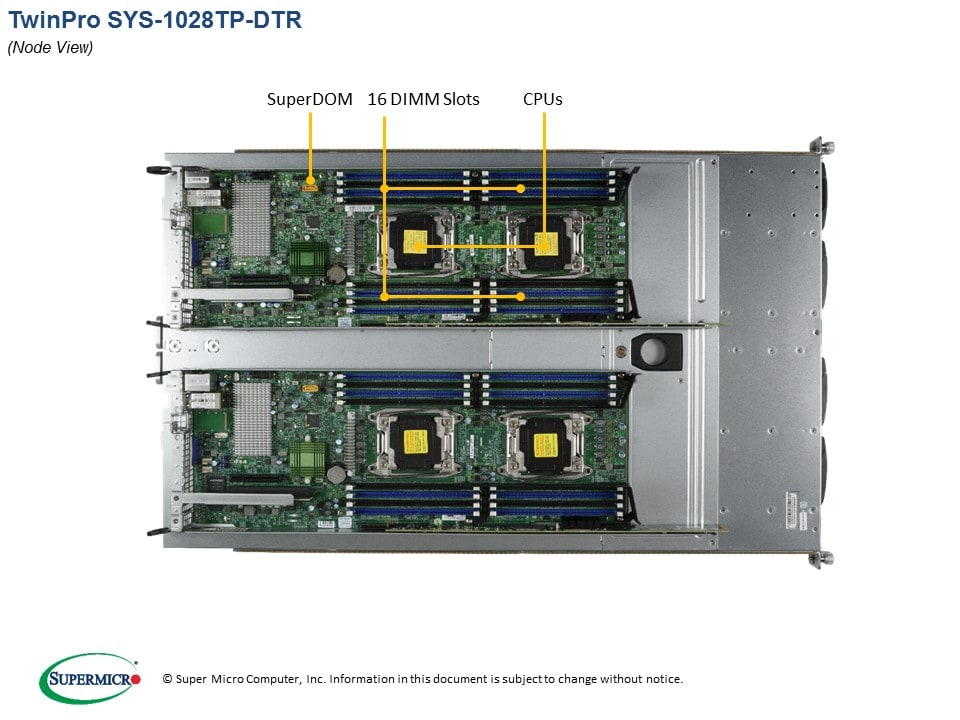

Views: | Angled View | Top View |

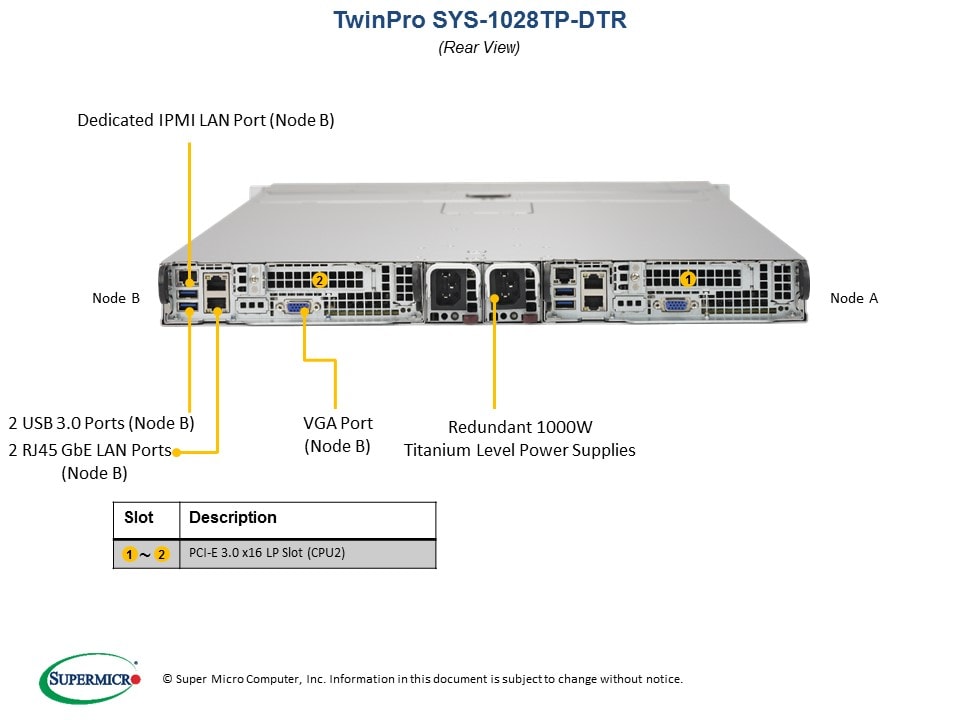

| Front View | Rear View |

Key Features
Two hot-pluggable systems (nodes) in a 1U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16x DIMM slots
3. 1x PCI-E 3.0 x16 Low-profile slot
    and 1x "0 slot"
4. Intel® i350 Dual port GbE LAN
5. Integrated IPMI 2.0 with KVM and
    Dedicated LAN
6. 4x 2.5" Hot-swap SATA3 drive bays
7. 1000W Redundant Power Supplies
    Titanium Level (96%)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-1028TP-DTR
  • SuperServer 1028TP-DTR (Black)

Motherboard (Two per System)

Super X10DRT-P

Processor/Cache (per Node)
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per Node)
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices (per Node)
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) w/ RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output (per Node)
SATA
  • 4x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (rear)
VGA
  • 1x VGA port
Serial Port / Header
  • 1x Fast UART 16550 port / 1 Header (internal)
Others
  • 1x SATADOM support on the motherboard
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-809H-R1K05

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 28.25" (718mm)
Weight
  • Gross Weight: 48.1 lbs (21.9 kg)
  • Net Weight: 33.5 lbs (15.2 kg)
Package (HxWxD)
  • 8" (203mm) x 29.6" (752mm) x 38.4" (975mm)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button/LED
LEDs
  • Power status LED
  • Network activity LED
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 1x PCI-E 3.0 x16 Low-profile slot
0 Slot
  • 1x "0 slot" (x16)

Drive Bays (per Node)
Hot-swap
  • 4x 2.5" Hot-swap SATA3 drive bays

System Cooling (per Node)
Fans
  • 3x heavy duty counter rotating fans with air shroud and optimal fan speed control

PowerStick Power Supply
1000W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 127Vac
  • 1000W: 200 – 240Vac
Dimension
(W x H x L)
  • 38 x 40 x 360 mm
Input
  • 100-127Vac / 9-7.5A / 50-60Hz
  • 200-240Vac / 6-5A / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • Gold Finger Connector (16 Power Pin, 14 Signal Pin)
Certification Titanium Level Certified96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRT-P
CSE-809H-R1K05
2
1
Super X10DRT-P Motherboards
2U Chassis
Backplane BPN-SAS3-809H 1 8-port 1U TwinPro SAS3 12Gbps (4 drives per node) backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-ADP-6SATA3P 2 Backplan adapter card; 6SATA ports,RoHS/REACH,PBF
Cable 1 CBL-PWCD-0900 2 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1848-QRG 1 1028TP-DT(R/TR/FR),QRG
Riser Card RSC-R1UTP-E16R 2 1U RHS TwinPro Riser card with one PCI-E x16 slot
Heatsink / Retention SNK-P0047PSM 2 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers
Heatsink / Retention SNK-P0057PS 2 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K05A-1R 2 1000W Redundant Titanium Level (96%) Power Supplies

Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
TPM security module
(optional, not included)
AOM-TPM-9655V
AOM-TPM-9655H
- TPM module with Infineon 9655, RoHS/REACH,PBF;
Vertical or Horizontal depends on the server
SuperDOM - - Supermicro SATA DOM Solutions [Details]
Network Card(s) AOC-PTG-I1S
AOC-S40G-i2Q
AOC-SGP-i2
AOC-SGP-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STGN-i1S
AOC-STG-i2T
AOC-STG-i2
-
-
-
-
-
-
-
-
-
Proprietary 1-port 10GbE controller w/ SFP+, based on Intel 82599EN
Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Hide Parts List
