SuperStorage SSG-136R-NEL32JBF (Complete System Only)

  Products  Systems   [ SSG-136R-NEL32JBF ]

Coming Soon


Key Applications

• High Throughput Ingest

• High Density Hot Storage

• HPC / Data Analytics

• Media/Video Streaming

• Content Delivery Network (CDN)

• Big Data Top of Rack Storage




Outstanding Features

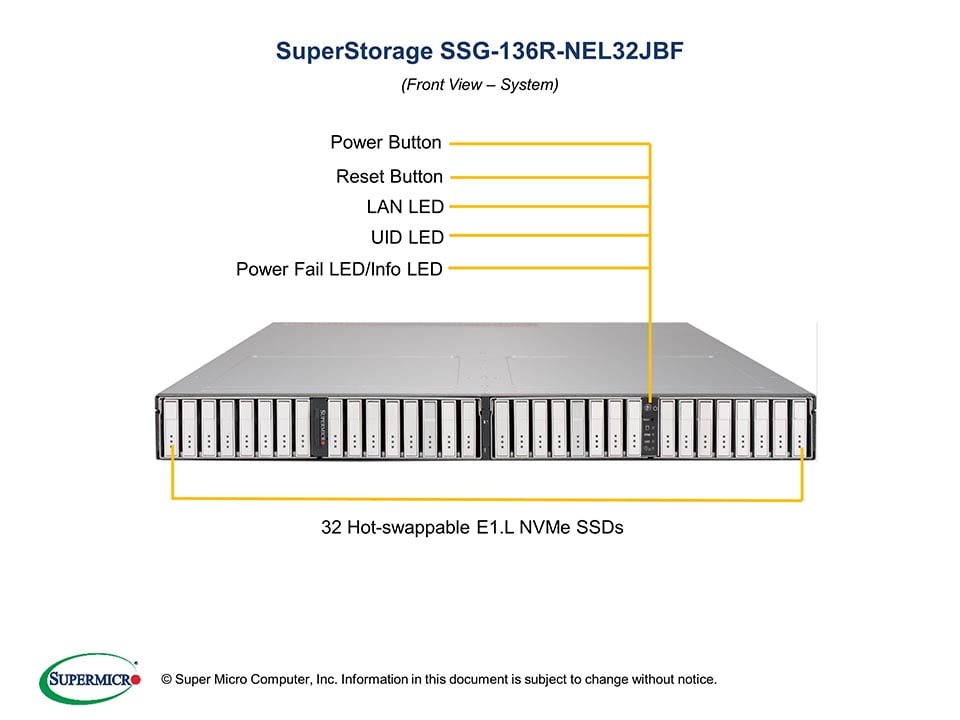

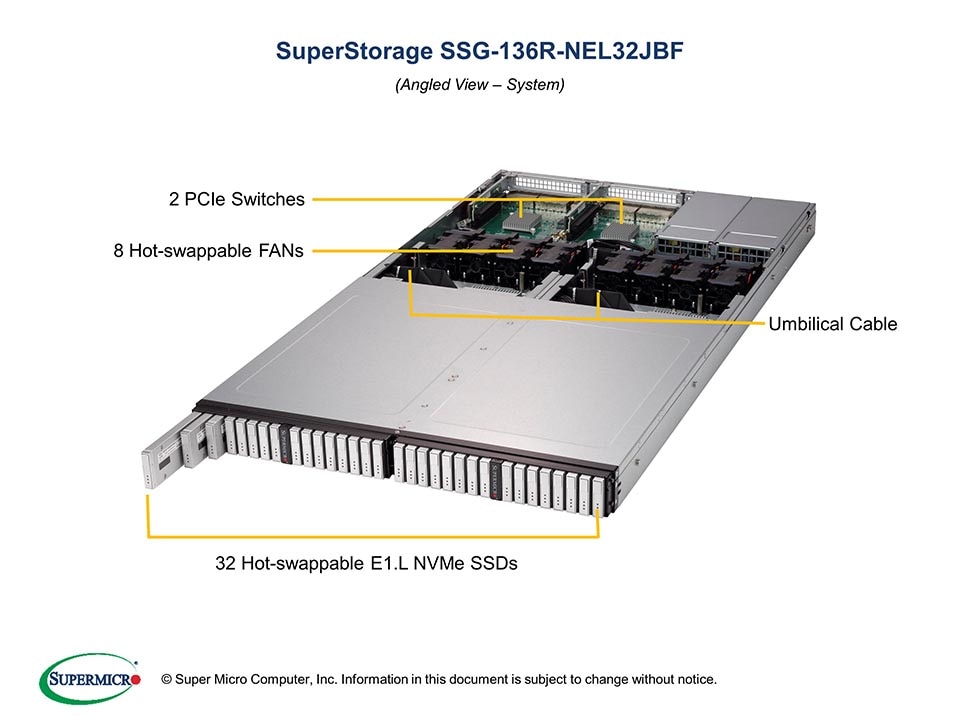

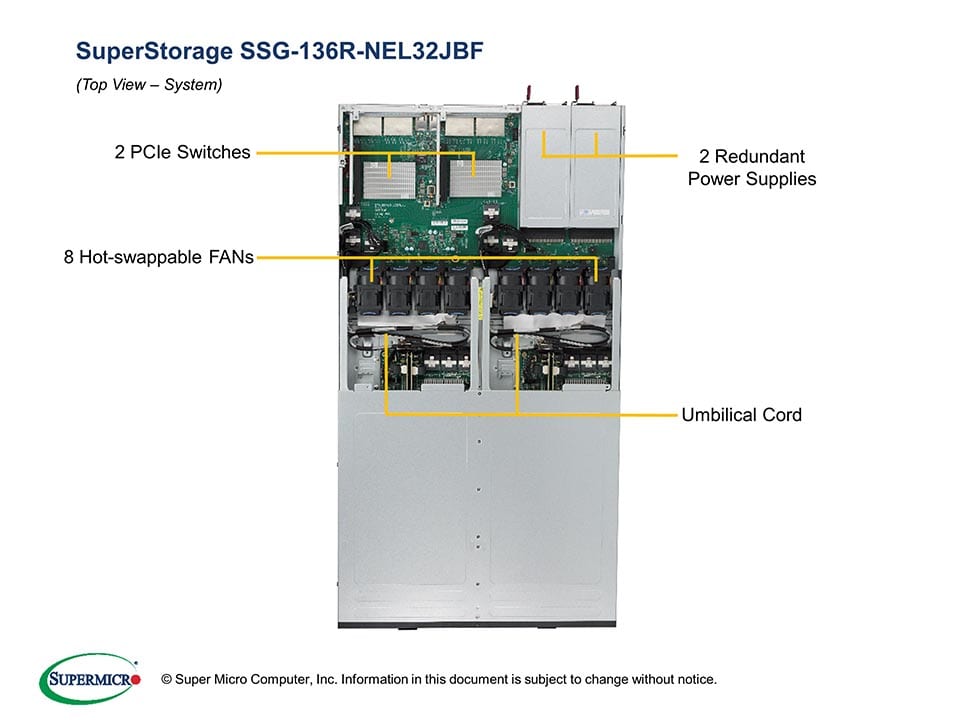

1. Supports 32 Hot-swap NVMe,

    9.5mm EDSFF Long SSDs
2. Individual SSD power cycling
3. 4 PCI-E 3.0 x16 IO ports,

    2 PCI-E 3.0 x16 slots
4. IPMI management with dedicated LAN
5. 8x 40mm Cooling Fans
6. 1000W Redundant Power Supplies

    Titanium Level (96%)




Resources


 BMC Firmware




Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to 8 drives).




Product SKUs
SSG-136R-NEL32JBF
  • SSG-136R-NEL32JBF

System Overview
Form Factor and Storage
  • 1U Form factor
  • 32x 9.5mm EDSFF Long Drive slots
Switch Architecture
  • JBOF Switch
Networking Port
  • 2 RJ45 Dedicated IPMI LAN ports
Management Interface
  • Support for IPMI v.2.0

Front Panel
Buttons
  • Power On/Off button
  • Reset button
  • UID button
LEDs
  • Power LED
  • System Status LED
  • SSD Status LED
  • Drive activity LEDs
  • Network activity LEDs

Operating Environment / Compliance
RoHS

  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
RoHS

  • RoHS Compliant
EMC
  • FCC, CE, VCCI, C-tick
Safety
  • UL Listed, CB/IEC
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-136TS-R1K04JP-E2

Dimensions and Weight
Width
  • 17.26" (438.4mm)
Height
  • 1.71" (43.6mm)
Depth
  • 31.95" (811.7mm)
Weight
  • Net Weight: 49 lbs (22.2kg)
  • Gross Weight: 65 lbs (29.5kg)

Expansion Slots / Ports
PCI-Express
  • 2 PCI-E 3.0 3.0 x16 slots
  • 4 PCI-E 3.0 3.0 x16 IO ports

Drive Bays
Hot-swap
  • 32x 9.5mm EDSFF Long Drive slots

System Cooling
Fans
  • 8x 40mm cooling fans

Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 127Vac
  • 1000W: 200 – 240Vac
Dimension

(W x H x L)
  • 73.5 x 40 x 185 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
See Parts List



Parts List - (Items Included)
  Part Number Qty Description
Chassis CSE-136TS-R1K04JP-E2 1 1U 32 EDSFF Long JBOF Chassis 1000W Titanium PWS
Backplane BPN-EDS3-136P1-1 2 1U EDSFF NVMe backplane support 16x Ruler Gen-2 PCIe x4 devices, used in Ruler dense storage system,RoHS
Backplane BPN-NVME3-136PL-J 1 JBOF/NVMf controller for 1U SSG-136R-N32JBF dense storage system
SFT-DCMS-SINGLE 1 Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF
Power Supply PWS-1K04A-1R 2 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)
FAN 1 FAN-0188L4 8 40x40x56 mm, 23.3K-20.3K RPM, Hot-swappable Counter-rotating




Optional Parts List
  Part Number Qty Description
Add-on Card AOC-SLG3-4X4P-P - PCIex16, Low profile 4x external port NVMe PLX switch,HF,RoHS
Front bezel kit MCP-210-13603-0B - Front bezel kit (with mounting brackets and keys) for 136/136H ruler chassis
Cable CBL-SAST-1035-1 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,1M,30AWG,RoHS
Cable CBL-SAST-1035-2 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,1M,30AWG,RoHS
Cable CBL-SAST-1036-1 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,2M
Cable CBL-SAST-1036-2 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,2M,30AWG,RoHS
Cable CBL-SAST-1037-1 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,3M,28AWG,RoHS
Cable CBL-SAST-1037-2 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,3M,30AWG,RoHS
Riser Card RSC-X-6-JBOF - 1U LHS Storage riser card with one PCI-E x16 slot.,HF,RoHS
Hide Parts List
