Key Features
Cold Storage
Data Warehousing, Archiving
Long Tail, Medical Records, Compliance Docs
Low Power Efficiency Appliance
1. Intel® Pentium® processor D1508,
Single socket FCBGA 1667;
2-Core, 4 Threads, 25W
2. 12x 3.5" SAS2/SATA3 Hot-swap
HDD bays
3. Expansion slot: 1x PCI-E 3.0 x8,
M.2 PCIe 3.0 x4, M Key 2242/2280/
22110, Mini-PCIe w/ mSATA support
4. Up to 128GB ECC RDIMM DDR4
1866MHz or 64GB ECC/non-ECC
UDIMM in 4 sockets
5. Dual 10G SFP+ and dual 1GbE LAN
6. 2x USB 3.0 ports (rear), 5x USB
2.0 ports (4 via headers, 1 Type A)
7. 5x 4cm middle fans
8. 400W High-efficiency redundant
short depth Power Supplies
White Paper
|
|
|
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system
(including but not limited to CPU, memory, and 6 HDDs).
|
|
 |
|
|
|
|
| |
 | | SSG-5018D2-AR12L |
- SuperStorage 5018D2-AR12L (Silver)
|
| |
|
| CPU |
- Intel® Pentium® processor D1508,
2.2GHz-2.6GHz; CPU TDP support 25W
- FCBGA 1667
|
| Cores / Cache |
|
| |
|
| Memory Capacity |
- 4x DDR4 DIMM sockets
- Supports up to 128GB DDR4 ECC RDIMM
- Supports up to 64GB DDR4 ECC/non-ECC UDIMM
|
| Memory Type |
- 1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
|
| DIMM Sizes |
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors
(using ECC memory)
|
| |
|
| Chipset |
|
| SATA/SAS |
- SoC controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe
- Broadcom 2116 SW controller for 16 SATA3 (6Gbps) ports; SAS2 and SATA3
|
| Network Controllers |
- Dual 10G SFP+ from D-1500 SoC
- Dual 1GbE with Intel I210
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Video |
|
| |
|
| LAN |

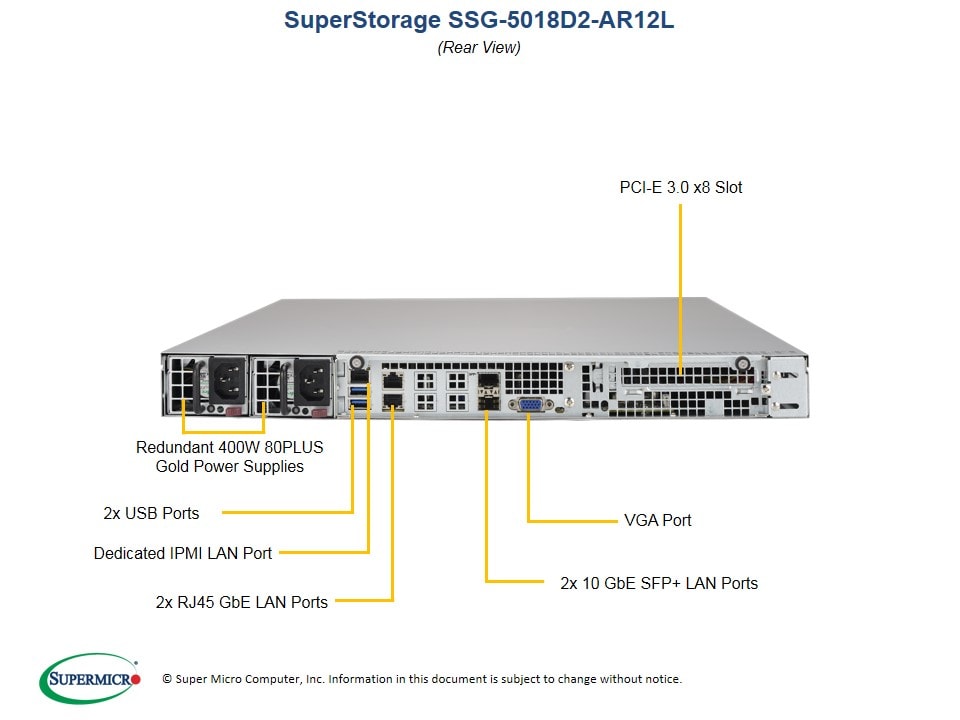

- 2x 10G SFP+ LAN ports
- 2x 1GbE LAN ports
- 1x Dedicated IPMI LAN port
|
| USB |
- 2x USB 3.0 ports (rear)
- 5x USB 2.0 ports
(4 via headers, 1 Type A)
|
| Video |
|
| Serial Port / Header |
|
| DOM |
- 2x SuperDOM (Disk on Module) power connectors
|
| Others |
|
|
|
| |
| | Form Factor |
|
| Model |
|
| | |
| | Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| | |

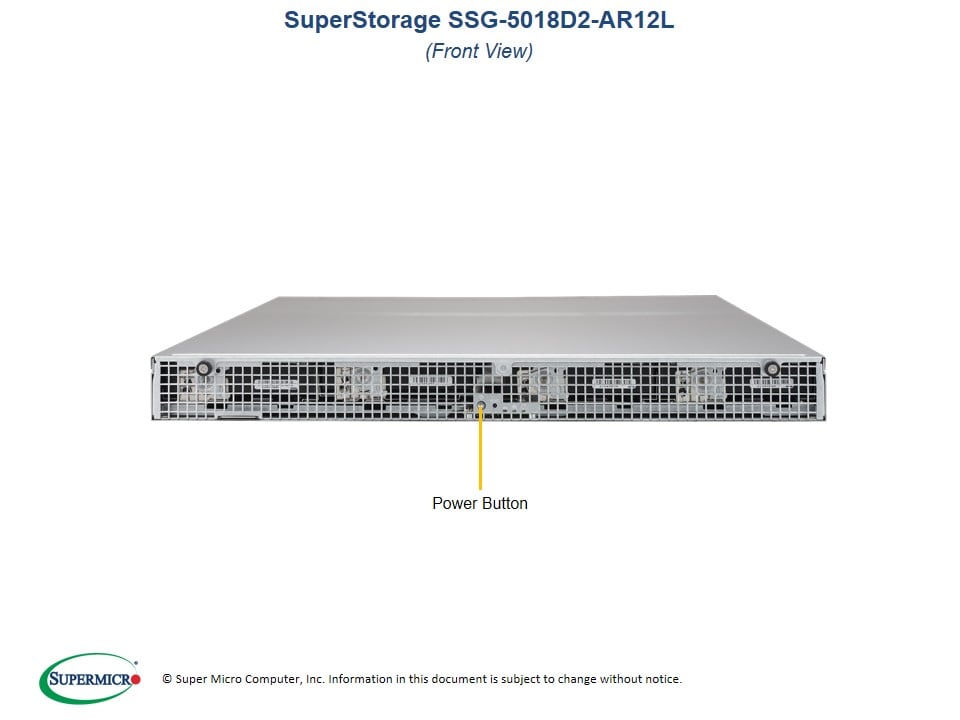

| | Buttons |
|
| LEDs |
|
| |
|
| PCI-E |
- 1x PCI-E 3.0 x8 Full-height slot
- M.2 PCIe 3.0 x4, M Key 2242/2280/22110
- Mini-PCIe with mSATA support
|
| | |
| | Internal |

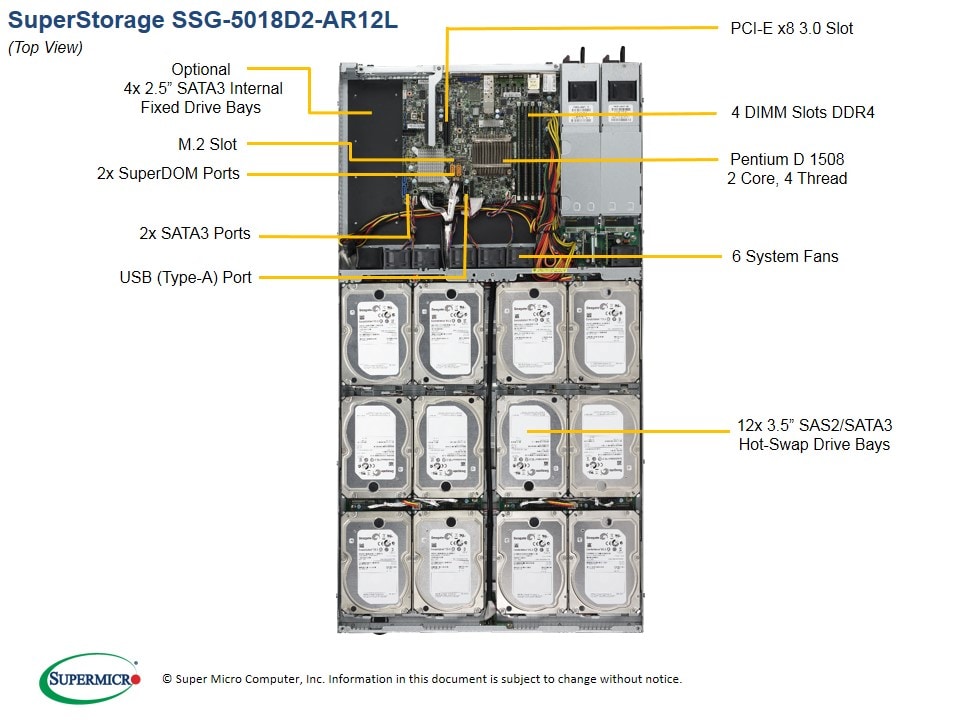

- 12x 3.5" SAS2/SATA3 Hot-swap HDD bays
|
| | |
| | SAS/SATA HDD Backplane |
| | |
| | Fans |
|
| | |
| 400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I2C, and PFC
|
| AC Input |
|
| DC Output |
- +5V standby: 3A
- +12V: 33A
|
DC Output
With Power Distributor |
- +5V: 25A
- +3.3V: 25A
- -12V: 0.6A
|
| Certification |
Gold Certified
|
| |
|
| BIOS Type |
- 128Mb SPI Flash with AMI BIOS
|
| BIOS Features |
- PCI 3.0
- ACPI 5.0
- USB Keyboard support
- Hardware BIOS Virus protection
- SMBIOS 2.8
- UEFI 2.4
- RTC (Real Time Clock) Wakeup
|
| | |
| RoHS
|
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|  | |
|
See Parts List
|
|
| |
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X10SDV-2C-7TP4F
CSE-801LTS-R406CP |
1
1 |
Super X10SDV-2C-7TP4F Motherboard
1U Chassis |
| Backplane |
BPN-SAS-801T-A4 |
2 |
4-port 1U CSE-801 backplane with thermistor and individual HDD power cycle, support up to 4x 3.5-inch HDD/SSD |
| Backplane |
BPN-SAS-801T-A2 |
2 |
2-port 1U CSE-801 backplane with thermistor and individual HDD power cycle, support up to 2x 3.5-inch HDD/SSD |
| Cable 1 |
CBL-SAST-0556 |
2 |
MINI SAS HD-4 SATA,6G,INT,90/90,ST 75/75CM,75CM SB,30AWG |
| Cable 2 |
CBL-SAST-0616 |
1 |
MINI SAS HD-4 SATA,6G,INT,50CM,50CM SB,30AWG |
| Parts |
MCP-120-00078-0N |
1 |
Optional shorter 1U riser card bracket for X9DRL-7F/EF and beyond |
| Label |
LBL-0108 |
1 |
CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Manual |
MNL-1873-QRG |
1 |
QRG For 5018DX-AR12L |
| Riser Card |
RSC-RR1U-E8 |
1 |
RSC-RR1U-E8 |
| Power Supply |
PWS-406P-1R |
2 |
1U 400W Redundant Short Depth Power Supply |
|
|
|
| |
| | |
Part Number |
Qty |
Description |
| Internal 2.5" HDD Tray |
MCP-220-00137-0N |
- |
Dual 2.5" fixed HDD bracket |
| Cable for internal HDD |
CBL-0483LCBL-SAST-0703CBL-0212LCBl-0082L |
--- |
29cm 30AWG SATA straight to straigh cableMiniSAS HD to 4 SATA cable (for internal 2.5" drive connect to Broadcom 2116)Big 4 pin power extension cable 20cm (for 3rd and 4th internal 2.5" drive)Y split, big 4 pin to two RA SATA power extension 15cm |
| Cable Arm |
MCP-290-00086-0N |
1 |
Cable Management Arm for 1U ball bearing chassis SC801S/801L |
| Network Card(s) |
AOC-SGP-i2
AOC-SGP-i4
AOC-STGN-i2S
AOC-STGF-i2S
AOC-STG-B4S
AOC-STGS-i2T |
-
-
-
-
-
- |
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 |
| TPM security module |
AOM-TPM-9665VAOM-TPM-9655V |
11 |
TPM 2.0, vertical form factorTPM 1.2, vertical form factor |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC •  |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
Hide Parts List
|
|
|
|
|
|
|
