SuperServer 6018R-WTRT

  Products  Systems   WIO   [ 6018R-WTRT ]




Integrated Board
Super X10DRW-iT

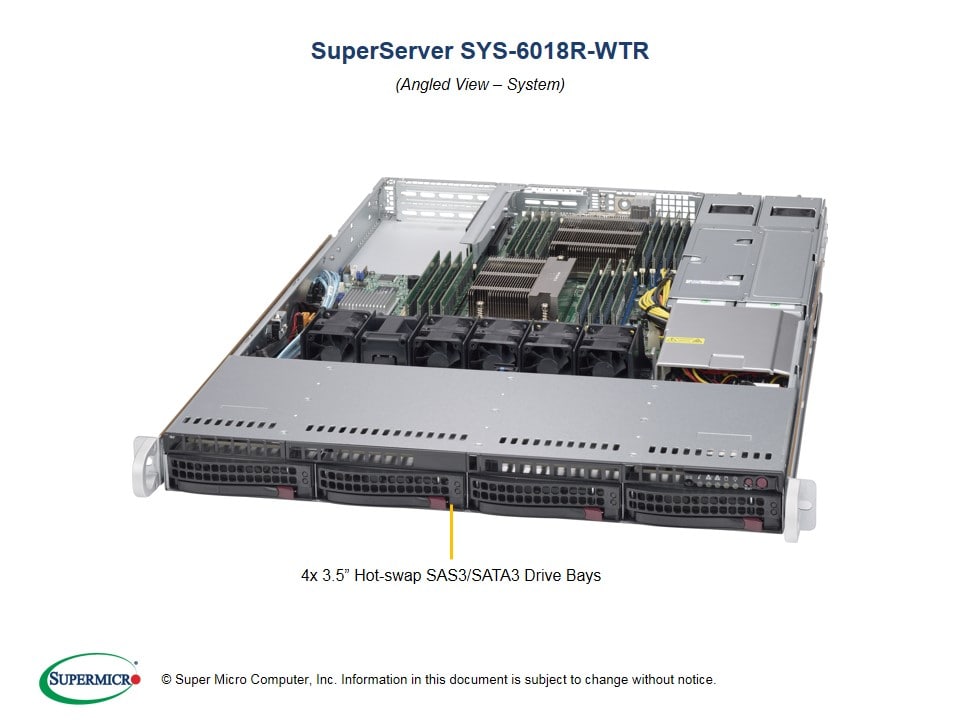

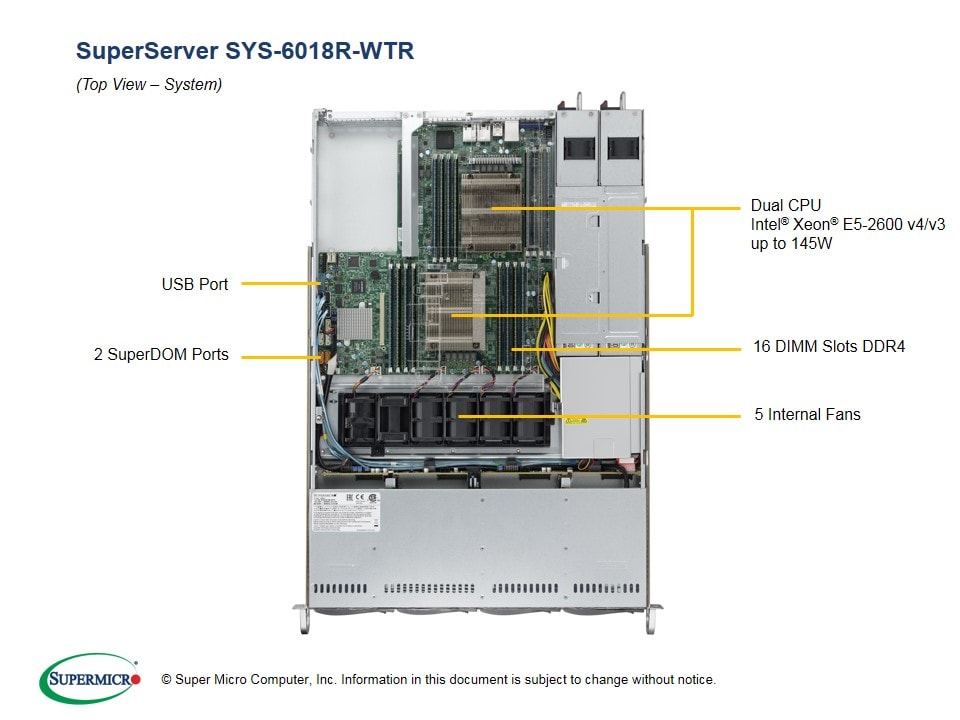

Views: | Angled View | Top View |
| Front View | Rear View |

 Key Features
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 16x DIMM slots
3. 2x PCI-E 3.0 x16 (FHHL) - AOC support
4. Intel® X540 Dual port 10GBase-T
5. 4x 3.5" Hot-swap SAS/SATA HDD
    Bays for Customizable Storage
6. I/O ports: 2x SuperDOM, 1x VGA,
    1x Serial, 6x USB 3.0 (4 rear)
7. 750W Redundant Power Supplies
    Platinum Level High-efficiency

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-6018R-WTRT
  • SuperServer 6018R-WTRT (Black)

Motherboard

Super X10DRW-iT

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB† ECC 3DS LRDIMM/RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 via Intel® C612; RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA/SAS
  • 10x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 6x USB 3.0 ports (4 rear + 2 via header)
Video
  • 1x VGA port
Serial Port / Header
  • 1x Header
DOM
  • 2x SuperDOM (Disk on Module) ports

Management
Software
Power Configurations
  • ACPI / APM Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 1U Rackmount
Model

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 1.7" (43mm)
Depth
  • 25.6" (650mm)
Weight
  • Net Weight: 25.5 lbs (11.6 kg)
  • Gross Weight: 39 lbs (17.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 (Full-height, Half-length)
  • 1x PCI-E 3.0 x8 Mezzanine for HBA cards
  • UIO AOC Compatibility Matrix


    • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 4x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card)

Peripheral Drives
DVD-ROM
  • Slim DVD-ROM drive (optional)

Backplane
SAS/SATA HDD Backplane
(SAS support requires optional SAS controller)

System Cooling
Fans
  • 5x 4cm Counter-rotating PWM fans

AC/DC240V Input Redundant Power Supply
700W/750W Redundant Power Supplies with PMBus
Total Output Power
  • 700W/750W
Dimension
(W x H x L)
  • 54.5 x 40.25 x 320 mm
Input
  • 100 - 140Vac / 8 - 6A / 50-60Hz
  • 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
  • 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V
  • Max: 58A / Min: 0.5A (100 - 140Vac)
  • Max: 62A / Min: 0.5A (200 - 240Vac)
  • Max: 62A / Min: 0.5A (200 - 240Vdc)
    (CB/CCC Only)
+5V sb
  • Max: 3A / Min: 0A
Output Type
  • Gold Finger Connector Mating with Molex 45984-4343
Certification Platinum Level Certified
  Platinum Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • BIOS resuce hot keys
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X10DRW-iT
CSE-815TQ-R706WB 		1
1		 Super X10DRW-iT Motherboard
1U Chassis
Backplane BPN-SAS-815TQ 1 4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
Cable 1 CBL-0186L 1 SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
Cable 2 CBL-CDAT-0661 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
FAN 1 FAN-0086L4 1 40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M
Manual MNL-1635-QRG 1 6018R-WTR(T) QRG,HF
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Heatsink / Retention SNK-P0047PSC 1 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
Heatsink / Retention SNK-P0057PS 1 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-706P-1R 2 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF


Optional Parts List
  Part Number Qty Description
3.5" to 2.5" Converter Tray MCP-220-00043-0N - Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT4

DVM-TEAC-DVDRW-SBT4
DVM-PLDS-DVDRW-SBT5		 1

1

1
 		 TEAC SLIM DVD ROM SATA DRIVE, HF, RoHS/REACH

TEAC SLIM DVD-RW SATA DRIVE, RoHS

PHILIPS SLIM BLACK DVD-RW SATA DRIVE, HF, RoHS/REACH

DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD mounting kit
Internal 2.5" HDD Tray
(FDD Slot)		 MCP-220-83601-0B 1 Black FDD dummy tray support 1x 2.5" slim HDD
Internal 2.5" HDD Tray
(DVD Slot)		 MCP-290-00036-0B 1 Black DVD dummy tray support 1x 2.5" slim HDD
USB/COM Port Tray
(DVD Slot)		 MCP-220-00114-0N 1 Black 2x USB 3.0/COM port tray in slim DVD bay
Cable for internal HDD CBL-0489L
CBL-0082L		 2
1		 SATA,INT,ROUND,ST-RA,70CM,30AWG
Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
CacheVault(s) BTR-CV3108-1U1

BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N		 1
-

-
 CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location
SuperCap for
AOC-S2208L-H8IR		 BTR-0024LH-LSI00297 & BKT-BBU-BRACKET-05
BTR-0024LH-LSI00297 & MCP-240-00127-0N		 -
-
 SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for PCI-E location
SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for 2.5" HDD location
Storage Controller
Card(s) & Cables(s)		 AOM-S3108M-H8 &
1x CBL-SAST-0556
AOC-S3108L-H8IR-16DD
& 1x CBL-SAST-0556
AOC-S3008L-L8i &
1x CBL-SAST-0556
AOC-S3008L-L8e &
1x CBL-SAST-0556
AOC-S2308L-L8e &
1x CBL-SAST-0388L-02
AOC-S2308L-L8i &
1x CBL-SAST-0388L-02
AOC-S2208L-H8iR &
1x CBL-SAST-0388L-02 		- Supermicro Low Profile 12Gb/s Eight-Port SAS Internal Mezzanine RAID Adapter; RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;
RAID 0, 1, 5, 6, 10, 50, 60
Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10
Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;
HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 122HDD;
HBA
Standard LP, 8 internal ports (6Gb/s) Gen-3, 63HDD;
RAID 0, 1, 10
Standard LP, 8 internal ports (6Gb/s) Gen-3, 240HDD;
RAID 0, 1, 5, 6, 10, 50, 60
Network Card(s) AOC-SGP-i2
AOC-SGP-i4
AOC-SG-i2
AOC-SG-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STG-i2T
AOC-STG-i2 		- Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350
Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB
Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB
Front Bezel CSE-PTFB-813-02
CSE-PTFB-813-02B		 1
1		 Front Bezel w/ Round Venting Holes
Black Front Bezel w/ Round Venting Holes
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
