SuperServer 1029GQ-TVRT (Complete System Only)

  Products  Systems   GPU   [ 1029GQ-TVRT ]

1U Dual Processor (Intel) System with 4 NVIDIA V100 GPUs


Integrated Board
X11DGQ

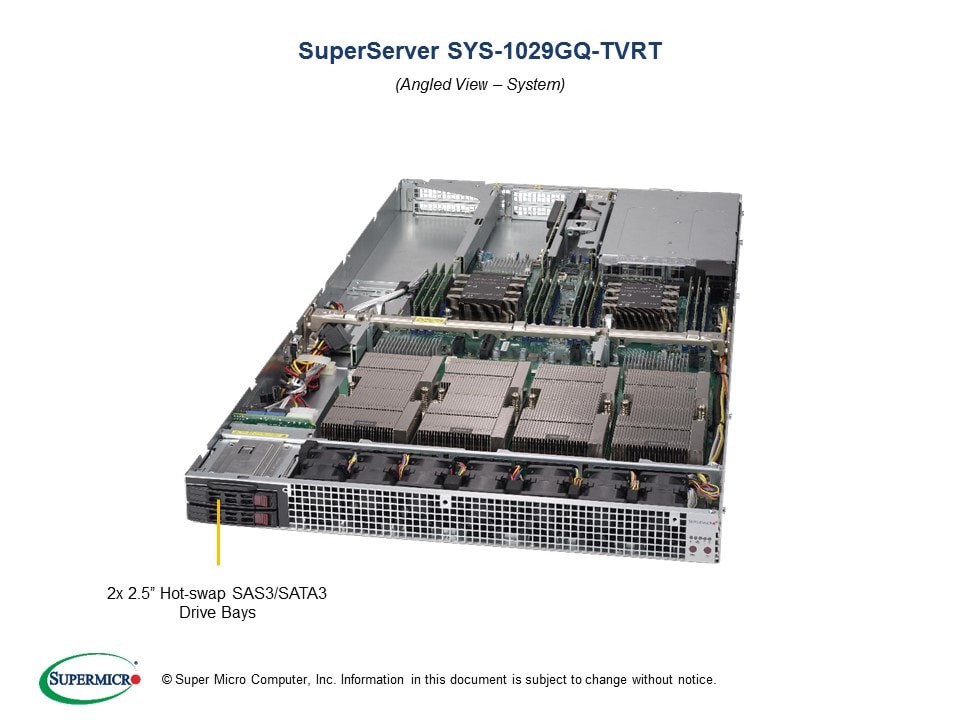

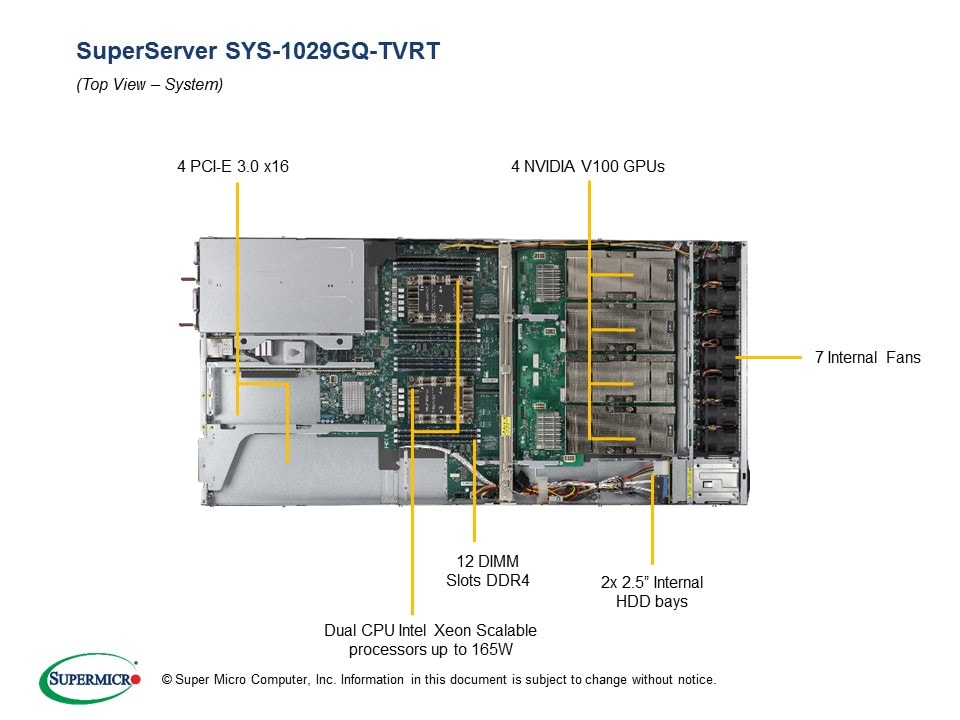

Views: | Angled View | Top View |

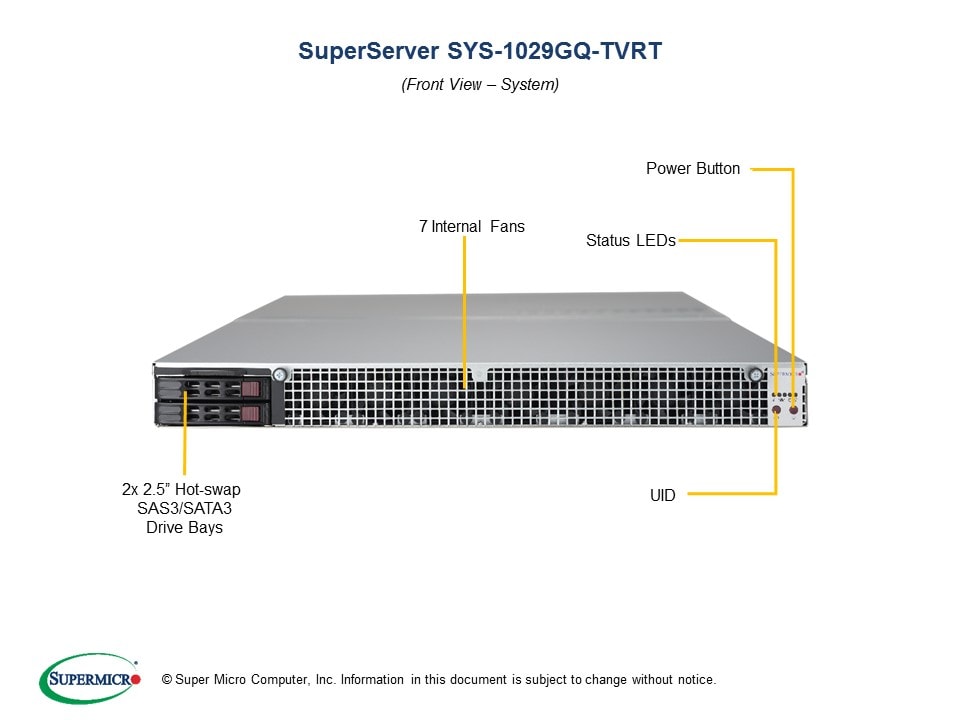

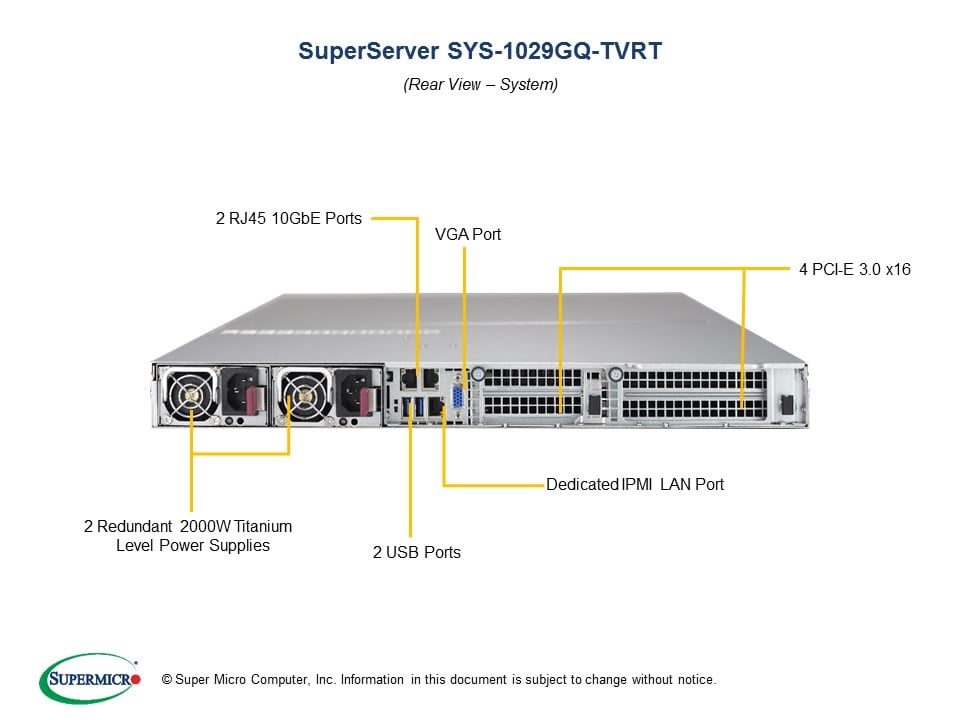

| Front View | Rear View |

 Key Applications
  - Edge Computing
  - Micro Data Center
  - AI/ML, Deep Learning Training and Inference
  - Virtualization
  - Cloud Computing


Key Features
1. Supports up to 4 NVIDIA® V100
    SXM2 GPUs with up to 300 GB/s GPU-GPU
    NVIDIA® NVLINK™ Interconnection
2. Optimized for NVIDIA® GPUDirect™ RDMA
3. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
4. 12 DIMMs; up to 3TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
5. 2 PCI-E 3.0 x16 slots,
    2 PCI-E 3.0 x16 LP slots
6. 2 Hot-swap 2.5" SAS/SATA
    drive bays, 2 Internal 2.5" drive bays,
    Optional NVMe U.2 drive option
7. Support 1x M.2 2242/2260/2280,
    Support M.2 SATA and NVMe
8. 2x 10GBase-T LAN ports via Intel X540
9. 7 Heavy duty 4cm counter-rotating
    fans with air shroud & optimal fan
    speed control
10. 2000W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 2 GPUs installed). Use with 3 GPUs not recommended.

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Drive Options   NVMe Options   Tested M.2 List   Manuals   OS Certification Matrix   Compatible GPU List

Product SKUs
SYS-1029GQ-TVRT
  • SuperServer 1029GQ-TVRT

Motherboard

Super X11DGQ

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    3 UPI up to 10.4GT/s
  • Support CPU TDP up to 165W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

GPU
Supported GPUs
CPU-GPU Interconnect
  • PCI-E Gen 3 x16 Switch CPU-GPU Interconnect

System Memory
Memory Capacity
  • 12 DIMM slots
  • Up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Connectivity
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
Serial Header
  • 1 Fast UART 16550 header

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-118GQPTS-R2K05P2

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 35.2" (894mm)
  • 39.3" (997mm) with rails
Package
  • 24" (H) x 8" (W) x 46" (D)
Weight
  • Net Weight: 45 lbs (20.41 kg)
  • Gross Weight: 58 lbs (26.31 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots - supporting 4 NICs which includes 2x GPUDirect RDMA

Drive Bays
Hot-swap
  • 2 Hot-swap 2.5" SAS/SATA drive bays

    Note: Can be upgraded to 2 U.2 NVMe drives by addition of optional NVMe kit (please see details in optional parts list below).
Fixed
  • 2 Internal 2.5" SATA drive bays
M.2
  • Support 1x M.2 2242/2260/2280
  • Support M.2 SATA and NVMe

System Cooling
Fans
  • 7 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control

Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 120Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11DGQ
CSE-118GQPTS-R2K05P2		 1
1		 Super X11DGQ Motherboard
CSE-118GQPTS-R2K05P2 Chassis
Add-on Card / Module AOM-PIO-I2XT-P 1 AOM-PIO-I2XT
Add-on Card / Module AOM-SXMV-P 1 AOM housing Volta SXM 2.0 modules in conjunction with X11DGQ DP MB,HF,RoHS
Backplane BPN-SAS3-118GQE 1 2-port 1U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0484L 4 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2 CBL-PWEX-1025 3 GPU,2x4F/RA/CPU to 2x4F/RA/CPU,P4.2, 6CM,17AWG, 8A/pin, -25~85C, RoHS
Cable 3 CBL-PWEX-1028 1 GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C
Cable 4 CBL-SAST-0934-12 4 Oculink-Oculink X8 Cable 50cm 34AWG,RoHS
Riser Card RSC-G-A66-X1 1 1U LHS Active Rear Riser card with two PCI-E x16 Slot,HF,RoH
Riser Card RSC-GN2-66 1 1U Passive LHS GPU Riser Card with two NVMe ports and two PC
Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention SNK-P4004V 4 1U Passive GPU Heat Sink for NVIDIA SXM2 Module Equipped with Pascal or Volta GPU
Power Supply PWS-2K05A-1R 2 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
FAN 1 FAN-0163L4 7 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Rear Window MCP-240-11807-0N 1 SC118GQE Rear Window for 2x PCI-FL or 4th GPU
Rail Set MCP-290-11809-0N 1 Rail set, Quick/Quick, Auto Latch, travel 535mm Short Version, Post to Post 685mm
Optional Parts List
  Part Number Qty Description
Add-on card for internal M.2 NVMe AOC-SLG3-2M2* - Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
* AOC to be installed in rear top PCIe slots.
AOC-S3008L-L8i (SAS3) CBL-SAST-0699 1 Mini SAS HD to 4 SATA 12G
AOC-S3108L-H8IR-16DD (SAS3) CBL-SAST-0699 1 Mini SAS HD to 4 SATA 12G
AOC-S3108L-H8IR (SAS3) CBL-SAST-0699 1 Mini SAS HD to 4 SATA 12G
Super Cap for LSI 3108 BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02		 1
1		 Mounting Bracket for LSI BBUs
LSI Super Cap
SXM2 GPU Dummy MCP-120-11812-0N 1 Optional SXM2 GPU dummy
U.2 NVMe Kit BPN-NVMe3-118GQE
CBL-SAST-0935-12
MCP-220-00121-0B		 1
1
2		 NVMe Backplane
Oculink cable x8
NVMe HS tray
TPM AOM-TPM-9670V - SPI capable vertical TPM 2.0 provisioned for client,RoHS
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD		 1
1
1		 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Network Card(s) AOC-MCX455A-ECAT - Mellanox ConnectX-4 VPI adapter card, EDR IB (100Gb/s) and 100GbE, single-port QSFP28, PCIe3.0 x16, tall bracket, ROHS R6
AOC-MCX456A-ECAT - Mellanox ConnectX-4 VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe3.0 x16, tall bracket, ROHS R6
AOC-MCX412A-ACAT - Mellanox ConnectX-4 Lx EN network interface card, 25GbE dual-port SFP28, PCIe3.0 x8, tall bracket, ROHS R6
AOC-MCX512F-ACAT - Mellanox ConnectX-5 EN network interface card, 100GbE single-port QSFP28, PCIe3.0 x16, HF, RoHSket, HF, RoHS
AOC-MCX555A-ECAT - Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, single-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS
AOC-MCX556A-ECAT - Mellanox ConnectX-5 VPI adapter card, EDR IB (100Gb/s) and 100GbE, dual-port QSFP28, PCIe3.0 x16, tall bracket, HF, RoHS
AOC-MCX653105A-HDAT - Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card single port, QSFP56, PCIe 3.0/4.0 x16, RoHS.
AOC-SHFI-i1C - Intel Omni-Path Host Fabric Adapter (Chippewa Forest). Standard Low-Profile, Single QSFP28 port, 100Gb/s, based on Intel Wolf River WFR-B.,RoHS/REACH
AOC-S25G-b2S - Two ports 25G standard adapter card with Broadcom BCM57414 controller, PCIe x8 Gen3,RoHS
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
