SuperStorage 2028R-NR48N (Complete System Only)

  Products  Systems   Simply Double   [ 2028R-NR48N ]









Integrated Board
Super X10DSC+

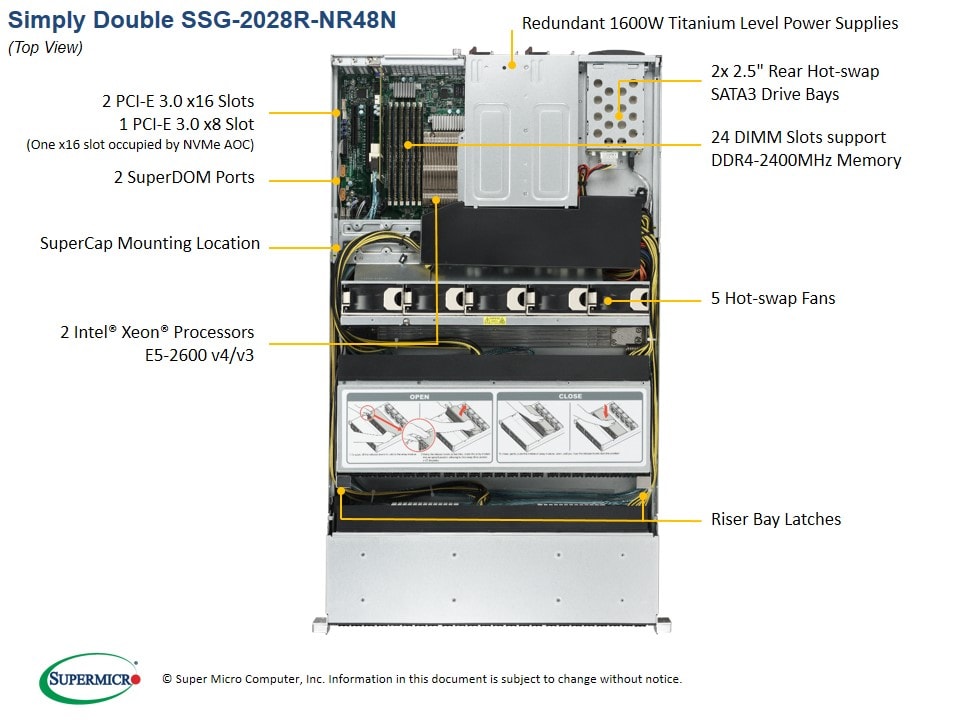

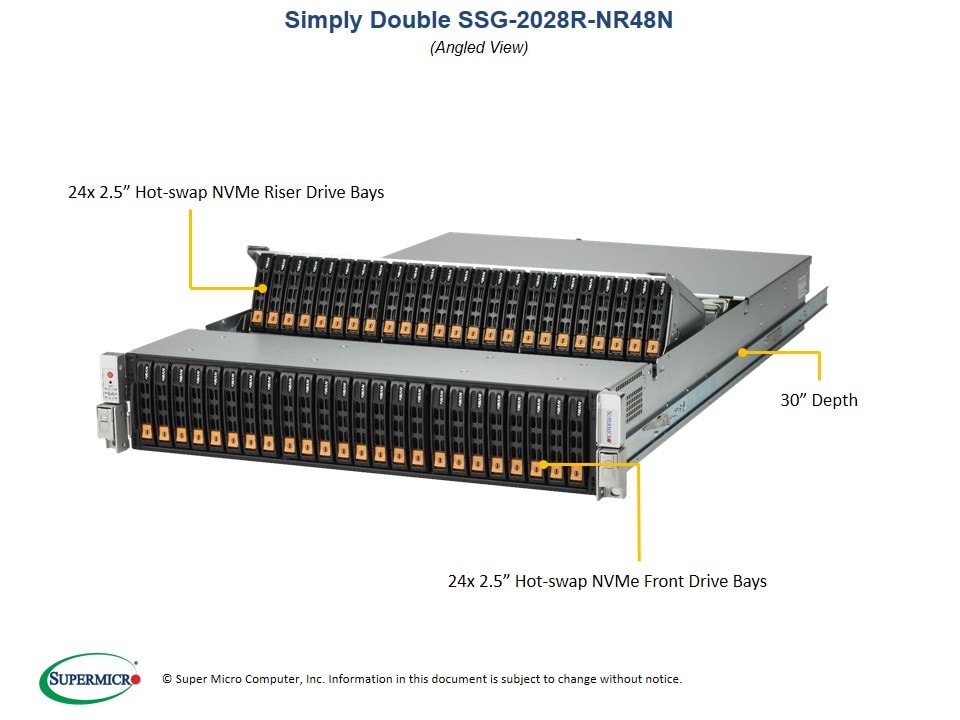

Views: | Angled View | Top View |

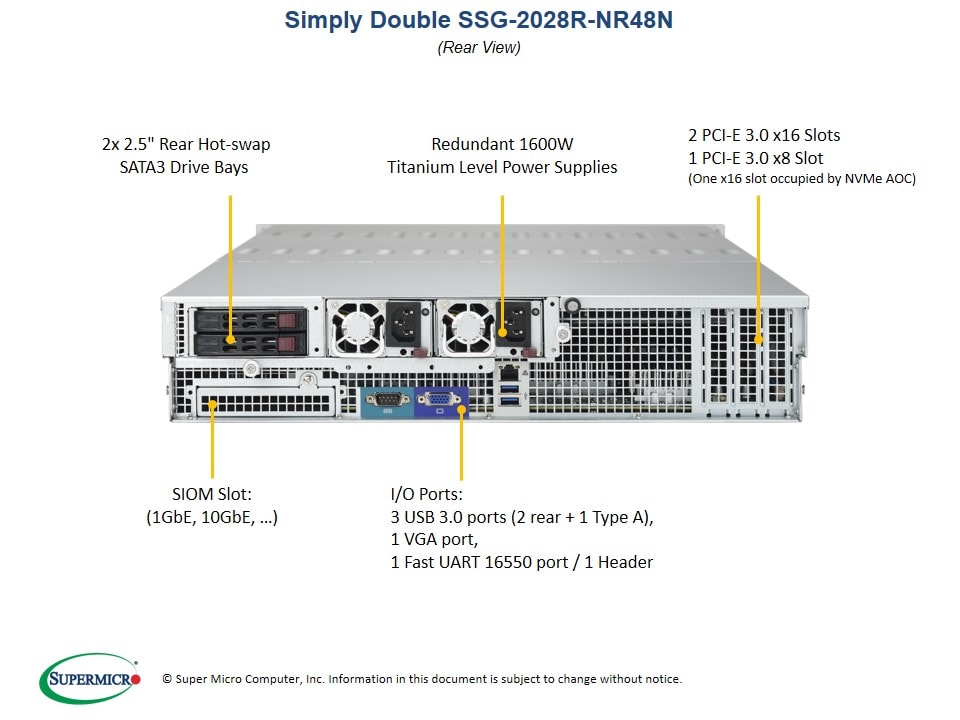

| Front View | Rear View |



Key Features

1. Dual socket R3 (LGA 2011) supports

    Intel® Xeon® processor E5-2600

    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB ECC 3DS LRDIMM , up to

    DDR4- 2400MHz ; 24 DIMM slots
3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
4. SIOM for flexible networking options
5. 48 Hot-swap 2.5" NVMe drive bays;

    2 rear Hot-swap 2.5" SATA drive bays
6. Server remote management: IPMI 2.0

    / KVM over LAN / Media over LAN
7. 5 Hot-swap 8cm redundant PWM fans
8. 1600W Redundant Power Supplies

    Titanium Level (96%)
(Simply Double)



Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 24 NVMe and 1 NIC or SIOM card).


 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Drive Options   Tested SIOM


Product SKUs
SSG-2028R-NR48N
  • SuperStorage 2028R-NR48N (Black)

Motherboard


Super X10DSC+

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *

  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • SIOM support for flexible networking options
Video
  • ASPEED AST2400 BMC

Input / Output
LAN
  • LAN ports via SIOM Add-On-Card
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
Video
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-226STS-R1K62P2

Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 30.2" (767mm)
  • With Cable Management Arm Installed:

    35.2" (895mm)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Information LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x8 slots
  • Slot 3 Occupied by NVMe AOC

Drive Bays
Hot-swap
  • 48 Hot-swap 2.5" NVMe drive bays
  • 2 rear Hot-swap 2.5" SATA drive bays

Backplane
Two 24 port NVMe backplanes, each supporting up to 24x 2.5" NVMe SSDs

System Cooling
Fans
  • 5 hot-swap 8cm redundant PWM cooling fans

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level

  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS

  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
See Parts List



Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X10DSC+

CSE-226STS-R1K62P2
1

1
Super X10DSC+ Motherboard

2U Chassis
Add-on Card / Module AOC-SLG3-4E4T-O 1 4 Port NVMe PCIE X16 Retimer
Backplane BPN-NVME3-216EB 2 BPN-NVMe3-216A-S4 Backplane Base Board
Backplane BPN-NVME3-216EL 4 PCIe Gen3x16 input to PLX9765 to support 12x NVMe port
Cable 1 CBL-SAST-0818 2 OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM,34AWG
Cable 2 CBL-SAST-0974-1 2 OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG
Cable 3 CBL-SAST-0848 2 OcuLink v 1.0,INT,PCIe NVMe SSD, 95CM,34AWG
Cable 4 CBL-SAST-0847 2 OcuLink v 1.0,INT,PCIe NVMe SSD, 76CM,34AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Parts MCP-110-00015-0N 16 Pan head screw, #6-32 x 6L
Heatsink / Retention SNK-P0047PS 2 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Parts MCP-220-82616-0N 1 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
Drive Tray(s) MCP-220-00127-0B 48 Black gen-3 2.5 NVMe drive tray, Orange tab with lock (for hotswap NVMe drive),HF,RoHS/REACH




Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
SIOM Network Card(s) AOC-MGP-I2

AOC-MGP-I4

AOC-MTG-I2T

AOC-MTG-I4T

AOC-MTGN-I2S

AOC-MTG-I4S
-

-

-

-

-

-
SIOM 2-port GbE, Intel i350-AM2

SIOM 4-port GbE, Intel i350-AM4

SIOM 2-port 10GBase-T, Intel X550

SIOM 4-port 10GBase-T, Intel X550

SIOM 2-port 10G SFP+, Intel 82599ES

SIOM 4-port 10G SFP+, Intel XL710
Hide Parts List
