SuperServer 2028GR-TR

  Products  Systems   GPU   [ 2028GR-TR ]









Integrated Board
X10DRG-H

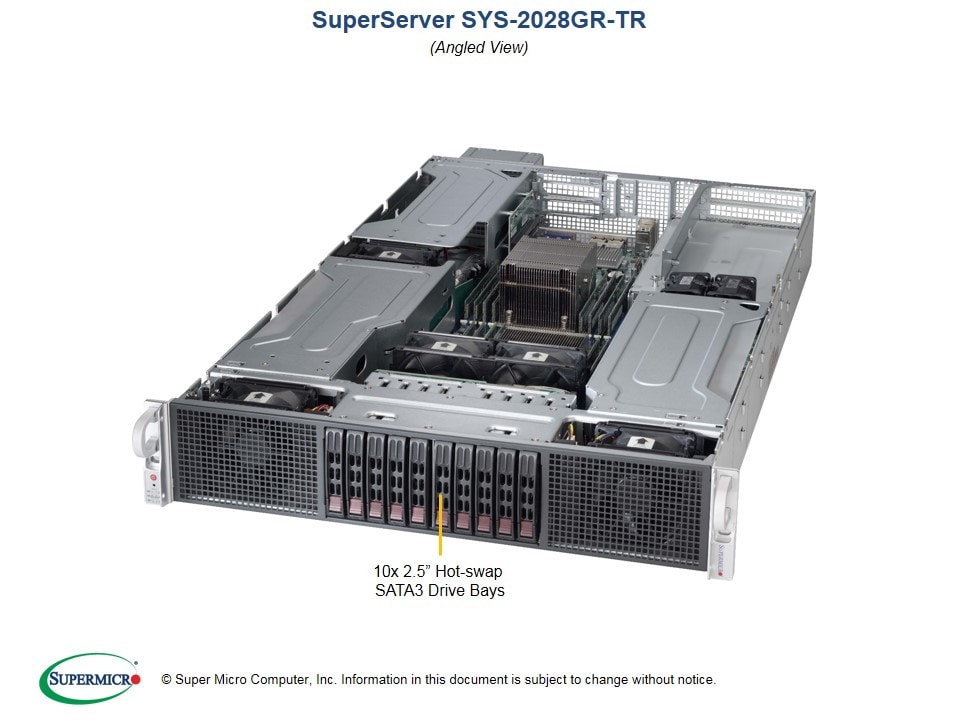

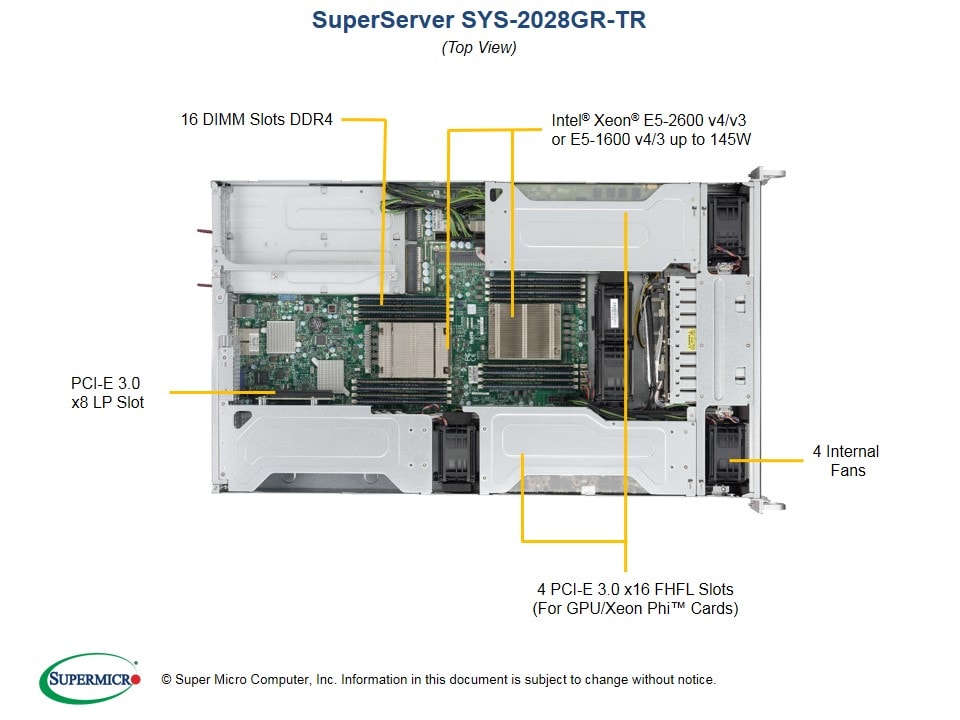

Views: | Angled View | Top View |

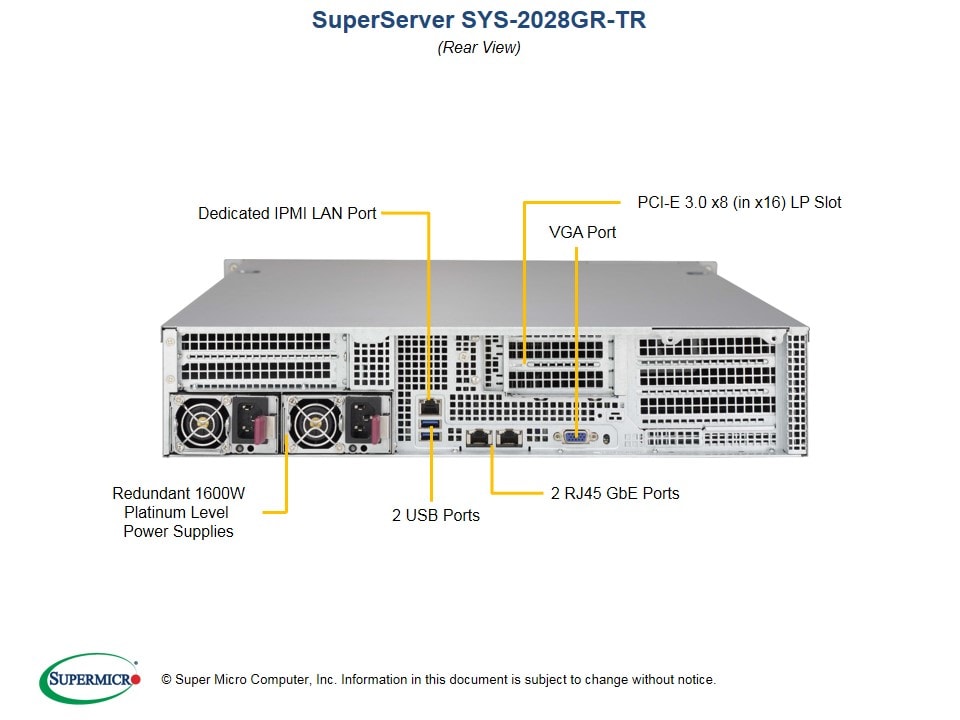

| Front View | Rear View |



Key Features

• Up to 4 NVIDIA GPU

1. Dual socket R3 (LGA 2011) supports

    Intel® Xeon® processor E5-2600

    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to

    DDR4- 2400MHz ; 16 DIMM slots
3. 4 PCI-E 3.0 x16 slots (GPU/MIC, opt.),

    1 PCI-E 3.0 x8 (in x16) low-profile slot
4. Intel® i350 Dual-Port GbE LAN
5. 10 Hot-swap 2.5" SATA Drive Bays
6. 2000W Redundant Power Supplies

    Platinum Level (94%+)
7. 5 heavy duty cooling fans
8. Smart server management tools


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Compatible GPU List  Quick-References Guide  Drive Options


Product SKUs
SYS-2028GR-TR
  • SuperServer 2028GR-TR (Black)

Motherboard


Super X10DRG-H

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *

  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

GPU/Xeon Phi Support
  • NVIDIA® Tesla® K1/K2/K10/K40/K80/M40/M60/Xeon Phi

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • Intel C612 Controller
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (2 rear, 2 via header)
  • 2 USB 2.0 ports (2 via headers)
Video
  • 1 VGA Connector
Serial Port
  • 1 Serial header

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.3
  • UEFI
  • RTC (Real Time Clock) Wakeup
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218GH-R2K03B

Dimensions and Weight
Height
  • 3.5" (89mm)
Width
  • 17.2" (437mm)
Depth
  • 31" (787mm)
Package
  • 26.5" (H) x 11" (W) x 44.5" (D)
Weight
  • Net Weight: 39.5 lbs (17.9 kg)
  • Gross Weight: 54 lbs (24.5 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Overheat LED / Fan fail LED /

    UID LED

Expansion Slots
PCI-Express
  • 4 PCI-E 3.0 x16 slots

    (support GPU/Xeon Phi cards, option)
  • 1 PCI-E 3.0 x8 (in x16) low-profile slot

Drive Bays
Hot-swap
  • 10 Hot-swap 2.5" drive bays

System Cooling
Fans
  • 5 heavy duty 8cm fans with optimal fan speed control

Power Supply
2000W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1800W/1980W/2000W
Dimension

(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-10.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 10-9.8A (UL/cUL only)
  • 200-240Vdc / 10-9.1A (CCC only)
+12V
  • Max: 83.3A / Min: 0.1A (100-120Vac)
  • Max: 150A / Min: 0.1A (200-220Vac)
  • Max: 165A / Min: 0.1A (220-230Vac)
  • Max: 166.7A / Min: 0.1A (230-240Vac)
  • Max: 166.7A / Min: 0.1A (200-240Vac) (UL/cUL only)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Platinum Level Certified94%+  Platinum Level

    [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
  • 5 Phase-switching voltage regulator
FAN
  • Total of five 4-pin PWM fans
  • 5 fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 10x Fan Connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Power Fail / Overheat LED
  • Suspend-state Indicator LED
  • UID LED
Other Features
  • SDDC Support

Operating Environment / Compliance
RoHS

  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
See Parts List



Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X10DRG-H

CSE-218GH-R2K03B
1

1
Super X10DRG-H Motherboard

2U Black SC218G Chassis
Backplane BPN-SAS-218A 1 10-port 2U (GPU chassis) SAS 6Gbps direct-attached backplane, support up to 10x 2.5-inch SAS/SATA HDD/SSD
Cable 1 CBL-0294L-02 2 (EOL)30AWG 58CM IPASS TO 4 SATA W/SB CROSS OVER
Cable 2 CBL-0484L 2 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 3 CBL-0460L 1 8 Pin to Two 4 Pin Backplane Power Ext. 28/22cm. 18AWG
Cable 4 CBL-PWEX-0582 4 8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG, 10A/pin(16AWG), 6A/pin(20AWG), -25~85C, RoHS/REACH
Cable 5 CBL-0157L 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1626-QRG 1 SYS-2028GR-TR(T)/TRH(T), QRG,HF,RoHS/REACH
Riser Card RSC-G2FR-A66 1 RSC-G2FR-A66-O-P
Riser Card RSC-G2F-A66 1 RSC-G2F-A66-O-P
Riser Card RSC-R2UG-E16R-X9 1 RSC-R2UG-E16R-X9
Heatsink / Retention SNK-P0048PS 1 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Heatsink / Retention SNK-P0047PS 1 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-2K03P-1R 2 1U 2000W Redundant Power Supply Platinum 73.5mm width.,RoHS/REACH




Optional Parts List


Part Number

Qty

Description

GPU Supporting Bracket MCP-240-00139-0N - NVIDIA-GPU + PCI Bracket for supporting APEX2800LP and AOC-S2308L-L8E on SC218GH
GPU Supporting Bracket MCP-120-00070-0N - SC218G-4GPU INTEL-XEON-PHI GPU Supporting Bracket Set (SC218-INTEL-KNIGHTR-GPU-BKT)
Cable CBL-PWEX-0665 - PCIe 8 pin female(black) to CPU 8 pin female(white), K80/M60/M40 GPU power for 300W card, 30cm, 18AWG
Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List





Note: Different GPU/Xeon Phi cards require special brackets, for more information please refer to the user's manual
