SuperServer 2028TP-DC1R

  Products  Systems  2U   [ 2028TP-DC1R ]









Integrated Board
Super X10DRT-P

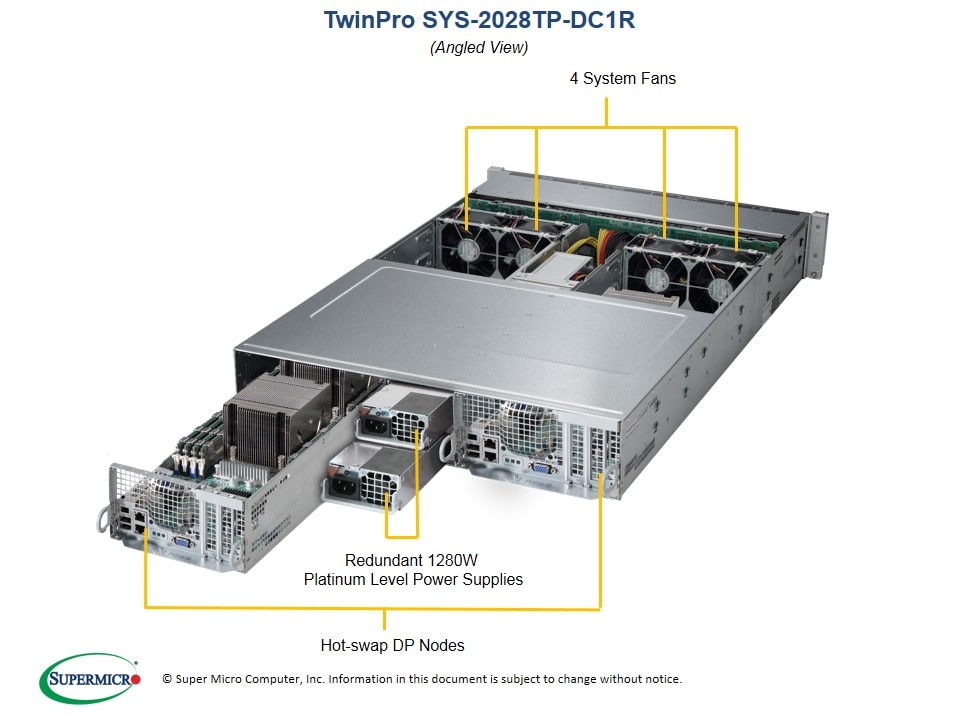

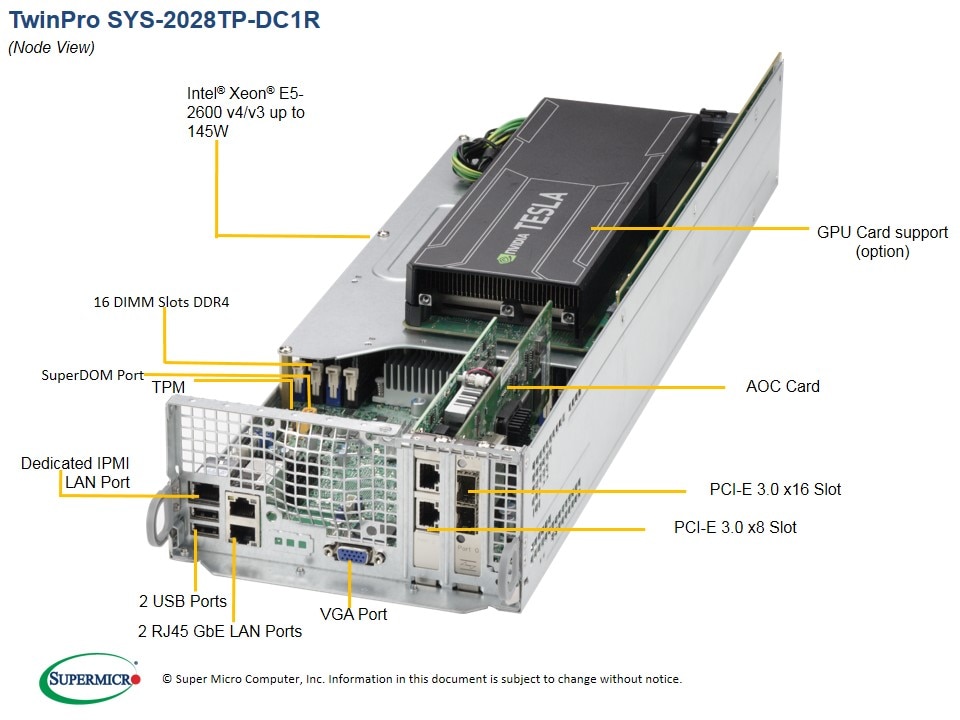

Views: | Angled View | Node View |

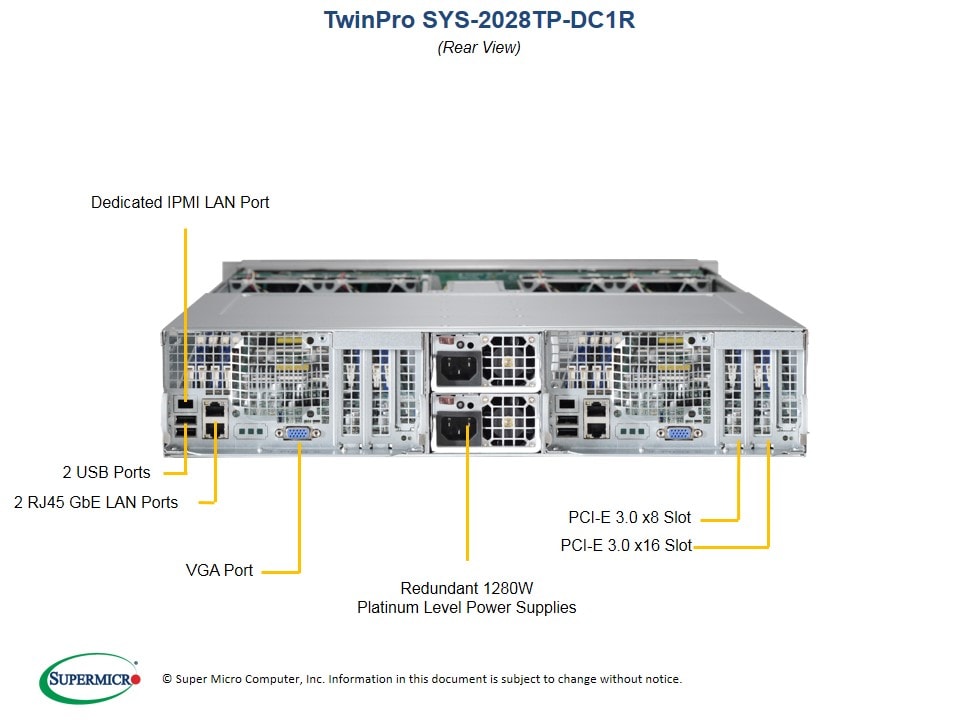

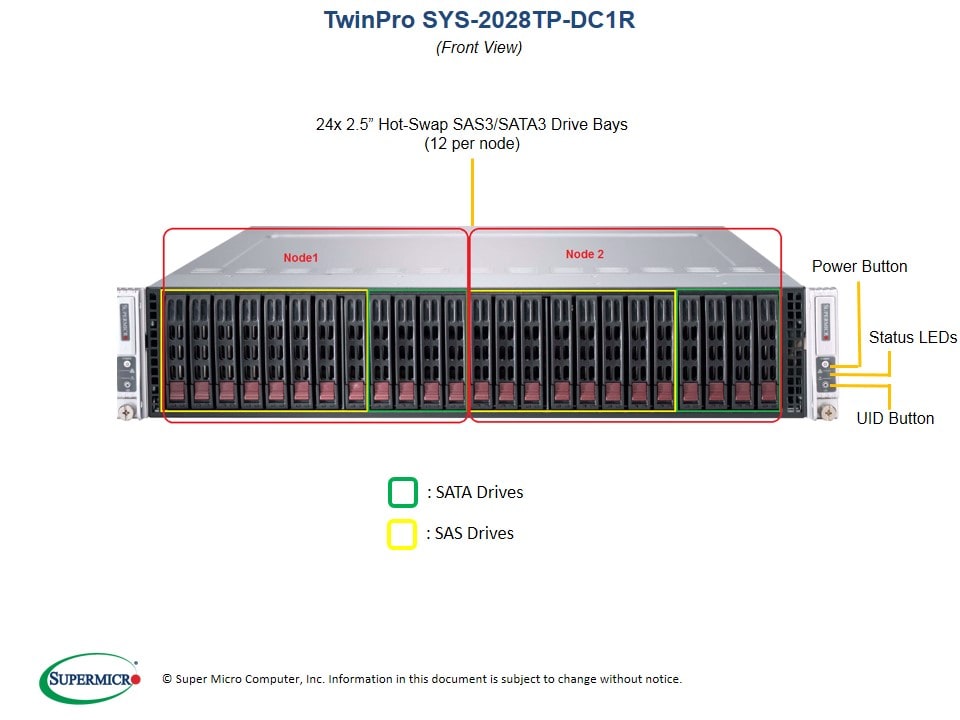

| Front View | Rear View |



Key Features

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports

    Intel® Xeon® processor E5-2600

    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to

    DDR4- 2400MHz ; 16 DIMM slots
3. 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slot,

    and 1 PCI-E 3.0 x16 for

    GPU/Xeon Phi support (w/ GPU kit)
4. Intel® i350-AM2 Dual port GbE LAN
5. Integrated IPMI 2.0 with KVM and

    Dedicated LAN
6. 12 Hot-swap 2.5" SAS (8) / SATA (4)

    HDD Bays
7. Broadcom 3108 SAS3 controller (8 ports);

    RAID 0, 1, 5, 6, 10, 50, 60
8. mSATA (full size) support
9. 1280W Redundant Power Supplies

    Platinum Level Digital (94%)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix


Product SKUs
SYS-2028TP-DC1R
  • SuperServer 2028TP-DC1R (Black)

Motherboard (Two per System)


Super X10DRT-P

Processor/Cache (per Node)
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *

  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


System Memory (per Node)
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices (per Node)
Chipset
  • Intel® C612 chipset
SAS
  • Broadcom 3108 SAS3 (12Gbps) controller;

       RAID 0, 1, 5, 6, 10, 50, 60 support
  • Optional SuperCap
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350-AM2 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1 Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output (per Node)
SAS
  • 8 SAS3 (12Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
VGA
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header (internal)
Others
  • 1 mSATA (full size) and CacheVault support on the daughter card
  • 1 SATADOM support on the motherboard
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217HD+-R1K28B

Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 28.75" (730mm)
Weight
  • Gross Weight: 85 lbs (38.6kg)
  • Net Weight: 66 lbs (29.9 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2 Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 1 PCI-E 3.0 x16 Low-profile slot
  • 1 PCI-E 3.0 x8 slot
  • 1 PCI-E 3.0 x16 for GPU/Xeon Phi support (w/ GPU kit)




  • (Both CPUs need to be installed for full access to PCI-E slots)

Drive Bays (per Node)
Hot-swap
  • 12 Hot-swap 2.5" SAS (8) / SATA (4) HDD Bays

System Cooling
Fans
  • 4 heavy duty 8cm PWM fans with optimal fan speed control

Power Supply
1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input
  • 1000W Output @ 100-140V, 8-12A, 50-60Hz
  • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1280W: +12V/106.7A, +5Vsb/4A
Certification Platinum Level Certified95%+

  Platinum Certified

  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS

  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
See Parts List



Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X10DRT-P

CSE-217HD+-R1K28B
2

1
Super X10DRT-P Motherboards

2U Chassis
Air Shroud MCP-310-82718-0B 2 2U Twin air shroud for X9DRT-HF+
Backplane BPN-SAS3-217HD 1 24-port 2U TwinPro SAS3 CSE-217HD (12 drives per node) backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-ADP-S3108H-H8IRP 2 BPNADPS3108H-H8IRP
Cable 1 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1661-QRG 1 2028TP-DC1R/DC1TR/DC1FR, QRG,HF,RoHS/REACH
Heatsink / Retention SNK-P0048PS 4 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K28P-SQ 2 1U 1280W, redundant single output power supplies




Optional Parts List
  Part Number Qty Description
GPU Kit MCP-420-21715-ASM

MCP-420-21715-ASM-OEM
-

-
Support passive GPU and Xeon Phi (passive)

Support Geforce GTX GPU (active)
SuperCap Kit BTR-CV3108-TP1 - Broadcom 3108 CacheVault kit for TwinPro
Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 2 OOB Management Package (per node license)
Software SFT-DCMS-Single 2 DataCenter Management Package (per node license)
Hide Parts List
