SuperServer 2028TP-DNCTR

  Products  Systems  2U   [ 2028TP-DNCTR ]





Integrated Board
Super X10DRT-PT

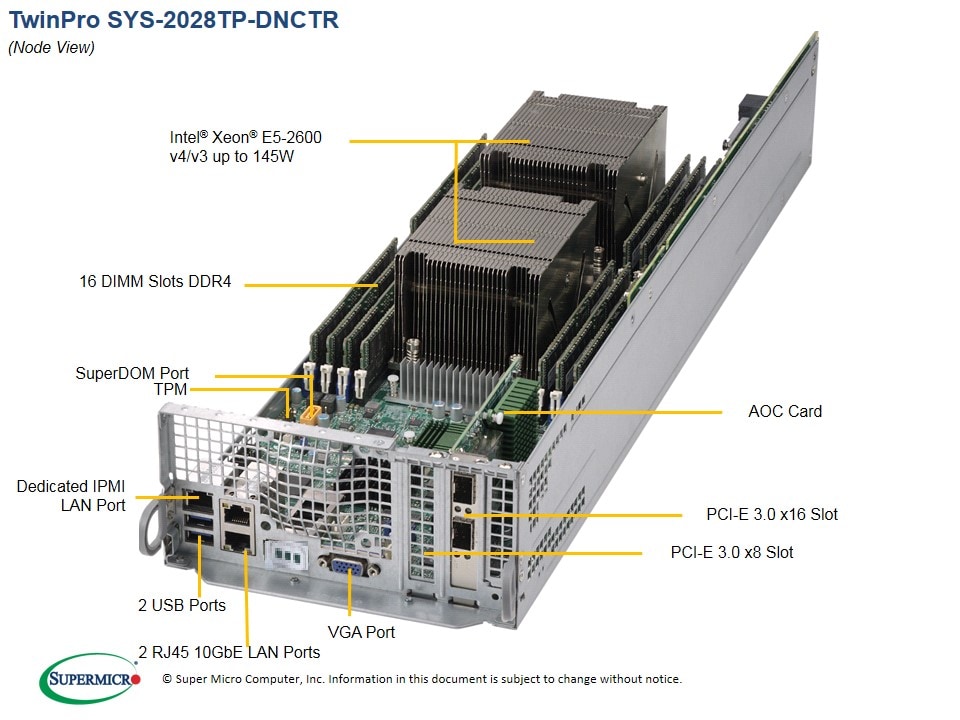

Views: | Angled View | Node View |

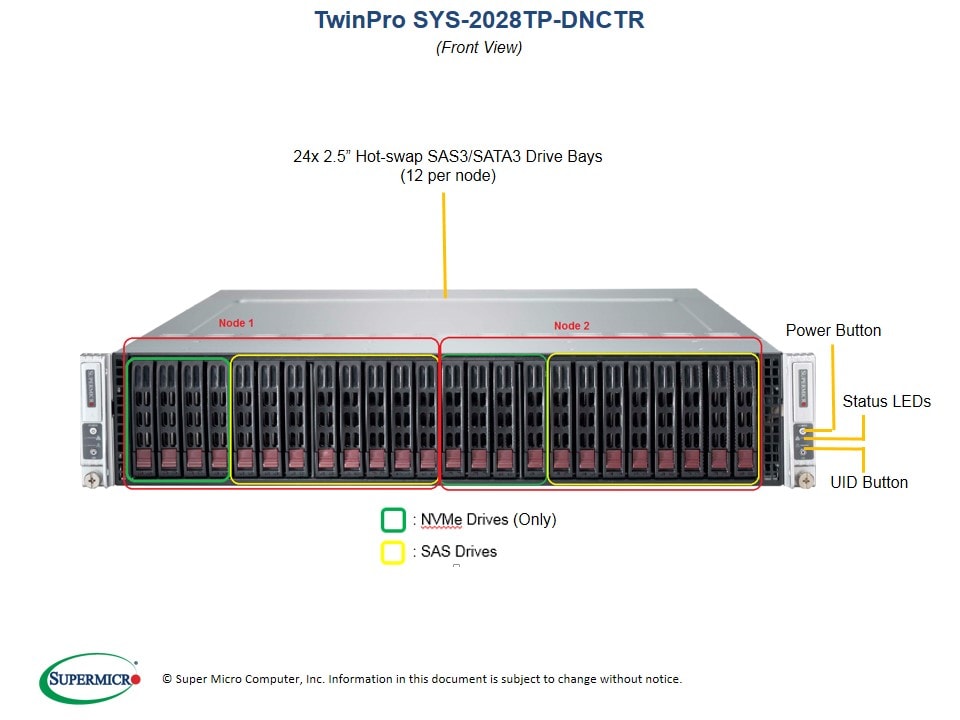

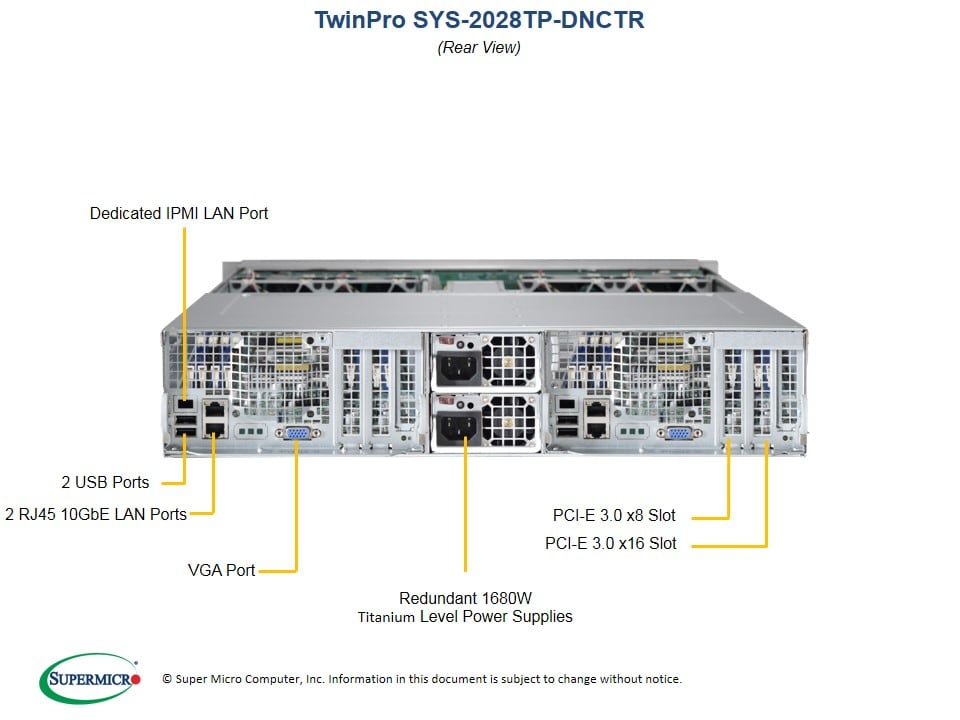

| Front View | Rear View |

Key Features
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16 DIMM slots
3. 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slots
4. Intel® X540 Dual port 10GBase-T LAN
5. Integrated IPMI 2.0 with KVM and
    Dedicated LAN
6. 4 NVMe and 8 Hot-swap 2.5" SAS
    drives
7. Broadcom 3008 SAS3 controller (8 ports);
    RAID 0, 1, 10
8. 1600W Redundant Power Supplies
    Titanium Level (96%)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-2028TP-DNCTR
  • SuperServer 2028TP-DNCTR (Black)

Motherboard (Two per System)

Super X10DRT-PT

Processor/Cache (per Node)
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per Node)
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices (per Node)
Chipset
  • Intel® C612 chipset
SAS
  • Broadcom 3008 SAS3 (12Gbps) controller;
       RAID 0, 1, 10 support
  • Note: In order to support NVMe drives, both CPU socket must be populated
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1 Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output (per Node)
SAS
  • 8 SAS3 (12Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
VGA
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header (internal)
Others
  • 1 mSATA (full size) and one SATADOM support on the daughter card
  • 1 SATADOM support on the motherboard
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217HD+-R1K68B

Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 28.75" (730mm)
Weight
  • Gross Weight: 85 lbs (38.6kg)
  • Net Weight: 66 lbs (29.9 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • 2 Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 1 PCI-E 3.0 x16 slot
  • 1 PCI-E 3.0 x8 slot

Drive Bays (per Node)
Hot-swap
  • 8 Hot-swap 2.5" SAS HDD Bays
  • 4 Hot-swap 2.5" Bays support NVMe
    Note: NVMe support requires 2 CPUs installed

System Cooling
Fans
  • 4 heavy duty 8cm PWM fans with optimal fan speed control

Power Supply (76mm Width)
1600W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 140Vac
  • 1600W: 180 – 240Vac
Dimension
(W x H x L)
  • 76 x 40.4 x 336 mm
Input
  • 100-140Vac / 10-7A / 50-60Hz
  • 180-240Vac / 11-8A / 50-60Hz
+12V
  • Max: 67A / Min: 0A (100-140Vac)
  • Max: 133A / Min: 0A (180-240Vac)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level Certified96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRT-PT
CSE-217HD+-R1K68B
2
1
Super X10DRT-PT Motherboards
2U Chassis
Air Shroud MCP-310-82718-0B 2 2U Twin air shroud for X9DRT-HF+
Backplane BPN-SAS3-217HD-N4 1 24-port 2U TwinPro SAS3 CSE-217HD (8 HDD + 4 NVMe per node) backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD and 8x NVMe/SAS3/SATA3 storage devices
Backplane BPN-ADP-8S3008N4-2UP 2 2U adapter card for 2U TwinPro system; LSI3008 on board to provide 8x SAS3 ports, 4x NVMe ports, 1x mSATA port and 1x SATADOM port,HF,RoHS/REACH
Cable 1 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1700-QRG 1 2028TP-DNCR/DNCTR/DNCFR, QRG
Heatsink / Retention SNK-P0048PS 4 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K68A-1R 2 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF


Optional Parts List
  Part Number Qty Description
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 2 OOB Management Package (per node license)
Software SFT-DCMS-Single 2 DataCenter Management Package (per node license)
Hide Parts List
