 | | SSG-6028R-E1CR24N |
- SuperStorage 6028R-E1CR24N (Black)
|
| |
|
| CPU |
- Intel® Xeon® processor E5-2600
v4†/
v3 family
(up to 145W TDP)
*
- Dual Socket R3 (LGA 2011)
|
| Cores / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
| System Bus |
|
| Note |
† BIOS version 2.0 or above is required |
| Note |
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
|
| |
|
| Memory Capacity |
- 24x 288-pin DDR4 DIMM slots
- Up to 3TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
|
| Memory Type |
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
|
| DIMM Sizes |
- RDIMM:
64GB, 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| |
|
| Chipset |
|
| SAS3 |
- Broadcom 3108 SAS3 onboard
- Hardware RAID 0, 1, 5, 6, 10, 50, 60
|
| SATA |
- SATA3 (6Gbps); RAID 0, 1, 5, 10
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Controllers |
- SIOM support for flexible networking options
|
| Graphics |
|
| |
|
| LAN |
- LAN ports via
SIOM
Add-On-Card
|
| USB |
- 3 USB 3.0 ports (2 rear + 1 Type A)
|
| Video |
|
| Serial Port / Header |
- 1 Fast UART 16550 port / 1 Header
|
|
|
| |
| | Form Factor |
|
| Model |
|
| | |
| | Width |
|
| Height |
|
| Depth |
- 34" (863.6mm)
- With Cable Management Arm Installed:
41" (1041.4mm)
|
| Available Colors |
|
| | |
| | Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power status LED
- Hard drive activity LED
- 2 Network activity LEDs
- System Information LED
- Power fail LED
|
| |
|
| PCI-Express |
- 2 PCI-E 3.0 x16 slots
- 1 PCI-E 3.0 x8 slot
|
| | |
| | Hot-swap |

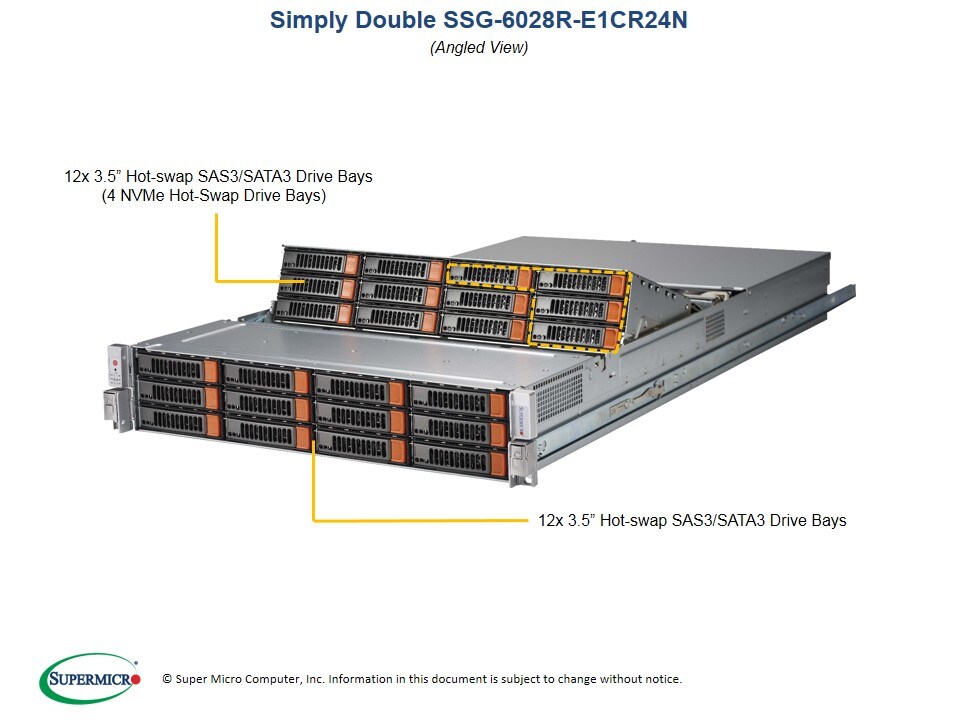

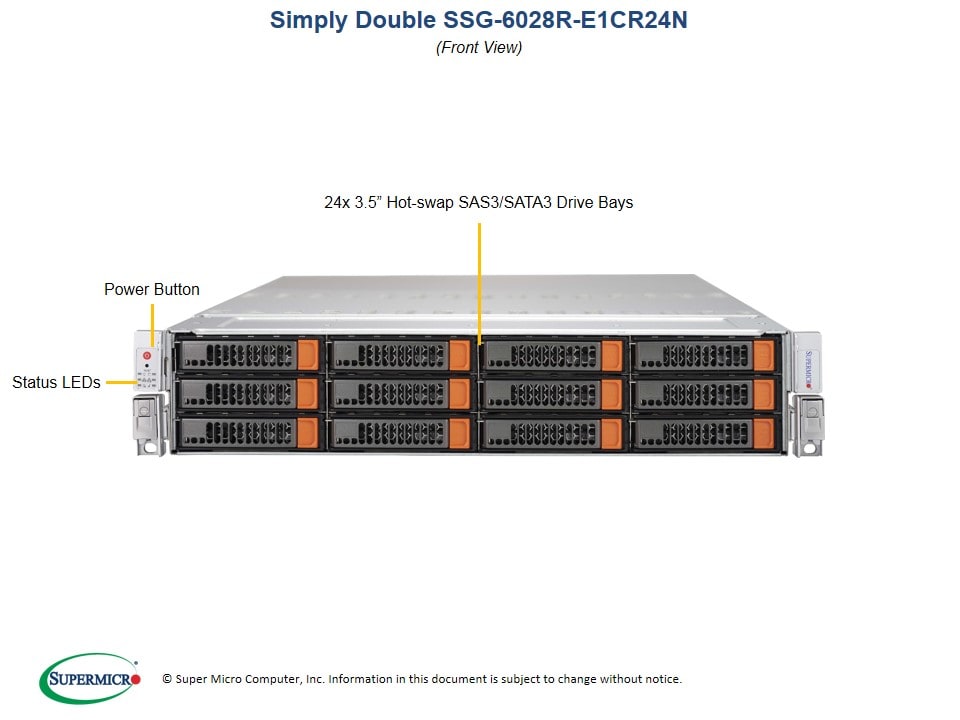

- 24x 3.5" Hot-swap SAS3/SATA3 drive bays

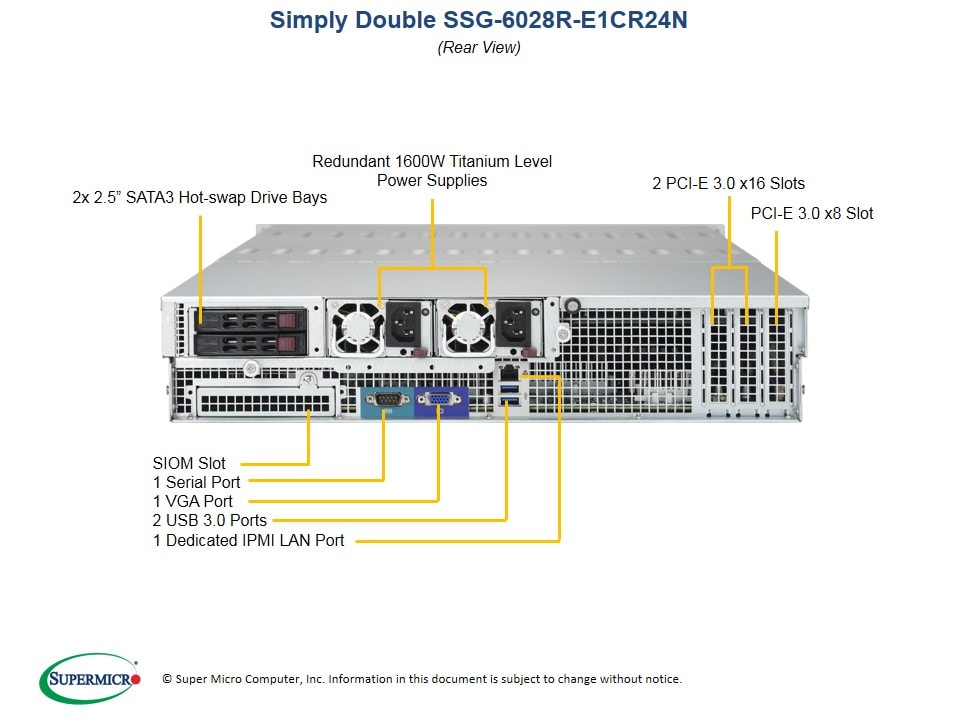

- 2x 2.5" rear Hot-swap SATA drive bays
|
| | |
| | Two 12 port SAS3 12G expander backplanes, each supporting up to 12x 2.5" SAS3 drives |
| | |
| | Fans |

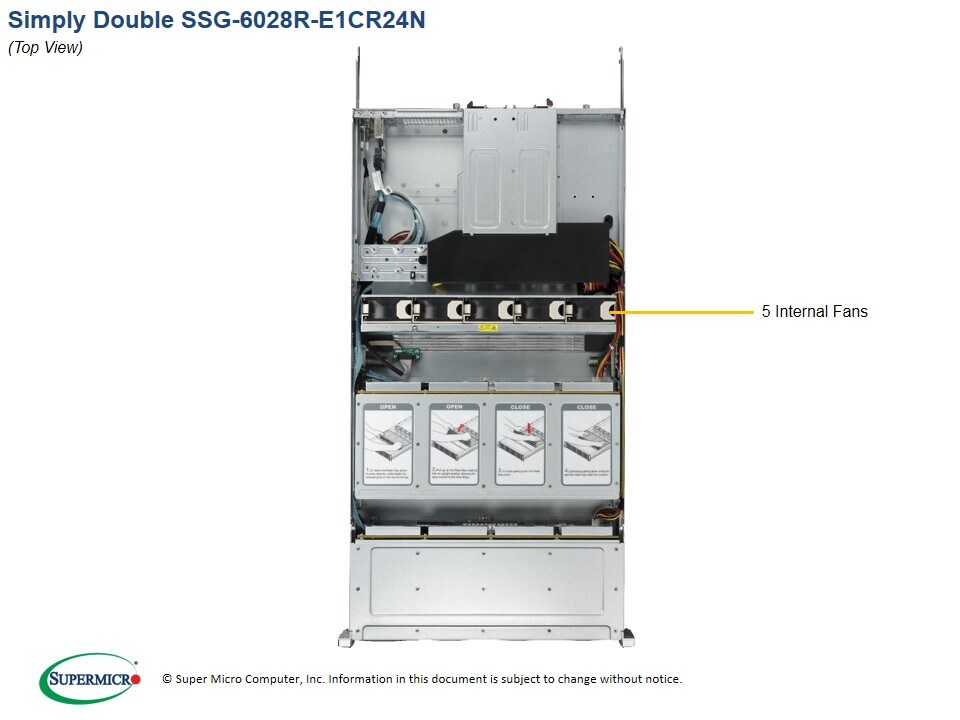

- 5x 8cm hot-swap redundant PWM cooling fans
|
| | |
| 1600W Redundant Power Supplies with PMBus |
| Total Output Power |
|
Dimension
(W x H x L) |
|
| Input |
- 100-127Vac / 13 - 9A / 50-60Hz
- 200-240Vac / 10 - 8A / 50-60Hz
|
| +12V |
- Max: 83.3A / Min: 0A (100-127Vac)
- Max: 133A / Min: 0A (200-240Vac)
|
| 12Vsb |
|
| Output Type |
- 25 Pairs Gold Finger Connector
|
| Certification |
  Titanium Level
[ Test Report ]
|
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
- UEFI
|
| | |
| RoHS
|
|
| Environmental Spec. |
- Operating Temperature:
10°C to 35°C (50°F to 95°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|  | |
|
See Parts List
|
|
| |
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X10DSC+
CSE-826SE1C4-R1K62 |
1
1 |
Super X10DSC+ Motherboard
2U Chassis |
| Cable Management Arm |
MCP-290-00086-0N |
1 |
Cable Management Arm for 1U ball bearing Chassis |
|
Add-on Card / Module
|
AOM-S3108M-H8L-P |
1 |
sas3 roc mez for X10dsc |
|
Backplane
|
BPN-SAS3-826SEL1-N4 |
2 |
12-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD and 4x NVMe/SAS3/SATA3 storage devices |
|
Cable 1
|
CBL-PWEX-0702 |
1 |
PWEX,2X4F/P4.2 TO 1X4F/P5.08/RA,32CM,18AWG,YEL,BLK*2,RED |
|
Cable 2
|
CBL-SAST-0835 |
2 |
SLIMLINE SAS to MiniSAS HD, INT, 100CM, 32AWG |
|
Cable 3
|
CBL-SAST-0836 |
2 |
MINI SAS HD,INT,SAS3 SSD,48CM,32AWG |
|
Heatsink / Retention
|
SNK-P0047PS |
2 |
1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB |
|
*
Power Supply
|
PWS-1K62A-1R |
2 |
AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH |
|
*
Power Distributor
|
PDB-PT226S-8824 |
1 |
12V 25pair connector inpu with special wires 12V/168A output |
|
*
Cable 4
|
CBL-0156L |
1 |
CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,40CM,28AWG |
|
*
Cable 5
|
CBL-0459L |
2 |
LATCH CLAMP,AC POWER CORD |
|
*
Cable 6
|
CBL-CDAT-0728 |
1 |
4 Pin to 4 Pin I2C cable, 65cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH |
|
*
Cable 7
|
CBL-PWEX-0760 |
1 |
PWR EXT,2X4F/P4.2 TO 2X4F/P4.2,CPU 12V,13CM,16AWG,RoHS/REACH |
|
*
Cable 8
|
CBL-PWEX-0901 |
2 |
BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,33CM,18AWG, |
|
*
Cable 9
|
CBL-PWEX-0903 |
2 |
BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,72CM,18AWG,For CSE-226STS-R1K62P1 only |
|
*
FAN 1
|
FAN-0168L4 |
5 |
80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay) |
|
*
Drive Tray(s)
|
MCP-220-00133-0B |
24 |
Black gen 8 hot-swap 3.5\" HDD tray |
|
*
Front Panel
|
MCP-280-00015-0N |
1 |
Front control board for SC826 (inside the left handle),FP826 |
|
*
Front Panel
|
MCP-280-00018-0N |
1 |
SC826 front control board adapter |
|
*
Drive Tray(s)
|
MCP-290-82607-0N |
1 |
826B/216B rear dummy cover for 2 X 2.5 |
Notes: - Parts with * are inside the chassis
- Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
|
|
|
|
| |
| | |
Part Number |
Qty |
Description |
| Converter Tray |
MCP-220-00140-0B |
- |
Hot-swap 3.5" to 2.5" converter tray |
| 2x 2.5" rear SATA drive bay to support (2+2) drive bays |
CBL-PWEX-0650
MCP-240-22603-0N
MCP-240-22604-0N
MCP-220-82616-0N |
1
1
1
1 |
8-pin female to 2 Right Angle big 4-pin female power, 47/62cm
2U Rear Window support (2 + 2) 2.5 HDD
2U Rear plate support (2 + 2) 2.5 HDD
Rear 2.5 x 2 Hot swap HDD kit |
| 3108 Cache Protection |
BTR-CV3108-FT1 |
- |
Broadcom 3108 CacheVault kit (ROHS, Reach) |
| 4 NVMe Drives Support |
CBL-SAST-0929
MCP-220-00140-0B |
4
4 |
OCuLink 0.91 to MiniSAS HD,INT,PCIe NVMe SSD, 57CM,34AWG
Hot-swap 3.5" to 2.5" converter tray |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC •  |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
| SIOM Network Card(s) |
AOC-MGP-I2
AOC-MGP-I4
AOC-MTG-I2T
AOC-MTG-I4T
AOC-MTGN-I2S
AOC-MTG-I4S |
-
-
-
-
-
- |
SIOM 2-port GbE, Intel i350-AM2
SIOM 4-port GbE, Intel i350-AM4
SIOM 2-port 10GBase-T, Intel X550
SIOM 4-port 10GBase-T, Intel X550
SIOM 2-port 10G SFP+, Intel 82599ES
SIOM 4-port 10G SFP+, Intel XL710
|
Hide Parts List
|
|
|
|
