SuperServer 5038MD-H8TRF

  Products  Systems   MicroCloud   [ 5038MD-H8TRF ]





Integrated Board
Super X10SDD-F

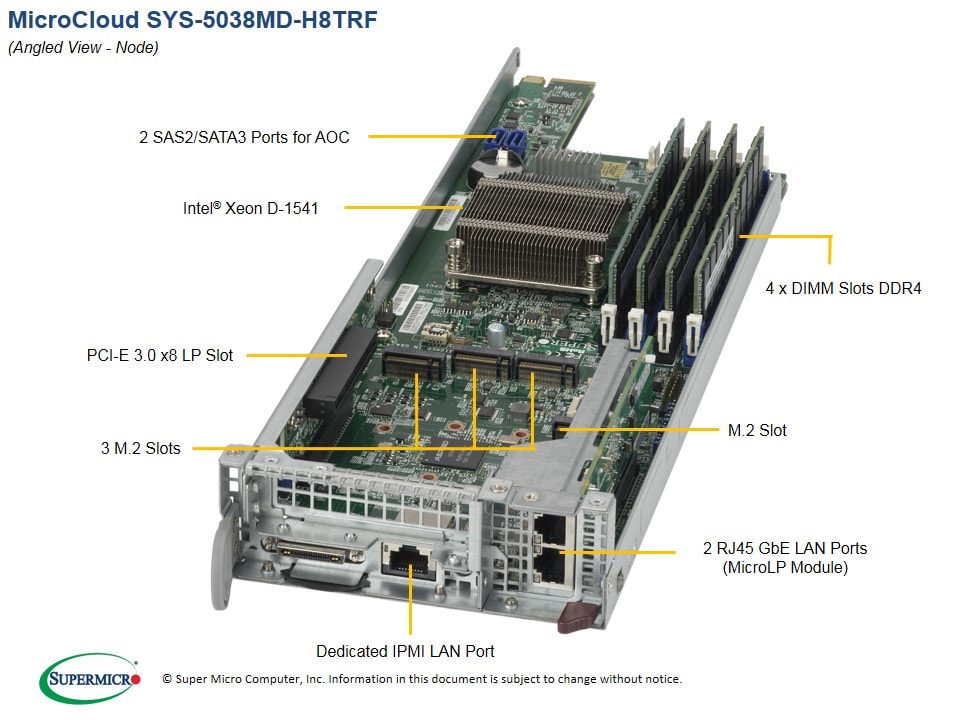

Views: | Angled View | Node View |
| Front View | Rear View |

Key Features (per node)
• Cloud Computing
• Web Cache, CDN
• Web Hosting, VM
• Social Networking

1. Single socket FCBGA 1667,
    8-Core, 45W, 16 Threads;
    support Intel® Xeon®
    processor D-1541
2. 2x 3.5" SATA3 by default; 2x 2.5"
    SATA3 HDDs w/ Optional kits
3. Up to 128GB DDR4 ECC RDIMM/64GB
    DDR4 ECC UDIMM, 4 sockets
4. 2x GbE LAN ports via Intel i350,
    1x dedicated LAN for IPMI Remote Management
5. 1x PCI-E 3.0 x8 LP, 1x Micro-LP, 4x M.2
6. 2x USB 2.0, 1x VGA, 1x COM port
    (with KVM dongle)
7. 4x 8cm heavy duty hot-swap fans with
    optimal cooling zone (per system)
8. 1600W Redundant power supplies
    Titanium Level Certified
    (per system)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix  Drive Options

Product SKUs
SuperServer
  • SYS-5038MD-H8TRF (Black)

Motherboard
Super X10SDD-F

Processor/Cache
CPU
  • Intel® Xeon® processor D-1541
  • Socket FCBGA 1667
  • CPU TDP support 45W, 12MB, 8 Cores, 16 Threads, 2.1-2.7GHz

System Memory (per node)
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Supports up to 128 GB DDR4 ECC RDIMM
  • Supports up to 64 GB DDR4 ECC UDIMM
Memory Type
  • 2133/1866/1600MHz ECC DDR4 RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

Expansion Slots (per node)
PCI-Express
  • 1x PCI-E 3.0 x8 Low-profile slot
  • 1x Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional
  • 4x M.2 (2x PCI-E 3.0 x4 + 1x PCI-E 2.0 x4 + 1x PCI-E 2.0 x2)

Network Devices (per node)
Micro-LP NIC
  • Intel® i350 GbE controller
  • Dual RJ-45 connectors
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/O Acceleration Technology (I/O AT)
  • MicroLP Adapter Matrix (Networking options)

On-Board Devices (per node)
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps) via SoC
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • ASPEED AST2400 BMC
Headers
  • 1x Type A USB 3.0
Graphics
  • ASPEED AST2400 Graphics (BMC with Graphic controller)

Input / Output (per node)
SATA
  • 2x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
KVM
  • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Rear Window (each node)
Switch
  • Power / UID
Chassis
Form Factor
  • 3U
Model
  • CSE-938BH-R1K68B

Dimensions and Weight
Height
  • 5.21" (132 mm)
Width
  • 17.26" (438 mm)
Depth
  • 23.2" (589 mm)
Package
  • 11.65" (H) x 26.26" (W) x 34" (D)
Weight
  • Net Weight: 62.2 lbs (28.21 kg)
  • Gross Weight: 88 lbs (39.92 kg)
Color
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Node status LED

Drive Bays (per node)
Internal
  • 2x 3.5" Hot-swap SATA3 (6Gbps) HDDs per node (or 2x 2.5" SATA3 with optional kits); up to 16 HDDs total
  • Enterprise SATA HDD only recommended

System Cooling
Fans
  • 4x 8cm Heavy duty fans with optimal cooling zone

Power Supply (76mm Width)
1600W 1U Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 140Vac
  • 1600W: 180 – 240Vac
Dimension
(W x H x L)
  • 76 x 40.4 x 336 mm
Input
  • 100-140Vac / 10-7A / 50-60Hz
  • 180-240Vac / 11-8A / 50-60Hz
+12V
  • Max: 67A / Min: 0A (100-140Vac)
  • Max: 133A / Min: 0A (180-240Vac)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level Certified96%  Titanium Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10SDD-F
CSE-938BH-R1K68B
8
1
Super X10SDD-F Motherboard
3U Chassis
Add-on Card / Module AOC-CGP-I2-P 8 AOC-CGP-I2-O-P
Air Shroud MCP-310-93804-0B 8 938 mylar airshroud for X10SLD-F (X9 compatible),RoHS/REACH,PBF
Backplane BPN-SAS-938H 1 16-port 3U (CSE-938) MicroCloud 6Gbps backplane, support up to 16x 3.5-inch SAS/SATA HDD
Cable 1 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Cable 2 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Riser Card RSC-RR1U-E8 8 RSC-RR1U-E8
Rail set MCP-290-00057-0N 1 set Rail set, quick/quick, default for 4U 17.2" W
Power Supply PWS-1K68A-1R 2 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF


Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0616
CBL-0118L-03
CBL-0476L
- For AOC-S3008L-L8i/AOC-SAS3-9361-4I
For AOC-S2308L-L8i
For AOC-SAS2LP-H8iR
Storage Controller Card(s) AOC-S3008L-L8i
AOC-SAS3-9361-4I
AOC-S2308L-L8i
AOC-SAS2LP-H8iR
- Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10
Std LP, 4 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60
Std LP, 8 ports, 6Gb/s Gen3, RAID 0/1/10
Std LP, 8 ports, 6Gb/s Gen3, RAID 0/1/5/6/10/50/60
NOTE: SYS-5038MD-H8TRF is designed to support max 6GB/s
Heatsink SNK-P0047PSM is required for AOC HBA card
Network Card(s) AOC-CGP-i2
AOC-CTGS-i2T
AOC-CTG-i1S
AOC-CTG-i2S
AOC-C25G-m1S
AOC-CIBF-m1
AOC-CIBQ-m1
AOC-S40G-i2Q
AOC-SGP-i2
AOC-SGP-i4
AOC-STG-i2
AOC-STG-i2T
AOC-STGN-i1S
AOC-STGN-i2S
- MicroLP, 2x 1GbE, PCI-E 2.0 x4, Intel® i350
MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550
MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
MicroLP, 2 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599EN
MicroLP, 1x 25GbE SFP28 port, Mellanox® ConnectX-4 Lx EN
MicroLP, 1x QSFP PCI-E 3.0 x8, Mellanox® ConnectX-3 FDR
MicroLP, 1x QSFP PCI-E 3.0 x8, Mellanox® ConnectX-3 QDR
Standard LP 2-port 40GbE controller, Intel Fortville XL710
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Drive Tray(s) MCP-220-93801-0B - Black gen 6 hot-swap 3.5-to-2.5 HDD tray
Drive Tray(s) MCP-220-00158-0B - Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray
M.2 Secure Screw FST-SCRW-0083L - One M.2 secure screw per M.2 SSD
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List

Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
