SuperServer 5038ML-H24TRF (Complete System Only)

  Products  Systems   MicroCloud   [ 5038ML-H24TRF ]




Integrated Board
Super X10SLE-DF

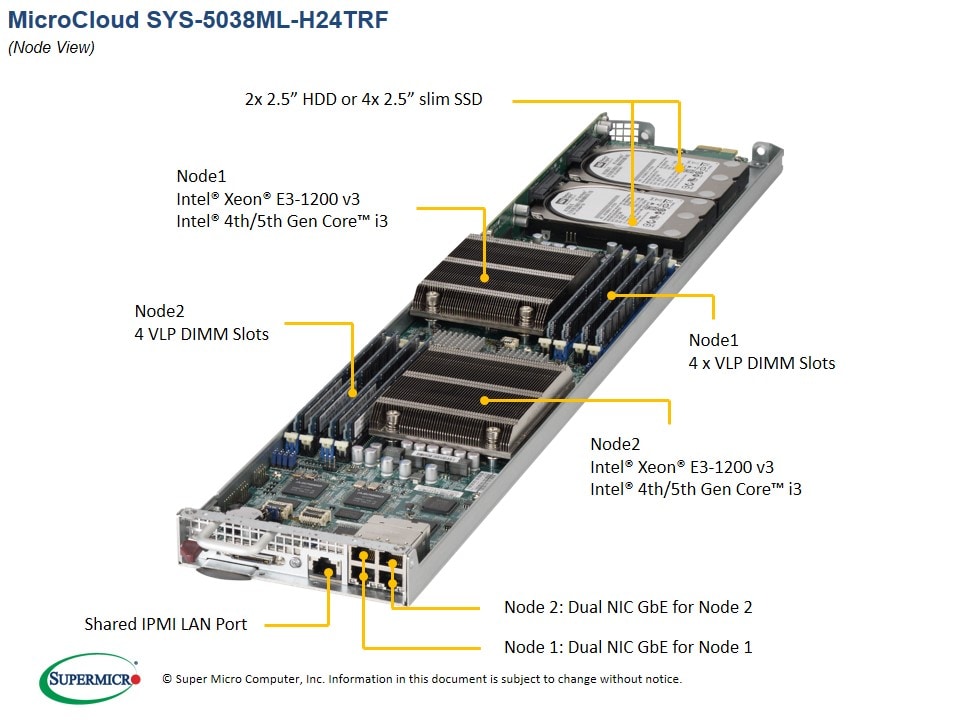

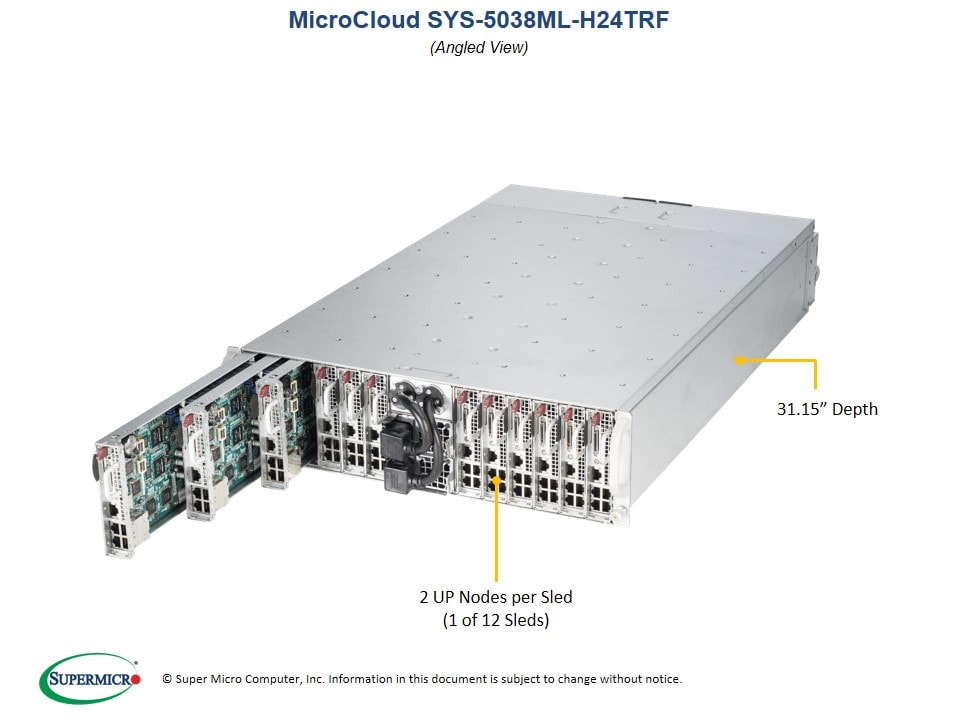

Views: | Angled View | Node View |

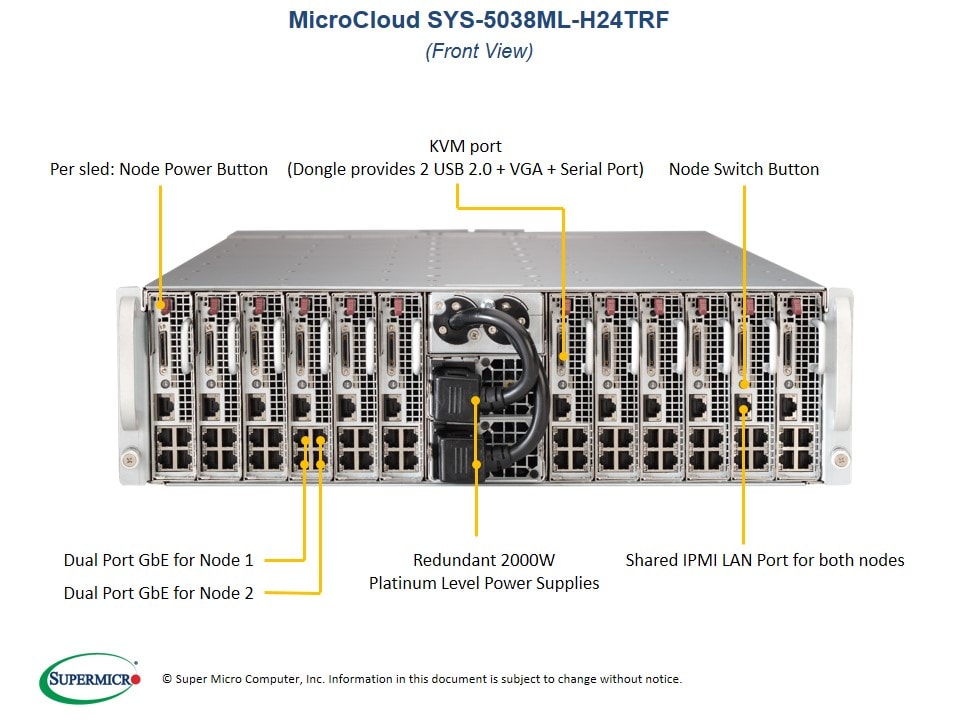

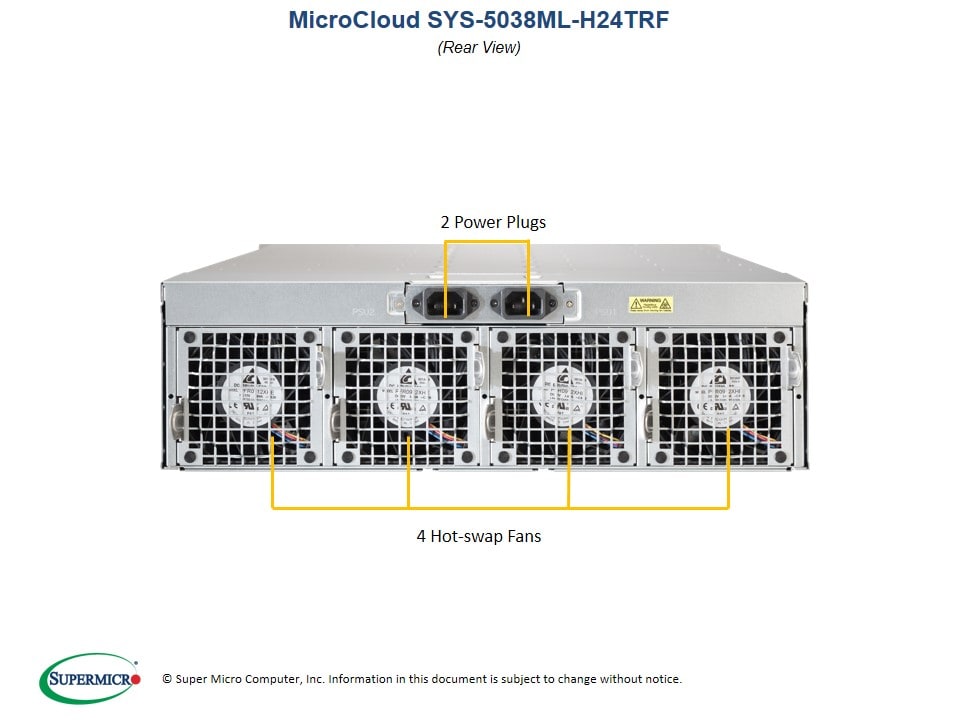

| Front View | Rear View |

Key Features (2 Nodes per Tray, Each Node:)
1. Intel® Xeon® processor E3-1200 v3
    family, Intel® 4th/5th Gen Core™
    processor family; Socket H3 (LGA
    1150) up to 80W
2. 1x 2.5" SATA3 (6Gb/s) HDDs or
    2x 2.5" Slim SSD with Optional kit
3. Up to 32GB DDR3 VLP ECC UDIMM
    1600MHz support in 4 sockets
4. 4x GbE LAN (Intel i350), 1x Shared
    LAN for IPMI Remote Management
5. Shard 1x VGA, 1x COM ports,
    2x USB 2.0 (with KVM dongle)
6. 4x 9cm heavy duty hot-swap fans with
    optimal cooling zone (per system)
7. 2000W Redundant power supplies
    Platinum Level Certified
    (per system)


Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to CPU, memory, and HDDs).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SuperServer
  • SYS-5038ML-H24TRF (Black)

Motherboard
Super X10SLE-DF

Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 v3 family, Intel® 4th/5th Gen Core™ processor family
  • Up to 80W
  • Socket H3 (LGA 1150)

System Memory (per node)
Memory Capacity
  • 4x 240-pin DDR3 DIMM slots
  • Supports up to 32 GB DDR3 VLP ECC
Memory Type
  • 1333/1600MHz*** ECC DDR3 (VLP) SDRAM 72-bit, 240-pin gold-plated UDIMMs
DIMM Sizes
  • 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices (per node)
Chipset
  • Intel® C224 PCH chipset
SATA
  • 4x SATA3 (6Gbps); 2x per node w/ RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM over LAN support
  • ASPEED AST2400 BMC
Graphics
  • ASPEED AST2400 Graphics (BMC with Graphic controller)

Network Devices (per node)
Onboard NIC
  • Intel® i350 GbE controller
  • Quad RJ-45 connectors (Dual RJ-45 per node)
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/O Acceleration Technology (I/O AT)

Input / Output (per node)
Serial ATA
  • 4x SATA3 (6Gbps) ports
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Shared IPMI LAN port
KVM
  • 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Front Window (per node)
Switch
  • Power Button
  • Node Switch
Chassis
Form Factor
  • 3U
Model
  • CSE-939HD-R2K02B

Dimensions and Weight
Height
  • 5.21" (132.5 mm)
Width
  • 17.5" (444.5 mm)
Depth
  • 31.15" (791.2 mm)
Packing
  • 720mm (W) x 409mm (H) x 1076mm (L)
Package
  • 16.1" (H) x 28.35" (W) x 42.36" (D)
Weight
  • Net Weight: 95.0 lbs (43.09 kg)
  • Net Weight w/ 2.5" HDDs: 115 lbs (52.16 kg)
  • Gross Weight: 125 lbs (56.70 kg)
Color
  • Black

Drive Bays (per node)
Internal
  • 1x 2.5" SATA3 HDDs per node; up to 24x 2.5" HDDs total OR 2x 2.5" Slim SSDs per node; up to 48x 2.5" SSDs total
  • Enterprise SATA HDD and SSD only recommended

System Cooling
Fans
  • 4x 9cm Heavy duty fans with optimal cooling zone

Power Supply
2000W redundant digital power supplies w/ PMBus
AC Input
  • 100-120Vac: +12V/91.7A; +5Vsb/4A
  • 120-140Vac: +12V/116.7A; +5Vsb/4A
  • 200-220Vac: +12V/150A; +5Vsb/4A
  • 220-230Vac: +12V/165A; +5Vsb/4A
  • 230-240Vac: +12V/166.7A; +5Vsb/4A
Total Output Power
  • 1100W/1400W/1800W/1980W/2000W
Certification Platinum Level94%+  Platinum Level
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Cooling zone
Temperature
  • Monitoring for CPU and chassis environment

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10SLE-DF
CSE-939HD-R2K02B
12
1
Super X10SLE-DF Motherboard
3U Chassis
Add-on Card / Module AOM-PDB-MC24 12 AOM-PDB-MC24
Add-on Card / Module AOM-BPN-MC24 12 AOM-BPN-MC24
Backplane BPN-SAS-939H 1 12-port 3U (CSE-939) 12-node MicroCloud hot swappable midplane
Cable 1 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Cable 2 CBL-0218L 1 USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1540-QRG 1 5038ML-H24TRF Quick Reference Guide,PBF
Heatsink / Retention SNK-P0047PSR 24 LP CPU Heat Sink for 12-node Micro Cloud Series Servers
Power Supply PWS-2K02F-1R 2 2000W redundant platinum power,HF,RoHS/REACH,PBF
Mounting Rail MCP-290-41803-0N 1 Fat twin F418 / F424 Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF


Optional Parts List
  Part Number Qty Description
HDD Kit MCP-220-93906-0N - HDD conversion plate to support 4x 2.5" HDD per node
Power Supply PWS-2K02F-1R - 2000W platinum power supply (in case of power supply fail)
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
