SuperStorage 6038R-DE2CR16L (Complete System Only)

  Products  Systems   Storage Bridge Bay (SBB)   [ 6038R-DE2CR16L ]

High Availability Storage Appliance Platform


Integrated Board
Super X10DRS-3U

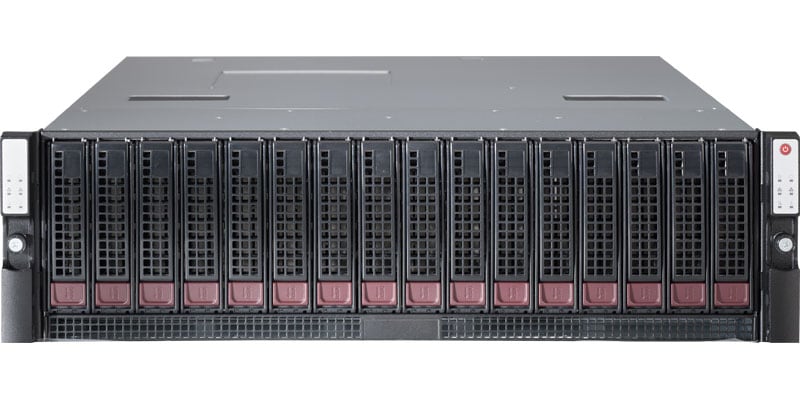

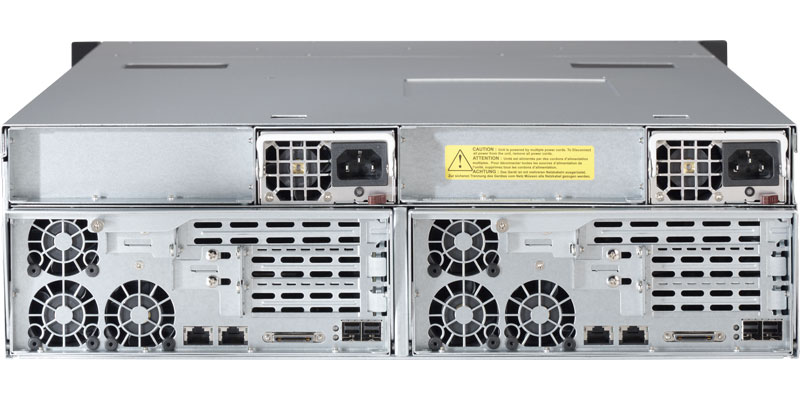

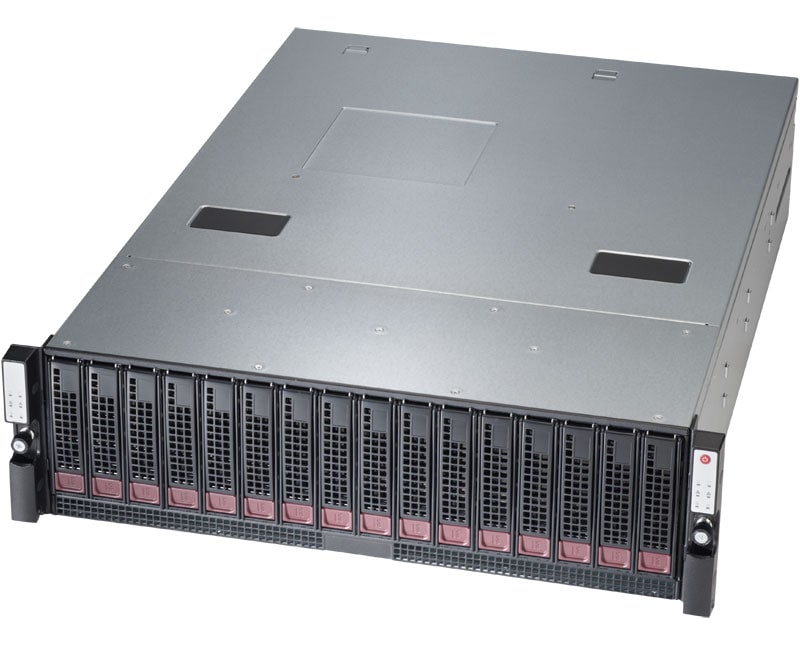

Views: | Angled View | Front View | Rear View |

 Key Features (per Node)
Two hot-pluggable systems (nodes) in a 3U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 1TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 8x DIMM slots
3. 3 PCI-E 3.0 x8 (1 FHHL, 2 LPHL)
    expansion slots per controller;
    up to 3 add-on cards
4. Dual 10GBase-T LAN w/ Intel® X540;
    100Mb private Ethernet between
    controller nodes
5. 16x 3.5" Hot-swap SAS3/SATA3 drive
    bays with SES2
6. SAS3 via Broadcom 3008 controller
7. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
8. 12x 4cm PWM cooling fans
9. 1200W Redundant Power Supplies
    Titanium Level (96%)


Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (including 4 CPUs, 4 DIMMs, 1 HDD).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SSG-6038R-DE2CR16L
  • SuperStorage 6038R-DE2CR16L (Black)

Motherboard (Two per System)

Super X10DRS-3U

Processor/Cache (per Node)
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory (per Node)
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB† ECC 3DS LRDIMM, 256GB ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
NVDIMM
  • NVDIMM support. (Not all vendor's NVDIMM are supported. Please contact your sales representative for details)

On-Board Devices (per Node)
Chipset
  • Intel® C612 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3008
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual 10GBase-T LAN with Intel® X540 Ethernet Controller
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC
Others
  • PCI-E 3.0 x8 node to node/NTB connectivity
  • PLX Technology PEX8717; PLX ExpressNIC SDK available from PLX. NDA required

Input / Output (per Node)
SAS
  • 2 JBOD expansion ports per node (mini-SAS HD)
LAN
  • 2 RJ45 10GBase-T LAN ports
  • IPMI LAN shared port
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA
  • 1 VGA port
Serial Port / Header
  • 1 COM port (rear)
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-937ETS-R0NDBP-X10

Dimensions
Width
  • 17.25" (438mm)
Height
  • 5.25" (133mm)
Depth
  • 26.25" (667mm)
Weight
  • Gross Weight: 75 lbs (34.0 kg)
  • Net Weight: 54 lbs (24.5 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Heartbeat LED
  • 2 Network activity LEDs
  • Power Fail LED
  • Overheat/Fan Fail LED

Expansion Slots (per Node)
PCI-Express
  • 3 PCI-E 3.0 x8 (1 FHHL, 2 LPHL) slots per controller

Drive Bays
Hot-swap
  • 16x 3.5" Hot-swap SAS drive bays with SES2

Backplane
SAS3 12Gbps passive backplane, redundant architecture with single expander on each motherboard. Motherboard also support 2x mini-SAS HD connectors for JBOD expansion

System Cooling
Fans
  • 12x 4cm PWM cooling fans
  • Redundant cooling

Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1200W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 100-127Vac / 15-12A / 50-60Hz
  • 200-240Vac / 8.5-7A / 50-60Hz
  • 200-240Vdc / 8.5-7A (for CCC only)
+12V
  • Max: 83A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification Platinum Level Certified95%+ Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X10DRS-3U
CSE-937ETS-R0NDBP-X10 		2
1		 Super X10DRS-3U Motherboard
3U Chassis
Add-on Card / Module AOM-S3008-L8-SB-P 2 AOM-S3008-L8-SB
Air Shroud MCP-310-92702-0N 2 SC927 Air Shroud for X10DRS-F,HF,RoHS/REACH
Backplane BPN-SAS3-937 1 16-port 3U SBB SAS3 12Gbps midplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Riser Card RSC-R2US-3E8R 2 RSC-R2US-3E8R-O-P
Heatsink / Retention SNK-P0047PS 2 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Heatsink / Retention SNK-P0048PS 2 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Cable CBL-0218L 2 11.5CM KVM/SUVI 36 PIN TO 9 PIN/15 PIN 2USB, 30/28AWG
Cable CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Drive Tray MCP-220-93703-0B 16 SC937 SBB SATA/SAS HDD tray with Broadcom Interposer Bracket
Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH


Optional Parts List
  Part Number Qty Description
HDD Converter MCP-220-93707-0B
MCP-240-93708-0N		 - Hot-swap 3.5" to 2.5" converter drive tray (for drive slot 1~15)
HDD Adapter Bracket for 2.5in SSD/HDD (for drive slot 16)
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
