SuperStorage 6048R-E1CR60L (Complete System Only)

  Products  Systems   SuperStorage   [ 6048R-E1CR60L ]




Integrated Board
Super X10DSC+

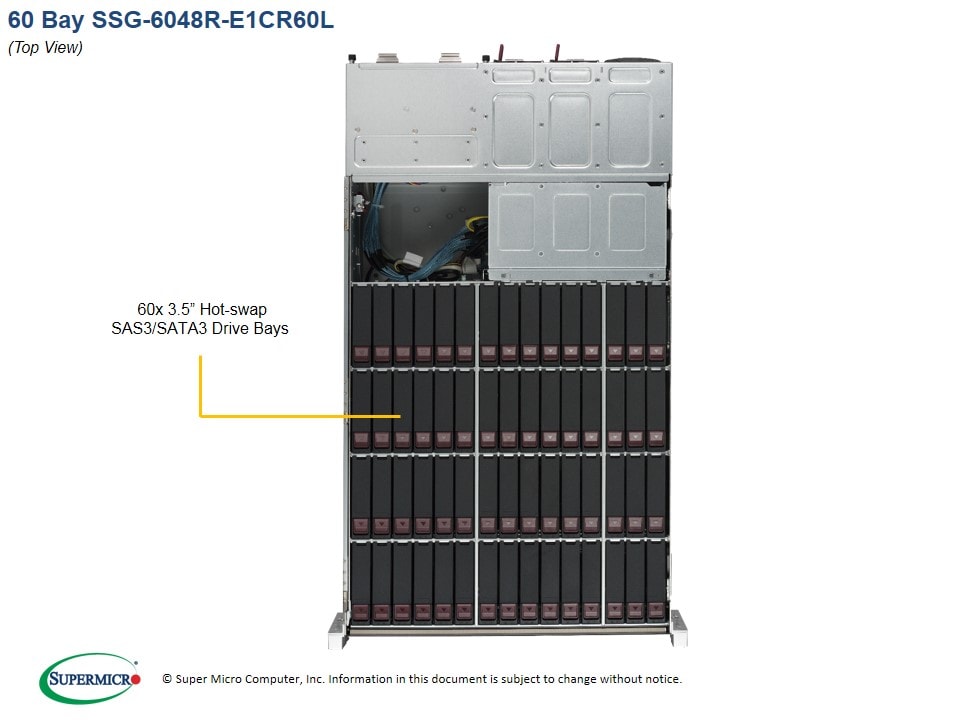

Views: | Angled View | Top View |

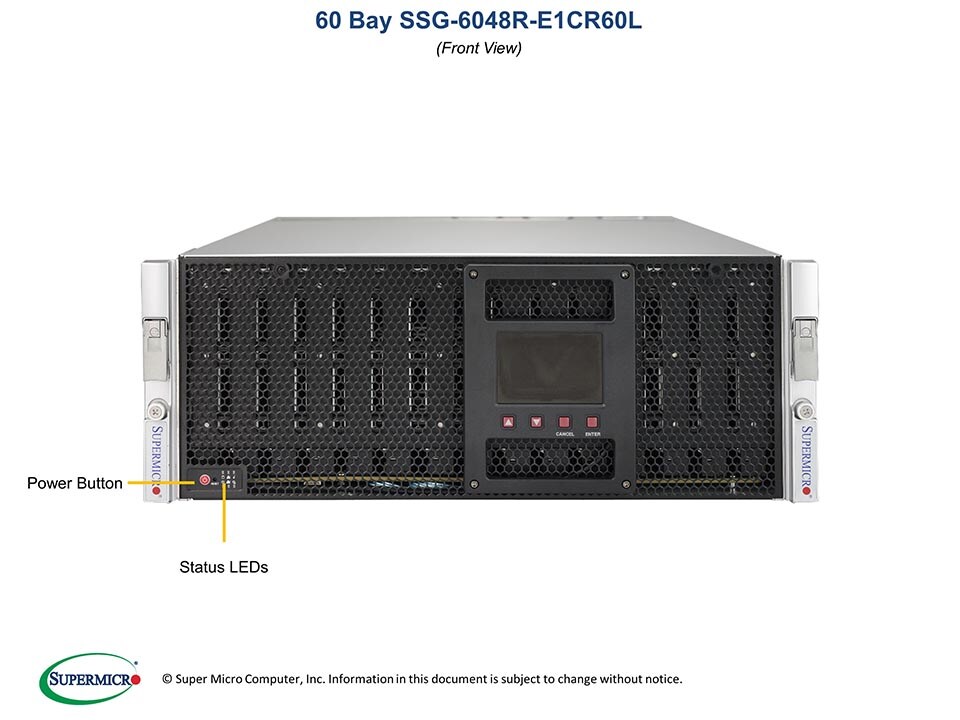

| Front View | Rear View |

 Key Features
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family (up to 160W TDP)
2. Up to 3TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 24x DIMM slots
3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
4. SIOM for flexible networking options
5. 60x 3.5" Hot-swap SAS3/SATA3 drive
    bays; 2x 2.5" rear Hot-swap SATA
    drive bays; optional 6x NVMe bays
6. Broadcom 3008 SAS3 IT mode controller
7. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
8. 5x 8cm hot-swap redundant PWM fans
    PWM fans
9. 2000W Redundant Power Supplies
    Titanium Level (96%) Certified
10. Front 3.5" LCD display
    Supermicro 90-Bay Storage
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 15 HDDs and 1 NIC or SIOM card).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Drive Options   Tested SIOM

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SSG-6048R-E1CR60L
  • SuperStorage 6048R-E1CR60L (Black)

Motherboard

Super X10DSC+

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB† ECC 3DS LRDIMM, 768 ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SAS
  • Broadcom 3008 SAS3 IT mode
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • SIOM support for flexible networking options
Graphics
  • ASPEED AST2400 BMC

Input / Output
USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
VGA
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-946STS-R2K05P

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 7" (178mm)
Depth
  • 30.2" (767mm)
  • With Cable Management Arm Installed:
    35.2" (895mm)
Weight
  • Gross Weight: 170.5 lbs (77.3 kg)
  • Net Weight: 118 lbs (53.5 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Information LED
  • Power fail LED
LCD
  • 3.5" TFT LCD panel
  • Full-Color display with 320x480 pixels
  • Real-time system status from IPMI
  • Easy read graphical User Interface

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x8 slots

Drive Bays
Hot-swap
  • 60x 3.5" Hot-swap SAS3/SATA3 drive bays
  • 2x 2.5" rear Hot-swap SATA drive bays
Optional
  • 6 NVMe bays (optional)

Backplane
SAS3/SATA3 single expander per backplane

System Cooling
Fans
  • 2x 80mm hot-swap rear exhaust cooling fans
  • Redundant cooling

Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 120Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vac (UL/CUL only)
Dimension
(W x H x L)
  • 73.5 x 40 x 265 mm
Input
  • 100-120Vac / 12.5-9.5A / 50-60Hz
  • 200-220Vac / 10-9.5A / 50-60Hz
  • 220-230Vac / 10-9.8A / 50-60Hz
  • 230-240Vac / 10-9.8A / 50-60Hz
  • 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-120Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 166.7A / Min: 0A (230-240Vac)
  • Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X10DSC+
CSE-946STS-R2K05P 		1
1		 Super X10DSC+ Motherboard
4U Chassis
Rear Window MCP-240-94601-0N - SC946S rear window w/ 3x LP slots for X10DSC+
Rear Window MCP-290-00132-0N - SIOM dummy cover for 226S/826S/946S
Add-on Card / Module AOM-S3008M-L8-P 1 Mezz card with LSI 3008 controller
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-SAS3-946SEL1 2 30-port 4U 946S Top-load SAS3 12Gbps single-expander midplane, support up to 30x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-CDAT-0728 2 4 Pin to 4 Pin I2C cable, 65cm, 26AWG, 4 wires, pinout 1-1, for vpp header(jnvi2c1),RoHS/REACH
Cable 2 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Cable 3 CBL-PWEX-0861 1 Powerlug to 5.7 Radsok, black 12AWG, 32cm for SC946S
Cable 4 CBL-PWEX-0862 1 Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S
Cable 5 CBL-PWEX-0863 1 Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S
Cable 6 CBL-PWEX-0864 1 Powerlug to 5.7 Radsok, yel 12AWG, 53cm for SC946S
Cable 7 CBL-SAST-0833 2 SLIMLINE SAS, INT, 55MM, 32AWG
Cable 8 CBL-SAST-0855 2 SLIMLINE SAS, INT, 60CM, 15D-30F-15D, 32AWG
Heatsink / Retention SNK-P0048PS 2 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
* Power Supply PWS-2K05A-1R 2 1U 2000W Redundant Titanium Power Supply W/PMbus 73.5x40x265mm,RoHS/REACH
* Power Distributor PDB-PT946S-824 1 standard 24pin output
* Cable 9 CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
* Cable 10 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 11 CBL-0303L 1 4 pin to 4 pin power cable, S-RA, 40CM. 20AWG
* Cable 12 CBL-0459L 2 LATCH CLAMP,AC POWER CORD
* Cable 13 CBL-0481L 2 SATA,INT,ROUND,ST-ST,81CM,30AWG
* Cable 14 CBL-CDAT-0841 1 8 pin to 8 pin round SGPIO cable, 81cm, 28AWG, pinout 1-1
* FAN 1 FAN-0184L4 5 80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay)
* Front Panel FPB-FP829H 1 Front Control Board for SC829H chassis
* Drive Tray(s) MCP-220-00117-0B 2 Black gen-3 hot-swap tool-less 2.5- inch HDD tray
* Drive Tray(s) MCP-220-94601-0N 60 SC946ED 3.5\" / 2.5\" tool-less HDD tray
* Rail Set MCP-290-00137-0N 1 Rail set, Auto-latch, quick/quick, default 4U 17.2";W
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
3108 Cache Protection BTR-CV3108-U1 - Broadcom 3108 CacheVault kit (ROHS, Reach)
NVME kit (Full kit needed) AOC-SLG3-2E4R
MCP-220-94607-0N
CBL-SAST-0818
CBL-SAST-0850		 1
1
4
2		 NVMe AOC
SC946S NVMe kits w/ cage, tray, cable, BPN (no NVMe cable)OCuLink v.91,INT,PCIe NVMe SSD, 55CM,34AWG
OCuLink to MiniSAS HD V.91, INT, PCIe NVMe SSD, 37CM, 15D15F7D, 34AWG
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
SIOM Network Card(s) AOC-MGP-I2
AOC-MGP-I4
AOC-MTG-I2T
AOC-MTG-I4T
AOC-MTGN-I2S
AOC-MTG-I4S		 -
-
-
-
-
-		 SIOM 2-port GbE, Intel i350-AM2
SIOM 4-port GbE, Intel i350-AM4
SIOM 2-port 10GBase-T, Intel X550
SIOM 4-port 10GBase-T, Intel X550
SIOM 2-port 10G SFP+, Intel 82599ES
SIOM 4-port 10G SFP+, Intel XL710
Hide Parts List
