SuperServer 8048B-C0R4FT

  Products  Systems   Multi-processor Server Systems   [ 8048B-C0R4FT ]




Integrated Board
Super X10QBL-4CT

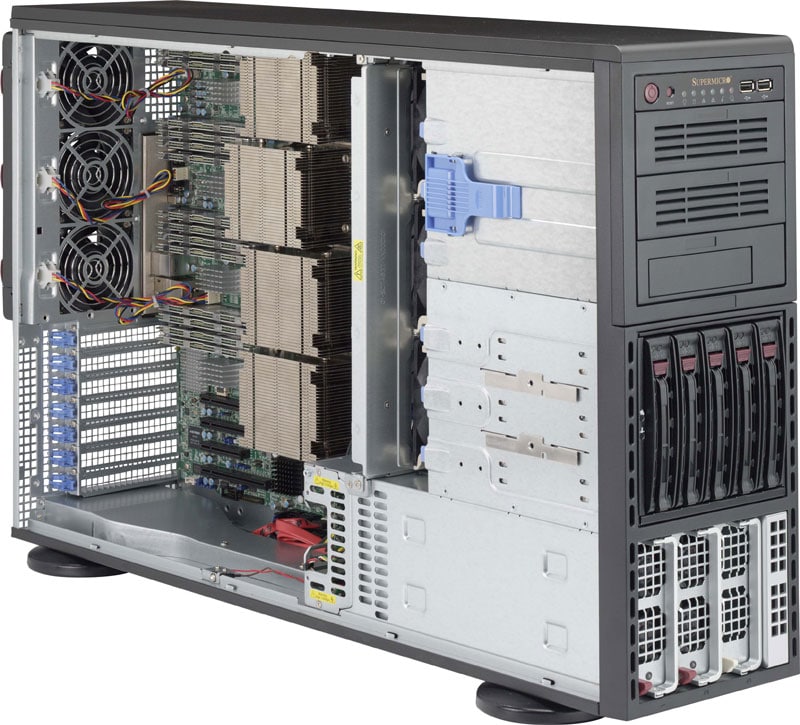

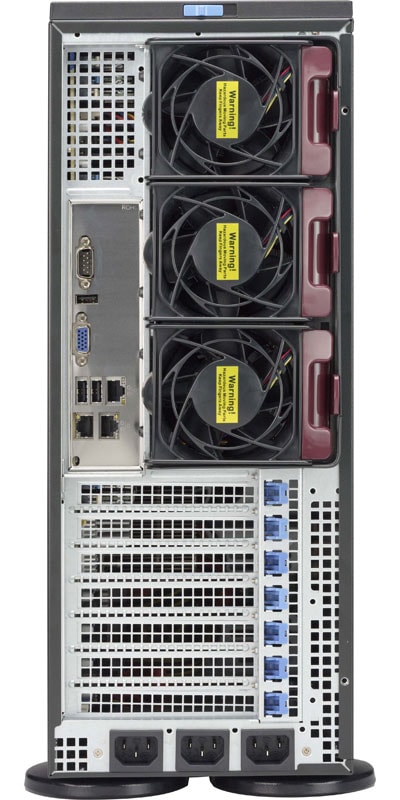

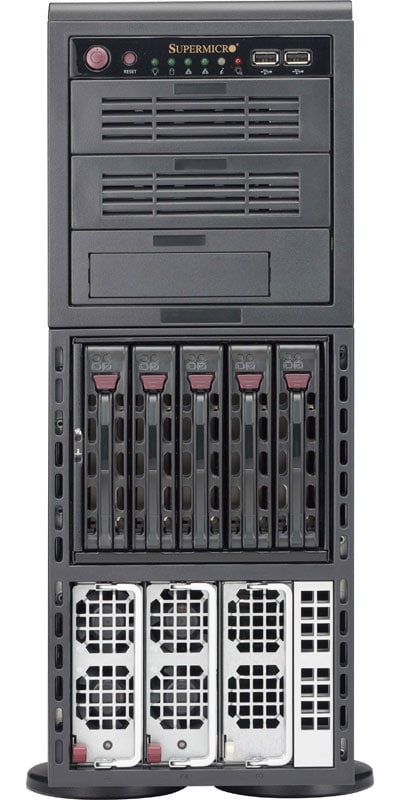

Views: | Angled View | Front View | Rear View |


Key Features
1. Quad socket R1 (LGA 2011) supports
    Intel® Xeon® processor E7-8800 v4/v3,
    E7-4800 v4/v3 family (up to 24-Core)
2. Up to 4TB DDR4 (128GB 3DS LRDIMM),
    up to 1866MHz; 32x DIMM slots
3. 2x PCI-E 3.0 x16 FH slot;
    2x PCI-E 3.0 x8 FH slot
4. Intel® X540 Dual port 10GBase-T
5. I/O ports: 2x 10GBase-T, 1x Dedicated
    LAN for IPMI Remote Management,
    1x VGA, 1x COM port, 3x USB 2.0
6. 5x 3.5" Hot-swap SAS2 Drive Bays;
    SAS2 via onboard Broadcom 3008
7. 3x 9cm + 3x 8cm Heavy Duty fans with
    speed control
8. 1400W Redundant Digital PS
    Platinum Level (95%)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-8048B-C0R4FT
  • SuperServer 8048B-C0R4FT (Black)

Motherboard

Super X10QBL-4CT

Processor/Cache
CPU
  • Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP)
  • Quad Socket R1 (LGA 2011)
Cache
  • Up to 60 MB
System Bus
  • QPI up to 9.6 GT/s

System Memory
Memory Capacity
  • 32x 288-pin DDR4 DIMM slots
  • Supports up to 4TB DDR4 ECC 3DS LRDIMM in 32 DIMM slots
Memory Type
  • 1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes
  • 128GB, 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C602J chipset
SAS
  • SAS2 (6Gbps) via Broadcom 3008 controller
SATA
  • SATA2 (3Gbps) with RAID 0, 1, 5, 10
  • SATA3 (6Gbps) with RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics
  • ASPEED 2400

Input / Output
SAS
  • 8x SAS2 ports (6Gbps)
LAN
  • 2x RJ45 10GBase-T ports
  • 1x dedicated LAN port for IPMI on AOM
USB
  • 3x USB 2.0 rear ports
Serial Port / Header
  • 2x Fast UART 16550 ports: 1 rear and 1 header
DOM
  • 2x DOM (Disk on Module) power connectors

System BIOS
BIOS Type
  • 128MB SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
Chassis
Form Factor
  • 4U Rackmount/Tower
Model

Dimensions and Weight
Height
  • 18.2" (462mm)
Width
  • 7.0" (178mm)
Depth
  • 28.4" (721mm)
Weight
  • Net Weight: 65.5 lbs (29.7 kg)
  • Gross Weight: 86.0 lbs (39.0 kg)
Available Colors
  • Black

Drive Bays
Hot-swap
  • 5x 3.5" Hot-swap Drive Bays

Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 Full-heigh slot
  • 2x PCI-E 3.0 x8 Full-heigh slot

Backplane
SAS/SATA HDD Backplane

System Cooling
Fans
  • 3x 9cm Heavy Duty fans with speed controlCooling Fans
  • 3x 8cm Heavy Duty fans with speed controlCooling Fans
Shrouds
  • 1x Air Shroud (MCP-310-74806-0B)

Power Supply
Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage
  • 100-240 V, 50-60 Hz, 15 Amp max
+12V
  • 100 Amp/115 Vac
  • 117 Amp/230 Vac
With Power Distributor
  • +5V: 30 Amp
  • +3.3V: 25 Amp
  • -12V: 0.6 Amp
Certification Platinum Level Certified
  Platinum Certified

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages.
  • 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V
FAN
  • 4-pin fan headers with tachometer status monitoring
  • Low noise fan speed control mode
Temperature
  • Monitoring for CPU and system environment
  • Thermal Control for 9x fan connectors
Other Features
  • Chassis intrusion detection

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Chassis CSE-748TQ-R1K43B 1 CSE-748TQ-R1K43B Chassis
Motherboard X10QBL-4CT 1 Super X10QBL-4CT Motherboard
Air Shroud MCP-310-74806-0B 1 Mylar air shroud for SC748 (X10QBL-CT),RoHS/REACH
Backplane CSE-SAS-M35TQ 1 M35 SAS BACKPLANE W/AMI MG9072
Cable 1 CBL-SAST-0616 2 MINI SAS HD-4 SATA,6G,INT,50CM,50CM SB,30AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Parts MCP-260-00088-0N 1 Standard I/O shield for X10QBL-CT with EMI Gasket,RoHS/REACH
Heatsink / Retention SNK-P0048PS 4 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K43F-1R 2 1400W redundant digital power supply


Optional Parts List

Part Number
Qty
Description
Mobile Rack CSE-M35TQ
CSE-M28SACB-OEM
1
1
SAS2 5x 3.5" HDD
SAS3 8x 2.5" HDD
Tray MCP-220-00080-0B - Black hotswap 3.5 to 2.5 HDD tray
Tray MCP-220-00010-01 1 Black 5.25" tray
Mounting Rails MCP-290-00059-0B
MCP-290-00058-0N
1
1
26.5" to 36.4" rail set + handles, Quick Release for 4U 17.2"W tower
Short rail set, quick/quick, optional for 2~4U 17.2" W
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
