SuperStorage 947R-E2CJB

Products Systems SBB JBOD [ 947R-E2CJB ]


High Availability Storage Appliance Platform



2 Integrated AOM
AOM-SAS3-947EL-JB

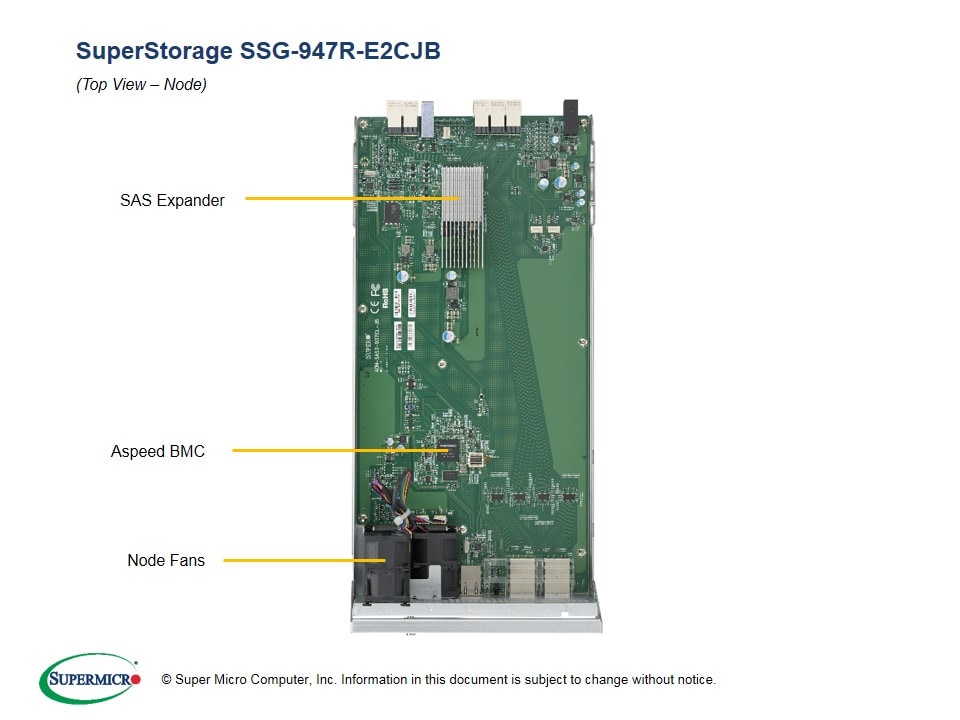

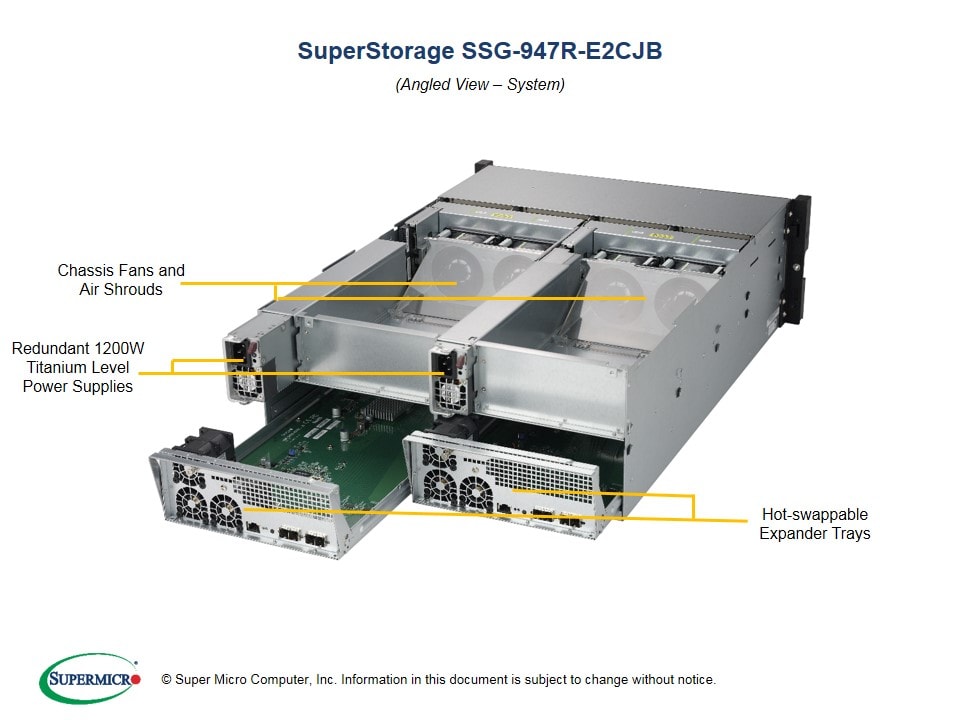

Views: | Angled View | Top View |

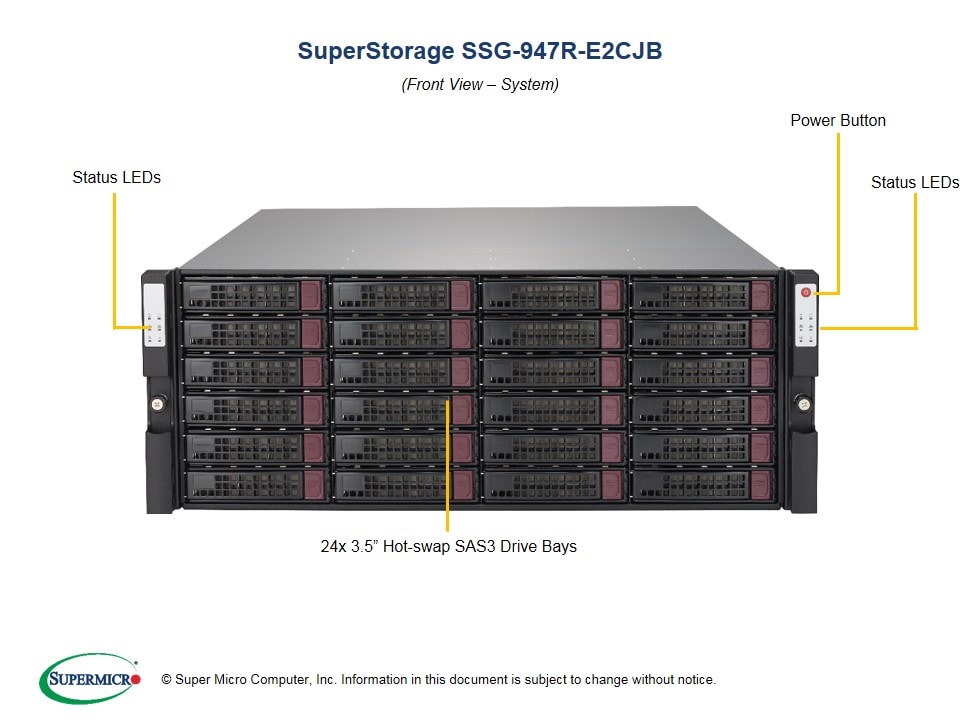

| Front View | Rear View |

Key Features
Two hot-pluggable systems (nodes) in a 4U form factor.
1. High Availability Storage
Appliance Platform
2. Redundant Hot-swap expander
trays
3. 4 SAS3.0 IO ports
4. 24 Hot-swap 3.5" Drive Bays
5. IPMI 2.0 with dedicated LAN
6. 4x 40mm and 4x 80mm cooling fans
7. 1200W Redundant Power Supplies
Titanium Level Certified


Drive Options Manuals

Product SKUs
SSG-947R-E2CJB
  • SuperServer 947R-E2CJB (Black)
Add-on Module

2x AOM-SAS3-947EL-JB
Drive Bays
Hot-swap
  • 24x 3.5" Hot-swap SAS drive bays with SES2
Expander
AOM-SAS3-937EL-JB, features:
• 12Gb SAS3 HDD support
• Redundancy dual ported SAS architecture
• Robust AirMax server node connections (SBB specification)
On-Board Devices
SAS
  • SAS3 (12Gbps) via AOM-SAS3-937EL-JB
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Heartbeat LED
  • 2 SAS link activity LEDs
  • Power Fail LED
  • Overheat/Fan Fail LED
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-947ETS-R0NDBP
Dimensions
Width
  • 17.2" (437mm)
Height
  • 7" (178mm)
Depth
  • 27" (686mm)
Weight
  • Gross Weight: 81 lbs (36.7 kg)
  • Net Weight: 60.5 lbs (27.4 kg)
System Cooling
Fans
  • 4x 80mm and 4x 40mm PWM cooling fans
  • Redundant cooling
Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1200W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 100-127Vac / 15-12A / 50-60Hz
  • 200-240Vac / 8.5-7A / 50-60Hz
  • 200-240Vdc / 8.5-7A (for CCC only)
+12V
  • Max: 83A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification Platinum Level Certified95%+ Titanium Level
[ Test Report ]
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis AOM-SAS3-947EL-JB
CSE-947ETS-R0NDBP
1
1
Super AOM-SAS3-947EL-JB
4U Chassis
Add-on Card / Module AOM-SAS3-947EL-JB-P 2 SAS3 Expander card support SBB 4U JBOD system, for 24x 3.5-inch SAS3/SAS2/SATA3 drives
Backplane BPN-SAS3-947 1 24-port 4U SBB SAS3 12Gbps midplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable 2 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Rear Window MCP-240-93709-0N 2 SC937 X10 JBOD Rear Window for AOM-SAS3-937EL-JB
Rear Window MCP-240-94704-0N 2 SC947 X10 Standard JBOD Rear Window Light Pipe for AOM-SAS3-937EL-JB
Air Shroud MCP-310-94701-0N 1 Two set plastic air shroud for SC947
Drive Tray MCP-220-93703-0B 24 Drive trays support 3.5" SAS HDD/SSD
Fan FAN-0157L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH
Fan FAN-0164L4 4 80x80x38 mm, 11K RPM, Middle Cooling Fan for SC947 SBB Chassis
Power Supply PWS-1K23A-1R 2 1200W Redundant Titanium Power Supplies


Optional Parts List
Part Number Qty Description
Converter Tray MCP-220-93707-0B - Hot-swap 3.5" to 2.5" converter drive tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
