SuperServer F618H6-FTPT+

  Products  Systems   FatTwin™   [ F618H6-FTPT+ ]





Integrated Board
Super X10DRFF-CTG


Views: | Angled (node) | Top (node) |
| Angled Front (system) | Front (system) | Rear (system) |

Key Features

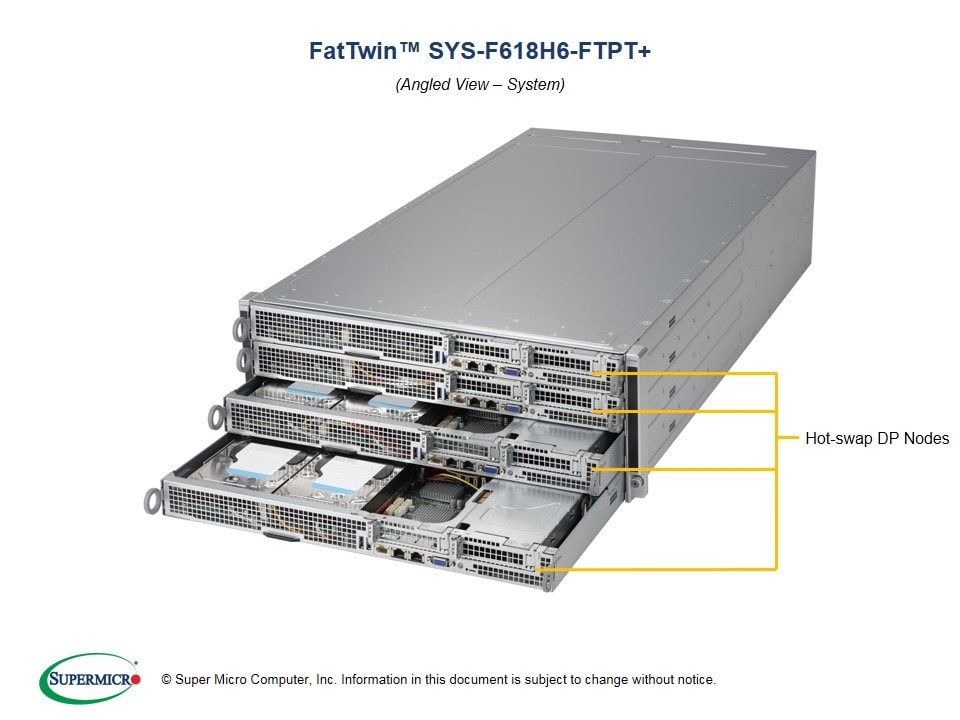

Hadoop, 4-Node Front I/O
Each node supports:

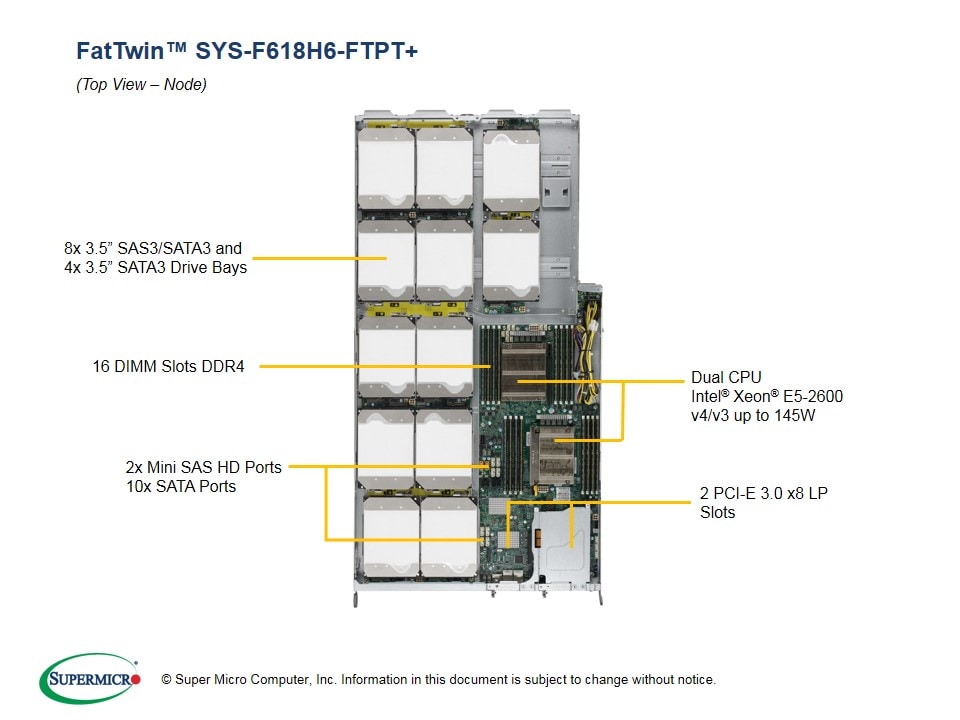

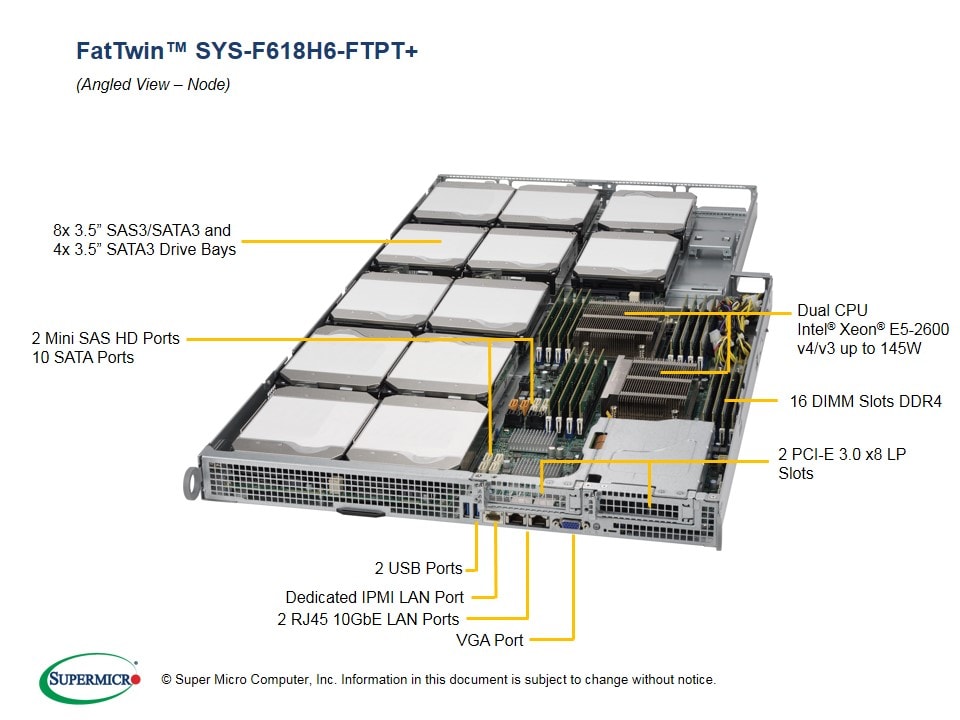

1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16x DIMM slots
3. 2 PCI-E 3.0 x8 (LP) slots
4. Dual 10GbE LAN via Intel® X540
5. Built-in Server management tool
    (IPMI 2.0, KVM/media over LAN) with
    dedicated LAN port
6. 2 USB 3.0 ports, 1 VGA connector
7. 12 Fixed 3.5" SATA3 Drive Bays
    Optional 2.5" drives mounted in PCI-E

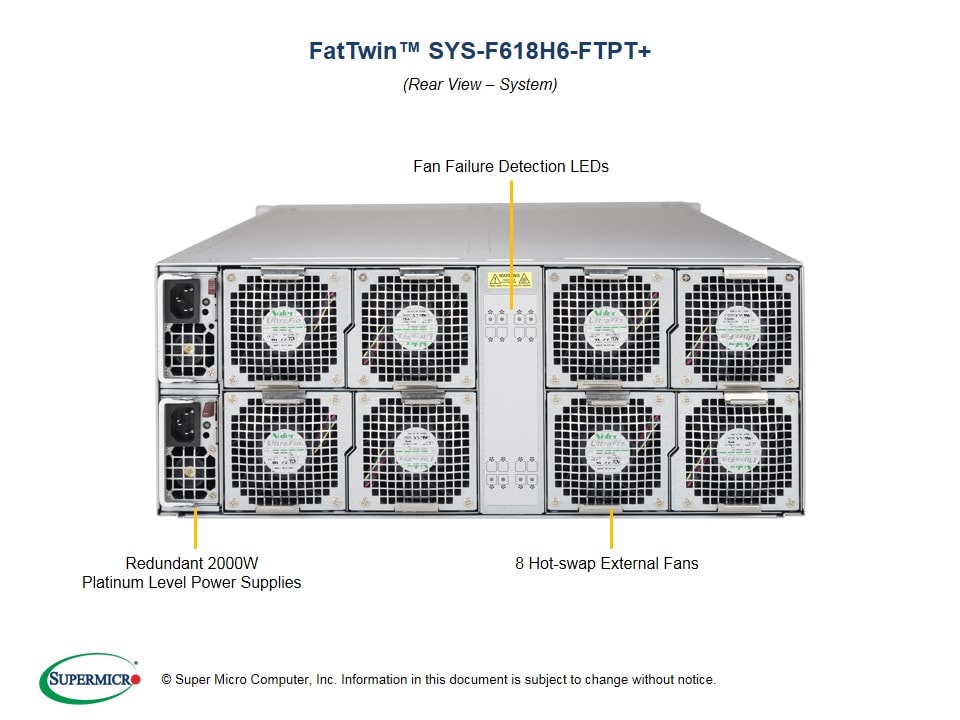

8. 2000W Redundant Power Supplies
    Titanium Level (96%)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Drive Options

Product SKUs
SYS-F618H6-FTPT+
  • SuperServer F618H6-FTPT+

Motherboard

Super X10DRFF-CTG

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3008
  • SW RAID 0, 1, 10 support
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output (per node)
SAS
  • 8 SAS3 (12Gbps) ports
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports
VGA
  • 1 VGA connector
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F414IS3-R2K04BP

Dimensions
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 35" (889mm)
Package
  • 25.6" (W) x 11.8" (H) x 48.0" (D)
Weight
  • Net Weight: 200 lbs (90.72 kg)
  • Gross Weight: 240 lbs (108.86 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • 2 Network activity LEDs

Expansion Slots (per node)
PCI-Express
  • 2 PCI-E 3.0 x8 Low-profile via riser card

Drive Bays (per node)
Fixed
  • 12 Fixed 3.5" SATA3 drive bays
  • Optional 2.5" drives mounted in PCI-E slot

System Cooling
Fans
  • 8x 8cm heavy duty fans and PWM fan speed control

Power Supply (76mm Width)
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 127Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vdc (UL/cUL only)
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-127 Vac)
  • Max: 150A / Min: 0A (200-220 Vac)
  • Max: 165A / Min: 0A (220-230 Vac)
  • Max: 166.7A / Min: 0A (230-240 Vac)
  • Max: 166.7A / Min: 0A (200-240 Vac)
    (UL/cUL only)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRFF-CTG
CSE-F414IS3-R2K04BP
4
1
Super X10DRFF-CTG Motherboard
4U Chassis
Backplane BPN-ADP-F418L 4 BPN;SASADP;SAS827-H8;H8DTT;cable req
Backplane BPN-SAS-801T-A1 8 1-port 1U CSE-801 cold storage backplane with thermistor and individual HDD power cycle, support up to 1x 3.5-inch SAS2/SATA3 HDD/SSD
Backplane BPN-SAS-801T-A2 4 2-port 1U CSE-801 backplane with thermistor and individual HDD power cycle, support up to 2x 3.5-inch HDD/SSD
Backplane BPN-SAS-801T-A4 8 4-port 1U CSE-801 backplane with thermistor and individual HDD power cycle, support up to 4x 3.5-inch HDD/SSD
Cable 1 CBL-0481L 4 SATA,INT,ROUND,ST-ST,81CM,30AWG
Cable 2 CBL-OTHR-0758 8 INT P0.3 40p to 40p HS FPC 85 ohms impedance,11cm,0.2mm thick,RoHS/REACH
Cable 3 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Cable 4 CBL-PWEX-0821 4 PWYCB,2X4F/GPU to 3 2X2F,P4.2, 36/54/65CM, 18AWG, 5/12V
Cable 5 CBL-PWEX-0822 4 PWYCB,2X4F/GPU to 2 2X2F,P4.2,39/41CM+2 RA SATA PWR 29CM,18G
Cable 6 CBL-SAST-0556 4 MINI SAS HD-4 SATA,6G,INT,90/90,ST 75/75CM,75CM SB,30AWG
Cable 7 CBL-SAST-0616 4 MINI SAS HD-4 SATA,6G,INT,50CM,50CM SB,30AWG
Cable 8 CBL-SAST-0639 4 SATA,INT,ROUND,ST-RA,31CM,30AWG
Cable 9 CBL-SAST-0641 8 SATA,INT,ROUND,ST-RA,45CM,30AWG
Riser Card RSC-88-F1 4 LHS Riser Card with PCI-Ex8,RoHS/REACH(F1)
Riser Card RSC-88-F2 4 RoHS/REACH LHS 1U PCI-E x8 (F2)
Heatsink / Retention SNK-P0047PS 4 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Heatsink / Retention SNK-P0047PSC 4 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
HDD Bracket MCP-240-00134-0N

MCP-120-00096-0N
MCP-120-00097-0N
2/node

1/node
1/node
FIXED 2.5 HDD bracket for add-on-card slot
(2 CBL-0734L per node required)
Riser card bracket
Riser card bracket
Software SFT-OOB-LIC 4 OOB Management Package (per node license)
Software SFT-DCMS-Single 4 DataCenter Management Package (per node license)
AOC AOM-TPM-9655V-S - Based on AOM-TPM-9655V with Server TXT package,RoHS/REACH
AOC AOM-TPM-9665V-S - Verical TPM TCG 2.0 Provisioned for server,RoHS/REACH
Hide Parts List
