SuperServer F628R3-FC0

  Products  Systems   FatTwin™   [ F628R3-FC0 ]




Integrated Board
Super X10DRFF-C

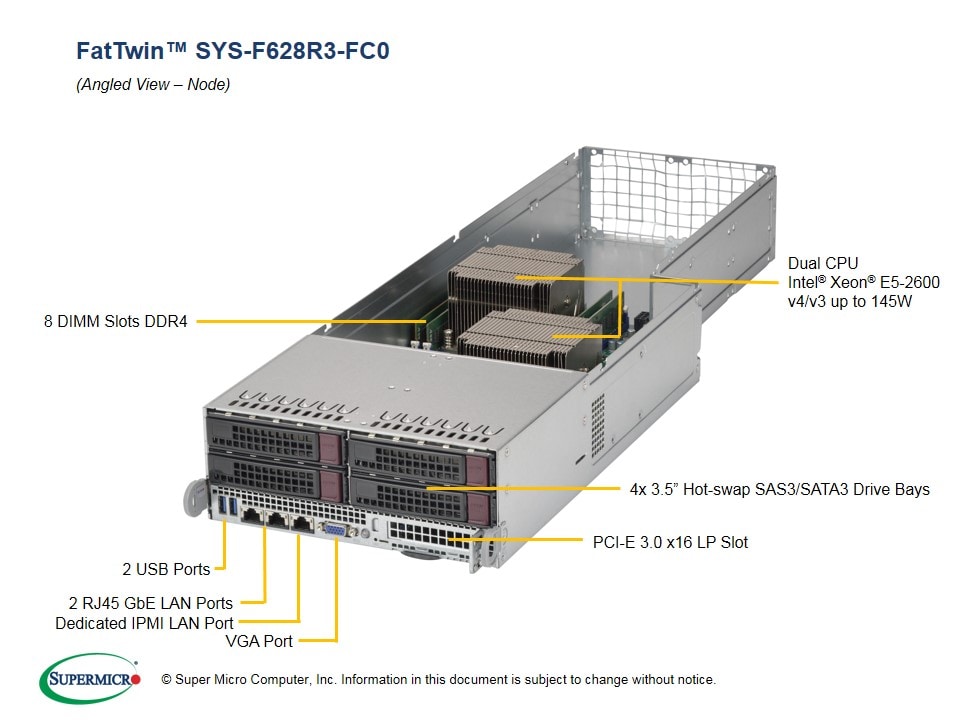

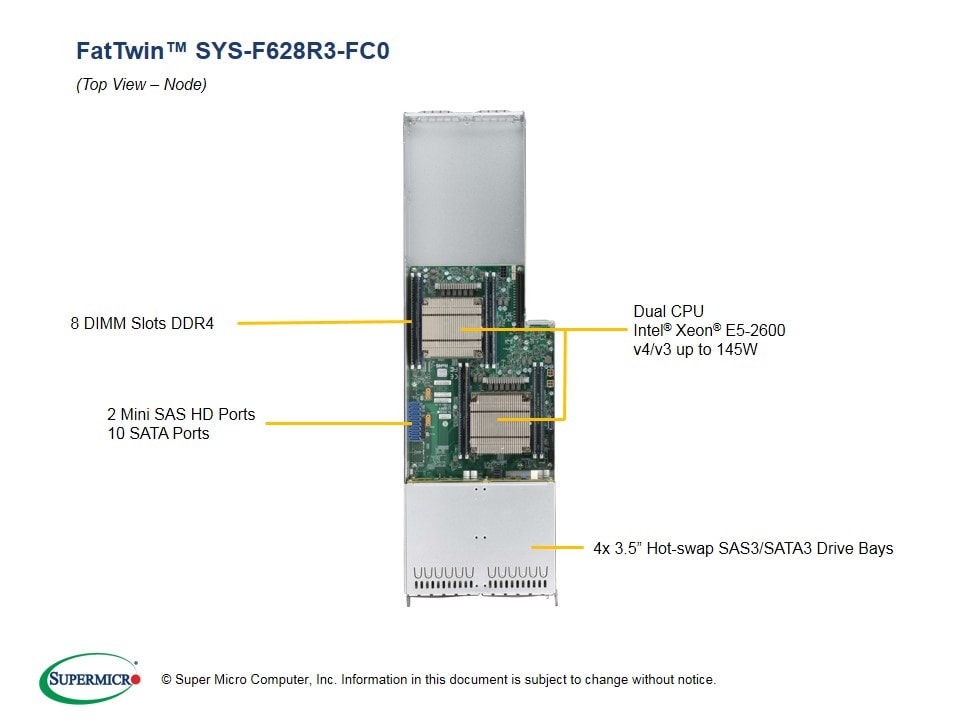

Views: | Angled (node) | Top (node) |

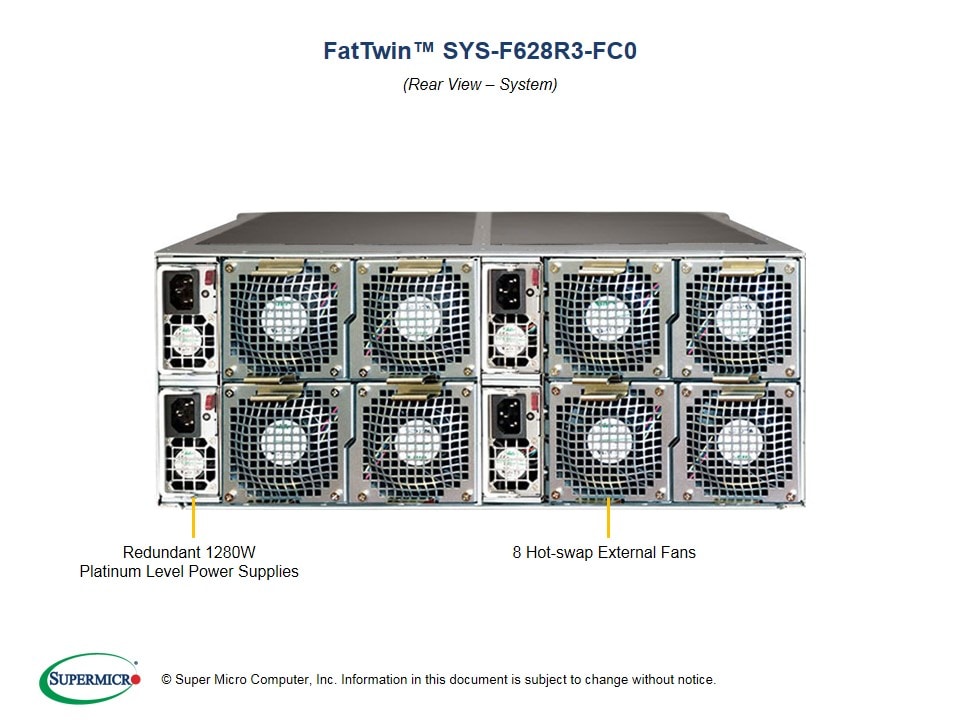

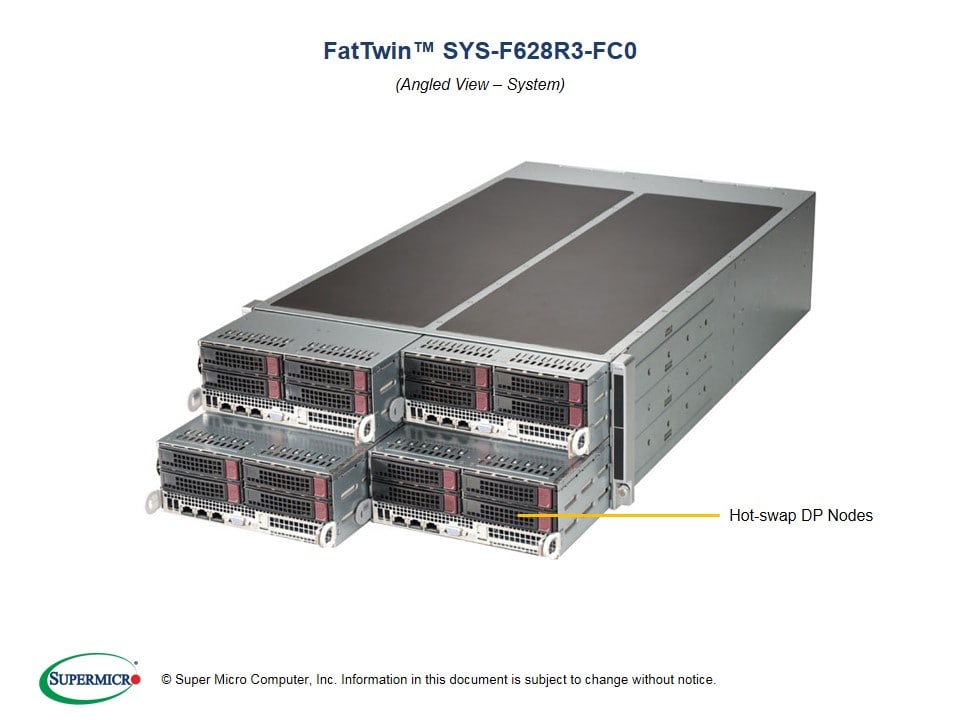

| Angled Front (system) | Rear (system) |

 Key Features
4 Hot-plug System Nodes in 4U
Front I/O. Each node supports:

1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4†/ v3 family; QPI up to 9.6GT/s
2. Up to 1TB† ECC 3DS LRDIMM , up to
    DDR4- 2400†MHz ; 8x DIMM slots
3. 1x PCI-E 3.0 x16 (LP) slot
4. Front I/O ports: 2 GbE LAN, 2 USB 3.0,
    and 1 VGA connector
5. Built-in Server management tool
    (IPMI 2.0, KVM/media over LAN) with
    dedicated LAN port
6. 4x 3.5" Hot-swap SAS3 HDD Bays;
    SAS3 (12Gbps) via Broadcom 3008
7. 1280W Redundant Power Supplies
    Platinum Level (95%)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-F628R3-FC0
  • SuperServer F628R3-FC0 (Black)

Motherboard

Super X10DRFF-C

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores† / Up to 55MB† Cache
System Bus
  • QPI up to 9.6 GT/s
Note † BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 8x 288-pin DDR4 DIMM slots
  • Up to 1TB† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3008
  • SW RAID 0, 1, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i210 Single Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • Aspeed AST2400 BMC Controller

Input / Output (per node)
SAS
  • 4x SAS3 (12Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports
VGA
  • 1x VGA port
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F424AF-R1K28BP

Dimensions and Weight
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 29" (737mm)
Package
  • 28.3" (W) x 15.0" (H) x 42.4" (D)
Weight
  • Net Weight: 105 lbs (47.63 kg)
  • Gross Weight: 150 lbs (68.04 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs

Expansion Slots (per node)
PCI-Express
  • 1 PCI-E 3.0 x16 (LP) via riser card

Drive Bays (per node)
Hot-swap
  • 4x 3.5" Hot-swap SAS3 HDD trays

System Cooling
Fans
  • 8x 8cm 9.5K RPM Rear Fans and PWM fan speed control

Power Supply
1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input
  • 1000W Output @ 100-140V, 8-12A, 50-60Hz
  • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1280W: +12V/106.7A, +5Vsb/4A
Certification Platinum Level Certified95%+
  Platinum Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       5°C to 40°C (41°F to 104°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X10DRFF-C
CSE-F424AF-R1K28BP		 4
1		 Super X10DRFF-C Motherboard
4U Chassis
Backplane BPN-SAS3-F424-A4 4 4x3.5" SAS3/SATA-3 Backplane for FatTwin Chassis
Cable 1 CBL-SAST-0550 4 MINI SAS HD,12G,INT,25CM,30AWG
Cable 2 CBL-0486L 4 2x2 to 2x2 15cm power cable HF. 18AWG
Cable 3 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1654-QRG 1 Quick Reference Guide for SYS-F628R3-FT and SYS-F628R3-FC0,HF,RoHS/REACH
Riser Card RSC-R1UFF-E16R 4 RSC-R1UFF-E16R
Heatsink / Retention SNK-P0048P 8 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Square ILM MB
Power Supply PWS-1K28P-SQ 4 1U 1280W, redundant single output power supply


Optional Parts List
  Part Number Qty Description
Software SFT-OOB-LIC • 4 OOB Management Package (per node license)
Software SFT-DCMS-Single 4 DataCenter Management Package (per node license)
