SuperServer F628R3-FTPT+

  Products  Systems   FatTwin™   [ F628R3-FTPT+ ]





Integrated Board
Super X10DRFF-ITG

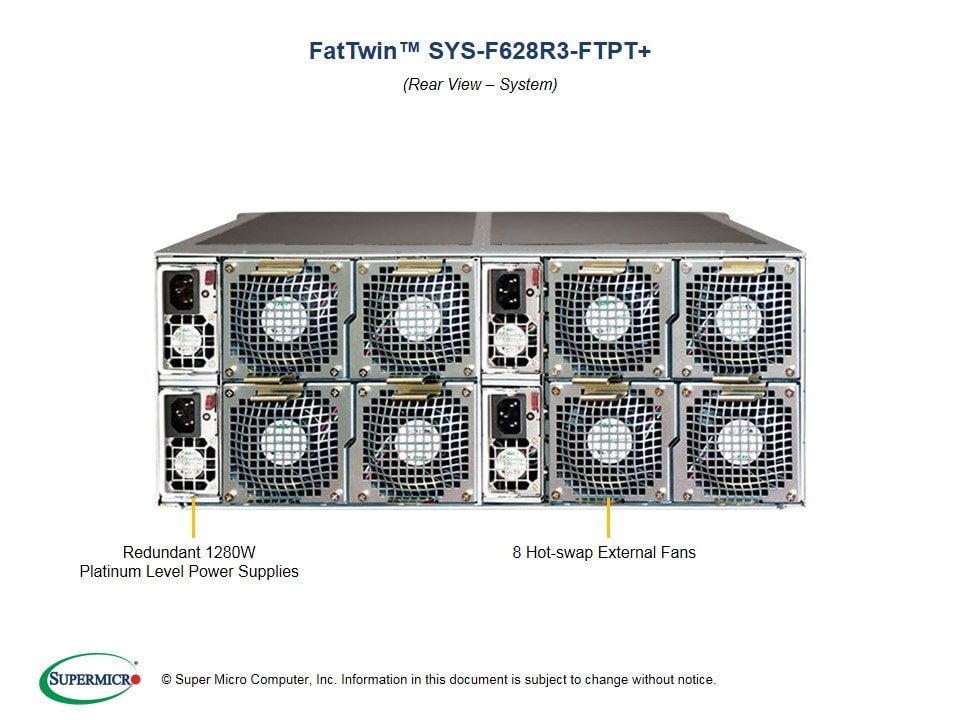

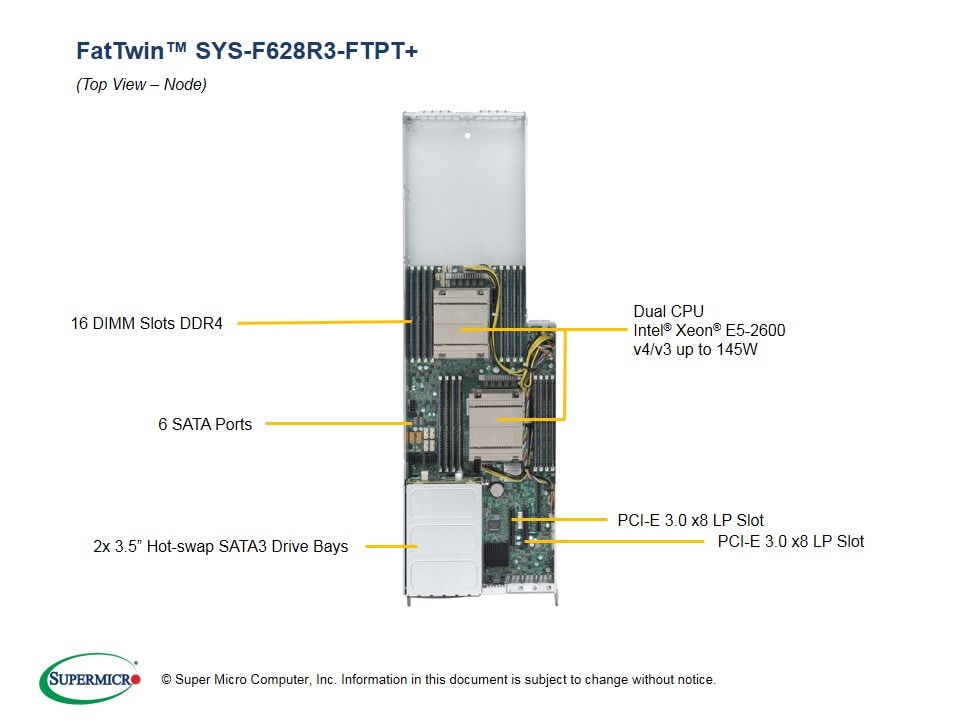

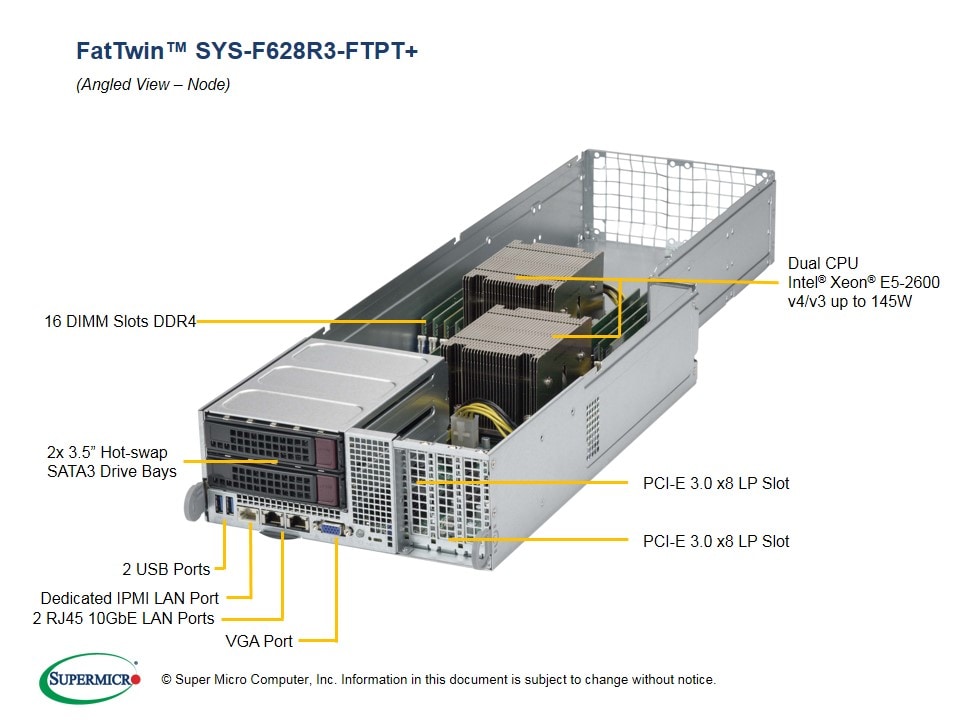

Views: | Angled (node) | Top (node) |
| Angled Front (system) | Rear (system) |

Key Features
4 Hot-plug System Nodes in 4U
Front I/O. Each node supports:


1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16x DIMM slots
3. 2x PCI-E 3.0 x8 (Low Profile) slots
4. Front I/O ports: 2 10GBase-T,
    2 USB 3.0, and 1 VGA connector
5. Built-in Server management tool
    (IPMI 2.0, KVM/media over LAN) with
    dedicated LAN port
6. 2x 3.5" Hot-swap SATA3 HDDs
7. 1280W Redundant Power Supplies
    Platinum Level (95%)


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options

Product SKUs
SYS-F628R3-FTPT+
  • SuperServer F628R3-FTPT+ (Black)

Motherboard

Super X10DRFF-ITG

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 100BASE-TX, 1000BASE-T, 10G Base-T; RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output (per node)
SATA
  • 2x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 10GBase-T LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports
VGA
  • 1x VGA port
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-F424AL-R1K28BP

Dimensions and Weight
Width
  • 17.63" (448mm)
Height
  • 6.96" (177mm)
Depth
  • 29" (737mm)
Package
  • 28.3" (W) x 15.0" (H) x 42.4" (D)
Weight
  • Net Weight: 105 lbs (47.63 kg)
  • Gross Weight: 150 lbs (68.04 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • Hard drive activity LED
  • 2x Network activity LEDs

Expansion Slots (per node)
PCI-Express
  • 2x PCI-E 3.0 x8 (Low Profile) slots

Drive Bays (per node)
Hot-swap
  • 2x 3.5" Hot-swap SATA3 HDD trays

Backplane
1x SATA3 backplane

System Cooling
Fans
  • 8x 8cm 9.5K heavy duty, hot swappable fans with air shroud and PWM fan speed control

Power Supply
1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input
  • 1000W Output @ 100-140V, 8-12A, 50-60Hz
  • 1280W Output @ 180-240V, 6-8A, 50-60Hz
DC Output
  • 1000W: +12V/83A; +5Vsb/4A
  • 1280W: +12V/106.7A, +5Vsb/4A
Certification Platinum Level Certified95%+
  Platinum Certified
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRFF-ITG
CSE-F424AL-R1K28BP
4
1
Super X10DRFF-ITG Motherboard
4U Chassis
Backplane BPN-SAS-F424-A2 4 2-port Fat Twin 6Gbps hot swappable HDD backplane, support up to 2x 3.5-inch SAS/SATA HDD
Backplane BPN-ADP-F418L 4 BPN;SASADP;SAS827-H8;H8DTT;cable req
Cable 1 CBL-0460L-02 4 8 pin Male to two 4 pin Male power cable, 10cm and 7cm. 18AWG
Cable 2 CBL-0473L 8 SATA,INT,ROUND,ST-ST,21CM,30AWG
Cable 3 CBL-PWCD-0900 4 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1739-QRG 1 Quick Reference Guide for F628R3-FT+ / FTPT+
Heatsink / Retention SNK-P0048PS 8 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K28P-SQ 4 1U 1280W, redundant single output power supply


Optional Parts List
  Part Number Qty Description
Software SFT-OOB-LIC 4 OOB Management Package (per node license)
Software SFT-DCMS-Single 4 DataCenter Management Package (per node license)
Hide Parts List
