SuperServer ARS-111GL-DNHR-LCC (Complete System Only)

1U 2-Node NVIDIA GH200 Grace Hopper Superchip system with liquid-cooling supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

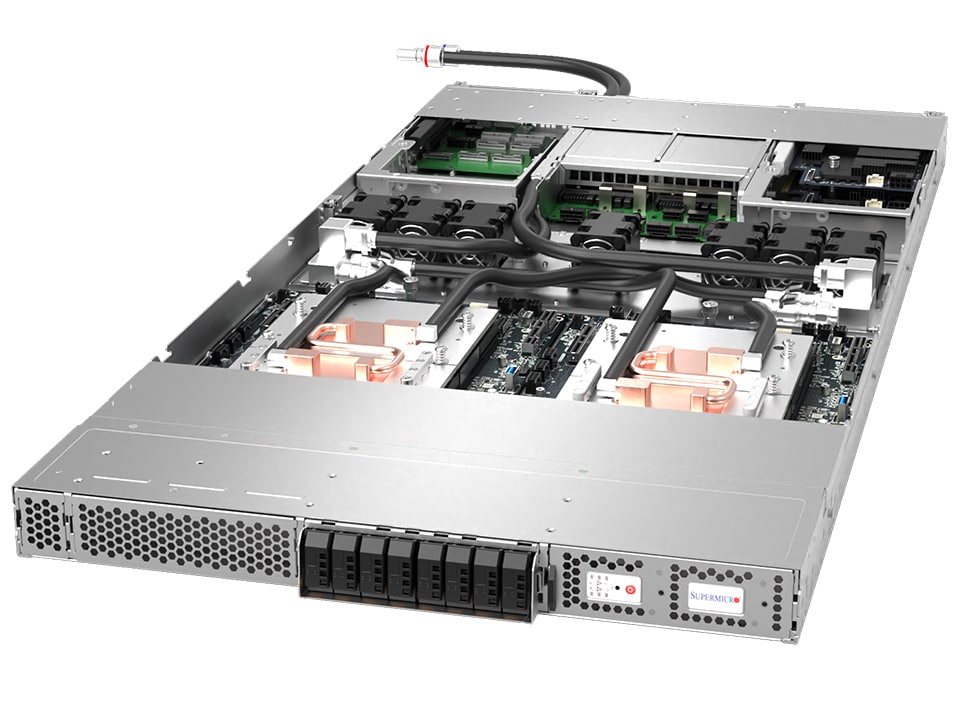

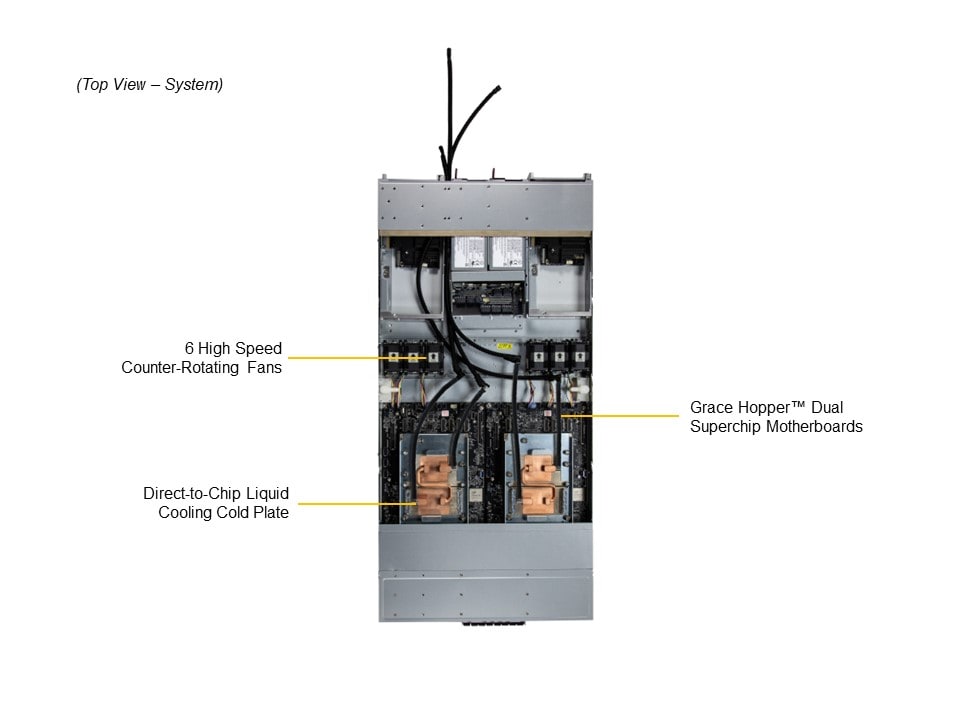

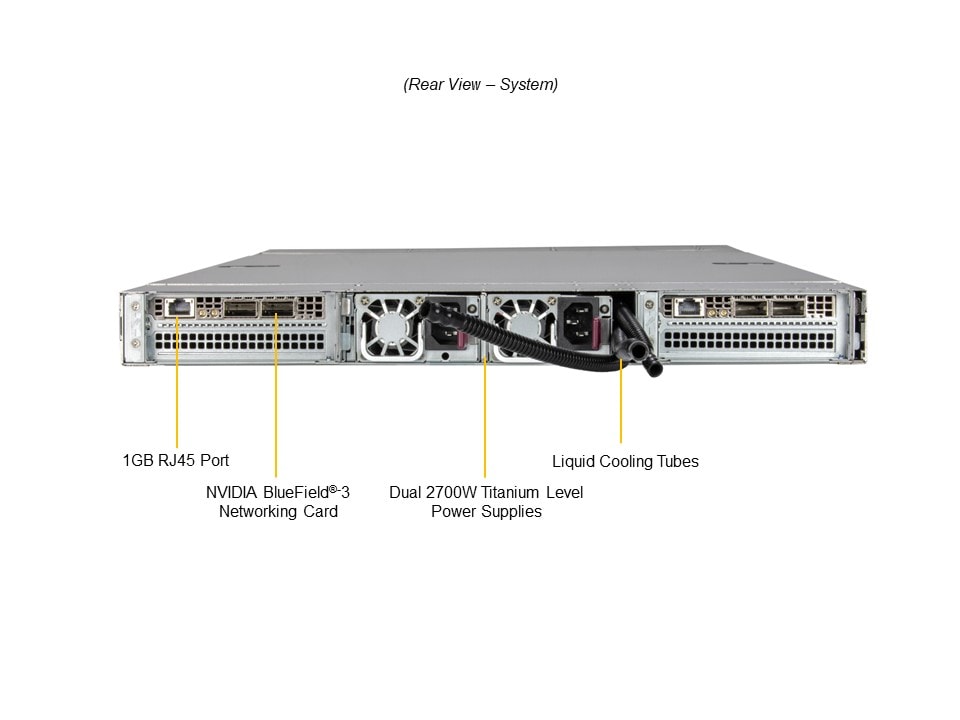

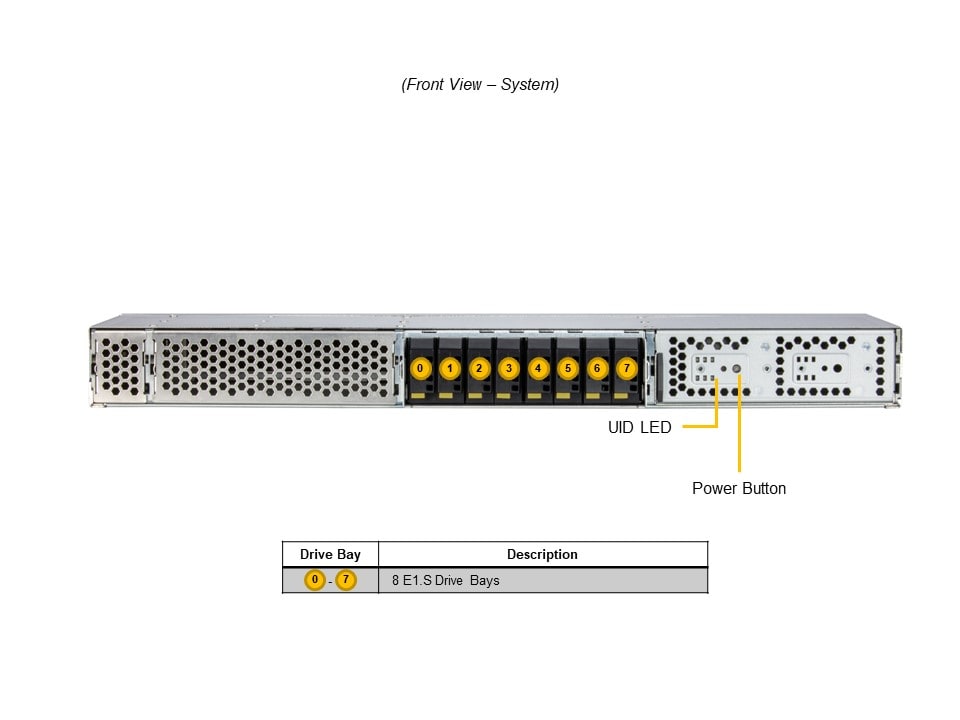

ARS-111GL-DNHR-LCC Main ARS-111GL-DNHR-LCC Top ARS-111GL-DNHR-LCC Front ARS-111GL-DNHR-LCC Rear
Integrated Board: G1SMH-G
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training and Inference
  • Large Language Model (LLM) and Generative AI

Key Features

Two nodes in a 1U form factor. Each node supports the following:
  1. High density 1U 2-node GPU system with Integrated NVIDIA® H100 GPU (1 per Node)
  2. NVIDIA Grace Hopper™ Superchip (Grace CPU and H100 GPU)
  3. NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
  4. Up to 576GB of coherent memory per node including 480GB LPDDR5X and 96GB of HBM3 for LLM applications
  5. 2x PCIe 5.0 x16 slots per node supporting NVIDIA BlueField®-3 or ConnectX®-7
  6. 7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
...
...
Specifications Resources & Downloads Parts List
Specifications
Product SKUs
ARS-111GL-DNHR-LCC
Motherboard
Super G1SMH-G
Processor (per Node)
CPU
  • NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
Note
  • Supports up to 2000W TDP CPUs (Liquid Cooled)​
GPU (per Node)
Max GPU Count
  • Up to 1 onboard GPU(s)
Supported GPU
  • NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Liquid-cooled)
  • View GPU Options
CPU-GPU Interconnect
  • NVLink®-C2C
GPU-GPU Interconnect
  • PCIe
System Memory (per Node)
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 480GB ECC LPDDR5X
  • Additional GPU Memory: Up to 96GB ECC HBM3
On-Board Devices (per Node)
Chipset
  • System on Chip
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 port(s) (rear)
Video
  • 1 mini-DP port(s)
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-GP102TS-R000NDFP
Dimensions and Weight
Height
  • 1.75" (44 mm)
Width
  • 17.33" (440 mm)
Depth
  • 37" (940 mm)
Package
  • 9.5" (H) x 48" (W) x 28" (D)
Weight
  • Gross Weight: 65.5 lbs (29.7 kg)
  • Net Weight: 48.5 lbs (22 kg)
Available Color
  • Silver
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 front hot-swap E1.S NVMe drive bay(s)
M.2
  • 2 M.2 NVMe slot(s) (M-key)
System Cooling
Fans
  • 7 Removable heavy-duty 4cm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 2700W Redundant Titanium Level power supplies
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
+12V
  • Max: 225A / Min: 0A (200Vac-240Vac)
  • Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB
  • Max: 4A / Min: 0A
AC Input
  • 2700W: 200-240Vac / 50-60Hz
  • 2700W: 240-240Vdc / 50-60Hz (for CQC only)
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Resources & Downloads
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-G1SMH-G

CSE-GP102TS-R000NDFP
2

1
Super G1SMH-G Motherboard

1U Chassis
Add-on Card / Module AOM-IO-GP102-P 2 1U MGX Grace Server, 1x mini DP, 1x RJ45, 1x USB2.0, RoH
AOM-PCIE5-GP201-10-P 1 Cable Riser, 400mm, 2 MCIO to 1 PCIE x16 Slot,RoHS
AOM-PCIE5-GP201-4-P 3 Cable Riser, 450mm, 2 MCIO to 1 PCIE x16 Slot,RoHS
AOM-SCM-NV-P 2 BMC Module, Vertical, 1U DC-SCM, DC-SCI 2.0, AST2600, Ro
Backplane BPN-E1S5-GP101M 1 1U 8-slot E1.S Gen5 backplane for Nvidia MGX platform
Cable CBL-CDAT-1033-07 2 1x3 to 1x3, BMC control, PH0.8, 7cm, 32AWG, RoHS,RoHS
CBL-CDAT-1033-25 2 1x3 to 1x3, BMC control, PH0.8, 25cm, 32AWG, RoHS
CBL-CDAT-1120-50B 1 [NR] Picoclasp SB,NCSI,2x10 to 2x10,BK,50cm,28AWG,1A/p,RoHS
CBL-CDAT-1120-50W 1 Picoclasp SB,NCSI,2x10 to 2x10,WH,50cm,28AWG,1A/p,RoHS
CBL-CDAT-1120-60 1 Picoclasp SB,NCSI,2x10 to 2x10,60cm,28AWG,1A/p,RoHS
CBL-MCIO-1230M5 2 [NR] MCIO x8 (STR to STR),30CM,85OHM,RoHS
CBL-MCIO-1260M5 2 MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM,RoHS
CBL-PWEX-0910-25 2 MicroFit (2x1 to 2x1),PH3.0,25cm,11A/p,16AWG,RoHS
CBL-PWEX-0910-30 2 [NR] MicroFit (2x1 to 2x1),PH3.0,30cm,11A/p,16AWG,RoHS
CBL-PWEX-1093-40 2 MicroFit,(2x2F to 2x2F), PH3.0,40CM,10A/pin,16AWG,RoHS
CBL-PWEX-1093-85 1 [NR] MicroFit,(2x2F to 2x2F), PH3.0,85CM,10A/pin,16AWG,RoHS
CBL-PWEX-1114-20 1 Microfit,(2X4 to 2X4),PH3.0,20CM,9A/pin,16AWG,RoHS
CBL-PWEX-1114-45 1 [NR] Microfit,(2X4 to 2X4),PH3.0,45CM,9A/pin,16AWG,RoHS
CBL-PWEX-1181RFT-45 2 [NR]MicroFit (2x6 to 3 2x2),PH4.0,45cm,9A/p,16AWG,RoHS
CBL-PWEX-1316RF2-57 1 [NR] 12V-2x6 H++,12P+4S/(RF to RF), 57cm,8.33A/p,16AWG,RoHS
CBL-PWEX-1316RF2-60 1 [NR]12V-2x6,2x6+4S /(RF to LF), 60cm,8.33A/p,16AWG,RoHS
CBL-PWEX-1316RLF-55 1 [NR] 12VHPWR,2x6+4S /(RF to LF), 55cm,8.33A/p,16AWG,RoHS
CBL-PWEX-1316RLF-60 1 [NR]12V-2x6+4S /(RF to LF), 60cm,8.33A/p,16AWG,RoHS
CBL-SAST-1240LES4-85 2 [NR] SlimSAS x8 (LE to STR),40cm,SAS4,30AWG,RoHS
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan FAN-0249L4 7 40x40x56 mm, 33K-28K RPM, Counter-rotating, Cable inlet exit
Drive Tray(s) MCP-220-10201-0N 2 CSE-MP102/MP101 IO Bay Module 1U height
MCP-220-10203-0N 1 CSE-GP102/GP101 front control board bay (1 node only)
Power Distributor PDB-GP102-1U2PT 1 1U 2 input powers redundancy output up to 5KW for 2 MBs.,RoH
Power Supply PWS-2K71A-1R 2 1U 2700W Redundant Titanium w/PMBus power supply, W73.5xH39/40xL185 mm, C20 inlet
Storage Controller Card SCC-P2N2M2-X1 2 support 2x PCIe Gen 5 NVMe M.2 slot per node
Software SFT-DCMS-SINGLE 2 Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF
Heatsink / Retention SNK-P3084-1 1 LCM, CG1, ARS-111GL-NHR-LCC, ARS-111GL-DNHR-LCC
SNK-P3084-2 1 LCM, CG1, ARS-111GL-NHR-LCC, ARS-111GL-DNHR-LCC
*Rail Set MCP-290-20104-0N 1 SET 37.3
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
