SuperServer AS -2115GT-HNTF

2U 4-Node GrandTwin with up to 4 hot-swap 2.5" NVMe/SATA drives per node and front I/O

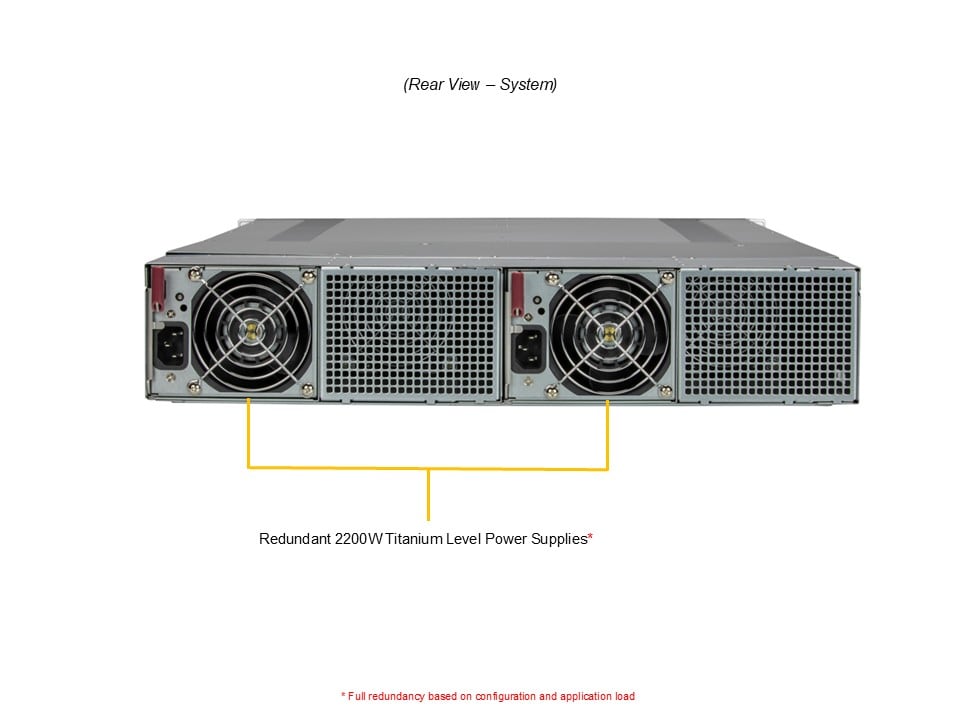

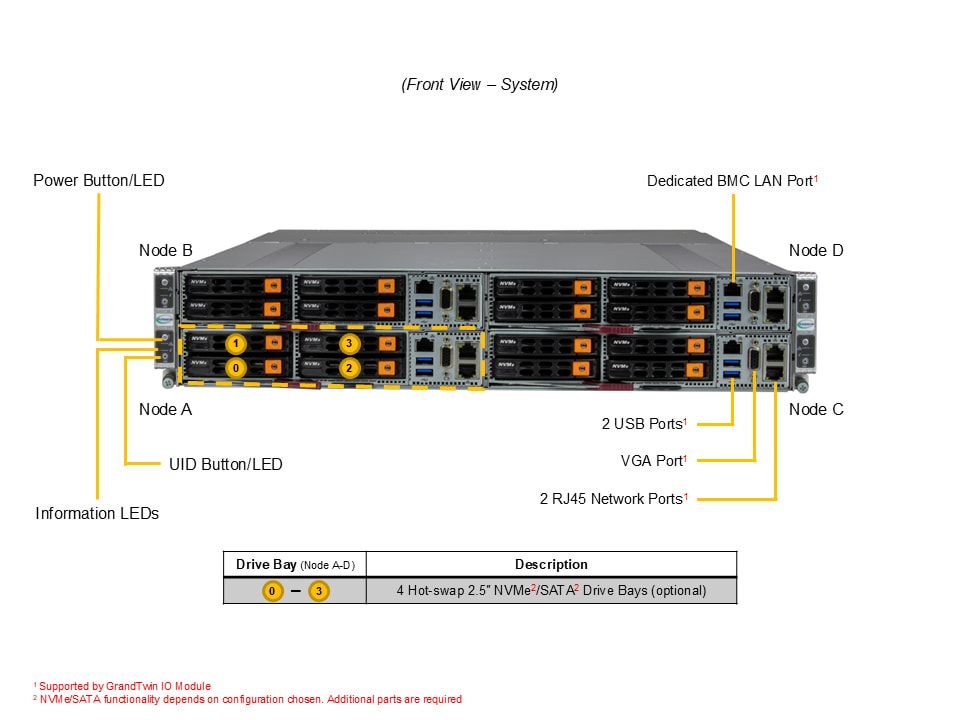

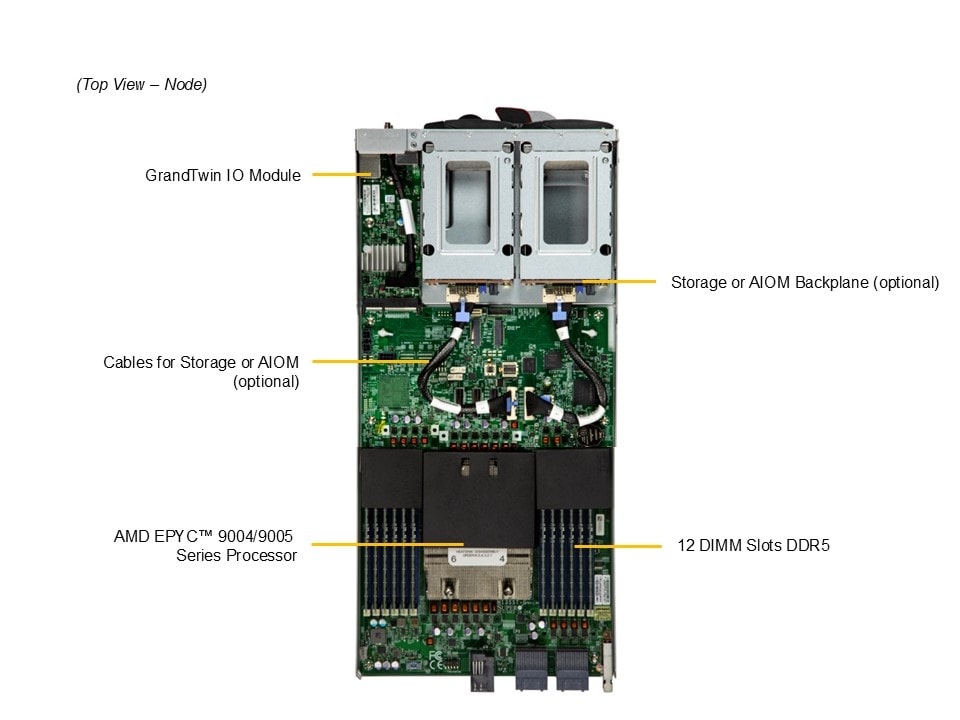

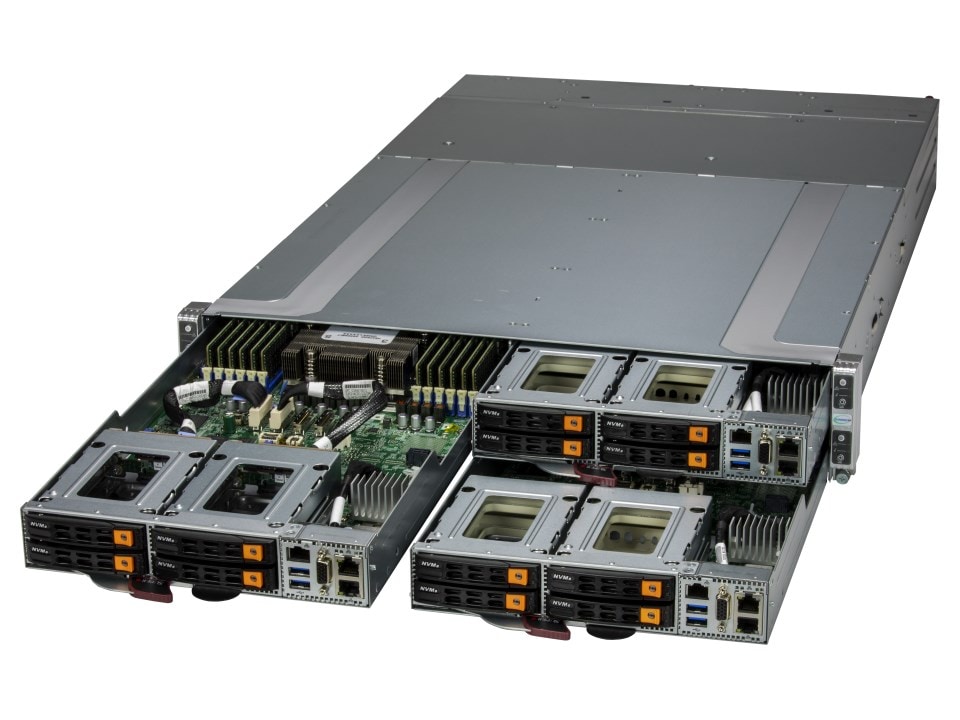

AS -2115GT-HNTF Main AS -2115GT-HNTF Angle AS -2115GT-HNTF Node AS -2115GT-HNTF Front AS -2115GT-HNTF Rear
Integrated Board: H13SST-G
Learn more

Key Applications

  • HPC
  • Cloud Gaming
  • MEC (Multi-Access Edge Computing)
  • Multi-Purpose CDN
  • High-availability Cache Cluster
  • Telco Edge Cloud
  • EDA (Electric Design Automation)
  • Mission Critical Web Applications

Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  1. Single AMD EPYC™ 9004/9005 series processors up to 360W TDP
  2. Supports up to 12 DIMM slots, 6400 MT/s 3TB DDR5 memory
    (Please check System Memory Section for detail)
  3. Flexible bays for either Storage or AIOM / OCP 3.0 slots
  4. Integrated GrandTwin I/O module with BMC, 2 USB, VGA and dual 10GbE or 25GbE
  5. Up to 4 Hot-swap 2.5" NVMe/SATA drives
  6. Dual 2200W Redundant Titanium Level power supplies
    (Power supply full redundancy based on configuration and application load)
...
...
AS-2115GT-HNTF
Specifications Free Remote Testing Resources & Downloads Parts List
Specifications
Product SKUs
A+ Server AS -2115GT-HNTF
Motherboard
Super H13SST-G
Processor (per Node)
CPU
Core Count
  • Up to 160C/320T
Note
  • Supports up to 400W TDP CPUs
  • * This system supports AMD EPYC™ 9004/9005 Series processors up to 400W TDP
System Memory (per Node)
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
  • Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices (per Node)
Chipset
  • AMD SP5
Network Connectivity
Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB Flash ROM
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
Voltage
  • Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-GT214BF-R2K21BP
Dimensions and Weight
Height
  • 3.46" (88 mm)
Width
  • 17.67" (449 mm)
Depth
  • 28" (711.2 mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Gross Weight: 88 lbs (39.9 kg)
  • Net Weight: 68 lbs (30.8 kg)
Available Color
  • Silver
Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED
Buttons
  • Power On/Off button
  • UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Option A*
    • 1 PCIe 5.0 x16 LP slot
  • Option B
    • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
  • View AOC Options
Drive Bays / Storage (per Node)
Drive Bays Configuration
M.2
System Cooling
Fans
  • 2x 17.6K RPM Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 per node Air Shroud
Power Supply
2x 2200W
2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)106.5 x 84 x 245.3 mm
Input100-127Vdc (1200W for the Rest of the World)
1200W: 100-127Vac / 50-60Hz
2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)
200-220Vdc (1800W for the Rest of the World)
200-220Vdc (2090W for North America - UL & cUL)
1800W: 200-220Vac / 50-60Hz
220-230Vdc (1980W for the Rest of the World)
1980W: 220-230Vac / 50-60Hz
220-240Vdc (2200W for North America - UL & cUL)
2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
230-240Vdc (2090W for the Rest of the World)
2090W: 230-240Vdc / 50-60Hz (for CQC only)
2090W: 230-240Vac / 50-60Hz (for TUV/CB)
+12VMax: 100A / Min: 0A (100Vac-127Vac)
Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)
Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
Max: 174.17A (230Vac-240Vac)
12V SBMax: 2A / Min: 0A
Output TypeBackplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Environmental / Recycling
Recycle
Free Remote Testing

Get free access to Supermicro’s top-end data center servers right from your browser with JumpStart

Supermicro’s JumpStart program offers convenient remote access to fully-configured systems with SSH, VNC, and web IPMI, featuring the latest CPUs and GPUs. Schedule free access to validate, test, and benchmark your own workloads on Supermicro’s top-end server platforms with a few simple steps.

Schedule Access
Resources & Downloads
Parts List
Optional Parts List
Part Number Qty Description
Front AIOM Kit MCP-220-21404-0N 1 GT214 FIO AIOM cage(includes 1 dummmy bracket)
CBL-OTHR-1115 1 2x15 to 2x15,18cm,28AWG,1A/pin
CBL-MCIO-1218M5-1 • 2 MCIO x8 (STR to STR),18CM,85OHM
AOM-AIOM-2X8-G5-P 1 AIOM adaptor board (cable solution), PCIe Gen-5
GrandTwin I/O Module AOC-GTG-I2T 1 Grand Twin I/O card 2-Port 10GbE RJ45, Intel Carlsville
AOC-GTG-B2T 1 Grand Twin I/O card 2-Port 10GbE RJ45, Broadcom BCM57416
AOC-G25G-M2S 1 Grand Twin I/O card 2-Port 25GbE SFP28, Mellanox CX-4
NVMe Kit (2 drives) MCP-220-00167-0B • 2 Gen 3 2.5-inch Tool-less NVMe drive tray
CBL-MCIO-1218M5-1 • 1 MCIO x8 (STR to STR),18CM,85OHM
CBL-PWEX-1131-20 1 MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG
BPN-NVME5-826N-B2B 1 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
NVMe Kit (4 drives) MCP-220-00167-0B • 4 Gen 3 2.5-inch Tool-less NVMe drive tray
CBL-PWEX-1131-20 2 MicroHi (2x2 to 2x2), PH3.0, 20cm, 9.5A/p, 18AWG
CBL-MCIO-1218M5-1 • 2 MCIO x8 (STR to STR),18CM,85OHM
BPN-NVME5-826N-B2B 2 2-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
SATA Kit (2 Drives) BPN-SAS3-826TQ-B2B 1 2-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD
CBL-PWEX-0990Y-20 1 MicroFit 2x4,PH3.0 to 2 1X4,PH5.08, 20cm, 4A/pin,20AWG
CBL-MCIO-1217REQT4S2-85 1 MCIO X8/RE to 4 SATA+2 SB, 17/10cm, 85Ohm
MCP-220-00147-0B • 2 Black gen-3 hot-swap 2.5" Tool-less HDD tray
SATA Kit (4 Drives) MCP-220-00147-0B • 4 Black gen-3 hot-swap 2.5" Tool-less HDD tray
CBL-MCIO-1217REQT4S2-85 1 MCIO X8/RE to 4 SATA+2 SB, 17/10cm, 85Ohm
CBL-PWEX-0990Y-20 1 MicroFit 2x4,PH3.0 to 2 1X4,PH5.08, 20cm, 4A/pin,20AWG
BPN-SAS3-826TQ-B2B 2 2-Port 12Gbps Backplane for 2x2.5" SAS/SATA HDD/SSD

GrandTwin A+ Server AS -2115GT-HNTF
