SuperServer 5130DQ-IL

  Products  Systems  Mini-Tower   [ 5130DQ-IL ]









Integrated Board
Super C7Q270-CB-ML

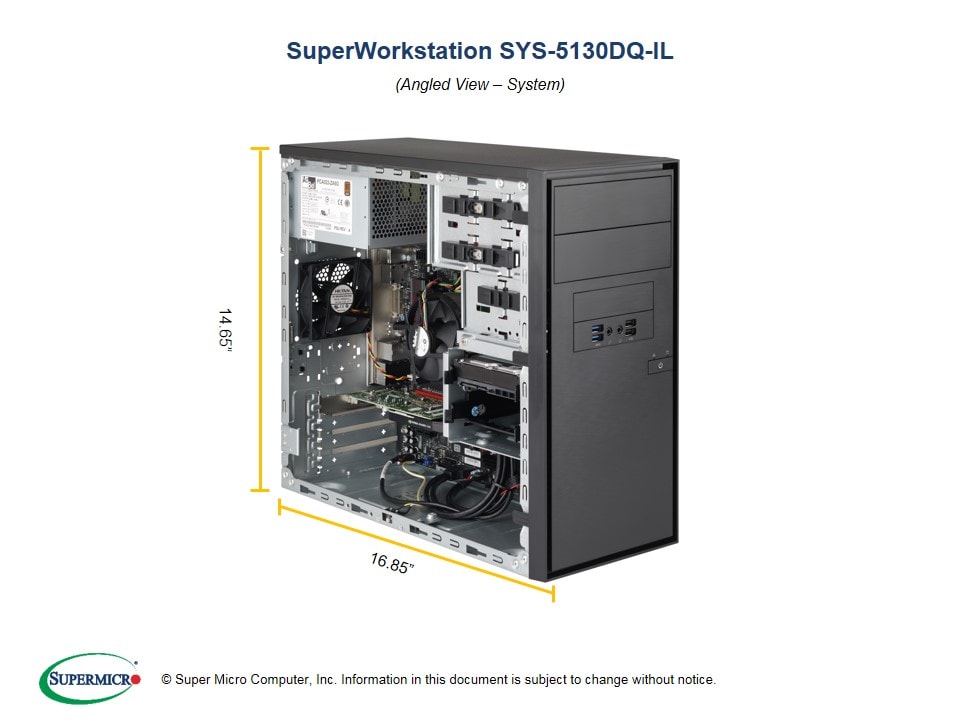

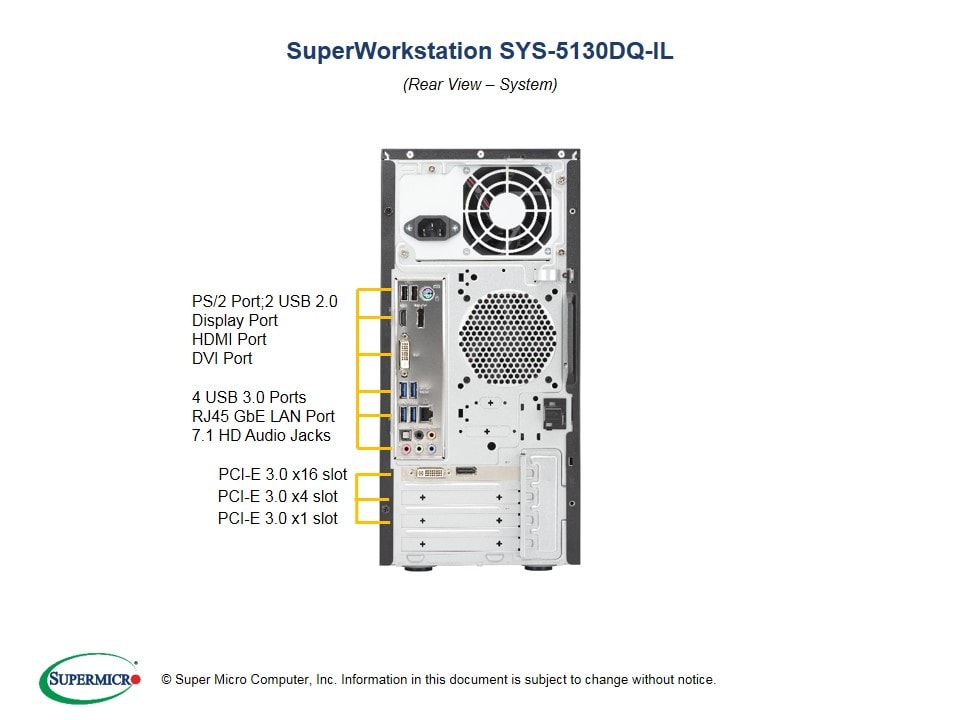

Views: | Angled View | Front View | Rear View |





Key Features

• Intel® vPro™ Technology

• Remote Manageability

• Commercial Desktop


1. Single socket H4 (LGA 1151) supports

    Intel® 7th/6th Gen. Core™ i7/i5/i3 series
2. Intel® Q270 Express Chipset
3. Up to 64GB Non-ECC UDIMM,

    DDR4-2400MHz, in 4 DIMM slots
4. 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x4,

    1 PCI-E 3.0 x1
5. 2x 5.25" drive bays, 2x 3.5" fixed

    drive bays, 1x 2.5" fixed drive bay
6. 1 HDMI, 1 DP, 1 DVI-D
7. HD Audio 7.1 channel connector by

    Realtek ALC1150, support SPDIF-Out
8. 1x 80mm Rear Fan
9. 260W 80Plus Bronze Power Supply




 Drivers & Utilities   BIOS   Tested Memory  Manuals    OS Certification Matrix


Product SKUs
SuperServer
  • SYS-5130DQ-IL (Black)

Motherboard


Super C7Q270-CB-ML

Processor/Cache
CPU
  • Intel® 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 65W TDP
  • Single Socket H4 (LGA 1151)
Note BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors

System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
Memory Type
  • Frequency up to 2400MHz non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
  • 16GB, 8GB, 4GB
Memory Voltage
  • 1.2V

On-Board Devices
Chipset
  • Intel® Q270 Express Chipset
SATA
  • SATA3 via PCH w/ RAID 0, 1, 5, 10
Network Controllers
  • Intel® i219LM Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
  • RealTek ALC1150 High Definition Audio

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 Gigabit Ethernet LAN port
USB
  • 6 USB 3.0 ports (2 front, 4 rear)
  • 4 USB 2.0 ports (2 front, 2 rear)
Audio
  • 7.1 HD Jacks
  • Support SPDIF-Out (Rear)
Display
  • 1 DP (Display Port), 1 HDMI, 1 DVI-D
Serial Port / Header
  • 1 COM port (header)
TPM
  • 1 TPM Header
PS/2
  • PS/2 Combo mouse and keyboard

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x16 slot
  • 1 PCI-E 3.0 x4 slot
  • 1 PCI-E 3.0 x1 slot
  • 1 PCIe 3.0 x4 M.2 (supports 2280)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI (SMBIOS) 2.7
  • ACPI 5.0
  • USB Keyboard support
Chassis
Form Factor
  • Mini-Tower
Model

Dimensions and Weight
Height
  • 14.65" (372mm)
Width
  • 6.89" (175mm)
Depth
  • 16.85" (428mm)
Package
  • 18.7" (H) x 10.63" (W) x 20.08" (D)
Weight
  • Net Weight: 15.74 lbs (7.14 kg)
  • Gross Weight: 18.17 lbs (8.24 kg)
Available Colors
  • Black

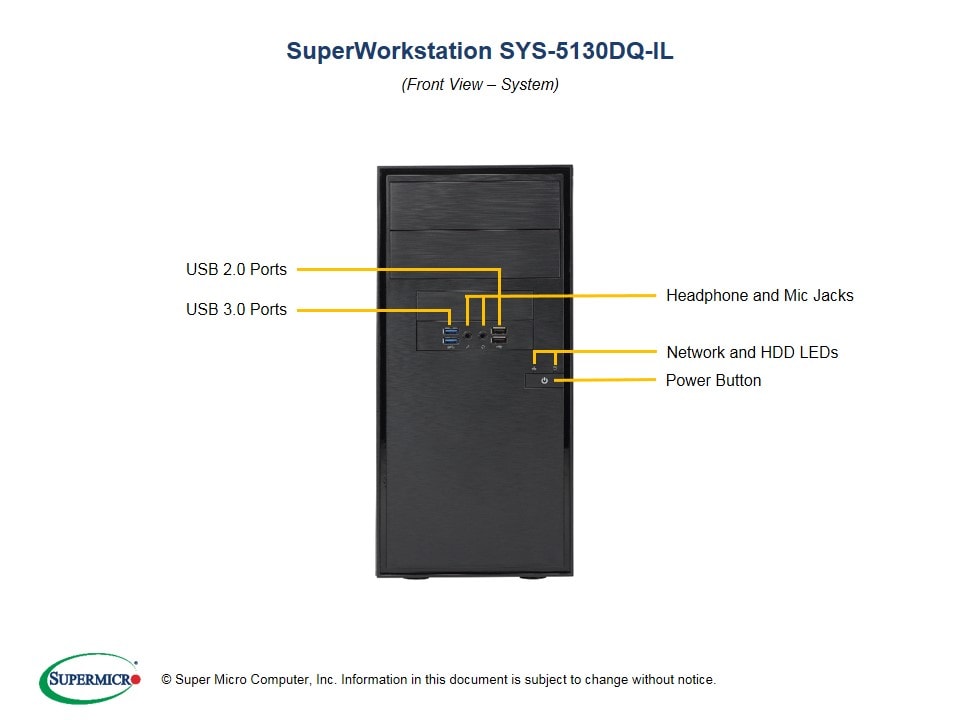

Front Panel
Buttons
  • Power On/Off Button
LEDs
  • 1 Network Activity LED
  • Hard drive activity LED
  • Power LED
Ports
  • 2 USB 3.0 ports
  • 2 USB 2.0 ports
  • 2 Audio Jacks

Drive Bays
Internal HDD/SSD
  • 2 Fixed 3.5" drive bays
  • 1 Fixed 2.5" drive bay
Peripheral
  • 2 Peripheral 5.25" Drive Bays

System Cooling
Fans
  • 1x 80mm rear fan

Power Supply
PS2/ATX 260W/300W Multi-output power supply 80Plus Bronze, with 24pin Cable
Total Output Power and Input
  • 300W with Input 100 - 127Vac
  • 300W with Input 220 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 140 x 149.4 x 86 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.8A / Min: 0A
+12V
  • Max: 10A / Min: 0.3A (100 - 127)
  • Max: 10A / Min: 0.3A (220 - 240)
  • Max: 12A / Min: 0.3A (100 - 127)
  • Max: 12A / Min: 0.3A (220 - 240)
+5V
  • Max: 18A / Min: 0.3A
+3.3V
  • Max: 10A / Min: 0.3A
+5Vsb
  • Max: 2A / Min: 0A
Certification 80 PLUS   Bronze Certified

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI

Operating Environment / Compliance
RoHS

  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
See Parts List



Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-C7Q270-CB-ML

CSE-DS3A-261B
1

1
Super C7Q270-CB-ML Motherboard

3U Mini-Tower Chassis
Cable 1 CBL-0158L 1 PWCD,EU,CEE 7/7 Schuko TO C13,1830mm,0.75mm^2,10A,250V,Black,RoHS
Cable 2 CBL-0260L 1 US power cord 18AWG 6ft, PBF (default for low watt)
Cable 3 CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH
Manual MNL-1952-QRG 1 5130DB-IL / 5130DQ-IL Quick Reference Guide
Power Supply PWS-261-PQ 1 PS2/ATX 260W Multi-output power supply, 80Plus Bronze,RoHS
Optional Parts List


Part Number

Qty

Description

Fan FAN-0186L4 - 92x92x25 mm, 3.8K RPM, Optional Cooling Fan
