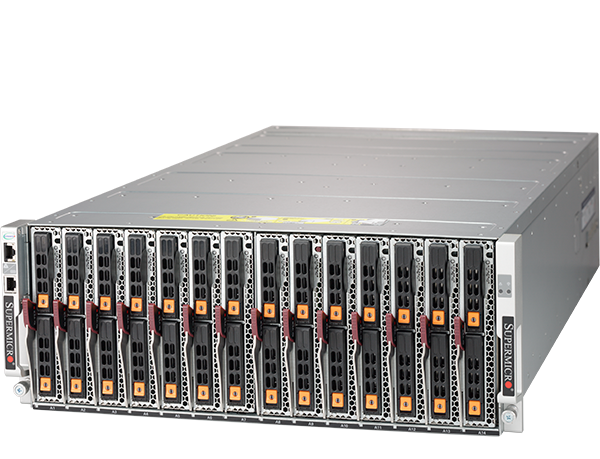

4U SuperBlade

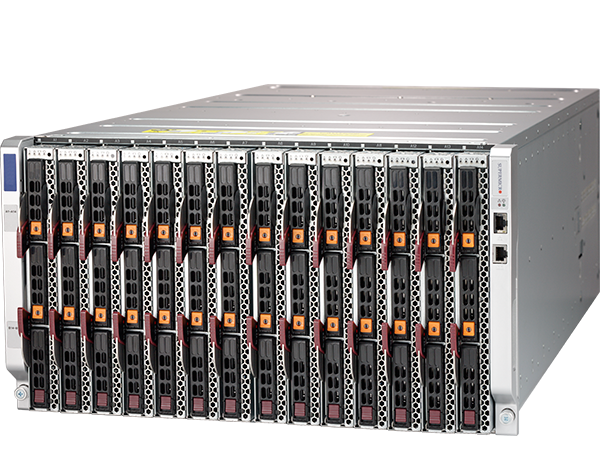

6U SuperBlade

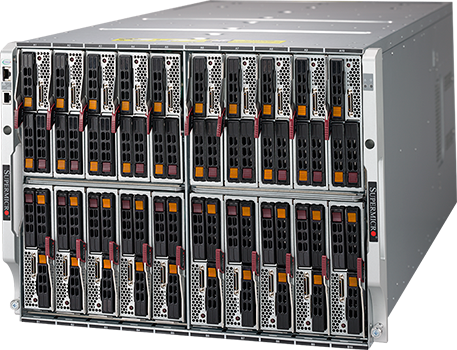

8U SuperBlade

Supermicro SuperBlade®

The innovative and feature-rich SuperBlade® enhances system computing density by housing multiple blade servers in a single enclosure. Applying Supermicro's application-optimized engineering philosophy and leveraging years of rackmount server design experience, SuperBlade® modules deliver true server functionality and boast simplified access and maintenance with front-loading nodes. Each node includes up to four 2nd generation Intel® Xeon® Scalable Processors with up to 12TB DDR4-2933MHz ECC memory in 48 DIMM slots with support for Intel® Optane™ DC Persistent Memory, 205W per socket, NVMe/SAS3 HDD support, optional 100G EDR InfiniBand/Intel Omni-Path or 25G mezzanine HCA, optional PCI-E 3.0 expansion card, support for up to 8 NVMe or 4 SATA3/SAS3 hard drives, and 100-240VAC redundant Titanium Level high-efficiency (96%), N+1 power supplies. Each blade server fits into existing Supermicro blade enclosures, thus protecting initial investments and offering smooth product upgrades and migrations.

New Generation of Computing Excellence
2nd generation Intel® Xeon® Scalable processors supported.
Intel, the Intel logo, Xeon, and Xeon Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

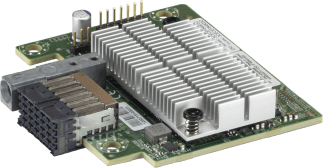

AOC-B25G-6CVL
AOC-B25G-6CVL
Chipset
  • Intel® Ethernet Controller E810-XXVAM2
Ports
  • Two 25G/10G ports
Power Consumption
  • 10.9W typical/ 11.5W max
Download
AOC-B25G-6X4D
AOC-B25G-6X4D
Chipset
  • Mellanox ConnectX-4
Ports
  • Two 25G/10G ports
Power Consumption
  • 12.5W typical/ 14.6W max
Download
AOC-B25G-X4D
AOC-B25G-X4D
Chipset
  • Mellanox ConnectX-4
Ports
  • Two 25G/10G ports
Power Consumption
  • 12.5W typical/ 14.6W max
Download
AOC-IBH-X3QD
AOC-IBH-X3QD
Chipset
  • Mellanox ConnectX-3
InfiniBand Ports
  • Two 4x FDR-10 40-Gbps ports
Ethernet Ports
  • One or two 10-Gbps ports
Power Consumption
  • 8.5W typical/ 9W max
Download

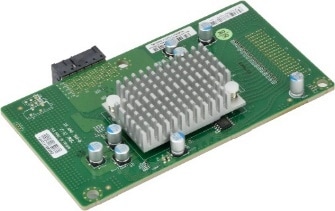

AOC-IBH-X4ES
AOC-IBH-X4ES
Chipset
  • Mellanox ConnectX-4
InfiniBand Ports
  • One EDR 100-Gbps port
Power Consumption
  • 12.5W typical/ 14.6W max
Download
AOC-IBH-X6HS
AOC-IBH-X6HS
Chipset
  • Mellanox ConnectX-6 VPI
InfiniBand Ports
  • One HDR 200-Gbps port
Power Consumption
  • 21.1W max
Download
AOC-OPA-WFR
AOC-OPH-WFR
Chipset
  • Intel Omni-Path Wolfriver
Omni-Path Ports
  • One 100-Gbps port
Power Consumption
  • 13.12W typical/ 16.65W max
Download
AOC-XEH-iN2
AOC-XEH-iN2
Chipset
  • Intel® Ethernet Controller 82599
Ports
  • Two 10G ports
Power Consumption
  • 6.25W max
Download
AOM-B-4M
AOM-B-4M
Add-on ModuleSupermicro M.2 NVMe Storage Expansion Card

The Add-on-Module AOM-B-4M which accommodates 4x M.2 immediately provide additional capacity and increases the total available storage capacity for the blade server.
Key Features
  • Provides 4x M.2
AOM-B3108-H8-B11
AOM-B3108-H8-B11
Add-on ModuleSupermicro Low Profile 12Gb/s Eight-Port SAS Internal RAID Adapter

The Supermicro AOM-B3108-H8-B11 mezzanine RAID card is built on the Broadcom MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.

With the option of supercar/TFM unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.
Compliance
  • RoHS Compliant 6/6, Pb Free
Key Features
  • Broadcom 3108 PCI-E SAS-3 controller
  • 12Gb/s per port
  • Supports up to 8 physical Devices
  • Supports RAID 0, 1, 5, 10
  • On board hardware IO Processor
  • 2GB 1866MHz DDR3 on-card cache
  • Advanced array configuration and management utilities
  • Automatically negotiates PCI-E link widths
  • Power management support
  • Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
  • Supports SSP, SMP, STP and SATA protocols
  • Optional Supercap/TFM Unit for cached data protection
    (BTR-TFM8G-LSICVM02);
    • Ambient operating temperature from 10°C - 55°C
  • OS Support : Windows XP, 2K3, 2K8, Vista, RedHat Enterprise and SUSE Linux
  • Supports fastpath(Free) and Cachecade
    (AOC-CHCD-PRO2-ESW)
Dimensions2.55" x 5.84"
Compatible Motherboards and Servers
Downloads
MBM-CMM-6
MBM-CMM-6
Key Features
  • Remotely manage and monitor server blades, power supplies, cooling fans, and networking switches
  • IPMI 3.0 compliant, with KVM over LAN / KVM over IP
  • Serial over LAN (SOL)
  • LAN Alert-SNMP Trap
  • Event Log
  • OS Independent
  • Hardware Health Monitor
  • Remote Power Control
  • Management Tools - IPMIView, CLI (Command Line Interface)
  • Supports RMCP & RMCP+ Protocols
Specifications
  • Remote Management Processor and sub-system
  • 2x LAN ports
  • Video ADC, Video Compress FPGA
  • I²C, IPMI Management
  • 12V Hot-swap Controller
  • GBX Backplane Connector
  • RS-232 Console Port
Downloads
MBM-CMM-FIO / MBM-CMM-FIO-V (Signed Firmware)
MBM-CMM-FIO

/ MBM-CMM-FIO-V

for MicroBlade or 8U/6U/4U SuperBlade only
Key Features
  • Remotely manage and monitor server blades, power supplies, cooling fans, and networking switches
  • IPMI 2.0 compliant, with KVM over LAN / KVM over IP
  • Serial over LAN (SOL)
  • LAN Alert-SNMP Trap
  • Event Log
  • OS Independent
  • Hardware Health Monitor
  • Remote Power Control
  • Management Tools - IPMIView, CLI (Command Line Interface)
  • Supports RMCP & RMCP+ Protocols
Specifications
  • 2x USB Ports*
  • Remote Management Processor and sub-system
  • 2x LAN ports
  • Video ADC, Video Compress FPGA
  • I²C, IPMI Management
  • 12V Hot-swap Controller
  • GBX Backplane Connector
  • RS-232 Console Port
Downloads

* For debug only

MEM-GEM-004
MBM-GEM-004
General Specifications
  • Broadcom BCM56151 1GbE Switch
  • 4x 10Gbps SFP+ and 8x 1Gbps RJ45 uplinks
  • 40x 1Gbps downlinks
  • 1 Console port
Switching Capacity
  • 176Gbps
Physical Layer Features
  • Jumbo frames up to 9KB
  • 10 gigabit optical Ethernet SFP+/copper
  • 1 gigabit RJ45 Ethernet
Layer 2 Features
  • 4K VLANS
  • Spanning Tree (802.1D)
  • Rapid Spanning Tree (802.1w)
  • Multiple Spanning Trees (802.1s)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • IEEE 802.3ad with LACP
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • Uplink Failure Detection (UFD)
  • MLAG
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
  • Protected Ports
System Management
  • Industry Standard CLI
  • Context Sensitive Help
  • Command Completion
  • SNMP v1/v2/v3
  • SSH
  • Syslog
  • DHCP (Client)
  • Web-based management interface
  • NTP
  • RMON
Multicast
  • IGMP Snooping
Automation
  • Zero Touch Provisioning
Weight
  • 3.1lbs/1.4kg
Dimensions
(W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download
MBM-XEM-002
MBM-XEM-002
General Specifications
  • Broadcom BCM56846 10GbE Low Latency Switch
  • 2x40G and 4x10G uplinks*
  • 20x 10/1Gbps downlinks (SuperBlade)
    56x 10/1Gbps downlinks (MicroBlade)
  • 1 Console port
  • 1 USB port
Switching Capacity
  • 1280Gbps
Physical Layer Features
  • Jumbo frames up to 9KB
  • 40G QSFP+ optical/copper
  • 10G SFP+ optical/copper
Layer 3 Features
  • BGP
  • OSPF
  • VRRP
Layer 2 Features
  • 4K VLANS
  • Spanning Tree (802.1D)
  • Rapid Spanning Tree (802.1w)
  • Multiple Spanning Trees (802.1s)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • IEEE 802.3ad with LACP
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • MLAG
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
  • DHCP Snooping
System Management
  • Industry Standard CLI
  • Command Completion
  • Context Sensitive Help
  • SNMP v1/v2/v3
  • SSH
  • Syslog
  • DHCP (Client)
  • Web-based management interface
  • NTP
  • RMON
  • Ansible
  • RESTCONF
Multicast
  • IGMP Snooping
Weight
  • 3.2lbs/1.5kg
Dimensions (W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download

* (MicroBlade) When used in a 6U MicroBlade enclosure the available uplink ports are 2x 40G, or 1x 40G and 4x 10G.
MBM-XEM-002+
MBM-XEM-002+
General Specifications
  • Broadcom BCM56846 10GbE Low Latency Switch
  • 2x40G, 4x10G, and 1x 1G uplinks*
  • 20x 10/1Gbps downlinks (SuperBlade)
    56x 10/1Gbps downlinks (MicroBlade)
  • 1 Console port
  • 1 USB port
Switching Capacity
  • 1280Gbps
Physical Layer Features
  • Jumbo frames up to 9KB
  • 40G QSFP+ optical/copper
  • 10G SFP+ optical/copper
  • 1G RJ45 optical/copper
Layer 3 Features
  • BGP
  • OSPF
  • VRRP
Layer 2 Features
  • 4K VLANS
  • Spanning Tree (802.1D)
  • Rapid Spanning Tree (802.1w)
  • Multiple Spanning Trees (802.1s)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • IEEE 802.3ad with LACP
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • MLAG
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
  • DHCP Snooping
System Management
  • Industry Standard CLI
  • Command Completion
  • Context Sensitive Help
  • SNMP v1/v2/v3
  • SSH
  • Syslog
  • DHCP (Client)
  • Web-based management interface
  • NTP
  • RMON
  • Ansible
  • RESTCONF
Multicast
  • IGMP Snooping
Weight
  • 3.2lbs/1.5kg
Dimensions (W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download

* (MicroBlade) When used in a 6U MicroBlade enclosure the available uplink ports are 2x 40G, or 1x 40G and 4x 10G.
* When used in MBE-620E, 1G Ethernet port is not available for uplink
MBM-XEM-100
MBM-XEM-100
General Specifications
  • Marvell BobCat3 98CX8410 10GbE Low Latency Switch
  • 56x 10G Ethernet downlink
  • 4x 100G/40G Ethernet uplinks, each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables
  • 1x Gigabit Ethernet uplink
  • 1 console port
Switching Capacity
  • 1922Gbps
Physical Layer Features
  • 100G/40G optical/copper QSFP28
  • Gigabit Ethernet copper RJ45
Layer 2 Features
  • 4K VLANs
  • Spanning Tree Protocol (802.1D)
  • Rapid Spanning Tree Protocol (802.1w)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • Multiple Spanning Tree Protocol (802.1s)
  • Jumbo frames up to 9KB
  • IEEE 802.1AX LAG
  • IEEE 802.3ac VLAN tagging
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • Uplink Failure Detection (UFD)
  • MLAG
  • RDMA over Converged Ethernet (RoCE)
    • Data Center Bridging Extensions (DCBx)
    • Per-Priority Flow Control [PFC] (802.1Qbb)
    • Enhanced Transmission Selection [ETS] – (802.1Qaz)
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
System Management
  • Industry Standard CLI
  • Web-based management interface – HTTP/HTTPS
  • Syslog
  • SSH
  • SNMP v1/v2/v3
  • NTP
  • Content-sensitive "Help"
  • Auto Command completion
  • TFTP Client
  • Ansible
  • RESTCONF
Multicast
  • IGMP Snooping
Automation
  • Zero Touch Provisioning
Weight
  • 3.2lbs/1.5kg
Dimensions (W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download
  • Firmware [ Download ]
  • Ansible Module – Requires Firmware 1.1.1.3 or later [ Download ]
  • Switch Configuration User's Guide [ Download ]
  • Cables and Transceivers List [ Download ]
  • SNMP MIB [ Download ]
PWS-1K62-BR
PWS-1K62-BR

Power Supply

For 7U SuperBlade only
Output
  • 1620W / 1200W *
Type
  • Redundant Module (N+1)
+12V
  • 132A (200~240VAC input)
  • 100A (100~140VAC input)
5VSB
  • 16A
PFC
  • Yes
Peak Efficiency
  • 93%
Input AC Range
  • 100~240VAC
Operating Conditions
  • Temp: -5 to 50°C
  • Humidity: 5 to 95% RH
Fan Type
  • 2x 90mm fans
  • PFC0912DE-6L38 (8000 RPM with PWM)

  * 1620W (200~240VAC input) , 1200W (100~140VAC input)

PWS-2K21A-BR
PWS-2K21A-BR

(Power Supply) & PWS-DF006-2F (Fan)

Maximum Output Power
  • 2200W
Type
  • Redundant Module (N+1)
+12V
  • 183.33A (2200W)
  • 174.17A (2090W)
  • 165A (1980W)
  • 150A (1800W)
  • 100A (1200W)
12Vsb
  • 2A
PFC
  • Yes
Peak Efficiency
  • 96%
Input AC Range
  • 200-220V (2090W for North America - UL & cUL)
  • 220-240V (2200W for North America - UL & cUL)
  • 100-127V (1200W for the Rest of the World)
  • 200-220V (1800W for the Rest of the World)
  • 220-230V (1980W for the Rest of the World)
  • 230-240V (2090W for the Rest of the World)
Operating Conditions
  • Temp: 0 to 50°C
  • Humidity: 5 to 95% RH
Fan Type
  • 80x80mm counter rotating fan
Certification80PLUS Titanium95%+
  80 PLUS
  Titanium Certified
PWS-2K53-BR
PWS-2K53-BR

Power Supply

For 7U SuperBlade only
Output
  • 2500W
Type
  • Redundant Module (N+1)
+12V
  • 208A
5VSB
  • 16A
PFC
  • Yes
Peak Efficiency
  • 94%
Input AC Range
  • 200~240VAC
Operating Conditions
  • Temp: -5 to 50°C
  • Humidity: 5 to 95% RH
Fan Type
  • 4x 90mm fans
  • PFC0912DE-9E69 (8000 RPM with PWM)
  • QFR0912UHE-9E70 (8800 RPM with PWM)
Certification80PLUS Platinum94%+
  80 PLUS
  Platinum Certified
PWS-3K01-BR
PWS-3K01-BR

Power Supply

For 7U SuperBlade only
Output
  • 3000W
Type
  • Redundant Module (N+1)
+12V
  • 250A
5VSB
  • 16A
PFC
  • Yes
Peak Efficiency
  • 94%
Input AC Range
  • 200~240VAC
Operating Conditions
  • Temp: -5 to 50°C
  • Humidity: 5 to 95% RH
Fan Type
  • 4x 90mm fans
  • PFC0912DE-9E69 (8000 RPM with PWM)
  • QFR0912UHE-9E70 (8800 RPM with PWM)
PWS-3K01A-BR
PWS-3K01A-BR

Power Supply

Maximum Output Power
  • 2880W/3000W
Type
  • Redundant Module (N+N, N+1)
+12V
  • 240 (2880W)
  • 250A (3000W)
12Vsb
  • 3A
PFC
  • Yes
Peak Efficiency
  • 96%
Input AC Range
  • 200-207V (2880W)
  • 207.1-240V (3000W)
Operating Conditions
  • Temp: 0 to 60°C
  • Humidity: 20 to 90% RH
Fan Type
  • 80x80mm counter rotating fan
Certification80PLUS Titanium95%+


  80 PLUS
  Titanium Certified

  • Quad 16/12/8-Core AMD Opteron™ 6000 series processors
  • AMD SR5670/SP5100 Chipset
  • 16 DIMM slots; up to 256GB ECC RDIMM DDR3-1600 memory
  • Intel 82576 dual-port Gigabit Ethernet controller
  • 4 Hot-swap 2.5" SATA drive bays
  • Integrated IPMI2.0 with remote KVM and virtual media
  • 4 QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA

Two nodes per Processor Blade. Each node supports:


  • Dual 16/12/8-Core AMD Opteron™ 6000 series processors
  • AMD SR5650/SP5100 Chipset
  • 8 DIMM slots; up to 128GB ECC RDIMM DDR3-1600
  • Intel 82576 dual-port Gigabit Ethernet controller
  • 2 Hot-swap 2.5" SATA drive bays
  • Integrated IPMI2.0 with remote KVM and virtual media
  • 4 QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA
SBE-414E
SBE-414E
Processor Blade
  • Up to 14x 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 4 hot-plug 2200W Titanium power supplies
  • Battery Backup Enabled (SBE-414EB-222 SKU only)
Cooling Design
  • Up to 4 cooling fans in PWS modules
  • Includes 3x PWS-DF007-3F system fans Module
Dimensions (HxWxD)
  • 7" x 17.6" x 32"
Available Models
  • SBE-414E-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-414E-222 - Enclosure with 2 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • SBE-414E-420D (EOL) - Enclosure with 4 hot-plug 2000W DC power supplies
    • DC Power cables (CBL-PWEX-0980-1) must be purchased separately

  • SBE-414EB-222 (EOL) - Enclosure with 2 hot-plug 2200W Titanium (96% efficiency) power supplies + 2x 1200W BBP

Downloads
SBE-414J
SBE-414J
Processor Blade
  • Up to 14x 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 4 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 4 cooling fans in PWS modules
  • Includes 3x PWS-DF007-3F system fans Module
Dimensions (HxWxD)
  • 7" x 17.6" x 32"
Available Models
  • SBE-414J-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies
Downloads
SBE-610J
SBE-610J
Processor Blade
  • Up to 10x 1-socket blade servers
  • Up to 10x 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 4x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 2 CMMs for remote system management with software
  • Management Module(s) must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
Dimensions (HxWxD)
  • 10.5" x 17.6" x 32"
Available Models
  • SBE-610J-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-610J-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • SBE-610J-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • SBE-610JB-422 (EOL) - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + four 1200W BBP

Downloads
SBE-610J
SBE-610J2
Processor Blade
  • Up to 10 hot-swappable full-height single-width 1-socket or 2-socket blade servers
  • Up to 5 hot-swappable full-height double-width 1-socket or 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 4x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 2 CMMs for remote system management with software
  • Management Module(s) must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200/3000W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
Dimensions (HxWxD)
  • 10.5" x 17.6" x 32"
Available Models
  • SBE-610J2-430 - Up to 4 hot-swappable 3000W Titanium (96% efficiency) power supplies
  • SBE-610J2-630 - Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies
  • SBE-610J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
  • SBE-610J2-422 - Up to 4 hot-swappable 2200W Titanium (96% efficiency) power supplies
  • SBE-610J2-622 - Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies
  • SBE-610J2-822 - Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies
Downloads
SBE-614E
SBE-614E
Processor Blade
  • Up to 14x 1-socket blade servers
  • Up to 14x 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
  • Battery Backup Enabled (SBE-614EB-422 SKU only)
Cooling Design
  • Up to 8 cooling fans in PWS modules
Dimensions (HxWxD)
  • 10.5" x 17.6" x 32"
Available Models
  • SBE-614E-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-614E-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • SBE-614E-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • SBE-614EB-422 (EOL) - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4x 1200W BBP

Downloads
SBE-714E
SBE-714E
Processor Blade
  • Up to 14 hot-plug processor blades
Module Support
  • Supports Intel based blades
LED
  • Power LED, Fault LED
InfiniBand Switch
  • Supports up to one hot-plug DDR IB switch
  • Switch module not included in the enclosure
GbE Switch / Pass-Through Module
  • Supports up to two hot-plug Gigabit Ethernet switches / Pass-Through Modules
  • Switch modules are not included in the enclosure
Management Module
  • Up to 2 hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
  • One management module comes standard with each enclosure
Power Supplies
  • Up to four hot-swap 1400W / 1620W power supplies, N+1 redundant
Cooling Design
  • Up to 8 cooling fans
Dimensions (HxWxD)
  • 12.1" x 18.5" x 29"
Available Models
  • SBE-714E-R75 (EOL) - Enclosure with four 2500W power supplies

  • SBE-714E-R48 (EOL) - Enclosure with four 1620W power supplies

  • SBE-714E-D32 (EOL) - Enclosure with two 1620W power supplies

Downloads
SBE-720E
SBE-720E
Processor Blade
  • Up to 10 hot-plug Twin processor blades
Module Support
  • Supports Intel based Twinblade®
  • Supports Intel and AMD based 10-blade
LED
  • Power LED, Fault LED
InfiniBand Switch
  • Supports up to two hot-plug IB QDR switches
  • Switch module not included in the enclosure
GbE Switch / Pass-Through Module
  • Supports up to two hot-plug 1/10 Gigabit Ethernet Layer 2/3 switch modules
  • Switch modules are not included in the enclosure
Management Module
  • Supports one hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
  • Management module not included in the enclosure
Power Supplies
  • Up to four hot-swap 2500W / 3000W power supplies, N+1 redundant
Cooling Design
  • Up to 16 cooling fans
Dimensions (HxWxD)
  • 12.1" x 18.5" x 29"
Available Models
  • SBE-720E-R90 (EOL) - Enclosure with four 3000W power supplies

  • SBE-720E-D60 (EOL) - Enclosure with two 3000W power supplies

  • SBE-720E-R75 (EOL) - Enclosure with four 2500W power supplies

  • SBE-720E-D50 (EOL) - Enclosure with two 2500W power supplies

Downloads
SBE-720F
SBE-720F
Processor Blade
  • Up to 10 hot-plug Twin processor blades
Module Support
  • Supports Intel based Twinblade®
  • Supports Intel and AMD based 10-blade
LED
  • Power LED, Fault LED
InfiniBand Switch
  • Supports up to two hot-plug IB FDR/QDR switches
  • Switch module not included in the enclosure
GbE Switch / Pass-Through Module
  • Supports up to two hot-plug 1/10 Gigabit Ethernet Layer 2/3 switches Modules
  • Switch modules are not included in the enclosure
Management Module
  • Supports one hot-plug management modules providing remote KVM and IPMI 2.0 functionalities
  • Management module not included in the enclosure
Power Supplies
  • Up to four hot-swap 3000W power supplies, N+1 redundant
Cooling Design
  • Up to 16 cooling fans
Dimensions (HxWxD)
  • 12.1" x 18.5" x 29"
Available Models
  • SBE-720F-R90 (EOL) - Enclosure with four 3000W power supplies

Downloads
SBE-820C
SBE-820C
Processor Blade
  • Up to 20 half-height 2-socket blade servers
  • Up to 10 full-height 4-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Infiniband EDR or OPA Switch – Support for 1x 100Gbps switch
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820C-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-820C-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • SBE-820C-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • SBE-820CB-422 (EOL) - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + four 1200W BBP

Downloads
SBE-820H
SBE-820H
Processor Blade
  • Up to 20 half-height 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Infiniband HDR Switch – Support for 1x 200Gbps module
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820H-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-820H-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies
Downloads
SBE-820H2
SBE-820H2
Processor Blade
  • Up to 20 half-height 2-socket blade servers
LED
  • Power LED, Fault LED
Networking
  • Infiniband HDR Switch – Support for 1x 200Gbps module
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 8 hot-plug 3000W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F & PWS-DF006-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820H2-830 - Enclosure with 8 hot-plug 3000W Titanium (96% efficiency) power supplies
  • SBE-820H2-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies
  • SBE-820H2-630 - Enclosure with 6 hot-plug 3000W Titanium (96% efficiency) power supplies
  • SBE-820H2-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies
Downloads
SBE-820J
SBE-820J
Processor Blade
  • Up to 20 half-height 2-socket blade servers
  • Up to 10 full-height 4-socket blade servers
  • Mixed blade servers in a single enclosure
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 4x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • Up to 2 CMMs for remote system management with software
  • Management Module(s) must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820J-822 - 25G Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-820J-622 - 25G Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies + 2 cooling fans

  • SBE-820J-422 - 25G Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4 cooling fans

  • SBE-820JB-422 (EOL) - 25G Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies + 4x 1200W BBP

  • SBE-820J-820D (EOL) - Enclosure with 8 hot-plug 2000W DC power supplies
    • DC Power cables (CBL-PWEX-0980-1) must be purchased separately

Downloads
SBE-820J
SBE-820J2
Processor Blade
  • Up to 20 half-height 2-socket blade servers
  • Up to 10 full-height 4-socket blade servers
  • Mixed blade servers in a single enclosure
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 4x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • Up to 2 CMMs for remote system management with software
  • Management Module(s) must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200/3000W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820J2-630 - Up to 6 hot-swappable 3000W Titanium (96% efficiency) power supplies
  • SBE-820J2-830 - Up to 8 hot-swappable 3000W Titanium (96% efficiency) power supplies
  • SBE-820J2-422 - Up to 4 hot-swappable 2200W Titanium (96% efficiency) power supplies
  • SBE-820J2-622 - Up to 6 hot-swappable 2200W Titanium (96% efficiency) power supplies
  • SBE-820J2-822 - Up to 8 hot-swappable 2200W Titanium (96% efficiency) power supplies
Downloads
SBE-820L
SBE-820L
Processor Blade
  • Up to 20 half-height 2-socket blade servers
  • Up to 10 full-height 4-socket blade servers
  • Mixed blade servers in a single enclosure
LED
  • Power LED, Fault LED
Networking
  • Ethernet Switch – Up to 2x modules
  • For compatibility, see the Blade Matrix or contact your Supermicro representative
  • Switch Modules must be purchased separately
Management Module
  • 1 CMM for remote system management with software
  • Management Module must be purchased separately
Power Supplies
  • Up to 8 hot-plug 2200W Titanium power supplies
Cooling Design
  • Up to 8 cooling fans in PWS modules
  • 3 optional cooling fan modules (PWS-DF005-2F)
Dimensions (HxWxD)
  • 14" x 17.6" x 32"
Available Models
  • SBE-820L-822 - Enclosure with 8 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-820L-622 - Enclosure with 6 hot-plug 2200W Titanium (96% efficiency) power supplies

  • SBE-820L-422 - Enclosure with 4 hot-plug 2200W Titanium (96% efficiency) power supplies

Downloads
6U, 1-Socket Blade
  • Single socket P (LGA 2066) supports Intel® Xeon® Processor W Family
  • 70 CPUs per 42U Rack
  • Intel® C422 chipset
  • 8 DIMM slots; 512GB LRDIMM / 256GB RDIMM, up to DDR4 2666MHz
  • 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3
  • Broadcom 3108 HW RAID
  • Dual 10G onboard
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 9.75" x 1.75" x 23.5"
6U, 1-Socket Blade
  • Single socket P (LGA 2066) supports Intel® Xeon® Processor W Family
  • 70 CPUs per 42U Rack
  • Intel® C422 chipset
  • 8 DIMM slots; 512GB LRDIMM / 256GB RDIMM, up to DDR4 2666MHz
  • 3 Hot-plug 2.5" NVMe/SATA3
  • Dual 10G onboard
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 9.75" x 1.75" x 23.5"
SBM-25G-100
SBM-25G-100
General Specifications
  • Marvell BobCat3 98CX8410 25GbE Low Latency Switch
  • 20x 25G Ethernet downlink (backward compatible to 20x10G)
  • 4x 100G/40G Ethernet uplinks, each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables
  • 1x Gigabit Ethernet uplink
  • 1 console port
Switching Capacity
  • 1802Gbps
Physical Layer Features
  • 100G/40G optical/copper QSFP28
  • Gigabit Ethernet copper RJ45
Layer 2 Features
  • 4K VLANs
  • Spanning Tree Protocol (802.1D)
  • Rapid Spanning Tree Protocol (802.1w)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • Multiple Spanning Tree Protocol (802.1s)
  • Jumbo frames up to 9KB
  • IEEE 802.1AX LAG
  • IEEE 802.3ac VLAN tagging
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • Uplink Failure Detection (UFD)
  • MLAG
  • RDMA over Converged Ethernet (RoCE)
    • Data Center Bridging Extensions (DCBx)
    • Per-Priority Flow Control [PFC] (802.1Qbb)
    • Enhanced Transmission Selection [ETS] – (802.1Qaz)
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
System Management
  • Industry Standard CLI
  • Web-based management interface – HTTP/HTTPS
  • Syslog
  • SSH
  • SNMP v1/v2/v3
  • NTP
  • Content-sensitive "Help"
  • Auto Command completion
  • TFTP Client
  • RESTCONF
Multicast
  • IGMP Snooping
Automation
  • Zero Touch Provisioning
Weight
  • 3.2lbs/1.5kg
Dimensions (W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download
SBM-25G-200
SBM-25G-200
General Specifications
  • Broadcom BCM56770 25GbE Low Latency Switch
  • 6x 100G/40G & 1x 1G uplinks*
  • 40x 25Gbps downlinks (SuperBlade),
    56x 25Gbps downlinks (MicroBlade)
  • 1 Console port
  • 1 USB port
Switching Capacity
  • 2000Gbps
Physical Layer Features
  • Jumbo frames up to 9KB
  • 100G/40G QSFP28/QSFP+ optical/copper
  • 1G RJ-45 copper
Layer 3 Features
  • IPv4 unicast routing - static routing, RIP, OSPF and BGP
  • IPv6 unicast routing - static routing
  • VRRP (Virtual Router Redundancy Protocol)
  • ECMP (Equal-cost multi-path)
  • PIM
  • IGMP
Layer 2 Features
  • 4K VLANS
  • Spanning Tree (802.1D)
  • Rapid Spanning Tree (802.1w)
  • Multiple Spanning Trees (802.1s)
  • IEEE 802.lQ VLANs/ port-based VLANs
  • IEEE 802.3ad with LACP
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • MLAG
  • RoCE v1/v2
  • Loop Protection per VLAN
Security Features
  • Switch access password protection
  • RADIUS and TACACS+ Authentication
  • Access Control Lists
  • SSH, SSL Encryption
  • DHCP Snooping
System Management
  • Industry Standard CLI with telnet, SSH or local management port
    • Scripting capability
    • Command completion
    • Context sensitive "Help"
  • SNMP v1/v2/v3
  • SSH
  • Syslog
  • DHCP (Client)
  • Web-based management interface
    • HTTP, HTTPS
    • Telnet (7 sessions)
  • NTP
  • Four RMON Groups - (1, 2, 3 and 9)
  • Multiple levels of user privileges (CLI and Web UI)
  • Configuration file - upload / download
    • Restconf
    • Ansible
Multicast
  • IGMP Snooping
Weight
  • 2.625lbs/1.2kg
Dimensions (W x D x H)
  • 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Download

* When used in SBE-610J and SBE-610J2, 1G Ethernet port is not available for uplink.

* Uplink availability and supported port speed might be different between enclosures; please refer to “Connectivity Guide”.

SBM-25G-P10
SBM-25G-P10
General Specifications
  • 20x 25G/10G Ethernet downlinks
  • 5x 100G Ethernet uplinks (each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables) or 5x 40G Ethernet uplinks (each can split into 4x 10G uplinks with optional fan-out cables)
  • 1 Console port
Partner Switches
  • 100G QSFP28 Switch (100G port split into 4x10G/25G)
  • 40G QSFP+ Switch (40G port split into 4x10G)
  • 25G SFP28 Switch
  • 10G SFP+ Switch
Configuration Info
Weight
  • 1.99lbs/0.902kg
Dimensions (W x D x H)
  • 165mm x 268mm x 38mm (6.5" x 10.56" x 1.5")
Download
SBM-CMM-001
SBM-CMM-001

/ BMB-CMM-002 (mini-CMM) / SBM-CMM-003

for 7U SuperBlade only
Key Features
  • Remotely manage and monitor server blades, power supplies, cooling fans, and networking switches
  • IPMI 2.0 compliant, with KVM over LAN / KVM over IP
  • Serial over LAN (SOL)
  • Virtual Media Over LAN (Virtual USB Floppy/CD and Drive Redirection)
  • LAN Alert-SNMP Trap
  • Event Log
  • OS Independent
  • Hardware Health Monitor
  • Remote Power Control
  • Management Tools - IPMIView, CLI (Command Line Interface)
  • Supports RMCP & RMCP+ Protocols
Specifications
  • VGA Port, 2x USB Ports
  • Remote Management Processor and sub-system
  • 1x LAN port
  • Video ADC, Video Compress FPGA
  • I²C, IPMI Management
  • 12V Hot-swap Controller
  • GBX Backplane Connector
Downloads
SBM-GEM-X4S
SBM-GEM-X4S
Internal Ports
  • 20x 1G downlink ports
External Uplink Ports
  • 4x 10-Gbps SFP+ ports and 4x 1G RJ45 ports
Type
  • Layer 2 1Gb Ethernet switch
Layer 2 Features
  • 4K VLAN
  • Spanning Tree (802.1D)
  • Rapid Spanning Tree (802.1w)
  • Multiple Spanning Tree (802.1s)
  • IEEE 802.1Q VLANs/ port-based VLANs
  • IEEE 802.3ad with LACP
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advanced Layer 2 Features
  • Storm control
  • Flow control
  • Port mirroring
  • Uplink Failure Detection (UFD)
  • MLAG
Jumbo Frame Support
  • Up to 9K bytes
Remote Management
  • Browser-based management / CLI
Protocols
  • VLANs, STP, RSTP, MSTP
OS
  • Firmware upgradeable
Download
SBM-IBS-E3616
SBM-IBS-E3616
Switch Chip
  • Mellanox Switch-IB
Internal Ports
  • Twenty EDR ports at 100Gbps
External Uplink Ports
  • Sixteen EDR ports with QSFP28 connectors
Bandwidth
  • 7.62Tbps total switch bandwidth (36-Port)
Download
SBM-IBS-F3616(M)*
SBM-IBS-F3616M
Switch Chip
  • Mellanox SwitchX
Internal Ports
  • Twenty FDR10/FDR ports at 40/56Gbps
External Uplink Ports
  • Sixteen 4x FDR with QSFP connectors
  • 4X FDR (56-Gbps) non-blocking architecture with 56Gbps through external ports
Bandwidth
  • 3.392Tbps total switch bandwidth (36-Port)
Download
SBM-IBS-H4020
SBM-IBS-H4020
Switch Chip
  • Mellanox Quantum
Internal Ports
  • Twenty HDR 200G Ports
External Uplink Ports
  • Twenty HDR 200G Ports with QSFP56 connectors
Bandwidth
  • 16 Tbps Switch Bandwidth
Download
SBM-OPA-C4020
SBM-OPA-C4020
Switch Chip
  • Intel Omni-Path chipset
Internal Ports
  • Twenty ports at 100Gbps
External Uplink Ports
  • Twenty four 100Gbs ports with QSFP28 connectors
Bandwidth
  • 9.6 Tbps total switch bandwidth (44-Port)
Download
SBM-XEM-F8X4S(M)*
SBM-XEM-F8X4SM
Internal Ports
  • 10 (Ten-Blade) or 14 (Fourteen-Blade) or 20 (TwinBlade) internal 10-Gigabit connections to Blades. Internal ports support DCB /FCoE
External Uplink Ports
  • 4 (TwinBlade) or 6 (Ten-Blade/Fourteen-Blade) external Fibre Channel ports (SFP+) (N_port type)
  • 4 (Ten-Blade/Fourteen-Blade) external 10-Gigabit Ethernet ports (SFP+). No external 10Gb Ethernet with TwinBlade enclosure.
  • One external 1GE port (RJ45)
Type
  • Converged Data Center switch with FC/FCoE support
Switching Capacity
  • 480 Gbps
Trunking
  • Link Aggregation - 8 groups with 8 members per group
Jumbo Frame Support
  • Up to 9K bytes (Ethernet)
  • 2112 bytes (Fibre Channel)
Remote Management
  • Browser-based management / CLI
Protocols
  • STP, RSTP, MSTP, IGMP snooping, 802.1x, LACP, DHCP, RIP/OSPF, ACL, QoS.
  • FIP (FC-BB-5) gateway
OS
  • Firmware upgradeable
Download
SBM-XEM-X8SM
SBM-XEM-X8SM
Internal Ports
  • 10 (Ten Blade) or 14 (Fourteen Blade) or 20 (Twin Blade) internal 10G connection to blades
External Uplink Ports
  • 4 (Twin Blade) or 8 (Ten Blade/Fourteen Blade) 10G SFP+ ports
Type
  • Layer 2/3 10Gb Ethernet switch
Switching Capacity
  • 320 Gbps
Trunking
  • Link Aggregation
Jumbo Frame Support
  • Up to 9K bytes
Remote Management
  • Browser-based management / CLI
Protocols
  • STP, RSTP, MSTP, etc.
OS
  • Firmware upgradeable
Download
1-Socket Blade
  • Single Socket H4 (LGA 1151) support: Intel® Xeon® E-2100 and E-2200 processors
  • 100 CPUs per 42U Rack
  • Intel® C246 chipset
  • 4 DIMM slots; up to 128GB ECC UDIMM, up to DDR4 2666MHz
  • Storage: 1 NVMe/SATA3 M.2, 1 SATA DOM
  • Dual 10G onboard
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 6.5" x 1.75" x 23.5"
2-Socket Blade
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 200 CPUs per 42U Rack
  • Intel® C622 chipset
  • 16 DIMMs, up to 4TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Options:
    • SBI-4129P-C2N – 2 Hot-plug 2.5" SAS3/SATA3 HDD/SSD/NVMe
    • SBI-4129P-T3N – 2 Hot-Plug 2.5" NVMe + 1 SATA3 drive
  • Broadcom 3108 (SBI-4129P-C2N)
  • Dual 10G onboard and high speed network options (via 25G/100G EDR/Omni-Path Mezzanine card)
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 6.5" x 1.75" x 23.5"

*Contact your Supermicro sales rep for more info.

  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors; 3 UPI up to 10.4GT/s
  • 280 CPUs per 42U Rack
  • Intel® C622 chipset
  • 12 DIMMs; up to 384GB VLP ECC DDR4-2933 MHz RDIMM
  • Storage Options:
    • 4429P-T2N - 2 Hot-plug 2.5" SATA3 HDD/SSD/NVMe
  • Dual 10G onboard
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 6.5" x 1.2" x 23.5"
6U, 1-Socket Blade
  • Single socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processor, Dual UPI up to 10.4GT/s
  • 70 CPUs per 42U Rack
  • Intel® C622 chipset
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3
  • Broadcom 3108 HW RAID
  • Dual 10G onboard
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 9.75" x 1.75" x 23.5"

*Contact your Supermicro sales rep for more info.

6U, 2-Socket Blade
  • Dual socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processor, Dual UPI up to 10.4GT/s
  • 140 CPUs per 42U Rack
  • Intel® C622 chipset
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 2 Hot-plug 2.5" NVMe + 1 Hot-plug SAS3/SATA3 drives or 3 SAS3/SATA3
  • Broadcom 3108 HW RAID
  • Dual 10G onboard
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 9.75" x 1.75" x 23.5"

*Contact your Supermicro sales rep for more info.

6U, 2-Socket Blade
  • Dual socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable Processor, Dual UPI up to 10.4GT/s
  • 140 CPUs per 42U Rack
  • Intel® C622 chipset
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • 3 Hot-plug 2.5" NVMe or 3 Hot-plug SATA3 drive bays
  • Dual 10G onboard
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 9.75" x 1.75" x 23.5"

*Contact your Supermicro sales rep for more info.

1-Socket Blade
  • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processor
  • 98 UP nodes per 42U Rack
  • Intel® C622 chipset
  • 12 DIMMs; up to 384GB VLP ECC DDR4-2933 MHz RDIMM
  • Storage Options:
    • SBI-6419P-C3N – 2 Hot-Plug 2.5" NVMe + 1 SAS3/SATA3 drive or 3 SAS3/SATA3
  • Broadcom 3108 (HW RAID)
  • Dual 10G onboard
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 9.75" x 1.2" x 23.5"
2-Socket Blade
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processor; 3 UPI up to 10.4GT/s
  • 98 DP nodes per 42U Rack
  • Intel® C622 chipset
  • 24 DIMMs; up to 768GB VLP ECC DDR4-2933 MHz RDIMM
  • Storage Options:
    • SBI-6429P-C3N – 2 Hot-Plug 2.5" NVMe + 1 SAS3/SATA3 drive or 3 SAS3/SATA3 drives
  • Broadcom 3108 (HW RAID)
  • Dual 10G onboard
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 9.75" x 1.2" x 23.5"
6U, 2-Socket Blade
  • Dual Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processor; Dual UPI up to 10.4GT/s
  • 98 DP nodes (196 CPUs) per 42U Rack
  • Intel® C622 chipset
  • 24 DIMMs; up to 768GB VLP ECC DDR4-2933 MHz RDIMM
  • 3 Hot-plug 2.5" NVMe or 3 Hot-plug SATA3 drive bays
  • Dual 10G onboard
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 9.75" x 1.2" x 23.5"
4-Socket Blade
  • Quad Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processor; 3 UPI up to 10.4GT/s
  • 200 CPUs per 42U Rack
  • Intel® C622 chipset
  • 48 DIMMs; up to 12TB 3DS ECC DDR4-2933 MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM*
  • Storage Options:
    • 2 M.2 NVMe and 1 SATADOM and 4 M.2 NVMe slots via optional Mezzanine card
    • SBI-8149P-C4N – 4x 2.5" NVMe/SAS3/SATA3 drives via optional Mezzanine card
    • SBI-8149P-T8N – 8x 2.5" NVMe drives, or 4 NVMe + 4 SATA3 drives
  • Broadcom 3108, RAID 0, 1, 5, 10 via mezzanine card (SBI-8149P-C4N)
  • 2x 10G LAN or 100G EDR InfiniBand/Intel Omni-Path (Mezzanine card)
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2500 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 13" x 1.75" x 23.5"

*Contact your Supermicro sales rep for more info.

Up to 3 NVMe
  • Dual Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6 GT/s
  • 120 CPUs per 42U Rack
  • Intel® C612 Express chipset
  • 16 DIMM slots, up to 1TB LRDIMM, 512GB RDIMM or 128GB UDIMM
  • 6 Hot-swap 2.5" SAS3 HDD Bays; Broadcom 3108, HW RAID 0, 1, 5
  • 3 Hybrid ports support Hot-plug NVMe/SAS HDD
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2400 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.67" x 20.5"
Up to 3 NVMe
  • Dual Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6 GT/s
  • 120 CPUs per 42U Rack
  • Intel® C612 Express chipset
  • 16 DIMM slots; up to 2TB ECC LRDIMM or RDIMM DDR4-2400
  • 3 Hot-plug NVMe + 3 Hot-swap SAS3 HDD support (SBI-7128R-C6N)
  • 6 Hot-swap 2.5" SAS3 HDD Bays; LSI 3108 (SBI-7128R-C6)
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2400 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.67" x 20.5"
  • Up to 120 GPUs/Xeon Phi™/Kepler + 120 CPUs per 42U Rack!
  • Up to 2 Xeon Phi™ or Tesla Kepler K10X/K20M/K40M/K20X/K80; GRID K1/K2
  • Dual Socket R3 (LGA 2011) support: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • Intel® C612 chipset
  • 8 DIMM slots; up to 1TB ECC LRDIMM or RDIMM DDR4-2400
  • 1 SSD or 2 SATA-DOM (Disk-On-Module) supported
  • 1 FDR 56Gbps InfiniBand (-F) or 2 FDR 56Gbps InfiniBand (-F2)
  • Dual port 10G LAN (-X)
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.67" x 20.5"
  • Dual Socket R3 (LGA 2011) per node supports: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6 GT/s
  • 240 CPUs per 42U Rack
  • Intel® C612 Express chipset
  • 8 DIMM slots; up to 1TB ECC LRDIMM or RDIMM DDR4-2400
  • 2 Hot-swap 2.5" SATA3 HDD Bays
  • Dual-port (-T2F2) or Single-port (-T2F) FDR (56Gb) InfiniBand
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2400 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Operating Temp.: 10°C - 35°C non-condensing
  • Dimensions: 11.32" x 1.67" x 20.5"
  • Dual Socket R3 (LGA 2011) per node supports: Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6 GT/s
  • 240 CPUs per 42U Rack
  • Intel® C612 Express chipset
  • 8 DIMM slots; up to 1TB ECC LRDIMM or RDIMM DDR4-2400
  • 2 Hot-swap 2.5" SATA3 HDD Bays
  • On-board dual 10Gb ports
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2400 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Operating Temp.: 10°C - 35°C non-condensing
  • Dimensions: 11.32" x 1.67" x 20.5"
Up to 3 NVMe
  • Dual Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 168 CPUs per 42U Rack
  • Intel® C612 Express chipset
  • 16 VLP DIMM slots, up to 256GB RDIMM or 64GB UDIMM
  • 3 Hot-swap 2.5" SAS3/SATA3 HDD Bays; HW RAID 0, 1, 5
  • 3 Hybrid ports support Hot-plug NVMe/SAS HDD
  • 4 QDR (40Gbps) / FDR (56Gbps) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2400 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.19" x 18.9"
Up to 3 NVMe
  • Dual Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 168 CPUs per 42U Rack
  • Intel® C612 Express chipset
  • 16 VLP DIMM slots, up to 256GB RDIMM or 64GB UDIMM
  • 3 Hot-swap 2.5" SATA HDD Bays
  • 3 Hybrid ports support Hot-plug NVMe/SAS HDD
  • 4 QDR (40Gbps) / FDR (56Gbps) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2400 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.19" x 18.9"
Up to 3 NVMe
  • Dual Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 168 CPUs per 42U Rack
  • Intel® C612 Express chipset
  • 16 VLP DIMM slots; up to 512GB VLP ECC RDIMM
  • 3 Hot-plug NVMe support via hybrid ports (SBI-7428R-T3N);
    3 Hot-swap 2.5" SATA HDD Bays (SBI-7428R-T3)
  • Up to 3 NVMe
  • 4 QDR (40Gbps) / FDR (56Gbps) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2400 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.19" x 18.9"
  • Dual Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 120 CPUs per 42U Rack
  • Intel® C600 series Chipset
  • 16 DIMM slots; up to 512GB, up to DDR3-1866 memory
  • 6 Hot-swap 2.5" SAS2/SATA3 drive bays; HW RAID 0, 1, 5, 6, 10, 50
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.67" x 18.9"
  • Dual Socket R (LGA 2011) per node supports: Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 120 CPUs per 42U Rack
  • Intel® C602 series Chipset
  • 16 DIMM slots, up to 512GB RDIMM or 128GB UDIMM
  • 1 (x16) PCI-E 3.0 FH/HL slot
  • 1 SATA DOM up to 64GB
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Operating Temp.: 10°C - 35°C non-condensing
  • Dimensions: 11.32" x 1.67" x 18.9"
  • Dual Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 120 CPUs per 42U Rack
  • Intel® C602 Chipset
  • 16 DIMM slots; up to 512GB, up to DDR3-1866 memory
  • 2 Hot-swap 2.5" SAS2/SATA3 HDD Bays; RAID 0, 1, 10
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.19" x 18.9"
  • Dual Socket R (LGA 2011) per node supports: Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 120 CPUs (+120 GPUs) per 42U Rack
  • Intel® C602 series Chipset
  • 8 DIMM slots, up to 256GB RDIMM or 64GB UDIMM
  • 2 (x16) PCI-E 2.0 FH/HL slots
  • 1 SATA DOM up to 64GB
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Operating Temp.: 10°C - 35°C non-condensing
  • Dimensions: 11.32" x 1.67" x 20.5"
  • Dual Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 120 CPUs (+120 GPUs) per 42U Rack
  • Intel® C602 Chipset
  • 8 DIMM slots; up to 256GB, up to DDR3-1866 memory
  • 1 SATA DOM up to 64GB
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • GPU support: M2090/M2075/M2070Q/M2070/M2050
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.67" x 20.5"
  • Dual Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 120 CPUs (+120 GPUs/Coprocessor ) per 42U Rack
  • Intel® C602 Chipset
  • 8 DIMM slots; up to 256GB, up to DDR3-1866 memory
  • 1 SATA DOM up to 64GB
  • 4 FDR (56Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • MIC/GPU support: Coprocessor , GRID K2/K10/K20M/K20X, K40M
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.67" x 20.5"
  • Dual Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 3 NVIDIA Kepler K20X/K40X SXM
  • Intel® C602 Chipset
  • 8 DIMM slots; up to 512GB, up to DDR3-1866 memory
  • 1 SATA DOM up to 64GB
  • InfiniBand or 10GbE option
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.67" x 20.5"
  • Quad Intel® Xeon® processor E5-4600 / E5-4600 v2 family; QPI up to 8.0GT/s
  • 240 CPUs per 42U Rack
  • Intel® C602J Chipset
  • 16 DIMM slots; up to 1TB, up to DDR3-1866 memory
  • 4 Hot-swap 2.5" SAS HDD Bays; SAS2 via Broadcom 2308
  • Mellanox ConnectX-3 single-port FDR 56Gbps InfiniBand, 40/10 GbE support
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.67" x 20.5"
  • Quad Intel® Xeon® processor E5-4600 / E5-4600 v2 family; QPI up to 8.0GT/s
  • 240 CPUs per 42U Rack
  • Intel® C602J Chipset
  • 16 DIMM slots; up to 1TB, up to DDR3-1866 memory
  • 4 Hot-swap 2.5" SAS HDD Bays; SAS2 via Broadcom 2308
  • 10GbE support via Mellanox ConnectX-3 Pro EN Dual port IC
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.67" x 20.5"
  • Dual Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 240 CPUs per 42U Rack
  • Intel® C600 series Chipset
  • 8 DIMM slots; up to 256GB, up to DDR3-1866 memory
  • 2 Hot-swap 2.5" SATA HDD Bays
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.67" x 20.5"
  • Dual Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 168 CPUs per 42U Rack
  • Intel® C602 Chipset
  • 16 DIMM slots; up to 512GB, up to DDR3-1866 memory
  • 2 Hot-swap 2.5" SAS2/SATA HDD Bay
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.19" x 18.9"
  • Dual Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 168 CPUs per 42U Rack
  • Intel® C602 Chipset
  • 16 VLP DIMM slots; up to 256GB, up to DDR3-1866 memory
  • 3 Hot-swap 2.5" SAS2/SATA3 HDD Bays; HW RAID 0, 1, 5
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.19" x 18.9"
  • Dual Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 168 CPUs per 42U Rack
  • Intel® C602 Chipset
  • 16 DIMM slots; up to 512GB, up to DDR3-1866 memory
  • 1 Hot-swap 2.5" SAS2/SATA HDD Bay
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.19" x 18.9"
  • Dual Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 168 CPUs per 42U Rack
  • Intel® C602 Chipset
  • 16 VLP DIMM slots; up to 256GB, up to DDR3-1866 memory
  • 3 Hot-swap 2.5" SATA HDD Bays
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.19" x 18.9"
  • Dual Socket R (LGA 2011) per node supports: Intel® Xeon® processor E5-2600 / E5-2600 v2 family; QPI up to 8.0GT/s
  • 168 CPUs per 42U Rack
  • Intel® C602 series Chipset
  • 16 DIMM slots, up to 512GB RDIMM or 128GB UDIMM
  • 1 (x16) PCI-E 3.0 FH/HL slot
  • 1 SATA DOM up to 64GB
  • 4 QDR (40Gb) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Matrox G200eW
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Operating Temp.: 10°C - 35°C non-condensing
  • Dimensions: 11.32" x 1.19" x 18.9"
Up to 3 NVMe
  • Dual Intel® Xeon® processor E5-2600 v4/v3 family; QPI up to 9.6GT/s
  • 168 CPUs per 42U Rack
  • Intel® C612 Express chipset
  • 16 VLP DIMM slots; up to 512GB VLP ECC RDIMM
  • 3 Hot-plug NVMe support via hybrid ports (SBI-7428R-C3N);
    3 Hot-swap 2.5" SAS3/SATA3 HDD Bays (SBI-7428R-C3)
  • Up to 3 NVMe
  • 4 QDR (40Gbps) InfiniBand or 10GbE mezzanine HCA
  • Intel® i350 Dual port GbE
  • IPMI 2.0, KVM over IP, Virtual Media over LAN
  • Graphics: Aspeed AST2400 BMC
  • LED Indicators: Power, UID/KVM, Networking, and Fault LED
  • Dimensions: 11.32" x 1.19" x 18.9"
