SuperServer 5028TK-HTR (Complete System Only)

  Products  Systems  2U   [ 5028TK-HTR ]





Integrated Board
K1SPi
Super K1SPi

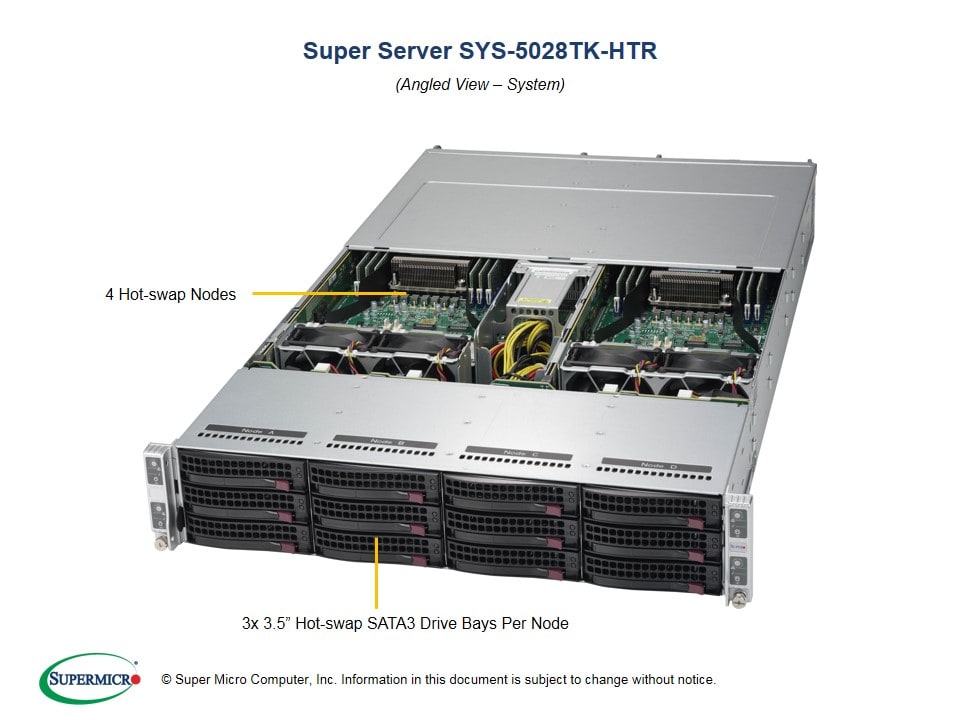

Views: | Angled View | Top View |

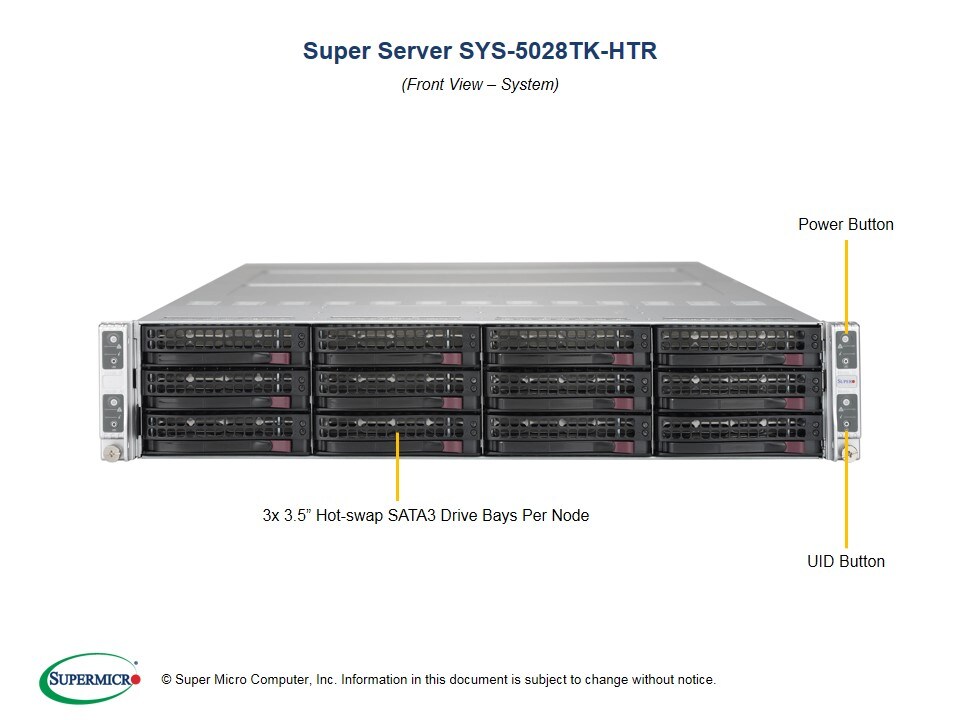

| Front View | Rear View |

Key Features
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Single socket P (LGA 3647) supports
    Intel® Xeon® Phi™ x200 processor,
    optional integrated Intel® Omni-Path
    fabric, CPU TDP support Up to 260W
2. Up to 384GB ECC LRDIMM, 192GB ECC
    RDIMM, DDR4-2400MHz in 6 DIMM slots
3. 2 PCI-E 3.0 x16 (Low-profile) slots
4. Intel® i350 Dual port GbE LAN
5. 1 Dedicated IPMI LAN port
6. 3 Hot-swap 3.5" SATA drive bays
7. 1 VGA, 2 SuperDOM, 1 COM,
    2 USB 3.0 ports (rear)
8. 4x 8cm heavy duty PWM fans with air
    shroud and optimal fan speed control
9. 2000W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 4 CPUs and 24 DIMMs installed).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options

Product SKUs
SYS-5028TK-HTR
  • SuperServer 5028TK-HTR (Black)
SYS-5028TK-HTR-NF1
  • Includes 4x 7210 processors
SYS-5028TK-HTR-NF3
  • Includes 4x 7230 processors
SYS-5028TK-HTR-NF5
  • Includes 4x 7250 processors
SYS-5028TK-HTR-NF9
  • Includes 4x 7290 processors
SYS-5028TK-HTR-FC1
  • Includes 4x 7210F processors
SYS-5028TK-HTR-FC3
  • Includes 4x 7230F processors
SYS-5028TK-HTR-FC5
  • Includes 4x 7250F processors
SYS-5028TK-HTR-FC9
  • Includes 4x 7290F processors

Motherboard

Super K1SPi

Processor
Host Processor
  • Intel® Xeon® Phi™ x200 Processor,
    CPU TDP support up to 260W
  • Socket P (LGA 3647)
Cores
  • Up to 72 Cores
  • 16GB MCDRAM on package

System Memory
Memory Capacity
  • 6x 288-pin DDR4 DIMM slots
  • Up to 192GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit (RDIMM)
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1 Realtek RTL8201N PHY (dedicated IPMI)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Video
  • ASPEED AST2400 BMC

Input / Output (per Node)
SATA
  • 3 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
COM Port/Header
  • 1 COM (header)
SuperDOM
  • 2 SuperDOM (Disk on Module) ports with built-in power
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827HQ+-R2K04BP2

Dimensions and Weight
Width
  • 17.25" (438mm)
Height
  • 3.47" (88mm)
Depth
  • 30" (762mm)
Weight
  • Gross Weight: 90 lbs (40.9kg)
  • Net Weight: 72 lbs (32.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 3.0 x16 Low-profile slots

    Not available on FC1/FC3/FC5/FC9 SKUs

Drive Bays (per Node)
Hot-swap
  • 3 Hot-swap 3.5" SATA HDD trays

System Cooling
Fans
  • 4x 8cm heavy duty PWM fans with optimal fan speed control

Power Supply (76mm Width)
2000W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W: 100 – 127Vac
  • 1800W: 200 – 220Vac
  • 1980W: 220 – 230Vac
  • 2000W: 230 – 240Vac
  • 2000W: 200 – 240Vdc (UL/cUL only)
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
  • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
  • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
  • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100-127 Vac)
  • Max: 150A / Min: 0A (200-220 Vac)
  • Max: 165A / Min: 0A (220-230 Vac)
  • Max: 166.7A / Min: 0A (230-240 Vac)
  • Max: 166.7A / Min: 0A (200-240 Vac)
    (UL/cUL only)
+5Vsb
  • Max: 1A / Min: 0A
Output Type
  • 27 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-K1SPi
CSE-827HQ+-R2K04BP2
4
1
Super K1SPi Motherboard
2U Chassis
Air Shroud MCP-310-21709-0B 4 Air shroud for K1SPi with 217HQ+/827HQ+(for liquid & air cooling)
Air Shroud MCP-310-21704-0B 4 Air shroud for K1SPi with 217BHQ
Backplane BPN-ADP-6SATA3-1UPK 4 Backplane adaptor for K1SPi mother board with Twin Pro system, support 6x SATA from on-board PCH and up to 432W power transfer
Backplane BPN-SAS3-827HQ 1 12-port 2U TwinPro^2 SAS3 CSE-827HQ (3 drives per node) backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Riser Card RSC-P-6 4 RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
Riser Card RSC-R1UTP-E16R 4 1U RHS TwinPro Riser card with one PCI-E x16 slot
Heatsink / Retention SNK-P0060P 4 1U Passive CPU Heat Sink w/ Carrier for Intel Knights Landing (KNL) Processors
Power Supply PWS-2K04A-1R 2 AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management


Optional Parts List
  Part Number Qty Description
Converter Drive MCP-220-00118-0B - Black gen-5.5 tool-less 3.5" to 2.5" converter drive tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
