SuperWorkstation 7048A-T

Super Micro Computer, Inc.
Contact Us

Search

MySupermicro

  Products   Systems   4U   [ 7048A-T ]





Integrated Board
Super X10DAi

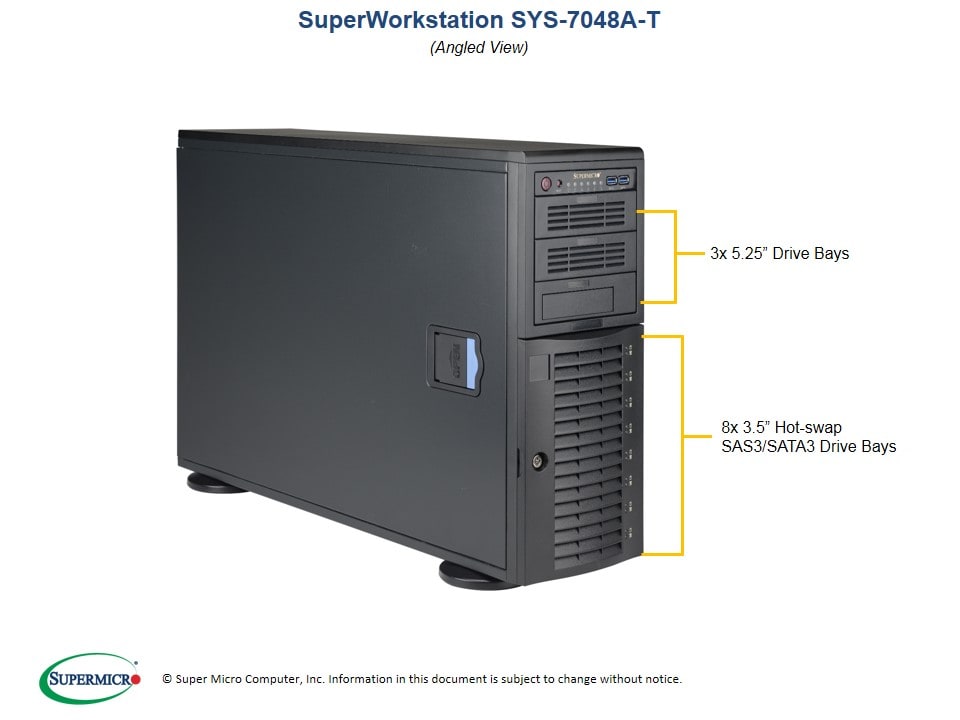

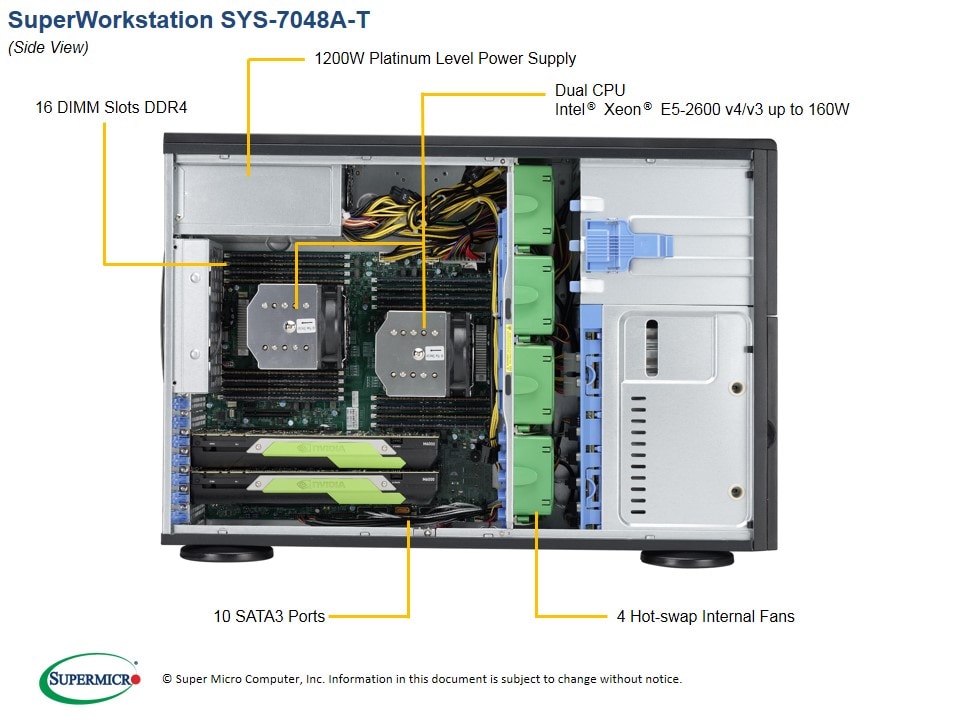

Views: | Angled View | Side View |

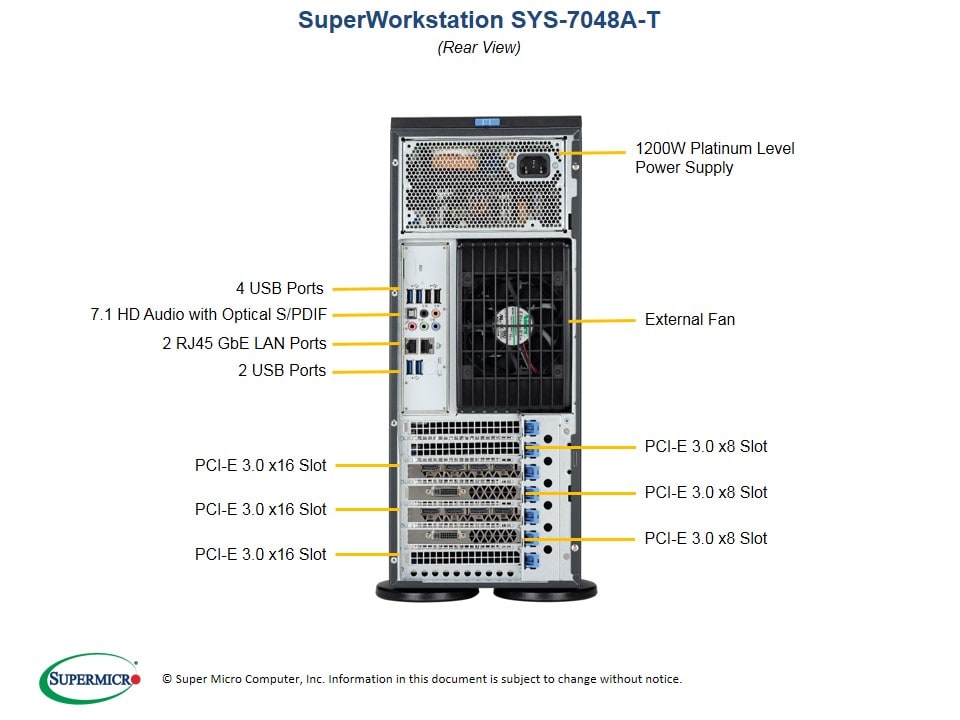

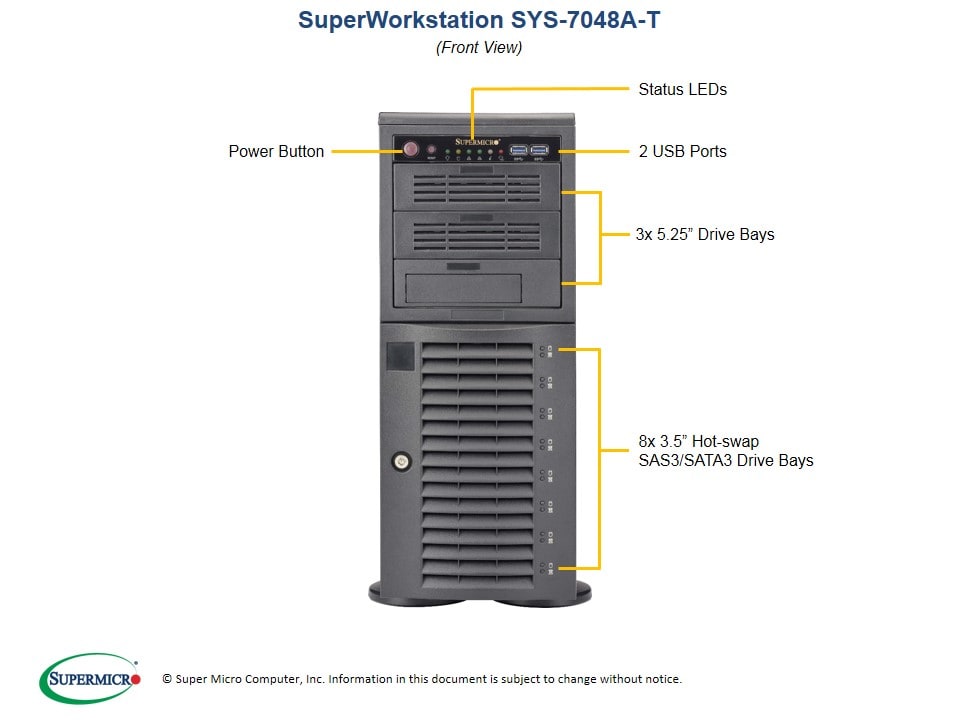

| Front View | Rear View |

Key Features
• Whisper Quiet Workstation
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 2TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 16x DIMM slots
3. 3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, and
    1 PCI-E 2.0 x4 (in x8) slot supports
    Thunderbolt 2.0 AIC
4. Intel® i210 Dual port GbE LAN
5. 7.1 HD Audio
6. 8x 3.5" Hot-swap SATA HDD Bays
7. 1200W High Efficiency Power Supply
    Platinum Level (94%)
8. Tower or Rackmount

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options

Product SKUs
SuperWorkstation
  • SYS-7048A-T (Black)

Motherboard

Super X10DAi

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Intel® i210 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
  • RealTek ALC888 7.1 High Definition Audio with S/PDIF header

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3.0 ports (4 rear + 2 via header)
  • 5 USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Audio
  • 7.1 HD Audio with optical S/PDIF
DOM
  • 2 DOM (Disk on Module) power connectors
TPM
  • 1 TPM 1.2 20-pin Header

Expansion Slots
PCI-Express
  • 3 PCI-E 3.0 x16 slots
  • 2 PCI-E 3.0 x8 slots
  • 1 PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Chassis
Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
Model

Dimensions and Weight
Height
  • 17.8" (452mm)
Width
  • 7.0" (178mm)
Depth
  • 25.5" (648mm)
Gross Weight
  • 71 lbs (32.2 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Overheat / Fan Fail LED
Ports
  • 2 front USB 3.0 Ports

Drive Bays
Hot-swap
  • 8x 3.5" Hot-swap SAS/SATA Drive Trays
Peripheral Bay(s) [90o Rotatable]
  • 3x 5.25" Drive Bays

SAS / SATA Backplane
SAS / SATA Hard Drive Backplane w/AMI MG9072

System Cooling
Fans
  • 2x 2800 RPM Fans
  • 1x 2700 RPM Fan

Power Supply
1200W high-efficiency power supply w/ PMBus
AC Input
  • 1000W: 100-114.9 V, 50-60 Hz, 12 Amp
  • 1200W: 114.9-240 V, 50-60 Hz, 12-8 Amp
DC Output
1000W max
1200W max
  • +3.3V / +5V / +12V / -12V / +5VSB
  •   20A /  20A /   83A /  0.3A /   3A
  •   20A /  20A /   99A /  0.3A /   3A
Note:
  • Max. continuous combined load on +3.3V and +5V output shall not exceed 120W.
Certification Platinum Level Certified94%+    Platinum Certified


PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator
FAN
  • Total of three fan headers supporting up to 8 fans
  • Three 4-pin fan headers
  • 3 fans with tachometer status monitoring
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control (4-pin fan only)
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for 8x fan connectors
  • PECI
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List


** Note: 2x FAN-0074L4 are required when using E5-2687w CPUs
Information in this document is subject to change without notice.
Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
