SuperServer 5038K-i

  Products  Systems  Mid-Tower   [ 5038K-i ]









Integrated Board
Super K1SPE

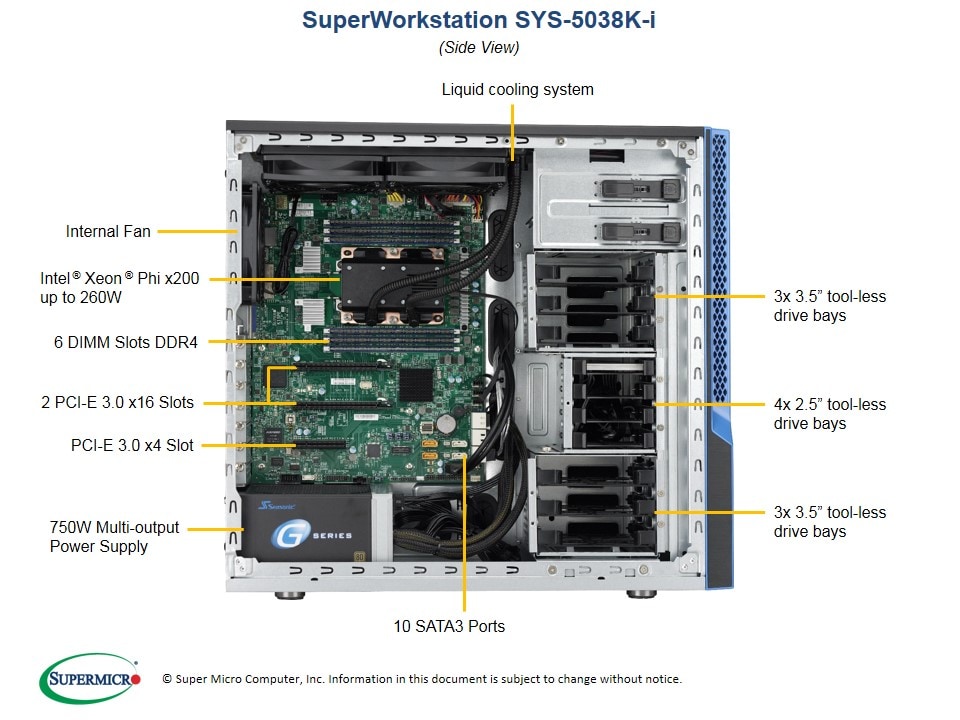

Views: | Angled View | Side View |

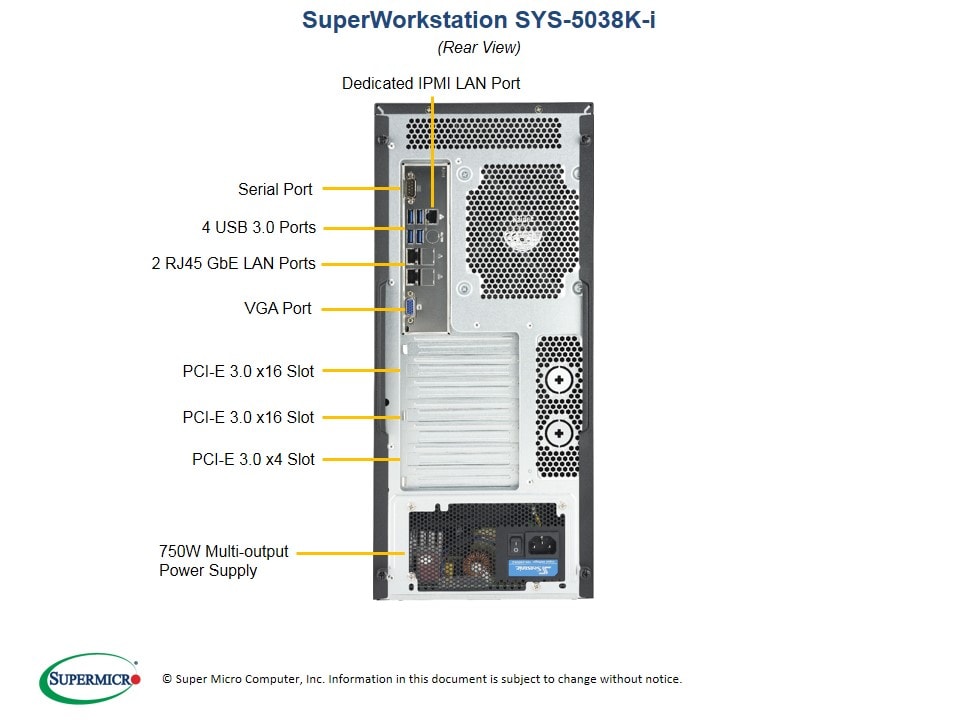

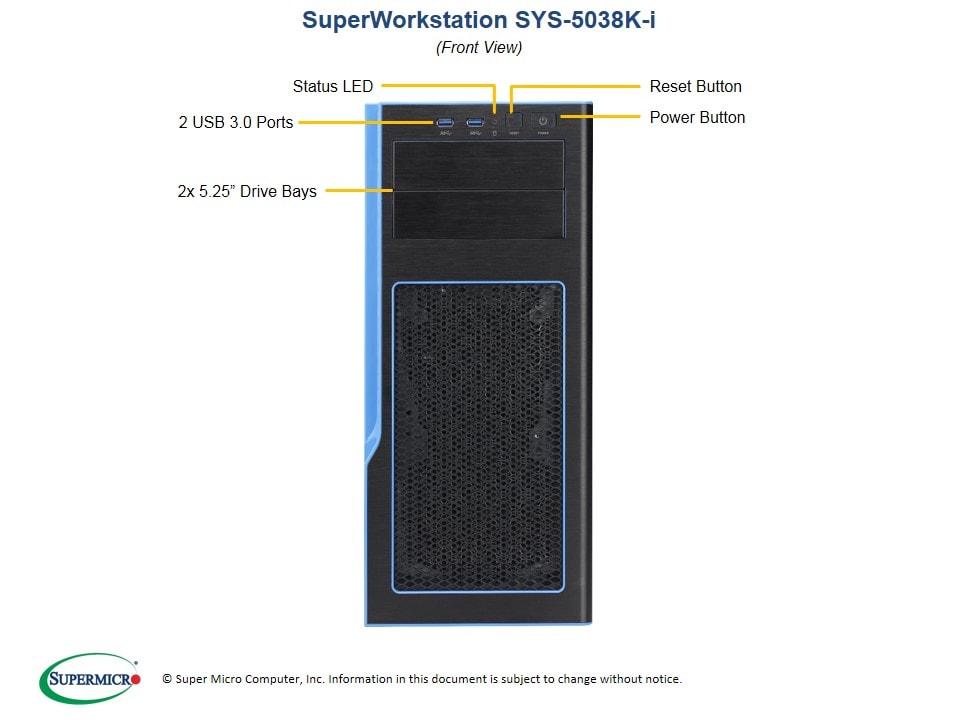

| Front View | Rear View |



Key Features

  - Development Box

  - Financial Analysis

  - Oil and Gas Simulation

  - Code Optimization



1. Single socket P (LGA 3647) supports

    Intel® Xeon® Phi™ x200 processor,

    CPU TDP support Up to 260W
2. Intel® C612 chipset
3. Up to 384GB ECC LRDIMM, 192GB ECC

    RDIMM, DDR4-2400MHz in 6 DIMM slots
4. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x4
5. 6x 3.5" and 4x 2.5" tool-less drive bays,

    2x 5.25" peripheral bays
6. Dual GbE LAN port via Intel® i350
7. Dual cooling zones, 6 fans total

    1x 12cm rear exhaust fan
8. 750W Multi-output Power Supply


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Drive Options


Product SKUs
SuperWorkstation
  • SYS-5038K-i (Black)
SYS-5038K-i-NF1
  • Includes 1x 7210 processors
SYS-5038K-i-NF3
  • Includes 1x 7230 processors
SYS-5038K-i-NF5
  • Includes 1x 7250 processors
SYS-5038K-i-NF9
  • Includes 1x 7290 processors

Motherboard


Super K1SPE

Processor
Host Processor
  • Intel® Xeon® Phi™ x200 Processor,

    CPU TDP support up to 260W
  • Socket P (LGA 3647)
Cores
  • Up to 72 Cores
  • 16GB MCDRAM on package

System Memory
Memory Capacity
  • 6x 288-pin DDR4 DIMM slots
  • Up to 192GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit (RDIMM)
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel C612 chipset
SATA
  • SATA3 (6Gbps) via C612 controller
  • RAID 0, 1, 5, 10 support
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC

Input / Output
SATA
  • 10 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 Dedicated IPMI LAN port
USB
  • 6 USB 3.0 ports (4 rear + 2 front)
Display
  • 1 VGA port
COM Port/Header
  • 1 COM Port (header)

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 1 PCI-E 3.0 x4 slot

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup
Chassis
Form Factor
  • Tower
Model

Dimensions and Weight
Height
  • 18.1" (460mm)
Width
  • 7.9" (201mm)
Depth
  • 19.4" (493mm)
Package
  • 24.9" (H) x 14.2" (W) x 24.0" (D)
Weight
  • Net Weight: 28 lbs (12.7 kg)
  • Gross Weight: 35 lbs (15.88 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off Button
  • Reset Button
LEDs
  • Power LED
  • Hard drive activity LED
Ports
  • 2x USB 3.0 ports

Drive Bays
Internal HDD
  • 6x 3.5" and 4x 2.5" tool-less drive bays
Peripheral
  • 2x 5.25" Peripheral drive bays

System Cooling
Fans
  • 2x 12cm front chassis fans
  • 1x 8cm mid chassis fan
  • 1x 12cm rear chassis fans
  • 2x 12cm radiator exhaust fans
Liquid Cooling
  • Closed loop Liquid Cooling unit (UL Tested)

Power Supply
750W Multi-output Power Supply for Desktop, semi-modular cable output
AC Input
  • 100-240Vac, 50-60Hz
+5V
  • Max: 20A & Min: 0A
+12V
  • Max: 62A & Min: 0.1A (100Vac-240Vac)
+3.3V
  • Max: 20A & Min: 0A
+5V SB
  • Max: 2.5A & Min: 0A
-12V
  • Max: 0.3A
Certification Gold Level Certified   Gold Certified

PC Health Monitoring
CPU
  • +12V, +3.3V, +5V, +5V standby, 3.3V standby, Supports system management utility, System level control, VBAT
FAN
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • PECI

Operating Environment / Compliance
RoHS

  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
See Parts List



Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-K1SPE

CSE-GS5A-753B
1

1
Super K1SPE Motherboard

3U Mid-Tower Chassis
Cable 1 CBL-0296L 2 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable 2 CBL-SAST-0624 4 SATA,INT,ROUND,ST-ST,70CM,30AWG
Cable 3 CBL-0062L 1 PWEX,2X4M/P4.2 TO 2X4F/P4.2,12V,BLK*4,YEL*4,20CM,18AWG
Cable 4 CBL-0042L 1 24 PIN POWER CONNECTOR EXTENTION, 20CM. 18AWG
Fan FAN-0172L4 1 80x80x25 mm, 2.8K RPM, Optional Middle Cooling Fan for S5 Chassis
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Heatsink / Retention SNK-P3000A4 1 Liquid Cooling Module for Intel Knights Landing (KNL) Processors
Power Supply PWS-753-PQ 1 [DESKTOP ONLY], PS2/ATX 750W Multi-output Power supply with modular cable 80Plus Gold, RoHS/REACH
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Optional Parts List


Part Number

Qty

Description

Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
