SuperServer 5039D-i

  Products  Systems  Mid-Tower   [ 5039D-i ]





Integrated Board
Super X11SSL-F

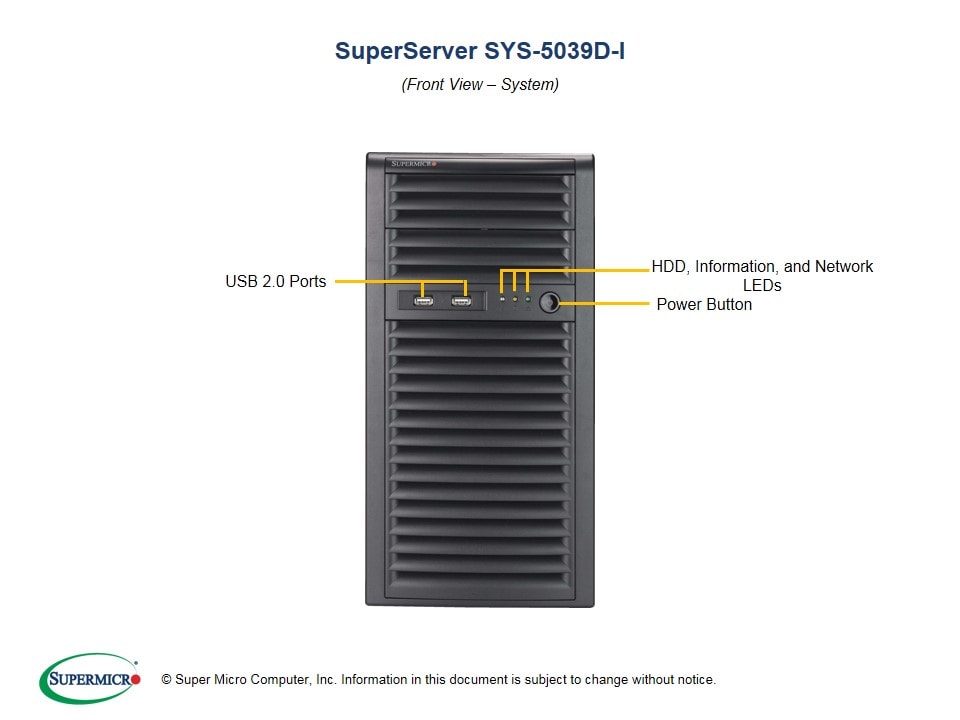

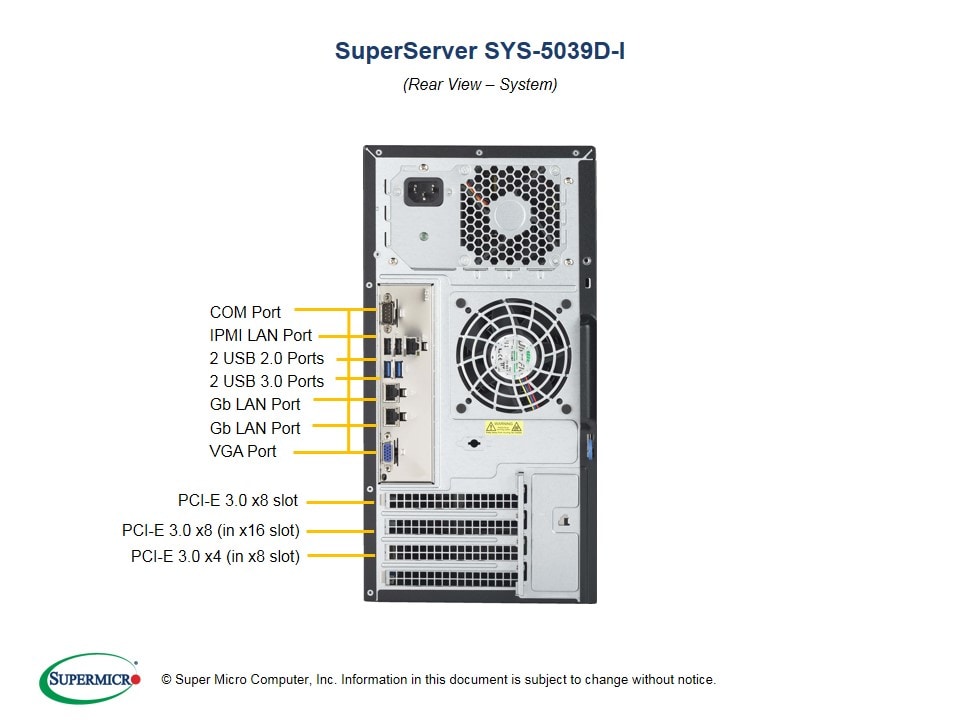

Views: | Angled View | Front View | Rear View |


Key Features
• Tower Server, 24/7 Operation,
   Unparalleled Reliability

1. Single Socket H4 (LGA 1151) supports
    Intel® Xeon® processor E3-1200 v6/v5,
    Intel® 7th/6th Gen. Core™ i3 series,
    Intel® Celeron® and Intel® Pentium®
2. Intel® C232 chipset
3. Up to 64GB Unbuffered ECC UDIMM
    DDR4 2400MHz; 4x DIMM slots
4. 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8,
    and 1 PCI-E 3.0 x4 (in x8 slot)
5. 1 VGA, 1 COM, 2 GbE LAN, dedicated
    IPMI LAN, 2 USB 2.0 (front)
6. 4 Fixed 3.5" drive bays +
    2 External 5.25" drive bays
7. 300W High-efficiency Power Supply

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Manuals    OS Certification Matrix    Quick-References Guide  Drive Options

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SuperServer
  • SYS-5039D-i (Black)

Motherboard

Super X11SSL-F

Processor/Cache
CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v6/v5,
    Intel® 7th/6th Gen Core™ i3,
    Intel® Pentium®,
    Intel® Celeron® processors
  • CPU TDP up to 80W
Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC UDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
  • 16GB, 8GB, 4GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C232 chipset
SATA
  • SATA3 (6Gbps) via C232 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Intel® I210-AT Gigabit Ethernet LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 6 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports
    (2 rear + 2 via header + 1 Type A)
  • 6 USB 2.0 ports
    (2 rear + 4 via headers)
VGA
  • 1 VGA port
Serial Port / Header
  • 1 COM port (1 rear)

Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x8 (in x16 slot)
  • 1 PCI-E 3.0 x8 slot
  • 1 PCI-E 3.0 x4 (in x8 slot)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI
Chassis
Form Factor
  • Mid-Tower
Model

Dimensions and Weight
Height
  • 14.25" (362mm)
Width
  • 7.25" (184mm)
Depth
  • 16.75" (425mm)
Gross Weight
  • 40 lbs (18.1 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LED
  • System Information LED
Ports
  • 2x Front side USB ports

Drive Bays
Internal
  • 4 Fixed 3.5" drive bays
  • Enterprise SATA HDD only recommended
External
  • 2 External 5.25" drive bays

System Cooling
Fans
  • 1x 9cm (rear) PWM fan w/ tool-less design
  • 1x 8cm (front) cooling fan (optional)
  • 25dB
  • Optimized Cooling Technology at
     25dB Whisper-Quiet Operation

Power Supply
300W AC power supply w/ PFC
AC Voltage
  • 100 - 240V, 50-60Hz, 5 Amp
DC Output
  • 5V + 12V + 3.3V - 12V < 290W
+5V
  • 19 Amp
+5V standby
  • 2.0 Amp
+12V
  • 11 Amp + 11.5 Amp
-12V
  • 0.15 Amp
+3.3V
  • 16.0 Amp
Certification Bronze Level Certified
  Bronze Certified
  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 6-Phase-switching voltage regulator
FAN
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for 8x fan connectors
  • PECI

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SSL-F
CSE-731i-300B
1
1
Super X11SSL-F Motherboard
3U Mid-Tower Chassis
Cable 1 CBL-0044L 4 SATA,INT,FLAT,57.7CM,26AWG
Manual MNL-1827-QRG 1 SYS-5039D-I (X11SSL-F, CSE-731i-300B), QRG
Parts MCP-260-00073-0N 1 Standard I/O shield for X9/X10 I/O MB, no EMI Gasket,RoHS/REACH,PBF
Power Supply PWS-305-PQ 1 300W ATX Power Supply
Optional Parts List

Part Number
Qty
Description
Cable CBL-0179L - SATA CABLE 70CM FLAT S-S PBF
DVD-ROM DVM-LITE-DVDRW24-HBT1 - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
Heat Sink SNK-P0046A4 - ACTIVE CPU Heat Sink
Hide Parts List
