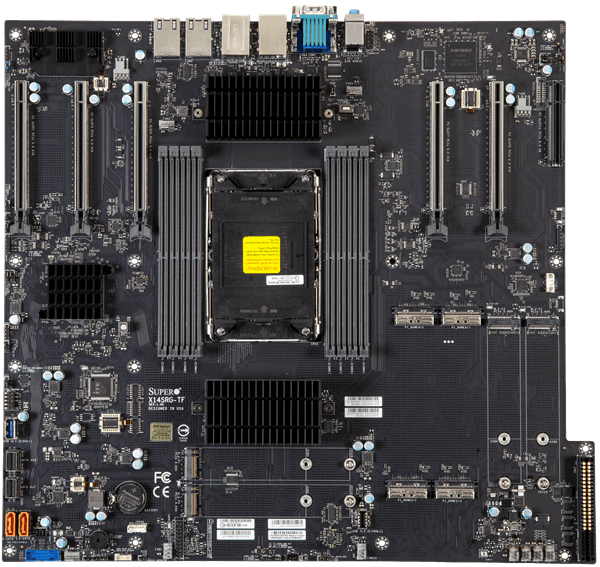

X14SRG-TF

X14SRG-TF
X14 UP Workstation

Key Features


  1. Single Intel® Xeon® 600 Series processor (LGA 4710-2/Socket E2), with up to 86 cores/350W TDP
  2. 8 DDR5 ECC Registered RDIMM/3DS RDIMM, DDR5-6400MT/s Up to total 2TB
  3. Support for up to 4 double-width PCIe GPU cards or 2 triple-width PCIe GPU cards
  4. 1 Dedicated LAN for IPMI
  5. Dual 10GbE LAN with Intel E610-XAT2 + 1 GbE LAN with Intel I219-LM
  6. 5 PCIe 5.0 x16 slots + 1 PCIe 5.0 x8 slot
...
...

Optimized Servers


SYS-542AW-TR
Specifications Resources
Specifications
Product SKUs
MBD-X14SRG-TF
Physical Stats
Form Factor
  • Proprietary
Dimension
  • N/A
Processor
CPU
  • Single E2 (LGA 4710-2)
  • Intel® Xeon® 600 Processor for Workstation
Core Count
  • Up to 86C
Note
  • Supports up to 350W TDP CPUs
System Memory
Memory
  • Slot Count: 8 DIMM Slots
  • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 3DS RDIMM
DIMM Sizes
  • RDIMM:12GBGB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
  • 3DS RDIMM:256GB
  • MRDIMM:32GB, 64GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
SATA
  • 2 SATA (6Gbps) via Asmedia ASM1162; RAID 0/1 support
Network Controller
  • Single LAN with Intel® PHY I219LM LAN controller, for AMT/vPro
  • Single LAN with Realtek RTL8211F PHY (Dedicated for IPMI), Dedicated LAN for IPMI
  • Dual LAN with Intel® E610
Input / Output
LAN
  • 1 RJ45 1 GbE LAN port(s) (Intel® PHY I219LM LAN controller)
  • 2 RJ45 10 GbE LAN port(s) (Intel® E610)
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s) (ASPEED AST2600 BMC)
USB
  • 2 USB 3.2 Gen 1 Type-A port(s) (Header)
  • 1 USB 3.2 Gen 2x2 Type-C port(s) (Rear)
  • 3 USB 3.2 Gen 2 Type-A port(s) (Rear)
  • 1 USB 3.2 Gen 2 Type-C port(s) (Header)
  • 1 USB 3.2 Gen 1 Type-A port(s) (via KVM connector)
Video
  • 1 VGA port(s) (Rear)
Serial
  • 1 COM port(s) (rear)
Audio
  • 7.1 HD Audio
TPM
  • 1 TPM Onboard TPM & TPM Header
Expansion Slots
PCI-Express (PCIe) Configuration
  • 5 PCIe 5.0 x16 slots , support FHHL PCIe card
  • 1 PCIe 5.0 x8 slot , support FHHL PCIe card
M2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280)
  • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
Power Configurations
  • ACPI Power Management
  • Power button override mechanism
  • Power-on mode control for AC power loss recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • +12V,+3.3V,+3.3V standby,+5V,+5V standby,CPU temperature,CPU thermal trip support,Memory temperature,System temperature
Temperature
  • Monitoring for CPU and chassis environment
FAN
  • 11x 4-pin fan headers (up to 11 fans)
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitoring for speed control
  • Triple Cooling Zones
Operating Environment
RoHS
  • RoHS Compliant
