SuperServer 1028U-TN10RT+ (Complete System Only)

  Products  Systems   Ultra   [ 1028U-TN10RT+ ]





Integrated Board
X10DRU-i+

Views: | Angled View | Top View |

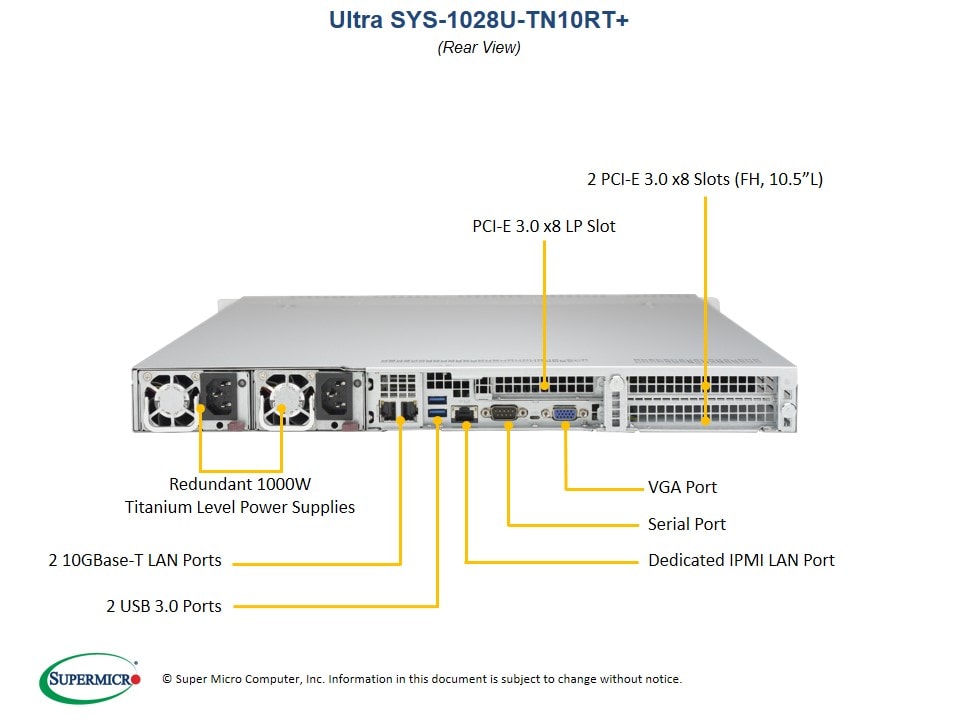

| Front View | Rear View |

Key Features
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 24x DIMM slots
3. 3 PCI-E 3.0 x8 slots
    (2 FH 10.5" L, 1 LP)
4. 2x 10GBase-T ports
5. 10 2.5" Hot-swap Drive Bays:
    6 NVMe ports (NVMe from CPU 1);
    4 NVMe/SAS3 hybrid ports for optional
    SAS3/SATA3** (NVMe from CPU 2)
6. 8 heavy duty fans w/ optimal
    fan speed control
7. 1000W Redundant Power Supplies
    Titanium Level (96%)


    Supermicro 1U 10 NVMe

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs and 4 U.2 NVMe).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-1028U-TN10RT+
  • SuperServer 1028U-TN10RT+ (Black)

Motherboard

Super X10DRU-i+

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  • 2666/2400 ECC DDR4 NVDIMM
DIMM Sizes
  • 64GB, 32GB, 16GB, 8GB, 4GB
  • NVDIMM: 16GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Connectivity
  • 2 10GBase-T ports via AOC-URN6-i2XT
  • Intel® X540 10GBase-T
  • 1 Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output
NVMe/SAS
  • 6 NVMe ports (NVMe from CPU 1)
  • 4 NVMe/SAS3** Hybrid ports (NVMe from CPU 2)
LAN
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports
    (2 rear, 2 front, 1 Type A)
Video
  • 1 VGA Connector
Serial Port
  • 1 Serial header
DOM
  • 2 SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UAC2-R1K02

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 28.5" (724mm)
Gross Weight
  • 48 lbs (21.8 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • UID LED

Expansion Slots
PCI-Express
  • 3 PCI-E 3.0 x8 slots
    (2 Full-height 10.5" L; 1 Low-profile)


  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 10x 2.5" Hot-swap drive bays
  • 6 NVMe ports (NVMe from CPU 1)
  • 4 NVMe/SAS3 hybrid ports for optional SAS3/SATA3** (NVMe from CPU 2)

    ** Note: SAS3/SATA3 support requires additional parts in optional parts list

System Cooling
Fans
  • 8 heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud

Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 127Vac
  • 1000W: 200 – 240Vac
  • 1000W: 200 – 240Vdc (for CCC only)
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
  • 200-240Vdc / 7 - 5A (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
  • Max: 83A / Min: 0A (200-240Vdc)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
FAN
  • 8x 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Support to monitor Supermicro AOC temperatures from IPMI or SD 5
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Memory DIMM ECC error LEDs
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • 4x 8-pin GPU power connectors
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRU-i+
CSE-119UAC2-R750
1
1
Super X10DRU-i+ Motherboard
CSE-119UAC2-R750 Chassis
Air Shroud MCP-310-81903-0B 1 Mylar air shroud set for SC819U,119U (X10DRU+),HF
Add-on Card / Module AOC-URN6-I2XT-P 1 AOC-URN6-I2XT
Backplane BPN-SAS3-116A-N10 1 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 10x 2.5-inch NVMe storage devices, 4 of them are SAS3/SATA3 drives compatible.
Cable 1 CBL-PWEX-0780 1 PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),40/40CM,18AWG,RoHS
Cable 2 CBL-PWEX-0781 1 PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),65/65CM,18AWG,RoHS
Cable 3 CBL-SAST-0818 5 OCuLink v. 1.0,INT,PCIe NVMe SSD, 55CM,34AWG
Cable 4 CBL-SAST-0819 3 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
Cable 5 CBL-SAST-0820 2 OCuLink v. 1.0,INT,PCIe NVMe SSD, 85CM,34AWG,RoHS/REACH
Parts MCP-130-81901-0N 1 Oculink cable connection plastic holder for AOC-URN6-i2XT
Parts MCP-150-00009-0B 1 Internal AOC rubber support for SC819U, 119U
Manual MNL-1812-QRG 1 QRG for SYS-1028U-TN10RT+
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Riser Card RSC-UN4-88 1 RSC-UN4-88
Heatsink / Retention SNK-P0057PSU 2 1U Passive CPU Heat Sink for X10 1U 24-DIMM Ultra and Super Blade Series Servers,RoHS/REACH
Power Supply PWS-1K02A-1R 2 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH


Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-0880 - MINI SAS(RA-RS EXIT)-4 SATA,INT,55/55/55/55CM,55CM SB,30AWG for optional 4x SATA3
Storage Control Card and Cable(s) AOC-S3008L-L8e

AOC-S3008L-L8i

AOC-S3108L-H8iR
- Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
Network Card(s) AOC-SGP-i2/4
AOC-STGN-i1S/i2S
AOC-STG-b4S
AOC-STG-i2T
AOC-STG-i2
AOC-S40G-i2Q
More
-
-
-
-
-
-
-
Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
AOC Compatibility Matrix
CacheVault(s) BTR-CV3108-1U1
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
-
-
CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
Drive Tray(s) MCP-220-00047-0B - Black gen 3rd hot-swap 2.5" HDD tray
1U Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
