SuperServer 1028U-TNRT+ (Complete System Only)

  Products  Systems   Ultra   [ 1028U-TNRT+ ]





Integrated Board
X10DRU-i+

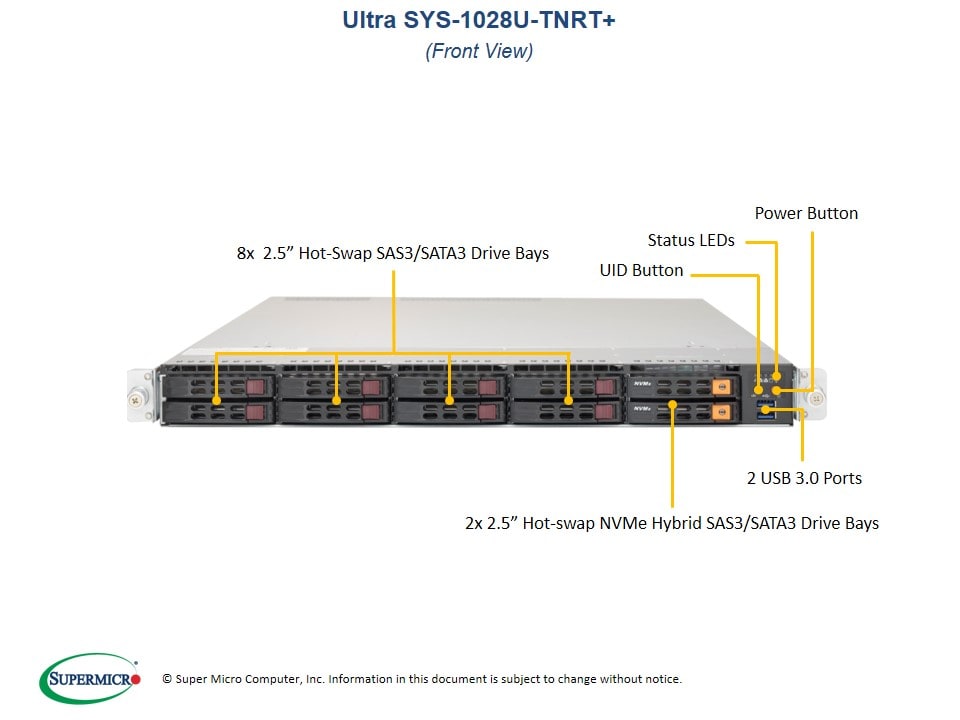

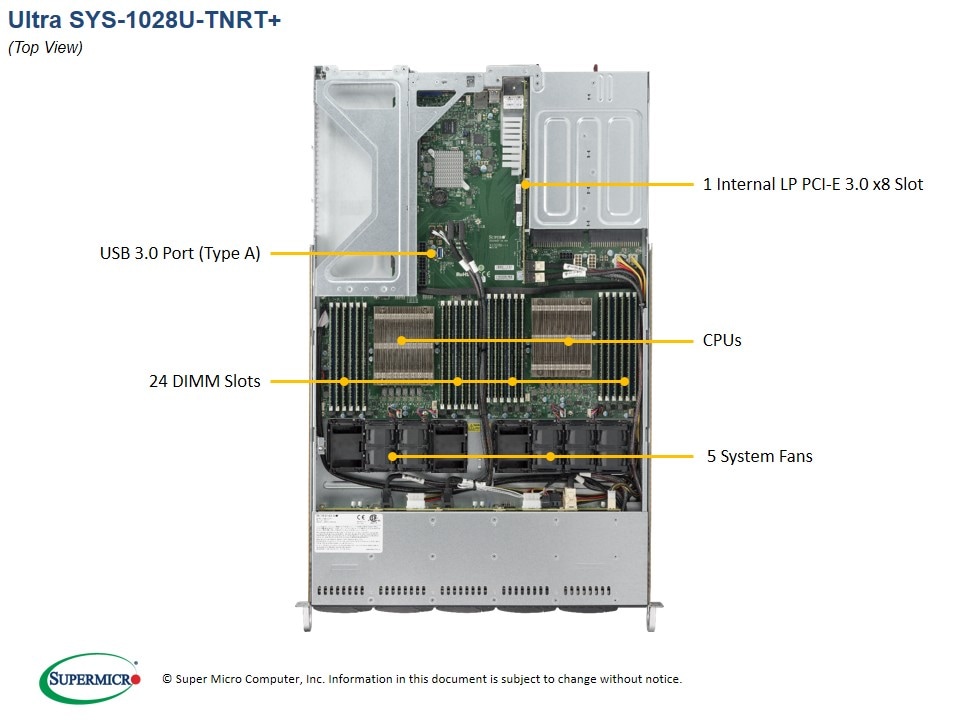

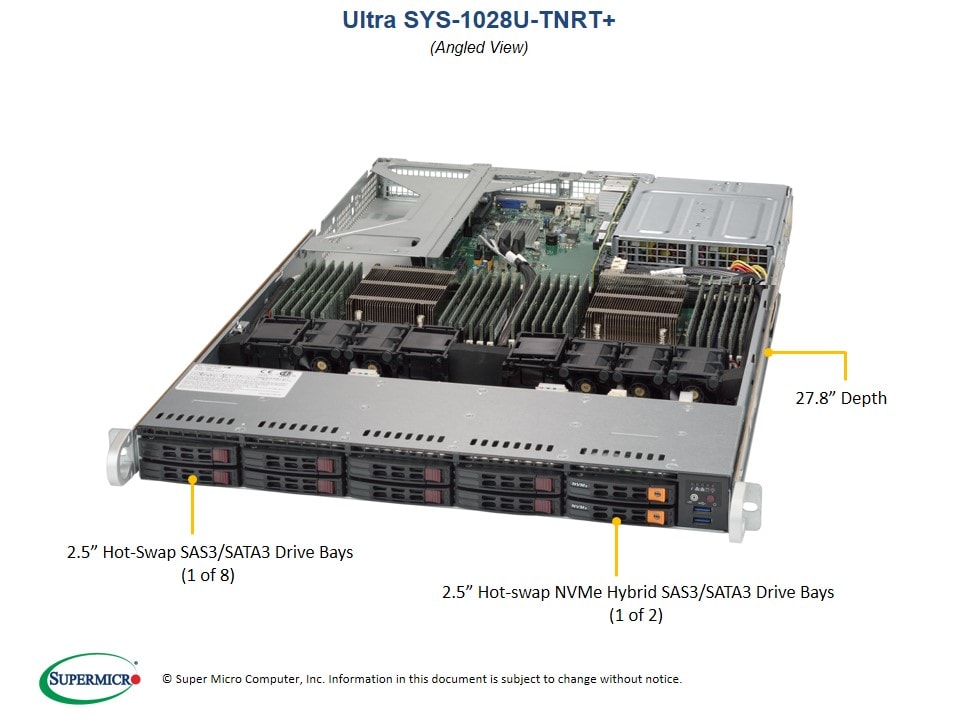

Views: | Angled View | Top View |

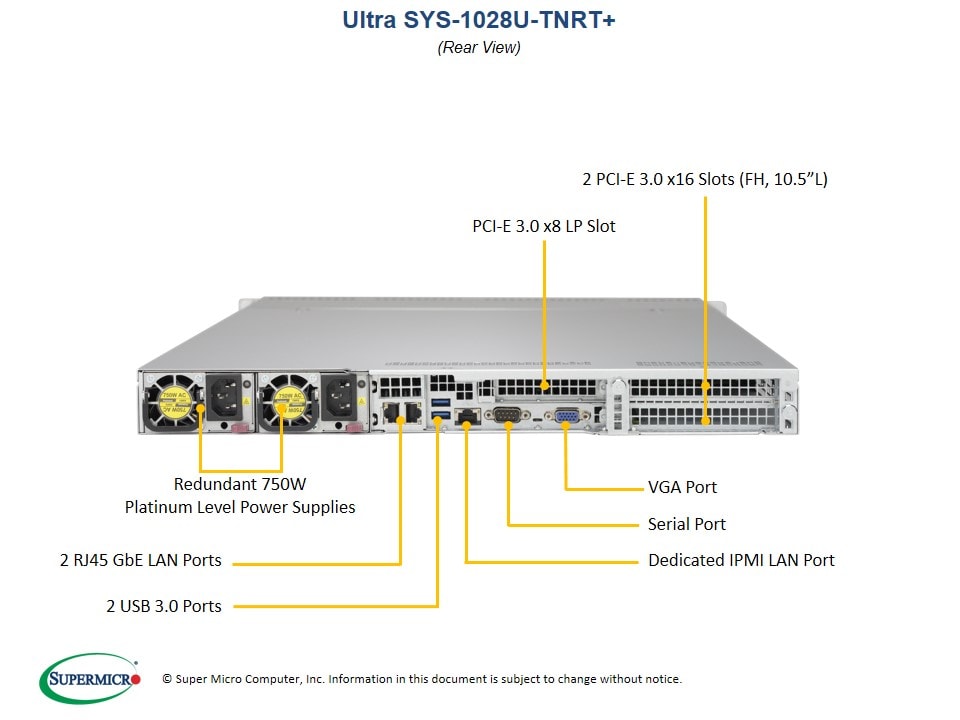

| Front View | Rear View |

Key Features
1. Dual socket R3 (LGA 2011) supports
    Intel® Xeon® processor E5-2600
    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB ECC 3DS LRDIMM , up to
    DDR4- 2400MHz ; 24x DIMM slots
3. 2x PCI-E 3.0 x16 slots (FH, 10.5" L),
    2x PCI-E 3.0 x8 slots (LP, 1 internal)
4. 2x 10GBase-T ports
5. 10x Hot-swap 2.5" Drive Bays:
    Default 8x SATA3 ports and
    2x NVMe/SATA3 hybrid ports;
    Optional 8x SAS3 ports via AOC
6. 5x heavy duty fans w/ optimal
    fan speed control
7. 750W Redundant Power Supplies
    Platinum Level (94%+)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Compatible GPU List  Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-1028U-TNRT+
  • SuperServer 1028U-TNRT+ (Black)

Motherboard

Super X10DRU-i+

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  • 2666/2400 ECC DDR4 NVDIMM
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
  • NVDIMM: 16GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Connectivity
  • 2x 10GBase-T ports via AOC-URN2-i2XT
  • Intel® X540 10GBase-T
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 10x SATA3 (6Gbps) ports
SAS
  • 8x SAS3 ports support via optional Add-on Card
NVMe
  • 2x NVMe ports
LAN
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 5x USB 3.0 ports
    (2 rear, 2 onboard header, 1 Type A)
Video
  • 1x VGA Connector
Serial Port
  • 1x Serial header

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UAC2-R751-T

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 28.5" (724mm)
Weight
  • Net Weight: 26 lbs (11.8 kg)
  • Gross Weight: 41 lbs (18.6 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 slots (Full-height, 10.5" L)
  • 2x PCI-E 3.0 x8 slots (Low-profile, 1 internal)


  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 10x 2.5" Hot-swap drive bays
  • Default 8x SATA3 ports and 2x NVMe/SATA3 hybrid ports
  • Optional 8x SAS3 ports via AOC

System Cooling
Fans
  • 5x heavy duty fans with optimal fan speed control
  • 3x additional fans optional
Air Shroud
  • 1x Air Shroud

Power Supply
750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input
  • 100-127Vac, 50-60Hz
  • 200-240Vac, 50-60Hz
+12V
  • Max: 62.5A & Min: 0A (100Vac-127Vac)
  • Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A
  • Min: 0A
Certification Platinum Level Certified94%+  Platinum Level


  [ Test Report ]

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
FAN
  • 8x 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Support to monitor Supermicro AOC temperatures from IPMI or SD 5
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Memory DIMM ECC error LEDs
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • 4x 8-pin GPU power connectors
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRU-i+
CSE-119UAC2-R751-T
1
1
Super X10DRU-i+ Motherboard
CSE-119UAC2-R751-T Chassis
Air Shroud MCP-310-81903-0B 1 Mylar air shroud set for SC819U,119U (X10DRU+),HF
Add-on Card / Module AOC-URN2-I2XT 1 1U Ultra Riser based on Intel X540 controller with 2 10Gbase-T ports, 2 NVMe ports, and 1 internal PCI-E x8 3.0 slot
Backplane BPN-SAS3-116A-N2 1 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-PWEX-0650 1 8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH
Cable 2 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
Cable 3 CBL-0484L 2 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 4 CBL-SAST-0656 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,39CM,SB,30AWG
Cable 5 CBL-PWEX-0653 1 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH
Cable 6 CBL-SAST-0655 1 MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG
Cable 7 CBL-SAST-0658 2 MINI SAS HD,INT,PCIe NVMe SSD, 60CM,30AWG
Drive Tray(s) MCP-220-00127-0B 2 Black gen-3 2.5 NVMe drive tray, Orange tab with lock (for hotswap NVMe drive),HF,RoHS/REACH
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1678-QRG 1 SYS-1028U-TR(4/4T/T/TP)+, QRG,HF,RoHS/REACH
Parts MCP-150-00009-0B 1 Internal AOC rubber support for SC819U, 119U
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Rear Window MCP-240-81909-0N 1 Ultra I/O Rear Window for SC819U, 119U-T tool-less chassis(i2XT)
Heatsink / Retention SNK-P0047PS 2 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-751P-1R 2 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH
Fan FAN-0101L4 5 40x56, 4 Pin PWM
Mounting Rails MCP-290-00102-0N
MCP-290-00120-0N
MCP-290-00112-0N
1
1
1
Outer rail, quick-release type, 25.6" to 33.05"
Inner rail, front, quick-release type (thumb screw applied)
Inner rail, extension, long (quick) for 1U 17.2"W chassis


Optional Parts List
  Part Number Qty Description
Mounting Rails MCP-290-00062-0N
MCP-290-00064-0N
MCP-290-00052-0N-BULK
-
-
-
Inner/outer rail set, quick-release type, 25.6" to 33.05"
Thumb screw adapter of inner rail for 1U 17.2"
Bulk outer rail, quick-release type, 25.6" to 33.05" (10 sets/pack)
Storage Control Card and Cable(s) AOC-S3008L-L8e &
2x CBL-SAST-0593
AOC-S3008L-L8i &
2x CBL-SAST-0593
AOC-S3108L-H8iR &
2x CBL-SAST-0593
-
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
Network Card(s) AOC-SGP-i2/4
AOC-STGN-i1S/i2S
AOC-STG-b4S
AOC-STG-i2T
AOC-STG-i2
AOC-S40G-i2Q
More
-
-
-
-
-
-
-
Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
AOC Compatibility Matrix
CacheVault(s) BTR-CV3108-1U1
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
-
-
CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
Fan FAN-0101L4 Up to 3 40x40x56 mm, 14.4K-10.7K RPM Counter-rotating Cooling Fan
1U Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
