 | | SYS-1028U-TR4T+ |
- SuperServer 1028U-TR4T+ (Black)
|
| |
|
| CPU |
- Intel® Xeon® processor E5-2600
v4†/
v3 family
(up to 160W TDP)
*
- Dual Socket R3 (LGA 2011)
|
| Cores / Cache |
- Up to 22 Cores† / Up to 55MB† Cache
|
| System Bus |
|
| Note |
† BIOS version 2.0 or above is required |
| Note |
* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
|
| |
|
| Memory Capacity |

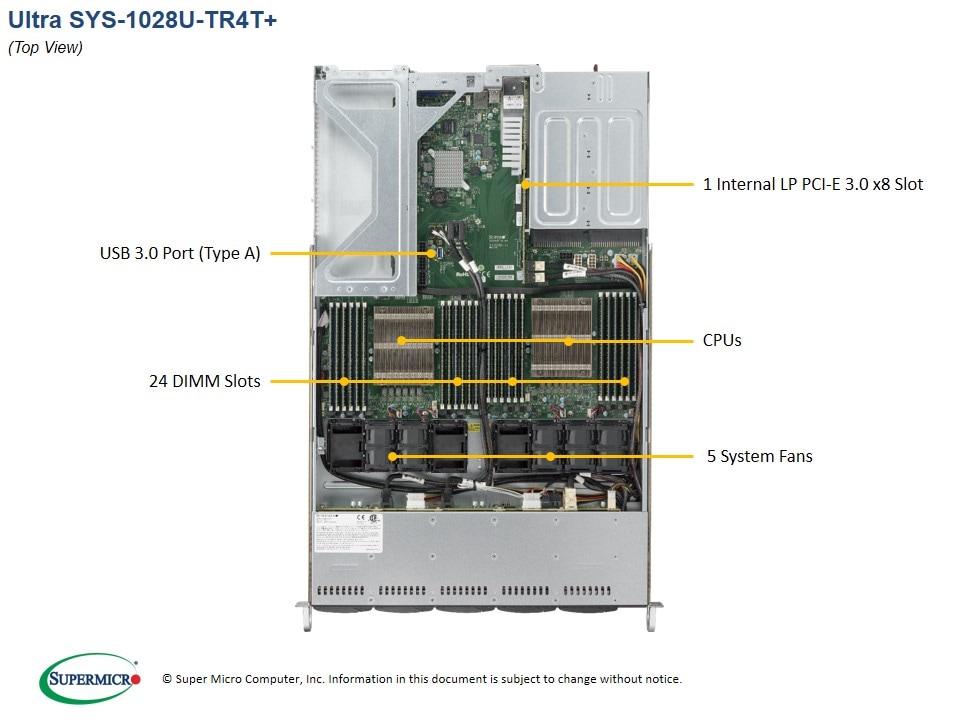

- 24x 288-pin DDR4 DIMM slots
- Up to 3TB† ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMM
|
| Memory Type |
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
- 2666/2400 ECC DDR4 NVDIMM
|
| DIMM Sizes |
- RDIMM:
64GB, 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
- NVDIMM: 16GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| | |
| | Chipset |
|
| SATA |
- SATA3 (6Gbps) with RAID 0, 1, 5, 10
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Connectivity |
- 4x 10GBase-T ports via AOC-UR-i4XT
- Intel® X540 10GBase-T
- 1x Realtek RTL8211E PHY (dedicated IPMI)
|
| Graphics |
|
| | |
| | SATA |
|
| SAS |
- 8x SAS3 ports support via optional Add-on Card
|

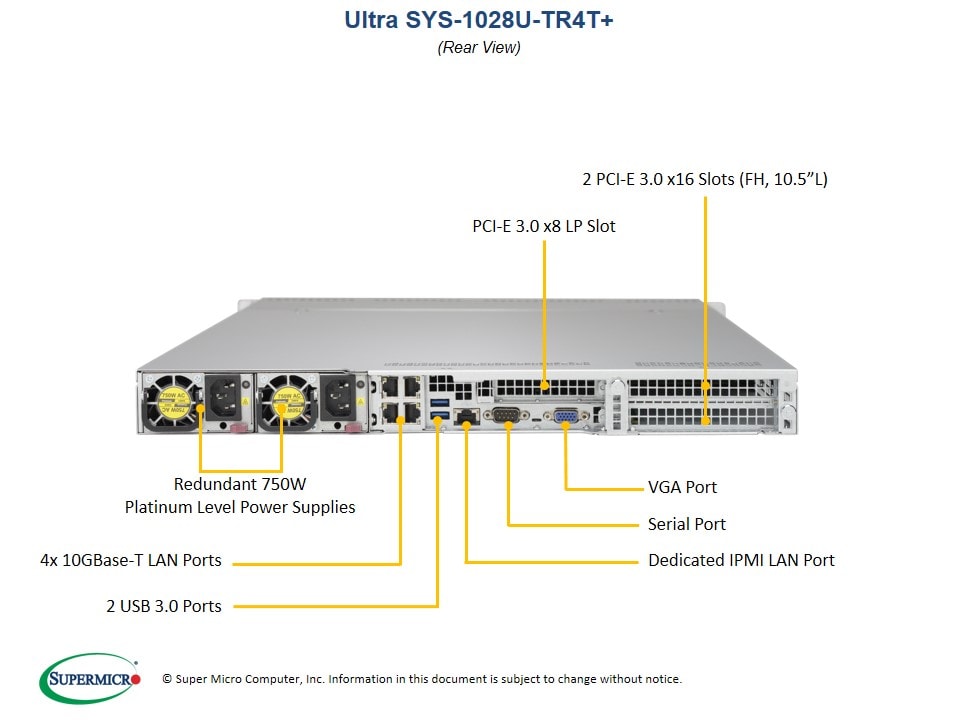

| LAN |
- 4x RJ45 10GBase-T ports
- 1x RJ45 Dedicated IPMI LAN port
|
| USB |
- 5x USB 3.0 ports
(2 rear, 2 onboard header, 1 Type A)
|
| Video |
|
| Serial Port |
|
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- APM 1.2
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
|
| |
|
| Software |
|
| Power Configurations |
- ACPI Power Management
- Power-on mode for AC power recovery
|
|
|
| |
| | Form Factor |
|
| Model |
|
| | |
| | Height |
|
| Width |
|
| Depth |
|
| Weight |
- Net Weight: 26 lbs (11.8 kg)
- Gross Weight: 41 lbs (18.6 kg)
|
| Available Color |
|
| | |

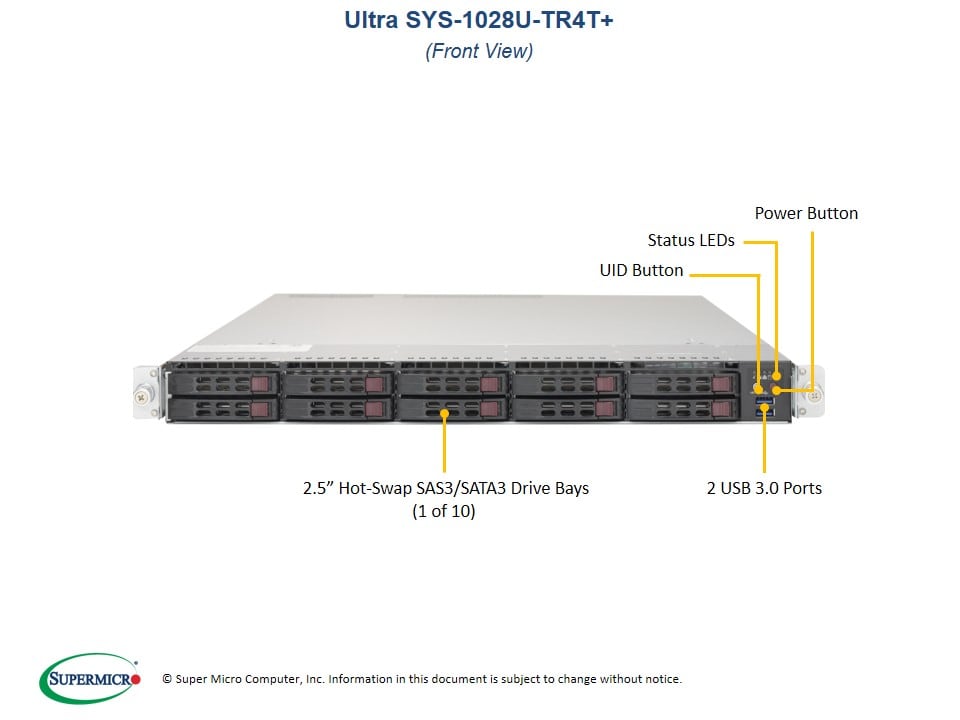

| | Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat LED / Fan fail LED /
UID LED
|
| |
|
| PCI-Express |
- 2x PCI-E 3.0 x16 slots (Full-height, 10.5" L)
- 2x PCI-E 3.0 x8 slots (Low-profile, 1 internal)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
|
| | |
| | Hot-swap |

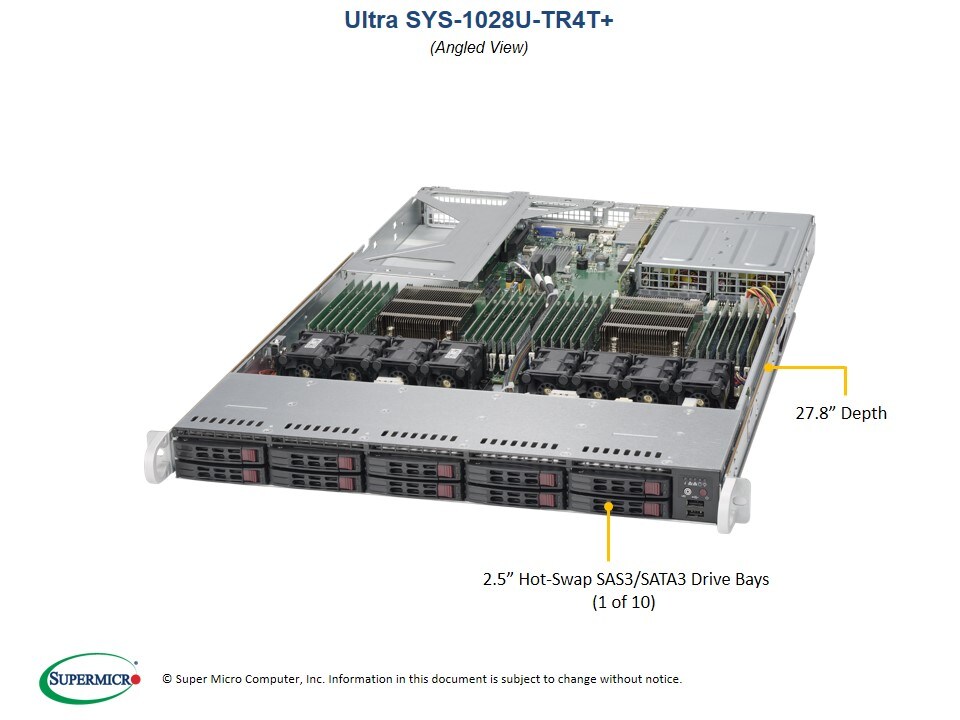

- 10x 2.5" Hot-swap drive bays
|
| | | |
| | Fans |
- 4x heavy duty fans with optimal fan speed control
- 4x additional fans optional
|
| Air Shroud |
|
| | |
| | 750W Redundant AC-DC Power Supplies, +12V/+12Vsb output |
| AC Input |
- 100-127Vac, 50-60Hz
- 200-240Vac, 50-60Hz
|
| +12V |
- Max: 62.5A & Min: 0A (100Vac-127Vac)
- Max: 62.5A & Min: 0A (200Vac-240Vac)
|
| 12V SB |
|
| Certification |
  Platinum Level
[ Test Report ]
|
| |
|
| Voltage |
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
- 5+1 Phase-switching voltage regulator
|
| FAN |
- 8x 4-pin fan headers
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Support to monitor Supermicro AOC temperatures from IPMI or SD 5
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Control for 8x Fan Connectors
- Thermal Monitor 2 (TM2) support
- PECI
|
| LED |
- Memory DIMM ECC error LEDs
- CPU / System Overheat LED
- Suspend static indicator LED
- UID/Remote UID
|
| Other Features |
- 4x 8-pin GPU power connectors
- Chassis intrusion detection
- Chassis intrusion header
- SDDC Support
- RoHS
|
| | |
| RoHS
|
|
| Environmental Spec. |
- Operating Temperature:
5°C to 40°C (41°F to 104°F)
- Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity:
8% to 90% (non-condensing)
- Non-operating Relative Humidity:
5% to 95% (non-condensing)
|
|
|
|
|  | |
|
See Parts List
|
|
| |
|
|
Part Number
|
Qty
|
Description
|
| Motherboard / Chassis |
MBD-X10DRU-i+
CSE-119UAC-R751-T |
1
1 |
Super X10DRU-i+ Motherboard
CSE-119UAC-R751-T Chassis |
| Air Shroud |
MCP-310-81903-0B |
1 |
Mylar air shroud set for SC819U,119U (X10DRU+),HF |
| Add-on Card / Module |
AOC-UR-I4XT-P |
1 |
1U Ultra Riser based on Intel X540 controller with 4 10Gbase-T ports and 1 internal PCI-E x8 3.0 slot |
| Backplane |
BPN-SAS3-116A |
1 |
10-port 1U SAS3 12Gbps direct-attached backplane, support up to 10x 2.5-inch SAS3/SATA3 HDD/SSD |
| Cable 1 |
CBL-SAST-0656 |
1 |
MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,39CM,SB,30AWG |
| Cable 2 |
CBL-0484L |
2 |
SATA,INT,ROUND,ST-ST,55CM,30AWG |
| Cable 3 |
CBL-CDAT-0662 |
1 |
CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG |
| Cable 4 |
CBL-PWEX-0650 |
1 |
8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH |
| Cable 5 |
CBL-SAST-0655 |
1 |
MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG |
| Label |
LBL-0108 |
1 |
CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Manual |
MNL-1678-QRG |
1 |
SYS-1028U-TR(4/4T/T/TP)+, QRG,HF,RoHS/REACH |
| Parts |
MCP-150-00009-0B |
1 |
Internal AOC rubber support for SC819U, 119U |
| Riser Card |
RSC-R1UW-2E16 |
1 |
1U LHS WIO Riser card with two PCI-E x16 slots |
| Riser Card |
RSC-R1UW-E8R |
1 |
1U RHS WIO Riser card with one PCI-E x8 slot |
| Heatsink / Retention |
SNK-P0047PS |
2 |
1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB |
| Power Supply |
PWS-751P-1R |
2 |
1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH |
| Mounting Rails |
MCP-290-00102-0N
MCP-290-00120-0N
MCP-290-00112-0N |
1
1
1 |
Outer rail, quick-release type, 25.6" to 33.05"
Inner rail, front, quick-release type (thumb screw applied)
Inner rail, extension, long (quick) for 1U 17.2"W chassis |
|
|
|
| |
| | |
Part Number |
Qty |
Description |
| Mounting Rails |
MCP-290-00062-0N
MCP-290-00064-0N
MCP-290-00052-0N-BULK |
-
-
- |
Inner/outer rail set, quick-release type, 25.6" to 33.05"
Thumb screw adapter of inner rail for 1U 17.2"
Bulk outer rail, quick-release type, 25.6" to 33.05" (10 sets/pack) |
| Storage Control Card and Cable(s) |
AOC-S3008L-L8e &
2x CBL-SAST-0593
AOC-S3008L-L8i &
2x CBL-SAST-0593
AOC-S3108L-H8iR &
2x CBL-SAST-0593
|
-
|
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
|
| Network Card(s) |
AOC-SGP-i2/4
AOC-STGN-i1S/i2S
AOC-STG-b4S
AOC-STG-i2T
AOC-STG-i2
AOC-S40G-i2Q
More |
-
-
-
-
-
-
- |
Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
AOC Compatibility Matrix |
| CacheVault(s) |
BTR-CV3108-1U1
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 |
-
- |
CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location |
| Fan |
FAN-0101L4 |
Up to 4 |
40x40x56 mm, 14.4K-10.7K RPM Counter-rotating Cooling Fan |
| 1U Cable Management Arm |
MCP-290-00152-0N |
1 |
1U Supermicro Cable Management Arm 2nd Gen |
| Global Services & Support |
OS4HR3/2/1
OSNBD3/2/1 |
-
- |
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service |
| Software |
SFT-OOB-LIC •  |
1 |
OOB Management Package (per node license) |
| Software |
SFT-DCMS-Single |
1 |
DataCenter Management Package (per node license) |
Hide Parts List
|
|
|
|
