SuperServer 1028UX-CR-LL2 (Complete System Only)

  Products  Systems   Hyper-Speed (Low-latency)   [ 1028UX-CR-LL2 ]





Integrated Board
X10DRU-XLL

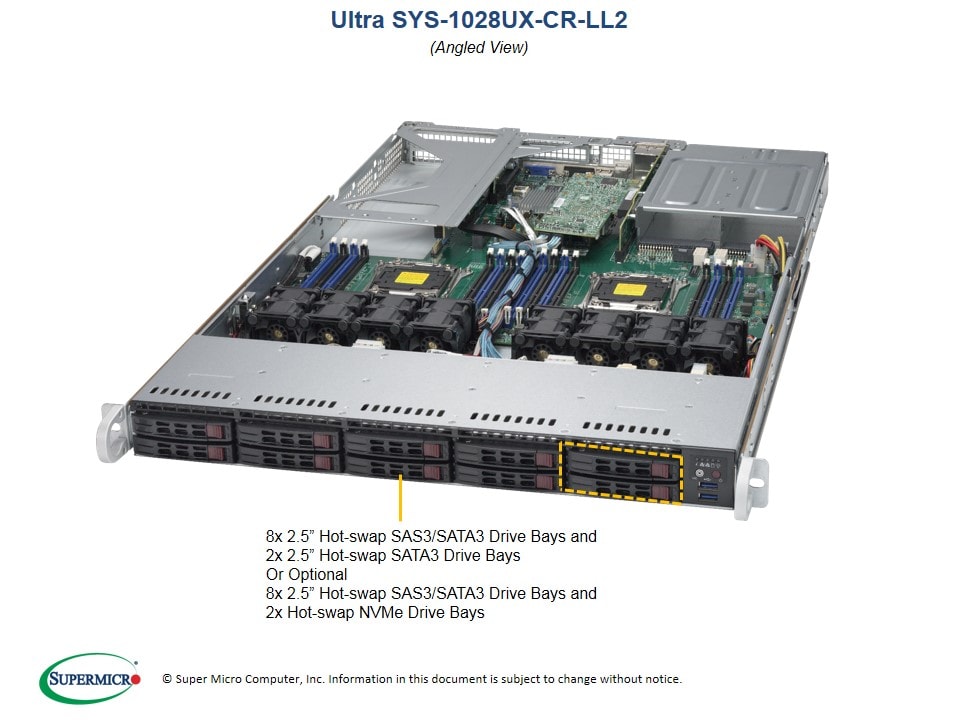

Views: | Angled View | Top View |

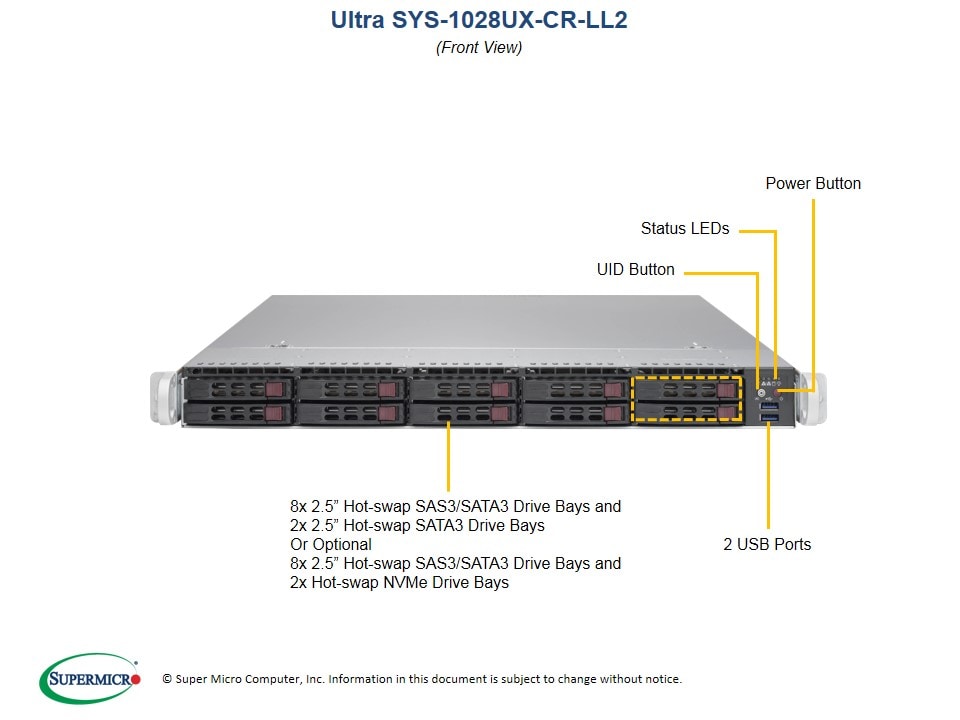

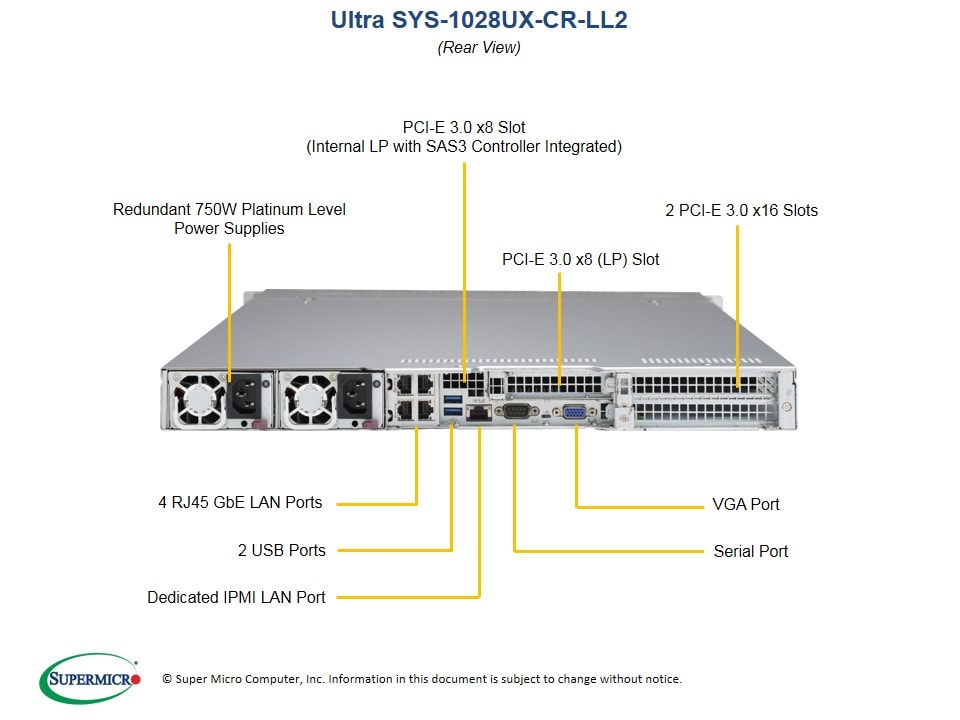

| Front View | Rear View |



Key Features
• Support Hyper-Speed
1. Dual Intel® Xeon® processor
    E5-2687W v3 (Haswell)
2. Default: 8x 8GB 2133MHz DDR4, up to
    DDR4- 2400MHz ; 16 DIMM slots
3. Expansion slots via riser card:
    2 PCI-E 3.0 x16, Full-height, 10.5" Length
    1 PCI-E 3.0 x8, Low-profile
    1 PCI-E 3.0 x8 SAS3 integrated
4. 4 Gigabit Ethernet LAN ports
5. Integrated IPMI 2.0 with KVM and
    Dedicated LAN
6. 10 Hot-swap 2.5" Drive Bays:
    8 SAS3 (Broadcom 3108), 2 SATA3,
    2 NVMe ports support via
    optional Ultra Riser card
7. 8 heavy duty fans w/ optimal
    fan speed control
8. 750W Redundant Power Supplies
    Platinum Level (94%+)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to CPU, memory, and HDDs). At least one low-latency NIC from this list must be selected and installed into the system.

 Drivers & Utilities   BIOS   IPMI   Tested Memory at Hyper-Speed  Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix

Product SKUs
SYS-1028UX-CR-LL2
  • SuperServer 1028UX-CR-LL2 (Black)

Motherboard

Super X10DRU-XLL

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2687W v3
  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 10 Cores / Up to 25MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required

System Memory
Memory Capacity
  • 8x 8GB DDR4 2133MHz (Default)
  • 16x 288-pin DDR4 DIMM slots
  • Up to 2TB ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SAS
  • Broadcom 3108 SAS3 (12Gbps) controllers; RAID 0, 1, 5, 6, 10, 50 support
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Graphics
  • ASPEED AST2400 BMC

Input / Output
SAS
  • 8 SAS3 (12Gbps) ports
SATA
  • 2 SATA3 (6Gbps) ports
NVMe
  • 2 NVMe ports support via optional Ultra Riser card (AOC-URN2-i2XT)
LAN
  • 4 RJ45 Gigabit Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports
    (2 rear, 2 via header, 1 Type A)
Video
  • 1 VGA Connector
Serial Port / Header
  • 1 Fast UART 16550 serial
  • 1 COM port (rear)

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UTS-R751P-T

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 28.5" (724mm)
Gross Weight
  • 48 lbs (21.8 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2 Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots
PCI-Express
    Expansion slots via riser card:
  • 2 PCI-E 3.0 x16, Full-height, 10.5" Length
  • 1 PCI-E 3.0 x8, Low-profile
  • 1 PCI-E 3.0 x8 SAS3 integrated

Drive Bays
Hot-swap
  • 8 Hot-swap 2.5" SAS3 drive bays
  • 2 Hot-swap 2.5" SATA3 drive bays
  • Optional NVMe support: 2 NVMe via AOC-URN2-I2XT (w/ 2x 10GBase-T ports)

System Cooling
Fans
  • 8 heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud

Power Supply
750W Redundant Power Supplies with PMBus
Total Output Power
  • 750W: 100 – 127Vac
  • 750W: 200 – 240Vac
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.5A Max / 50-60Hz
  • 200-240Vac / 4.5A Max / 50-60Hz
+12V
  • Max: 62.5A / Min: 0A
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Platinum Level Certified94%+  Platinum Level


  [ Test Report ]

PC Health Monitoring
CPU
  • Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
  • CPU Core 6-Phase-switching voltage regulator
FAN
  • Total of ten 4-pin PWM fans
  • 10x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 10x Fan Connectors
  • PSU I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Power Fail / Overheat LED
  • Suspend-state Indicator LED
  • UID LED
Other Features
  • SDDC Support

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 30°C (50°F to 86°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X10DRU-XLL
CSE-119UTS-R751P-T
1
1
Super X10DRU-XLL Motherboard
CSE-119UTS-R751P-T Chassis
Backplane BPN-SAS3-116A-N2 1 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-0484L 2 SATA,INT,ROUND,ST-ST,55CM,30AWG
Cable 2 CBL-PWEX-0653 1 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH
Cable 3 CBL-0157L-01 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,60CM,28AWG
Cable 4 CBL-PWEX-0650 1 8 pin female to 2x RA(Right Angle) big 4 pin female power, 47/62CM, 18AWG,RoHS/REACH
Cable 5 CBL-SAST-0671 1 MINI SAS HD(DUAL,RA-LS EXIT)-MINI SAS HD X2,INT,50CM,30AWG
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1702-QRG 1 SYS-1028UX-Series,HF,RoHS/REACH
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Heatsink / Retention SNK-P0057PU 2 1U 104-mm Wide Passive CPU Heat Sink for X10 HFT Systems,RoHS/REACH
Power Supply PWS-751P-1R 2 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH
Fan FAN-0101L4 8 40x56, 4 Pin PWM
Air Shroud MCP-310-11901-0B 1 Mylar air shroud set for SC819U,119U (X10DRU-X)
Add-on Card AOC-S3108L-H8IR-O-P 1 SAS-3, GEN-3 RAID card. Supports 12Gb and R0,1,5,6,10,50 and 60. Includes 2GB memory
Add-on Card AOC-UR-I4G-O-P 1 1U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports and 1 internal PCI-E x8 3.0 slot
CPU P4X-DPE52687WV3-SR1Y6 2 HSW-EP R3 10C/20T E5-2687WV3 3.1G 25M 9.6GT 160W 2011
Memory MEM-DR480L-SL01-ER21 8 8GB DDR4-2133 1Rx4 LP ECC REG DIMM
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management


Optional Parts List
  Part Number Qty Description
CacheVault(s) BTR-CV3108-1U1
BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
BTR-TFM8G-LSICVM02 & MCP-240-00127-0N
-
-
-

CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
