SuperServer 1029UX-LL2-C16 (Complete System Only)

  Products  Systems   Hyper-Speed (Low-latency)   [ 1029UX-LL2-C16 ]









Integrated Board
X11DPU-XLL

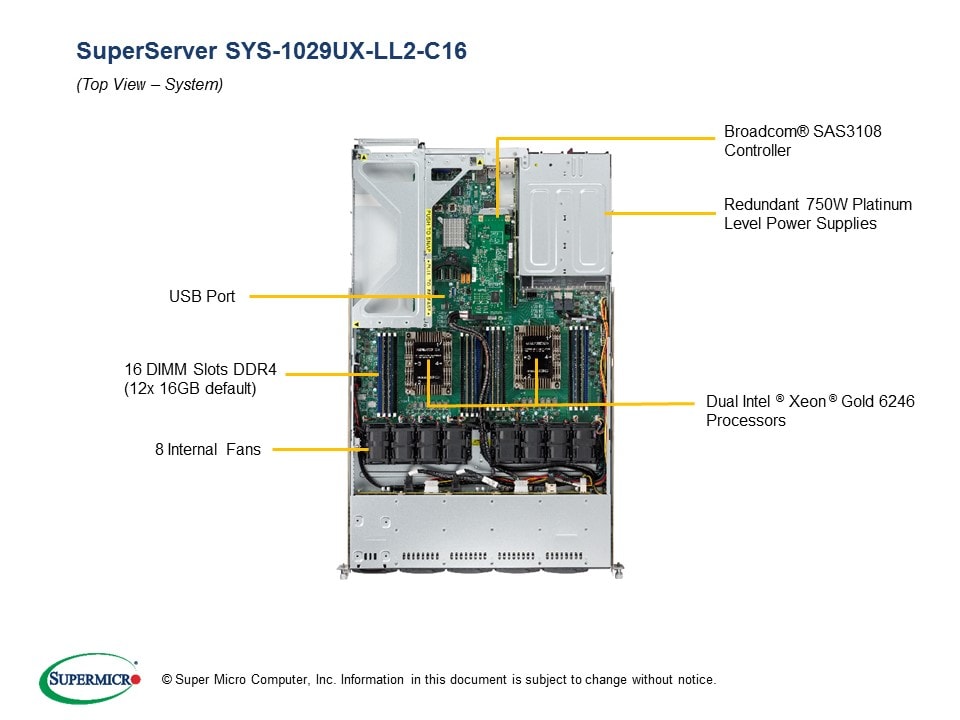

Views: | Angled View | Top View |

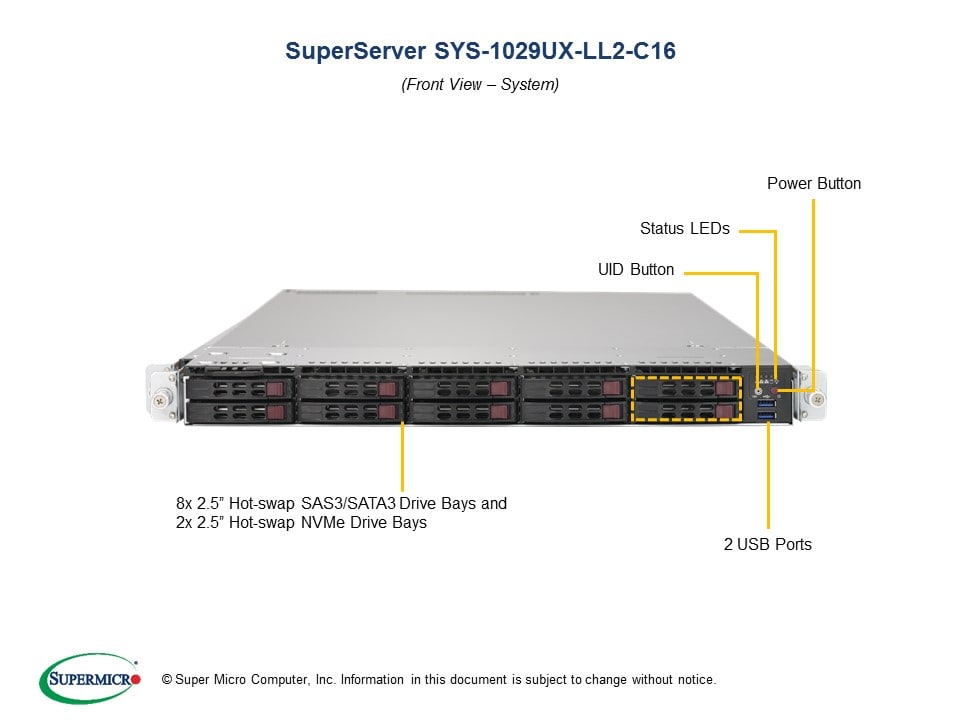

| Front View | Rear View |



Key Features

• Qualified low latency NICs here

• Financial Analysis

• Business Critical Applications

• Enterprise Server


1. Dual Socket P (LGA 3647) support

    (Intel® Xeon® Gold 6246 included)
2. 16 DIMMs; up to 4TB 3DS ECC

    DDR4-2933MHz RDIMM/LRDIMM,

    (12x 16GB DDR4-2933MHz included)
3. 2 PCI-E 3.0 x16 slots (FH, 10.5"/10" L),

    1 PCI-E 3.0 x8 (LP), 1 PCI-E 3.0 x8

    (internal SAS3 integrated 3108)
4. 4 Gigabit Ethernet ports
5. 8 Hot-swap 2.5" SAS3 drive Bays;

    2 Hot-swap NVMe bays
6. 8 heavy duty fans w/ optimal

    fan speed control
7. 750W Redundant Power Supplies

    Platinum Level (94%+)


Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to CPU, memory, and SSD). At least one low-latency NIC from this list must be selected and installed into the system.


 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals   Drive Options


Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-1029UX-LL2-C16
  • SuperServer 1029UX-LL2-C16 (Black)

Motherboard


Super X11DPU-XLL

Processor
CPU
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Gold 6246 included
Cores
  • Up to 28 Cores

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • 12x 16GB DDR4-2933MHz included
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (disabled)
SAS
  • Broadcom 3108 controller for 8 SAS3 ports
Network Connectivity
  • 4 Gigabit Ethernet ports via AOC-UR-i4G (Intel® i350AM4)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
SAS
  • 8 SAS3 ports support via integrated 3108 Add-on Card
LAN
  • 4 RJ45 Gigabit Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 3.0 ports

    (2 rear, 2 via header, 1 Type A)
Video
  • 1 VGA port
Serial Port
  • 1 COM Port (1 rear)

System BIOS
BIOS Type
  • AMI UEFI

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UTS-R751P-T

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 28.5" (724mm)
Weight
  • Gross Weight: 48 lbs (21.77 kg)
Available Color
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /

    UID LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (1 Full-height, 10.5" L; 1 Full-height, 10")
  • 1 PCI-E 3.0 x8 (Low Profile)
  • 1 PCI-E 3.0 x8 (Internal SAS3 integrated 3108)




  • (See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • 8 Hot-swap 2.5" SAS3 drive bays
  • 2 Hot-swap 2.5" NVMe

System Cooling
Fans
  • 8 heavy duty fans with optimal fan speed control

Power Supply
750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input
  • 100-127Vac, 50-60Hz
  • 200-240Vac, 50-60Hz
+12V
  • Max: 62.5A & Min: 0A (100Vac-127Vac)
  • Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A
  • Min: 0A
Certification Platinum Level Certified94%+  Platinum Level




  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 30°C (50°F ~ 86°F)
  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)


See Parts List



Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X11DPU-XLL

CSE-119UTS-R751P-T
1

1
Super X11DPU-XLL Motherboard

CSE-119UTS-R751P-T Chassis
FAN FAN-0101L4 8 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
CPU P4X-LL26246 2 Intel® Xeon® Gold 6246
Memory MEM-DR416L-SL02-ER29 12 16GB DDR4-2933 1Rx4 LP ECC RDIMM,HF,RoHS
Storage Control Card AOC-S3108L-H8iR 1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60
Power Supply PWS-751P-1R 2 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH
Software SFT-OOB-LIC 1 OOB Management Package (per node license)




Optional Parts List
  Part Number Qty Description
CacheVault(s) BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05

BTR-TFM8G-LSICVM02 & MCP-240-00127-0N
-

-


CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location

CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location
1U Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
