SuperStorage SSG-136R-N32JBF (Complete System Only)

  Products  Systems   [ SSG-136R-N32JBF ]

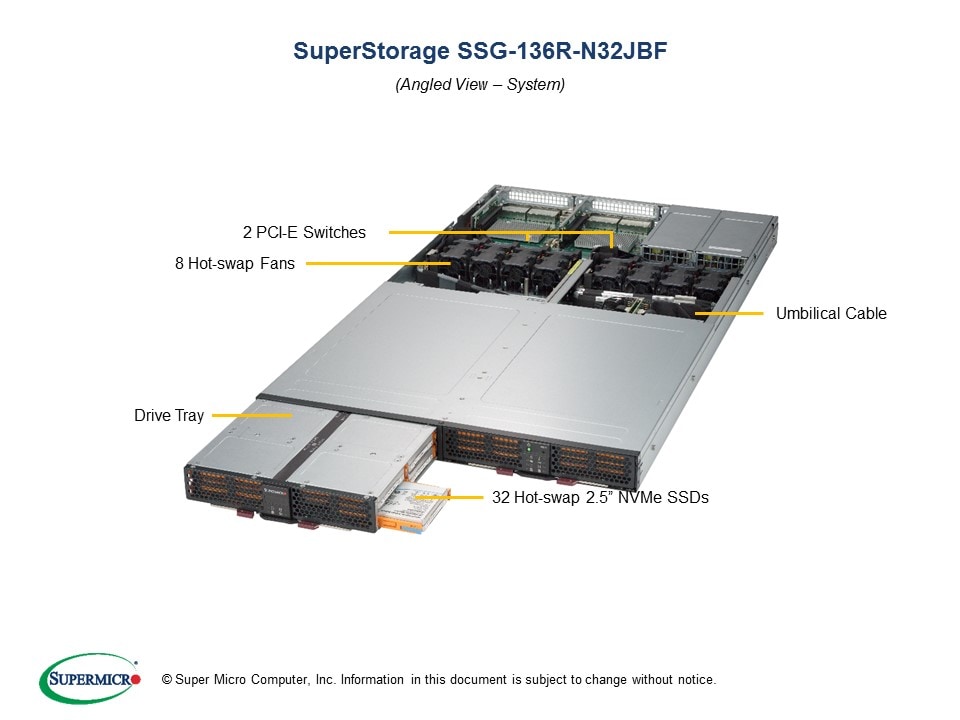

Views: | Angled View | Top View |

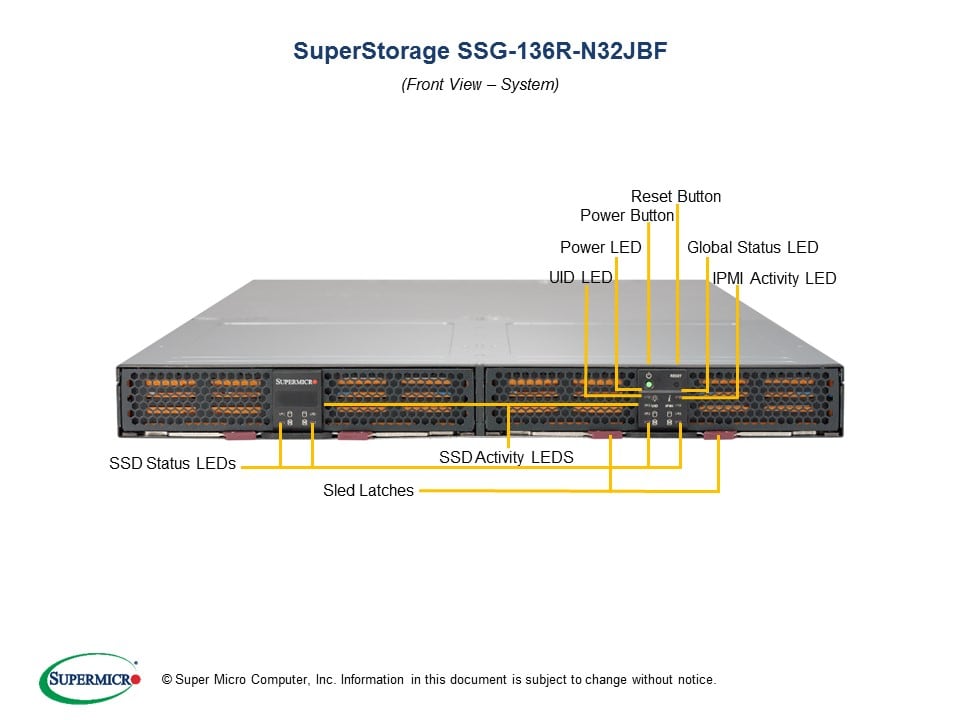

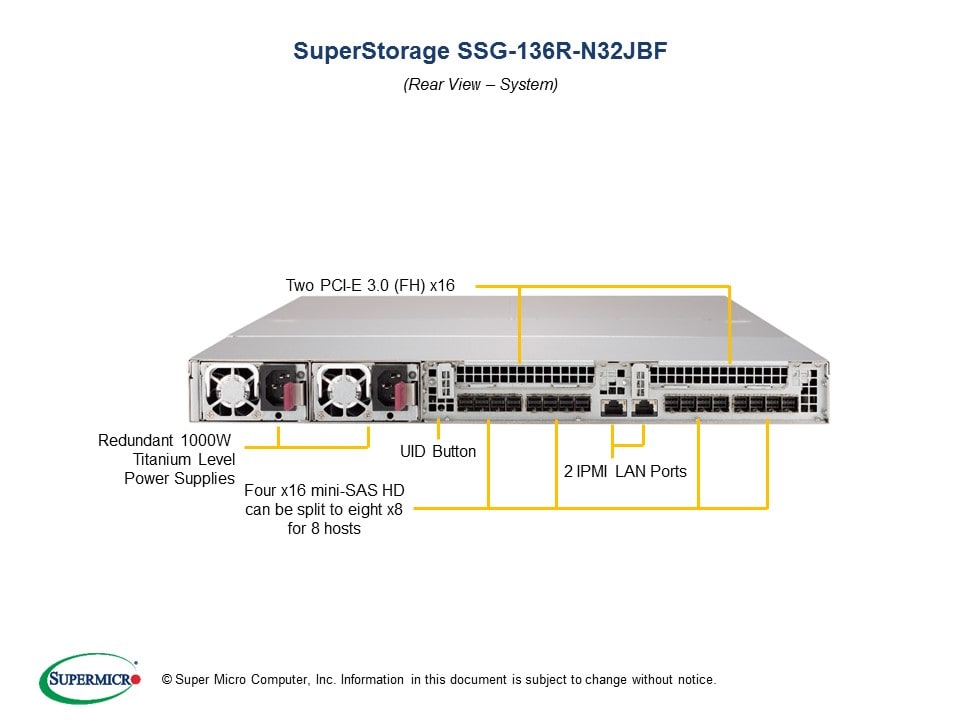

| Front View | Rear View |
Key Applications
• High Throughput Ingest
• High Density Hot Storage
• HPC / Data Analytics
• Media/Video Streaming
• Content Delivery Network (CDN)
• Big Data Top of Rack Storage

Outstanding Features
1. Supports 32 Hot-swap NVMe SSDs
2. 4 PCI-E x16 IO ports, 2 PCI-E x16 slots
3. IPMI management with dedicated LAN
4. 1000W Redundant Power Supplies
    Titanium Level (96%)


Resources
 Manuals   Quick Reference Guide
 NVMe Options   BMC Firmware

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (including but not limited to 8 drives).


Product SKUs
SSG-136R-N32JBF
  • SSG-136R-N32JBF (Black)

System Overview
Form Factor and Storage
  • 1U Form factor
  • 32x 2.5" drive slots
Switch Architecture
  • JBOF Switch
Networking Port
  • 2 RJ45 Dedicated IPMI LAN ports
Management Interface
  • Support for IPMI v.2.0

Front Panel
Buttons
  • Power On/Off button
  • Reset button
  • UID button
LEDs
  • Power LED
  • System Status LED
  • SSD Status LED
  • Drive activity LEDs
  • Network activity LEDs

Operating Environment / Compliance
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
RoHS
  • RoHS Compliant
EMC
  • FCC, CE, VCCI, C-tick
Safety
  • UL Listed, CB/IEC
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-136TS-R1K04JP-U2

Dimensions and Weight
Width
  • 17.26" (438.4mm)
Height
  • 1.71" (43.6mm)
Depth
  • 31.95" (811.7mm)
Weight
  • Net Weight: 49 lbs (22.2kg)
  • Gross Weight: 65 lbs (29.5kg)

Expansion Slots / Ports
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 4 PCI-E 3.0 x16 Mini-SAS HD ports

Drive Bays
Hot-swap
  • 32 Hot-swap 2.5" NVMe SSDs
    (2 sleds with 16 drives per sled)

System Cooling
Fans
  • 8x 40mm Hot-swap cooling fans

Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 127Vac
  • 1000W: 200 – 240Vac
Dimension
(W x H x L)
  • 73.5 x 40 x 185 mm
Input
  • 100-127Vac / 9.8 - 7A / 50-60Hz
  • 200-240Vac / 7 - 5A / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 83A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
See Parts List
Parts List - (Items Included)
  Part Number Qty Description
Chassis CSE-136TS-R1K04JP-U2 1 1U 32-Bay JBOF chassis with U.2 sleds 1000W Titanium PWS
Backplane BPN-NVME3-136NB-L 2 LHS daughter card for 1U JBOF SSG-136R-N32JBF, support 8x NVMe devices
Backplane BPN-NVME3-136NB-R 2 RHS daughter card for 1U JBOF SSG-136R-N32JBF, support 8x NVMe devices
Backplane BPN-NVME3-136PL 2 JBOF Switch Board for 1U SSG-136R-N32JF dense storage system
Backplane BPN-NVME3-136PL-J 1 JBOF/NVMf controller for 1U SSG-136R-N32JBF dense storage system
Manual MNL-2052-QRG 1 SSG-136R-N32JBF Quick Reference Guide,HF
SFT-DCMS-SINGLE 1 Supermicro System Managment Software Suite node license,HF,RoHS/REACH,PBF
Power Supply PWS-1K04A-1R 2 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)
FAN 1 FAN-0188L4 8 40x40x56 mm, 23.3K-20.3K RPM, Hot-swappable Counter-rotating


Optional Parts List
  Part Number Qty Description
Cable CBL-SAST-1035-1 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,1M,30AWG,RoHS
Cable CBL-SAST-1036-1 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,2M
Cable CBL-SAST-1037-1 - MINI SAS HD, x8, 12G,EXT,PASSIVE,PULL,3M,28AWG,RoHS
Motherboard Ultra (X11DPU)
BigTwin (X11DPT-B)
WIO (X11DDW-L)
AMD (H12DSU-iN)		 - Compatible motherboards
Add-On Card AOC-SLG3-4X4P - LP, PCIe3 x16, 4 Ext MiniSAS-HD port switch NVMe card for JBOF
