SuperServer 1019D-16C-FHN13TP

  Products  Systems  1U   [ 1019D-16C-FHN13TP ]

SYS-1019D-FHN13TP



Integrated Board
Super X11SDW-16C-TP13F

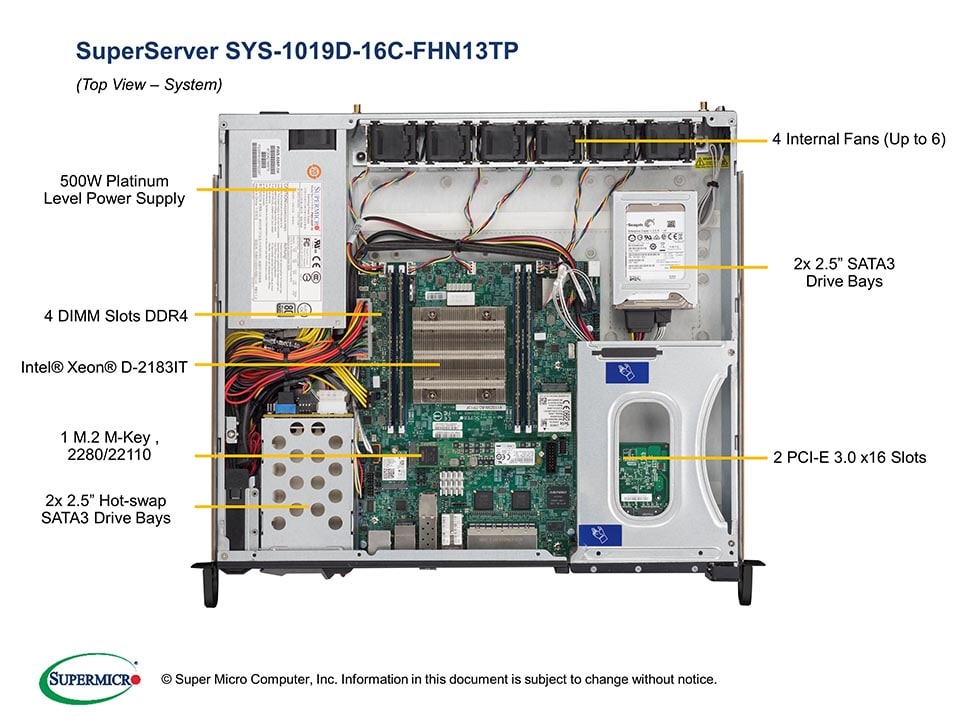

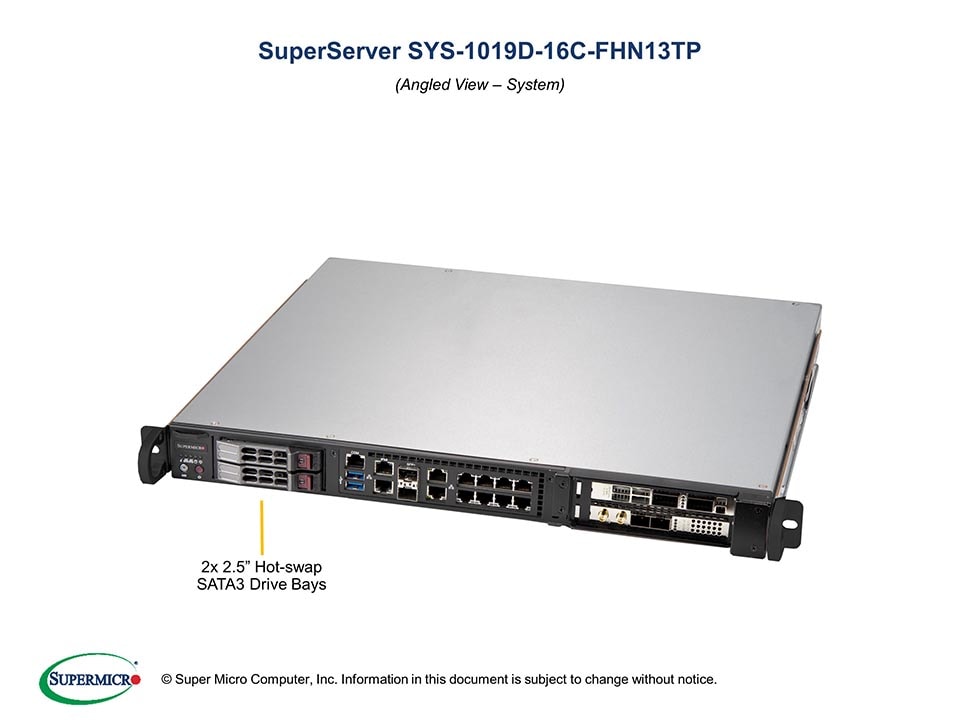

Views: | Angled View | Top View |

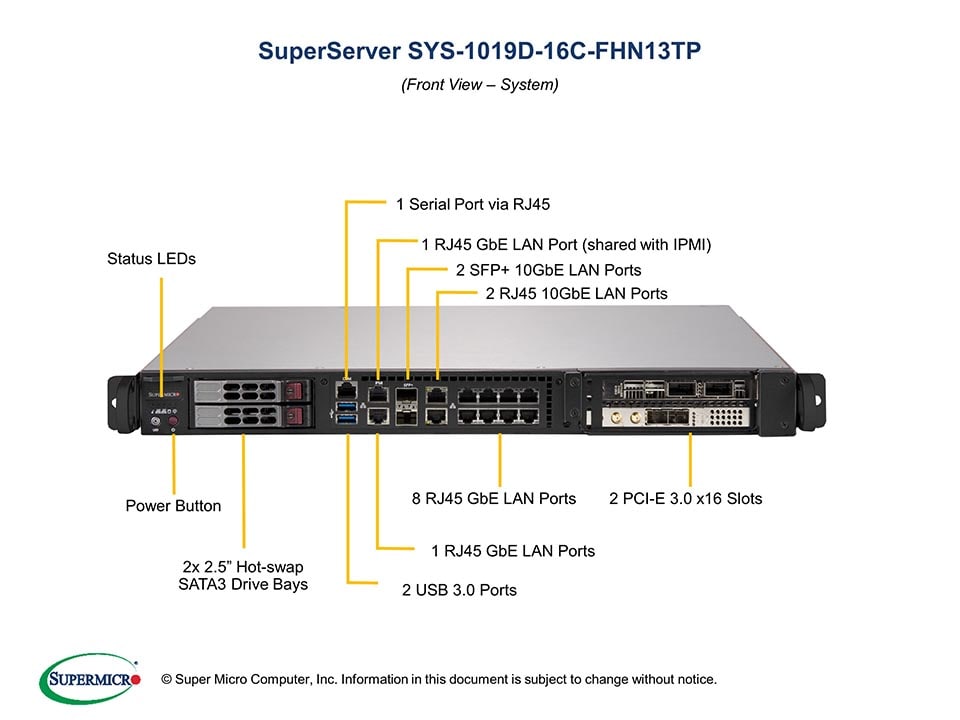

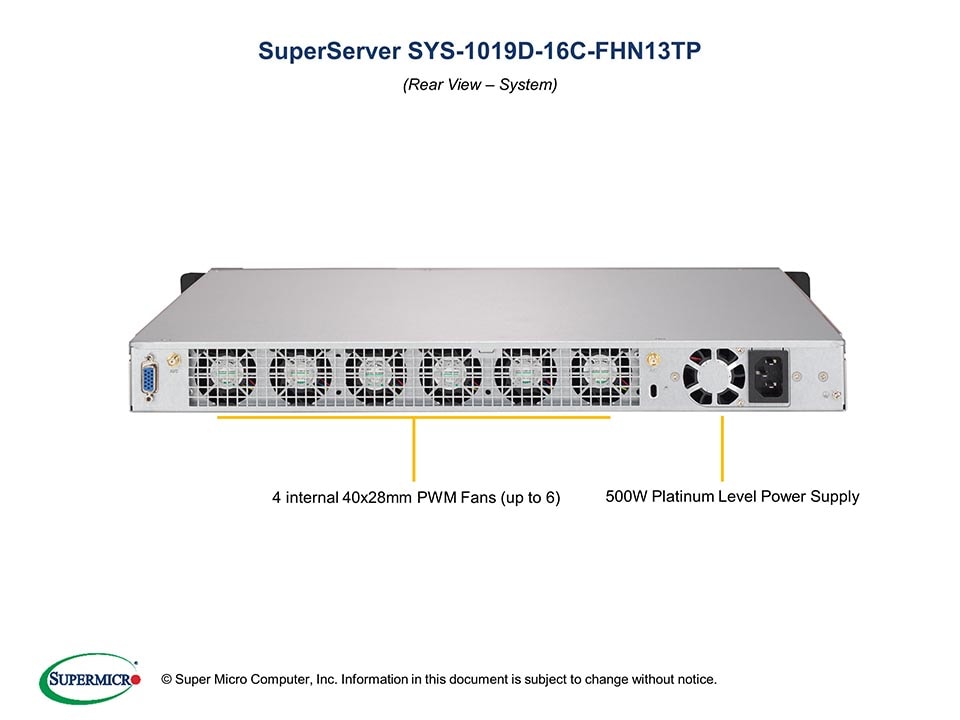

| Front View | Rear View |



Key Applications
• Multi-Access Edge Computing (MEC)
• Centralized/Cloud Radio Access
   Network (C-RAN)
• Universal Customer Premise
   Equipment (uCPE)
• Software Defined WAN (SD-WAN)
• Network Function Virtualization (NFV)
• Artificial Intelligence (AI)


Key Features
1. Intel® Xeon® D-2183IT Processor,
    16-Core, 32 Threads, 2.2 GHz, 100W
2. Up to 512GB ECC LRDIMM,
    up to 256GB reg. ECC RDIMM
    DDR4-2400Mz; in 4 DIMM slots
3. 2 PCI-E 3.0 x16 (FHFL) slots
4. 2 Hot-swap 2.5" drive bays,
    2 Internal 2.5" SSD bays
5. 1 M-Key, 2280/22110,
    1 E-Key, 2230, 1 B-Key, 3042
6. 9 GbE (1 port is used for management),
    2x 10GbE, 2x 10G SFP+, and
    1 Dedicated IPMI LAN ports
7. 2 USB 3.0, 1 VGA,
    1 COM via RJ45
8. 500W Multi-output
    Platinum Level Power Supply


 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Drive Options   Manuals   Quick-References Guide   OS Certification Matrix

Product SKUs
SYS-1019D-16C-FHN13TP
  • SuperServer 1019D-16C-FHN13TP (Black)

Motherboard

Super X11SDW-16C-TP13F

Processor
CPU
  • Intel® Xeon® processor D-2183IT,
    CPU TDP support 100W
Cores / Cache
  • 16 Cores, 32 Threads

System Memory
Memory Capacity
  • Up to 512GB DDR4 ECC LRDIMM
  • Up to 256GB DDR4 ECC RDIMM
  • 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 L/RDIMM
  • Operating speed up to 2400MHz
DIMM Sizes
  • 128GB, 64GB, 32GB, 16GB
Memory Voltage
  • 1.2 V

On-Board Devices
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps) ports via SoC controller
Network Controllers
  • Dual 10G SFP+ via SoC
  • Dual 10GBase-T via Intel X557
  • 8x 1GbE with Intel I350-AM4
  • Single 1GbE with Intel I210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • VGA via Aspeed AST2500 BMC

Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 9 RJ45 Gigabit Ethernet LAN ports
  • 2 RJ45 10GbE LAN ports
  • 2 10G SFP+ LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM via RJ45

System BIOS
BIOS Type
  • 128Mb SPI Flash with AMI BIOS

Management
Software
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-513BTS-505WB

Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 15" (381mm)
Package
  • 6.9" (H) x 19.5" (W) x 22.4" (D)
Weight
  • Gross Weight: 25 lbs (11.34 kg)
  • Net Weight: 14 lbs (6.35 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FHFL) slots
M.2
  • 1 M.2 M-Key , 2280/22110
  • 1 M.2 E-Key , 2230
  • 1 M.2 B-Key , 3042

Drive Bays
Hot-swap
  • 2 Hot-swap 2.5" drive bays
Internal
  • 2 Internal 2.5" SSD bays (optional)

System Cooling
Fans
  • 4x 40x28mm PWM fans (up to 6)

Power Supply
500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC
AC Input
  • 100-240V, 50-60Hz, 6.6A max
DC Output
  • +3.3V: 12A
  • +5V: 15A
  • +5V standby: 3A
  • +12V: 41A
  • -12V: 0.2A
Certification Platinum Level Certified94%+    Platinum Certified


Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       0°C to 45°C (32°F to 113°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11SDW-16C-TP13F
CSE-513BTS-505WB
1
1
Super X11SDW-16C-TP13F Motherboard
1U Chassis
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-0473L 2 SATA,INT,ROUND,ST-ST,21CM,30AWG
Cable 2 CBL-CDAT-0662 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG
Cable 3 CBL-CDAT-0850 1 CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
FAN 1 FAN-0154L4 2 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
Parts MCP-260-00144-0B 1 1U I/O Shield for X11SDW with EMI Gasket, Black
Air Shroud MCP-310-51303-0B 1 Mylar Air shroud for SC513B + UP MB X11SDW
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
* Power Supply PWS-505P-1H 1 1U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH
* Cable 4 CBL-0160L 1 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 5 CBL-0335L 1 CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
* FAN 2 FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
* Drive Tray(s) MCP-220-00180-0B 2 2.5\" New ID gen 3 hot-swap HDD tray with lock feature (with plastic bracket)
* Parts MCP-260-00078-0B 1 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
* Front Panel MCP-280-80901-0N 1 SC809 FRONT CONTROL PANEL ASSY
* Rail Set MCP-290-00102-0N 1 set Outer rail, quick-release type, 25.6\" to 33.05\"
* Rail Set MCP-290-00108-0B 1 set Inner rail, front, short (quick) for 1U 17.2
* Fan Holder MCP-320-00060-0N 1 Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12\"x10.15\")
* Parts MCP-340-00001-01 2 Dummy fan 40x28mm
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List

Part Number
Qty
Description
Rack Bracket MCP-290-00016-0N - 1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N
HDD Bracket MCP-220-00137-0N - Dual 2.5 HDD bracket (bracket base follow std 2.5" HDD screw holes)
Cable CBL-0082L - Y SPLIT SATA POWER ADAPTER, PB FREE
Cable CBL-0473L - 21CM 30AWG SATA CBL, S-S
Hide Parts List
