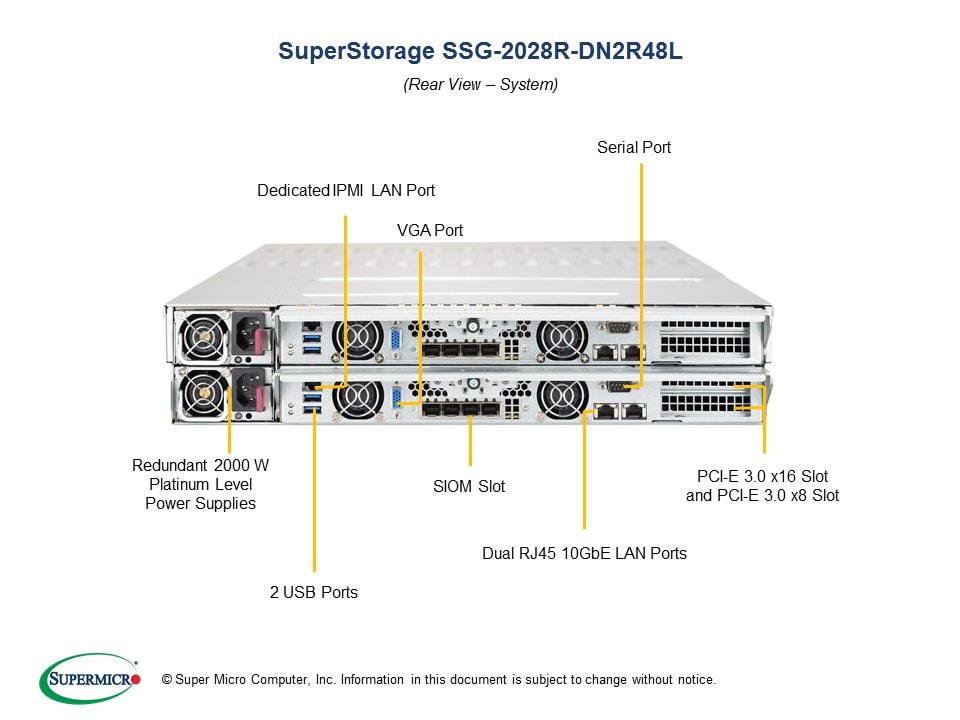

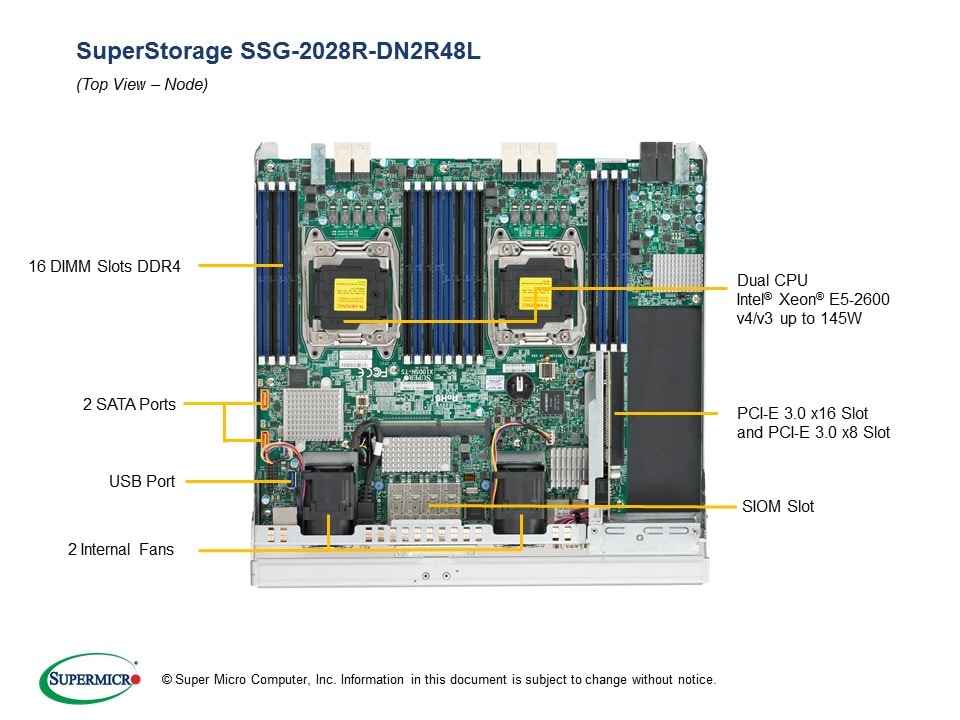

Key Features Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:1. Dual socket R3 (LGA 2011) supports
Intel® Xeon® processor E5-2600 v4†/
v3 family; QPI up to 9.6GT/s2.
Up to 2TB† ECC 3DS LRDIMM
, up to
; 16 DIMM slots3. 1 PCI-E 3.0 x16 HHHL slot, 1 PCI-E 3.0
x8 HHHL slot, 1 SIOM slot4. Dual port 10GBase-T (Intel® X540),
Intel® XL710 used for dedicated

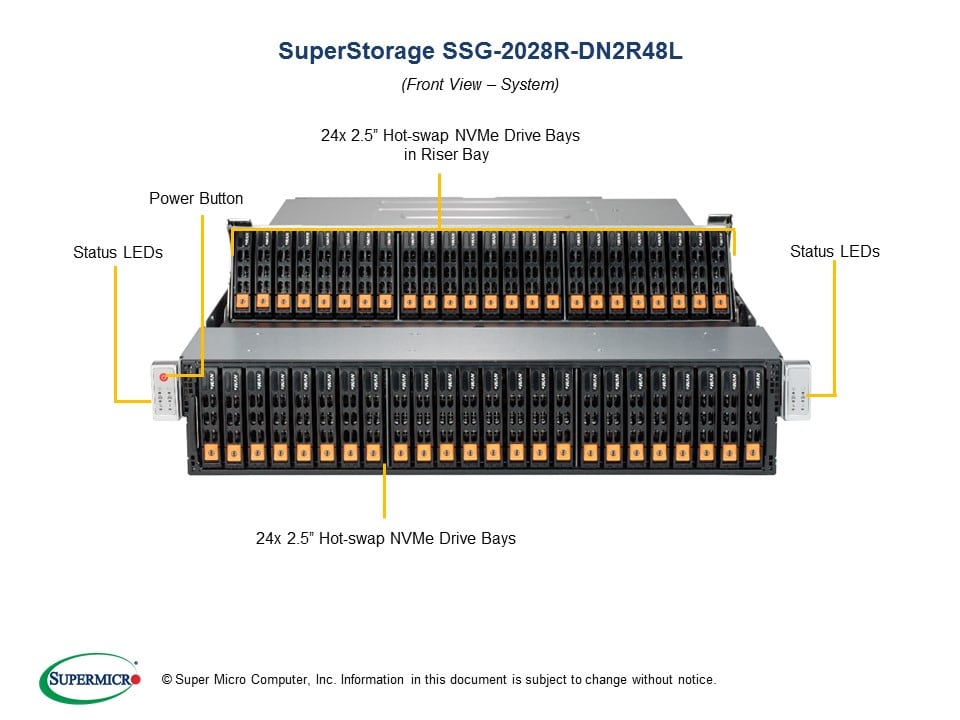

heartbeat between 2 nodes in SBB5. 48 Hot-swap 2.5" dual port NVMe
drive bays6. Server remote management: IPMI 2.0
/ KVM over LAN / Media over LAN7. 5 high-performance 8cm PWM fans8. 2000W Redundant Power Supplies Titanium Level (96%)
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system
(including but not limited to CPU, memory, and HDDs).
