SuperServer 2028U-TN24R4T+ (Complete System Only)

  Products  Systems   Ultra   [ 2028U-TN24R4T+ ]









Integrated Board
Super X10DRU-i+

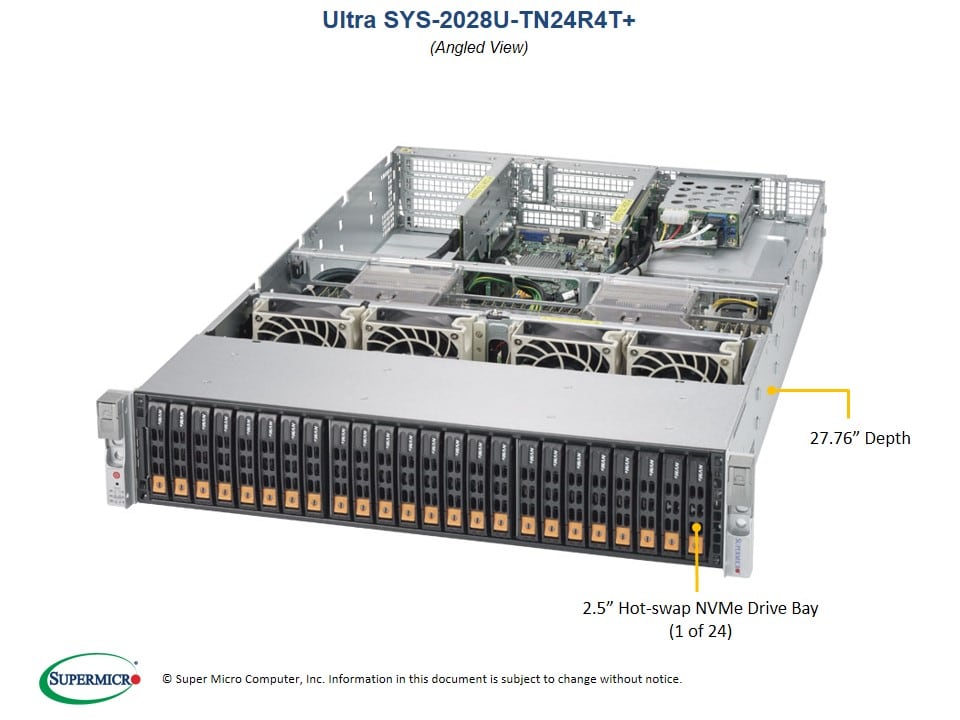

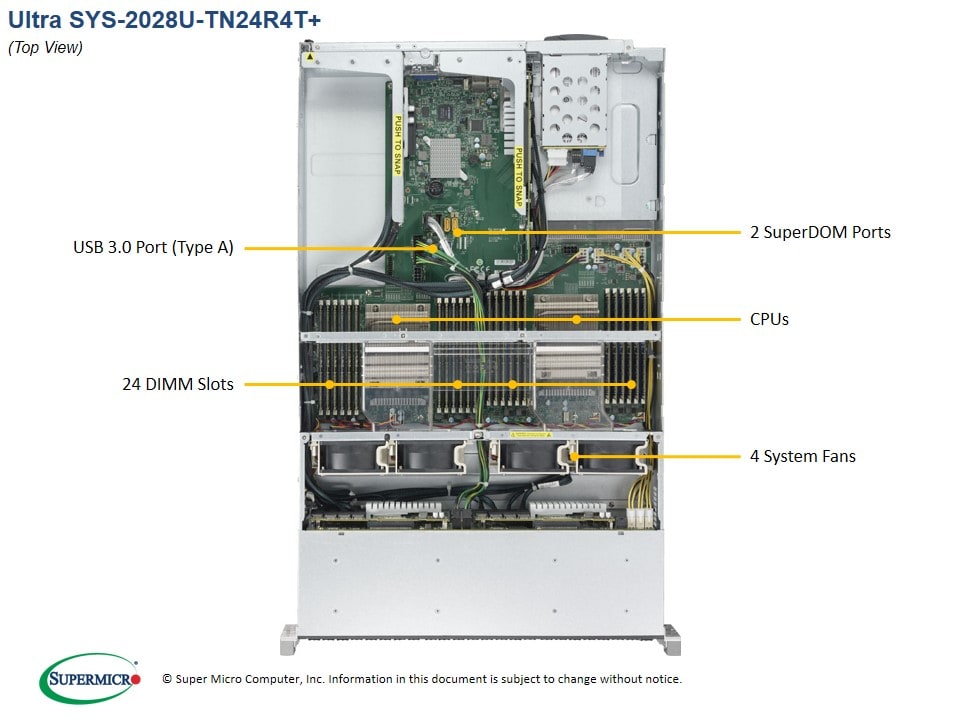

Views: | Angled View | Top View |

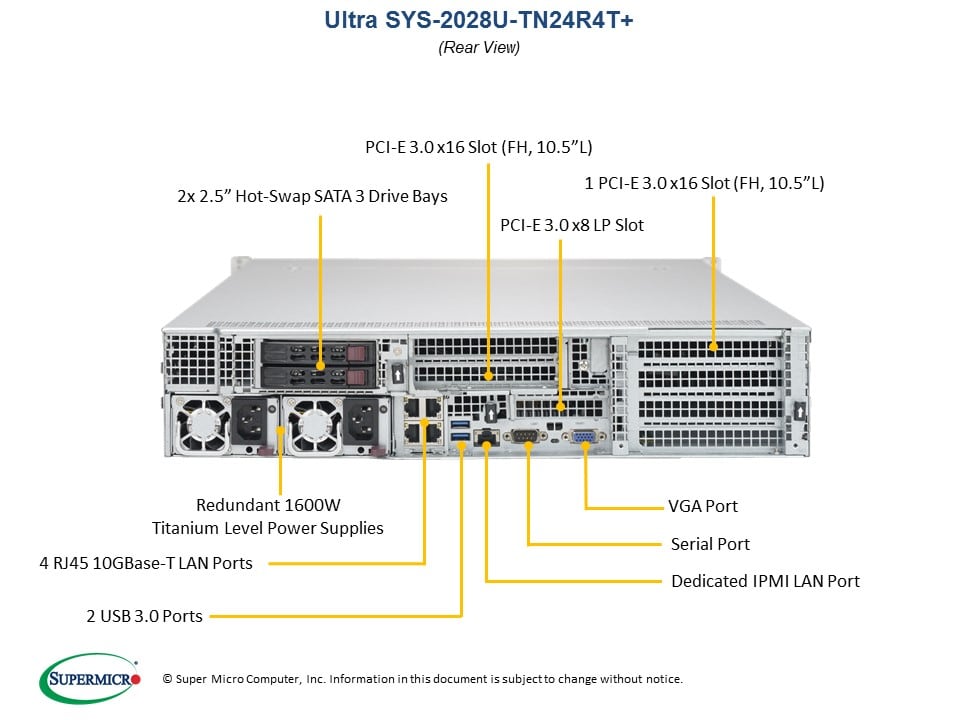

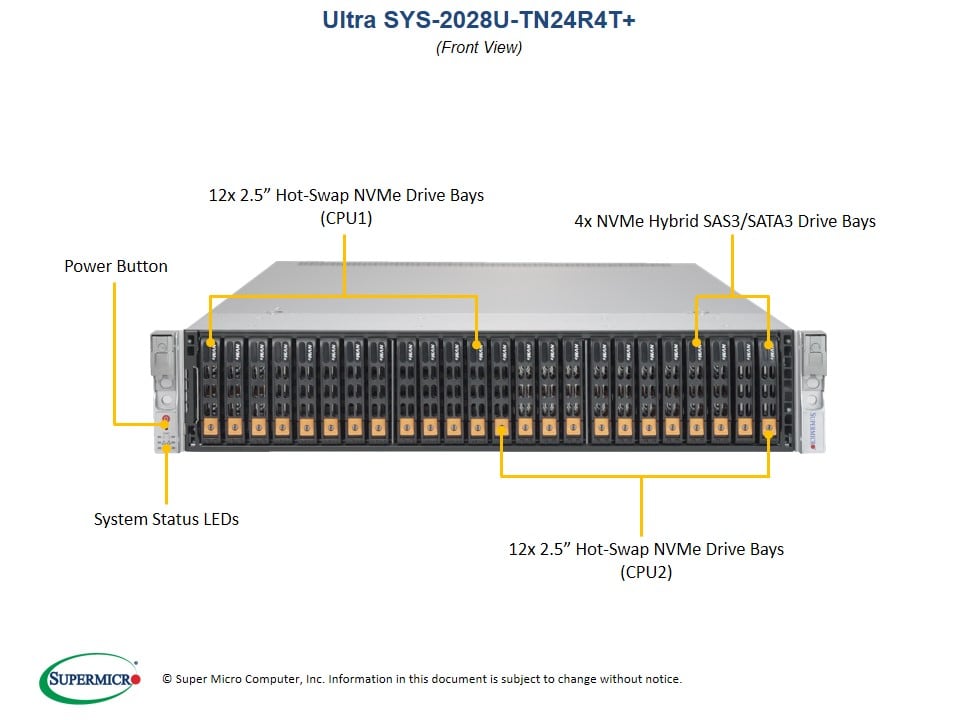

| Front View | Rear View |



Key Features

• Up to 24x NVMe drives supported

• Flexible Connectivity Options

1. Dual socket R3 (LGA 2011) supports

    Intel® Xeon® processor E5-2600

    v4/ v3 family; QPI up to 9.6GT/s
2. Up to 3TB ECC 3DS LRDIMM , up to

    DDR4- 2400MHz ; 24x DIMM slots
3. 2x PCI-E 3.0 x16 (2x FH, 10.5" L),

    1x PCI-E 3.0 x8 (LP) slots
4. 4x 10GBase-T ports
5. 24x NVMe Hot-swap 2.5" drive bays

    (4 Hybrid ports - optional SAS3

    supported via AOC); 2x rear

    SATA3 Hot-swap 2.5" drive bays
6. 4x heavy duty fans w/ optimal

    fan speed control
7. 1600W High efficiency (96%)

    Redundant PSU; Titanium Level


Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs and 6 NVMe).


 Drivers & Utilities   BIOS   IPMI   Tested Memory  NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Network Card (AOC) Matrix


Product SKUs
SYS-2028U-TN24R4T+
  • SuperServer 2028U-TN24R4T+ (Black)

Motherboard


Super X10DRU-i+

Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v4/ v3 family (up to 160W TDP) *

  • Dual Socket R3 (LGA 2011)
Cores / Cache
  • Up to 22 Cores / Up to 55MB Cache
System Bus
  • QPI up to 9.6 GT/s
Note BIOS version 2.0 or above is required
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


System Memory
Memory Capacity
  • 24x 288-pin DDR4 DIMM slots
  • Up to 3TB ECC 3DS LRDIMM, 768GB ECC RDIMM
Memory Type
  • 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  • 2666/2400 ECC DDR4 NVDIMM
DIMM Sizes
  • RDIMM: 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
  • 3DS LRDIMM: 128GB
  • NVDIMM: 16GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors

On-Board Devices
Chipset
  • Intel® C612 chipset
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Connectivity
  • 4x 10GBase-T ports via AOC-2UR6N4-i4XT
  • Intel® X540 10GBase-T
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • ASPEED AST2400 BMC

Input / Output
SATA
  • 6x SATA3 (6Gbps) ports (4x SATA3 via optional cable)
SAS
  • 4x SAS3 ports support via optional AOC
NVMe
  • 24x NVMe ports
LAN
  • 4x 10GBase-T LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 5x USB 3.0 ports

    (2 rear, 2 onboard header, 1 Type A)
Video
  • 1x VGA Connector
Serial Port / Header
  • 1x Serial header
DOM
  • 2x SuperDOM (Disk on Module) ports

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Management
Software
Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-219UBTS-R1K62P-TN24

Dimensions and Weight
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 27.76" (705.3mm)
Weight
  • Net Weight: 36 lbs (16.4 kg)
  • Gross Weight: 72 lbs (32.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • HDD activity LED
  • 2x Network activity LEDs
  • System information (overheat/UID) LED

Expansion Slots
PCI-Express
  • 2x PCI-E 3.0 x16 (FH, 10.5" L) slots
  • 1x PCI-E 3.0 x8 (LP) slot




  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot-swap
  • Total 26x Hot-swap 2.5" drive bays (Front: 24, Rear: 2): 4 x Hybrid (NVMe/SATA3) ports - Optional SAS3 support via AOC

System Cooling
Fans
  • 4x 8cm heavy duty PWM fans

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension

(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level

  [ Test Report ]

PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
FAN
  • 8x 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Support to monitor Supermicro AOC temperatures from IPMI or SD 5
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • Memory DIMM ECC error LEDs
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • 4x 8-pin GPU power connectors
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS

Operating Environment / Compliance
RoHS

  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)
See Parts List



Parts List - (Items Included)


Part Number

Qty

Description

Motherboard / Chassis MBD-X10DRU-i+

CSE-219UBTS-R1K62P-TN24
1

1
Super X10DRU-i+ Motherboard

2U Chassis
Add-on Card / Module AOC-2UR6N4-i4XT-P 1 2U Ultra Riser with 4-port 10GbE RJ45 (10GBase-T)
Air Shroud MCP-310-82912-0N 1
Backplane BPN-SAS3-826TQ-B2B 1 2-port 2U SAS3 12Gbps backplane, support up to 2x 2.5-inch SAS3/SATA3 HDD/SSD
Backplane BPN-NVME3-216EB 1 BPN-NVMe3-216A-S4 Backplane Base Board
Backplane BPN-NVME3-216EL 2 PCIe Gen3x16 input to PLX9765 to support 12x NVMe port
Cable 1 CBL-0333L-01 2 8 pin to 8 pin GPU power extension. 40cm. 18/20AWG
Cable 2 CBL-PWEX-0702 1 PWEX,2X4F/P4.2 TO 1X4F/P5.08/RA,32CM,18AWG,YEL,BLK*2,RED
Cable 3 CBL-0097L-03 1 MINI SAS-4 SATA,INT,51CM,51CM SB,30AWG
Cable 4 CBL-SAST-0819 4 OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
Cable 5 CBL-PWEX-0653 3 8 pin female to 4 pin female power, 37cm, 18AWG,RoHS/REACH
Cable 6 CBL-SAST-0820 4 OCuLink v. 1.0,INT,PCIe NVMe SSD, 85CM,34AWG,RoHS/REACH
Label LBL-0108 1 CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
Manual MNL-1824-QRG 1 SYS-2028U-TN24R4T+ Reference Guide
Parts MCP-110-00015-0N 8 Pan head screw, #6-32 x 6L
Riser Card RSC-U2N4-6 1 2U Ultra Riser Card with 4 NVME and PCI-Ex16,RoHS/REACH
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Heatsink / Retention SNK-P0058PSU 2 2U Passive CPU Heat Sink for X10 2U 24-DIMM Ultra Series Servers,RoHS/REACH
Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
Mounting Rails MCP-290-00053-0N-01

MCP-290-00060-0N
1

1
Auto-latch, inner/outer rail set, quick-release type, 26.9" to 36.4"

Threaded rail adapter default for round hole rack


Optional Parts List
  Part Number Qty Description
2U Cable Management Arm MCP-290-00128-0N &

MCP-290-00127-0N-01
1 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth)
Storage Control Card and Cable(s) AOC-S3008L-L8e &

1x CBL-SAST-0593

AOC-S3008L-L8i &

1x CBL-SAST-0593

AOC-S3108L-H8iR &

1x CBL-SAST-0593

AOC-S3108L-H8iR-16DD & 1x CBL-SAST-0593
1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD,12G,INT,60CM,30AWG

Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG

Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG

Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Network Card(s) AOC-SGP-i2/4

AOC-STGN-i1S/i2S

AOC-STG-b4S

AOC-STG-i2T

AOC-STG-i2

AOC-S40G-i2Q

More
-

-

-

-

-

-

-
Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350

Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN

Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S

Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540

Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB

Standard LP 2-port 40GbE controller, based on Intel Fortville XL710

AOC Compatibility Matrix
CacheVault(s) BTR-CV3108-U1 - CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra
Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
