SuperStorage 2029P-ACR24H

  Products  Systems   SuperStorage   [ 2029P-ACR24H ]


3 Broadcom 3108 AOC



Integrated Board
Super X11DPH-T

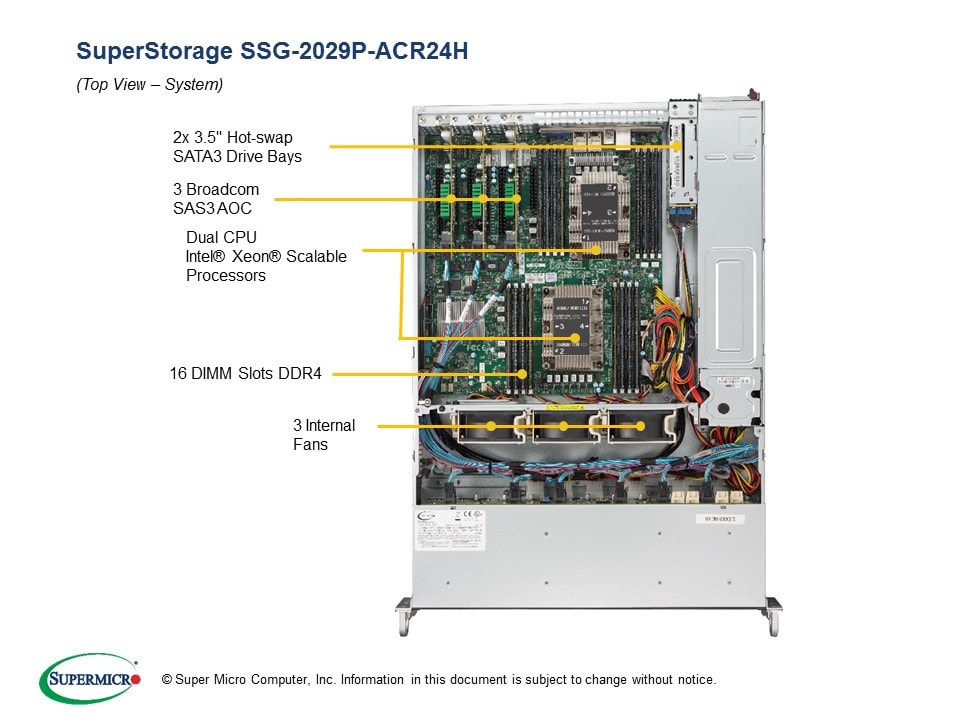

Views: | Angled View | Top View |

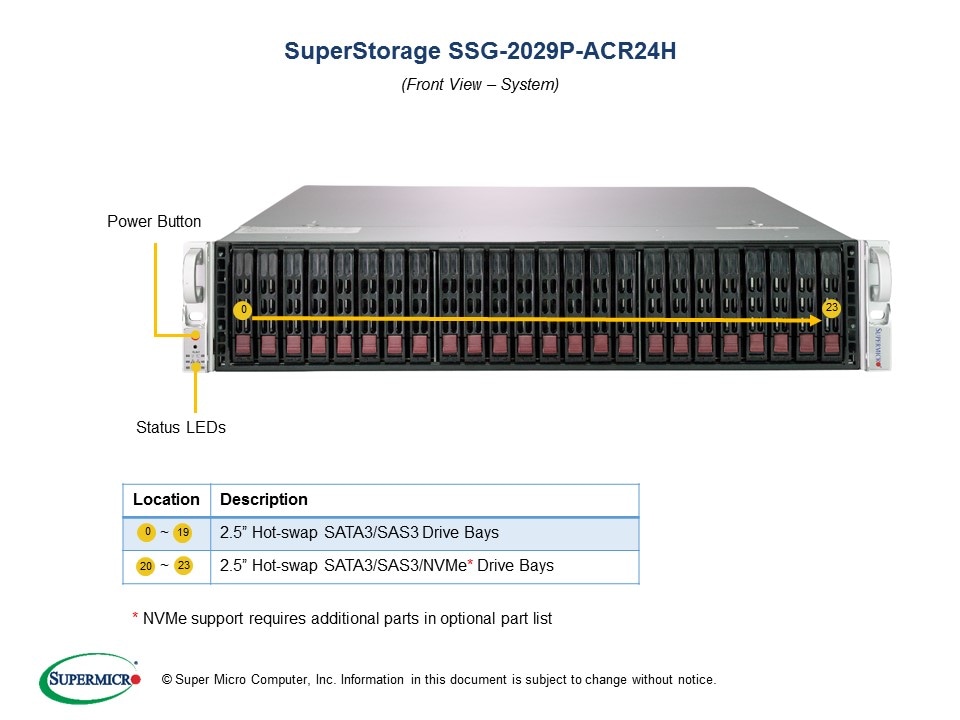

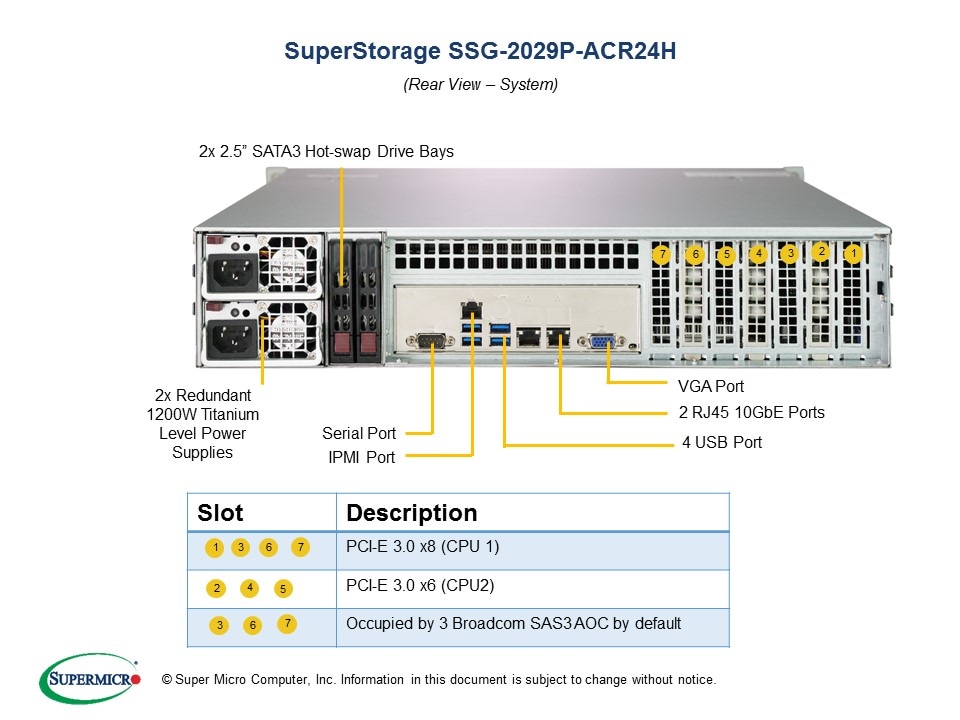

| Front View | Rear View |

Key Applications
  - Corporate Database
  - Database Processing & Storage
  - Enterprise Server
  - HPC, Data Center
  - iSCSI SAN


Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
2. 16 DIMMs; up to 4TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
    (slot 3,6,7 occupied by controllers)
4. 24 Hot-swap 2.5" SAS3/SATA3
    direct attached drive bays
5. 3 Broadcom 3108 SAS3 AOC (HW RAID)
6. 2x 10GBase-T LAN ports with
    Intel X722 + PHY Intel X557
7. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
8. 3 Hot-swap 8cm redundant PWM fans
9. 1200W Redundant Power Supplies
    Titanium Level (96%)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix    Drive Options

Product SKUs
SSG-2029P-ACR24H
  • SuperStorage 2029P-ACR24H (Black)

Motherboard

Super X11DPH-T

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C622 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID
  • 3 Broadcom 3108 controller
  • RAID 0, 1, 5, 6, 10, 50, 60
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
  • 1 Type A
Video
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header

System BIOS
BIOS Type
  • 256Mb AMI UEFI

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-216BTS-R1K23LPB

Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 24.8" (630mm)
Gross Weight
  • 61 lbs (27.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 3 PCI-E 3.0 x16 slot
  • 4 PCI-E 3.0 x8 slots

Drive Bays
Hot-swap
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays
Optional
  • 2 Optional Onboard NVMe M.2

Backplane
SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots

System Cooling
Fans
  • 3 Hot-swap 8cm redundant PWM cooling fans

Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1200W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 100-127Vac / 15-12A / 50-60Hz
  • 200-240Vac / 8.5-7A / 50-60Hz
  • 200-240Vdc / 8.5-7A (for CCC only)
+12V
  • Max: 83A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification Platinum Level Certified95%+ Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPH-T
CSE-216BTS-R1K23LPB
1
1
Super X11DPH-T Motherboard
2U Chassis
Add-on Card / Module AOC-S3108L-H8IR-16DD-P 3 AOC-S3108L-H8iR-16DD
Backplane BPN-SAS3-216A-N4 1 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
Cable 1 CBL-0099 1 Power extension cable; one HDD to two HDD and two FDD. 35/25/12cm. 22AWG
Cable 2 CBL-SAST-0531 4 MINI SAS HD,12G,INT,80CM,30AWG
Cable 3 CBL-SAST-0532 2 MINI SAS HD,12G,INT,50CM,30AWG
Parts MCP-220-82616-0N 1 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Heatsink / Retention SNK-P0068PS 1 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention SNK-P0068PSC 1 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
FAN 1 FAN-0158L4 3 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
Drive Tray(s) MCP-220-00047-0B 24 Black 3rd Gen hot-swap 2.5" HDD tray


Optional Parts List
  Part Number Qty Description
3108 Cache Protection BTR-TFM8G-LSICVM02
BKT-BBU-BRACKET-05
3
2
SuperCap Module
Mounting PCIe Card
Cable CBL-0099 1 HDD Y-Split Cable
4 NVMe Drives Support AOC-SLG3-2E4R-O
CBL-SAST-0590
MCP-220-00121-0B
2
4
4
Dual-Port PCIe Gen-3 NVMe Internal Host Bus Adapter
MINI SAS HD,INT,PCIe NVMe SSD, 70CM,30AWG
Black gen-3 2.5 NVMe drive tray
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
