SuperStorage 6029P-E1CR16T

  Products  Systems   SuperStorage   [ 6029P-E1CR16T ]


Broadcom 3108 AOC



Integrated Board
Super X11DPH-T

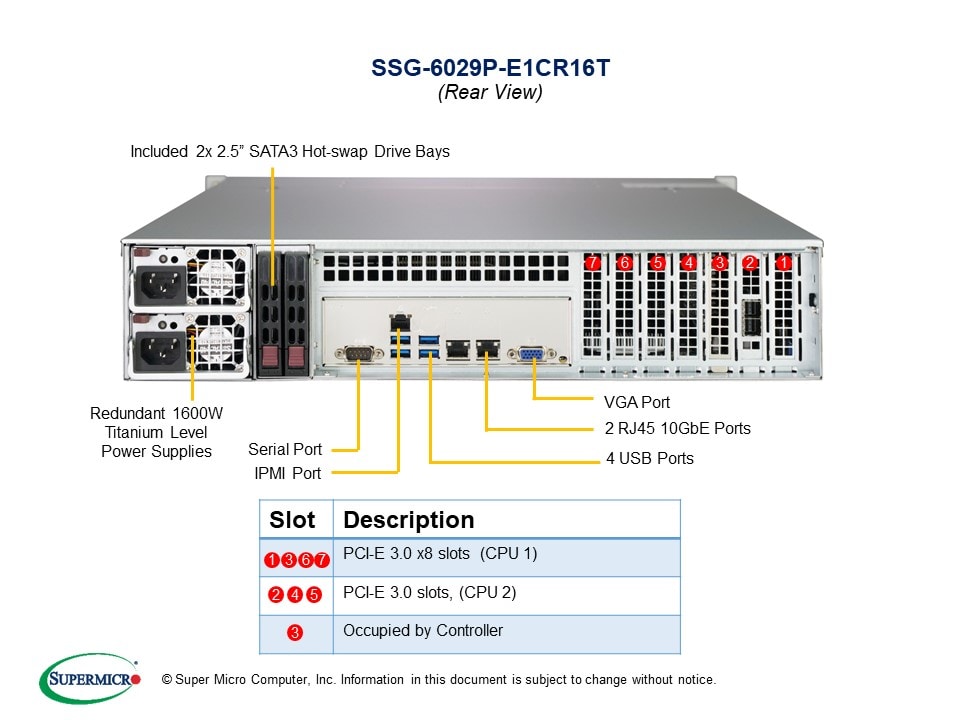

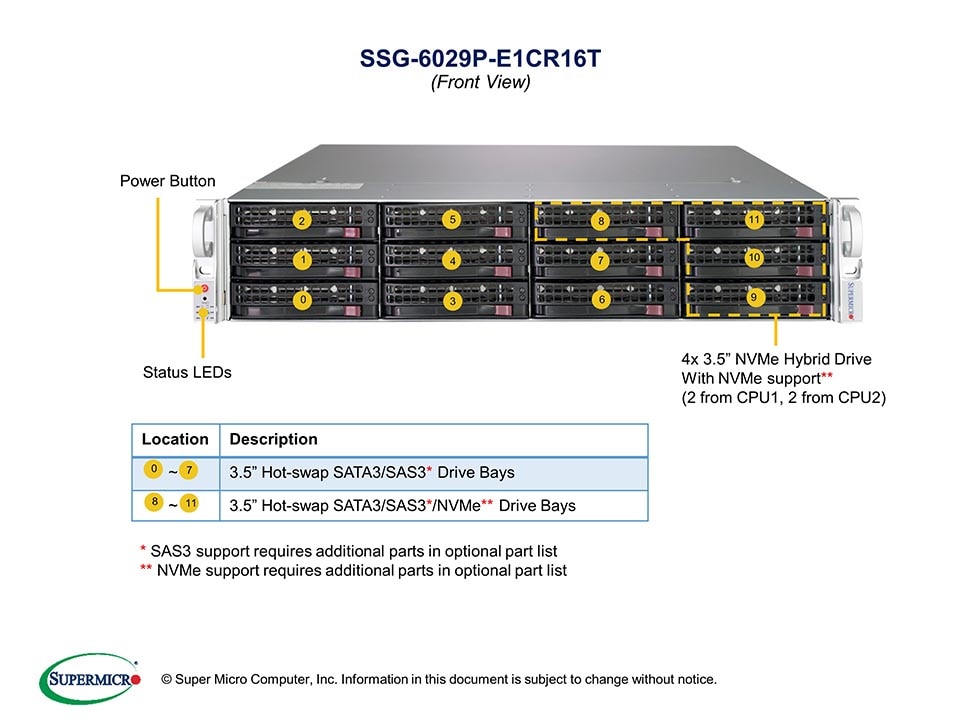

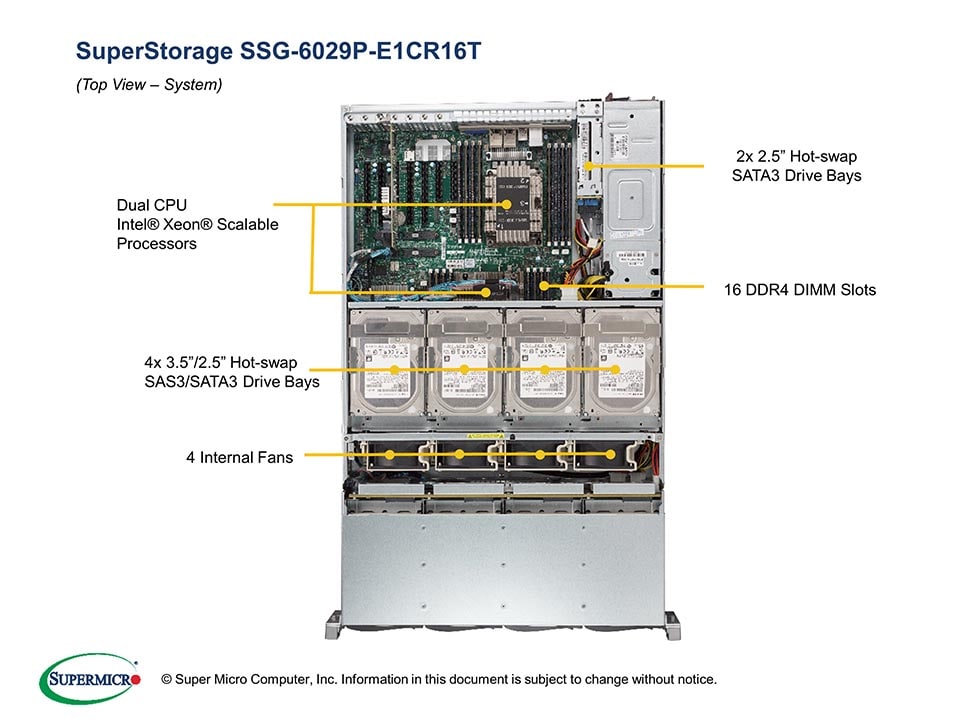

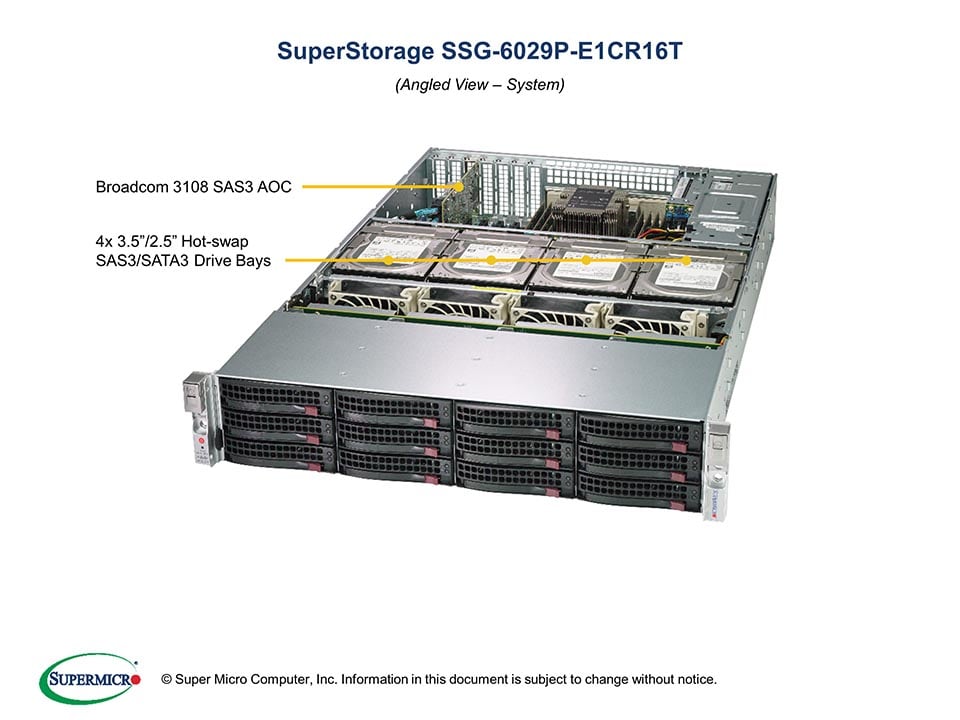

Views: | Angled View | Top View |
| Front View | Rear View |

Key Applications
  - Corporate Database
  - Database Processing & Storage
  - Enterprise Server
  - HPC, Data Center
  - iSCSI SAN


Key Features
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
2. 16 DIMMs; up to 4TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
    (slot 3 occupied by controller)
16 Hot-swap 3.5" SAS3/SATA3 drive
    bays including 4 optional NVMe
    drives; 2 hot-swap 2.5" SATA3
    drive bays (rear), 2 M.2 NVMe,
    Expander based backplane
5. Broadcom 3108 SAS3 AOC
6. 2x 10GBase-T LAN ports with
    Intel X722 + PHY Intel X557
7. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
8. 3 Hot-swap 8cm redundant PWM fans
9. 1600W Redundant Power Supplies
    Titanium Level (96%)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Drive Options

Product SKUs
SSG-6029P-E1CR16T
  • SuperStorage 6029P-E1CR16T (Black)

Motherboard

Super X11DPH-T

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C622 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID
  • RAID 0, 1, 5, 6, 10, 50, 60
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
  • 1 Type A
Video
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header

System BIOS
BIOS Type
  • 256Mb AMI UEFI

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model

Dimensions
Width
  • 17.2" (437mm)
Height
  • 3.5" (89mm)
Depth
  • 27.75" (705 mm)
Gross Weight
  • 62 lbs (28.12 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 3 PCI-E 3.0 x16 slot
  • 4 PCI-E 3.0 x8 slots
  • Slot 3 occupied by controller

Drive Bays
Hot-swap
  • 16 Hot-swap 3.5" SAS3/SATA3 drive bays including 4 optional NVMe drives
  • 2 Hot-swap 2.5" SATA3 drive bays (rear)
Optional
  • 4 U.2 NVMe
  • 2 M.2 NVMe

Backplane
SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5" drive slots

System Cooling
Fans
  • 3 Hot-swap 8cm redundant PWM cooling fans

Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power
  • 1600W/1000W
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 13 - 9A / 50-60Hz
  • 200-240Vac / 10 - 8A / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100-127Vac)
  • Max: 133A / Min: 0A (200-240Vac)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPH-T
CSE-829HE1C4-R1K62LPB
1
1
Super X11DPH-T Motherboard
2U Chassis
Add-on Card / Module AOC-S3108L-H8IR-16DD-P 1 AOC-S3108L-H8iR-16DD
Backplane BPN-SAS3-826EL1-N4 1 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
Backplane BPN-SAS3-829HA-A4 1 4-port internal SAS3 12Gbps backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-SAST-0532 2 MINI SAS HD,12G,INT,50CM,30AWG
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Parts MCP-220-82616-0N 1 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Heatsink / Retention SNK-P0067PSWB 1 1U Proprietary 96-mm Wide Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention SNK-P0068APS4 1 2U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform
* Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
* Power Distributor PDB-PT829H-2824 1 2U standard output with 24Pin PDB support up to
* Cable 2 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 3 CBL-0217L 1 CBL,CNTL PANEL CONVERTER,FOR SC826/846,FFC,16PIN,22CM
* FAN 1 FAN-0158L4 4 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
* Front Panel FPB-FP829H 1 Front Control Board for SC829H chassis
* Drive Tray(s) MCP-220-00075-0B 12 Black gen 5.5 hot-swap 3.5"; HDD tray
* Drive Tray(s) MCP-220-82902-0N 1 Middle tray plate for SC829H
* Drive Tray(s) MCP-220-82903-0N 4 Internal mid tray with handle for SC829H
* Front Panel MCP-280-00018-0N 1 SC826 front control board adapter
* Rail Set MCP-290-00053-0N-01 1 36"; Rail set for Auto-latch, quick/quick, 2, 3U 17.2";W
* Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
* Air Shroud MCP-310-82930-0B 1 Mylar 1U air shroud for SC829H X11
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
Converter Trays MCP-220-00118-0B
MCP-220-00043-0N
-
-
Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray
Black hot-swap gen 4 3.5 to 2.5 HDD tray
Convert 2 Rear SATA to NVMe MCP-220-82619-0N
AOC-SLG3-2E4R-O
CBL-SAST-0849
1
1
2
2.5x2 NVMe Drive Kit for 216B/826B/417B/846X/847B,RoHS
LP, PCIe3 x8, 2 internal Mini-SAS HD port redriver NVMe card
MiniSAS HD source to OcuLink v 1.0,INT,PCIe,57CM,34AWG
4 NVMe Drives Support AOC-SLG3-2E4R-O
CBL-SAST-0590
MCP-220-00116-0B
2
4
4
NVMe AOC
Internal Mini-SAS HD cable for PCIe SSD NVMe, 12Gb/s, 70cm
3.5" to 2.5" NVMe drive tray
Network Card(s) AOC-S25G-m2S
AOC-S40G-I2Q
AOC-SG-I2
More
-
-
-
-
Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
Standard LP 2-port 40GbE controller, Intel Fortville XL710
Standard LP 2-port GbE, Intel 82575
AOC Compatibility Matrix
3108 Cache Protection BTR-TFM8G-LSICVM02
BKT-BBU-BRACKET-05
1
1
SuperCap Module
Mounting PCIe Card
TPM security module
(optional, not included)
AOM-TPM-9670V
AOM-TPM-9671V
1
1
TPM module (Vertical) TPM 2.0
TPM module (Vertical) TPM 1.2.
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD
1
1
1
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
