SuperServer 6029BT-DNC0R (Complete System Only)

  Products  Systems   BigTwin   [ 6029BT-DNC0R ]





Integrated Board
Super X11DPT-B

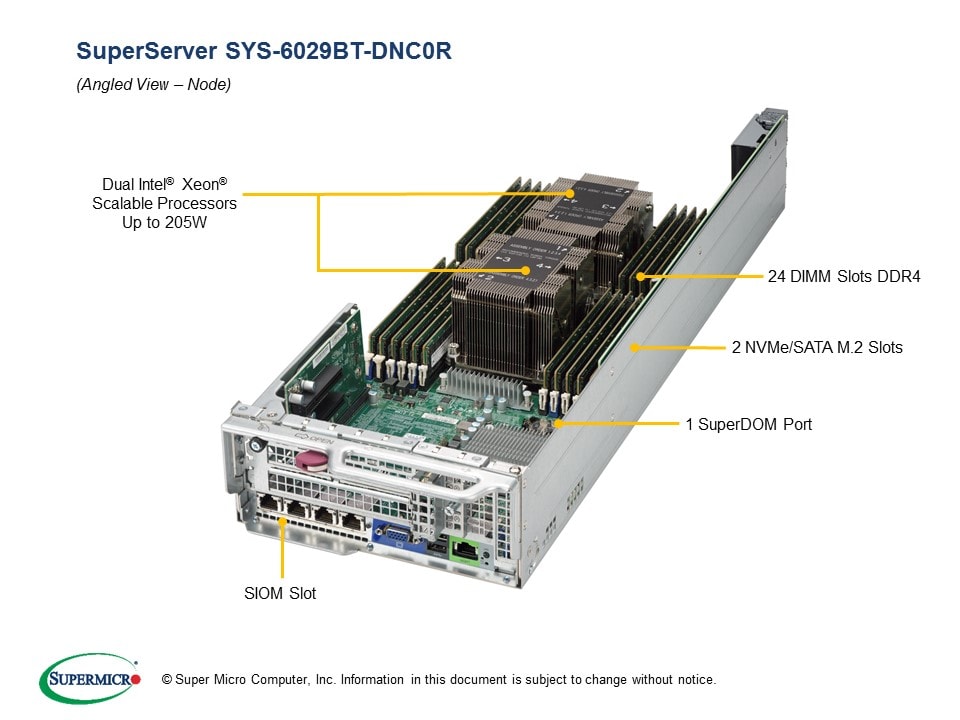

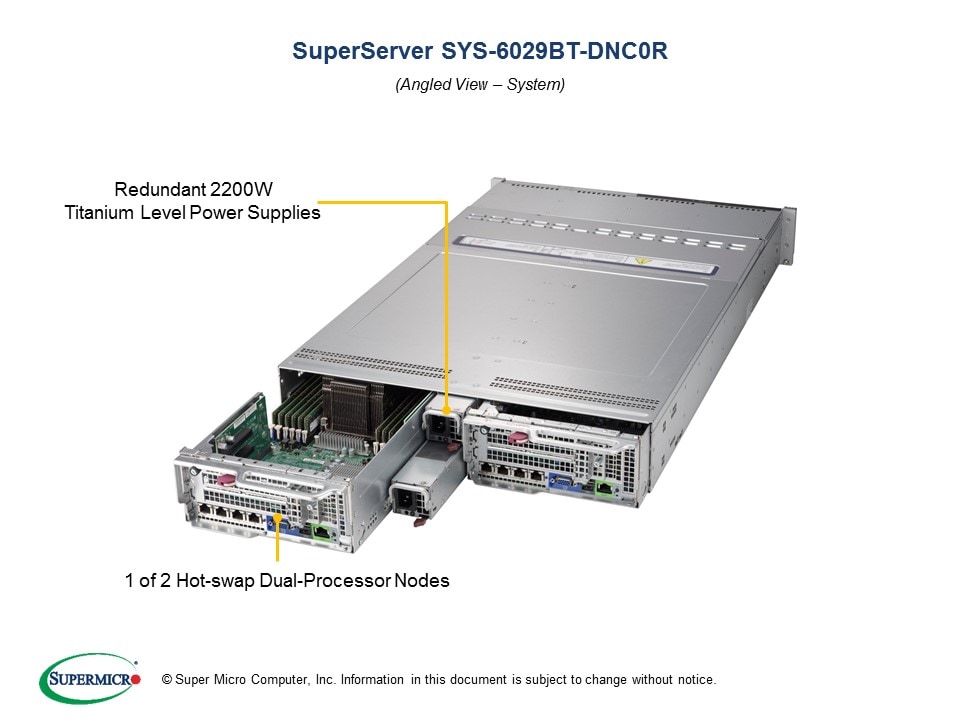

Views: | Angled View | Node View |

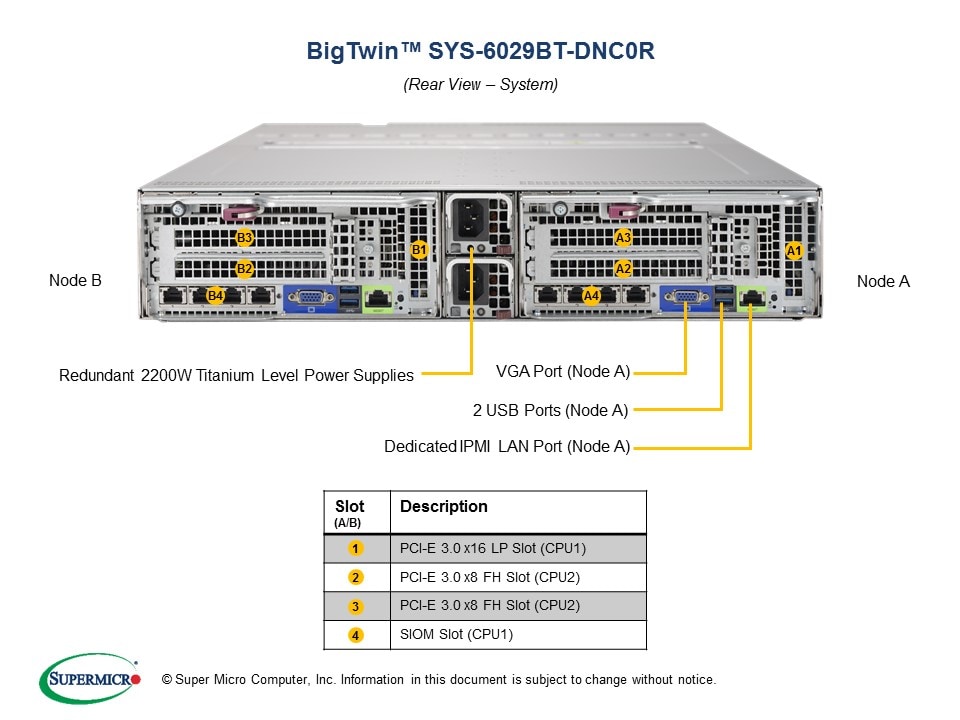

| Front View | Rear View |

Key Applications
  - Compute Intensive Application
  - HPC, Data Center, Enterprise
    Server
  - Hyperscale / Hyperconverged


Key Features
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)
2. 24 DIMMs; up to 6TB 3DS ECC
    DDR4-2933MHz RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 2 PCI-E 3.0 x8 slot, 1 PCI-E 3.0 x16,
    1 SIOM card support (flexible networking)
    Note: must bundle with Network card
4. 6 SAS3 or 3 NVMe + 3 SAS3
    Hot-swap 3.5" drive bays,
    2 internal M.2 NVMe/SATA slots
5. SAS3 support via Broadcom 3008;
    IT mode
6. IPMI 2.0 + KVM with dedicated LAN
7. Video via Aspeed AST2500 BMC
8. 4 Heavy duty 8cm PWM fans with
    air shroud
9. 2200W Redundant Power Supplies
    Titanium Level (96%)

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 1 HDD/NVMe and 1 SIOM card per node).

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   NVMe Options   Manuals    OS Certification Matrix    Quick-References Guide  Drive Options   Tested SIOM  Network Card (AOC) Matrix

Product SKUs
SYS-6029BT-DNC0R
  • SuperServer 6029BT-DNC0R (Black)

Motherboard

Super X11DPT-B

Processor
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W*
Cores
  • Up to 28 Cores
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization.
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C621 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3008; IT mode
Network
  • Must bundle with at least one SIOM network card
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC

Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) port
Others
  • M.2 and SATA DOM for boot drive only

System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM

Management
Software
Power Configurations
  • ACPI / APM Power Management

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-827BHD+-R2K22BP

Dimensions and Weight
Width
  • 17.6" (447mm)
Height
  • 3.47" (88mm)
Depth
  • 30.11" (765mm)
Package
  • 9.76" (H) x 24.65" (W) x 45.28" (D)
Weight
  • Gross Weight: 114.66 lbs (52.01 kg)
  • Net Weight: 87.13 lbs (39.52 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED

Expansion Slots (per Node)
PCI-Express
  • 2 PCI-E 3.0 x8 slots
  • 1 PCI-E 3.0 x16 slot
  • 1 SIOM card support
    (must bundle with network card)

Drive Bays / Storage (per Node)
Hot-swap
  • 6 SAS3 or 3 NVMe + 3 SAS3 Hot-swap 3.5" drive bays

    Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD.
M.2
  • 2 Internal M.2 NVMe/SATA slots

System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans with air shroud

Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power
  • 1200W/1800W/1980W/2090/2200W
Dimension
(W x H x L)
  • 45 x 40 x 480 mm
Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 180-220Vac (for UL/cUL only)
  • 2200W: 220-240Vac (for UL/cUL only)
  • 2090W: 230-240Vdc (for CCC only)
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
  • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
  • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • Gold Finger
Certification Titanium Level96%  Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List

Parts List - (Items Included)

Part Number
Qty
Description
Motherboard / Chassis MBD-X11DPT-B
CSE-827BHD+-R2K22BP
2
1
Super X11DPT-B Motherboard
2U Chassis
Backplane BPN-ADP-6S3008N3-2UB 2 Big Twin 2U Hybrid ADPHDD: 2x SAS3 port + 3 NVMe or SAS3 ports (SAS3008 controller)M.2: 2x SATA or PCIe M.2 ports,HF,RoHS
Backplane BPN-SAS3-827BHQ-N3 1 2U 12-Port 4-Node Hybrid Backplane Supports 3x3.5
Cable 1 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
Drive Tray(s) MCP-220-00133-0B-BULK 12 Black gen 8 hot-swap 3.5
Parts MCP-240-82718-0N 1 SC827B BigTwin type I (Impact) BPN retention bkt assy
Air Shroud MCP-310-21725-0B 2 Bigtwin 2U2N plastic air shroud for Cascade lake MB
Manual MNL-2091-QRG 1 6029BT-DNC0R Quick Reference Guide
Riser Card RSC-P2-88 2 2U LHS TwinPro Riser card with two standard PCI-E x8 slots,H
Heatsink / Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention SNK-P0069PS 2 1.5U Proprietary 50-mm Tall Front Passive CPU Heat Sink for X11 Purley Platform 2U Node Twin Series Servers
Fan FAN-0162L4 4 80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan
Power Supply PWS-2K22A-1R 2 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48


Optional Parts List
  Part Number Qty Description
Fan FAN-0191L4 - 80x80x38 mm, 14.9K RPM, Non-hot-swappable Middle Cooling Fan (Optimal for computational performance)
3.5" to 2.5" Converter Tray MCP-220-00140-0B - Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
TPM security module AOM-TPM-9670H-S 1 SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor
TPM security module AOM-TPM-9671H-S 1 SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor
Intel VROC RAID Key AOC-VROCINTMOD
AOC-VROCSTNMOD
AOC-VROCPREMOD
1
1
1
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
Intel VROC Standard, RAID 0, 1, 10
Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support OS4HR3/2/1
OSNBD3/2/1
-
-
3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
SuperDOM - - Supermicro SATA DOM Solutions [Details]
Network Card(s) AOC-S40G-i2Q
AOC-SGP-i2
AOC-SGP-i4
AOC-STG-b4S
AOC-STGN-i2S
AOC-STGN-i1S
AOC-STG-i2T
AOC-STG-i2
-
-
-
-
-
-
-
-
Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Hide Parts List
