SuperStorage 6039P-E1CR16H

  Products  Systems   SuperStorage   [ 6039P-E1CR16H ]

HW SAS3 Controller Storage Expandable


Integrated Board
Super X11DPH-T

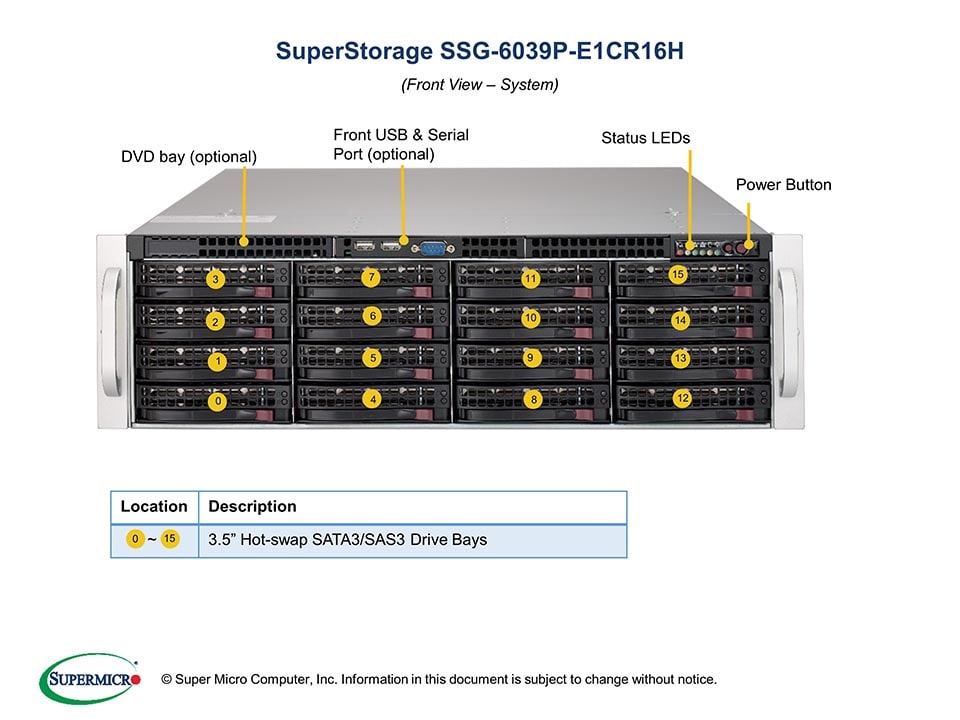

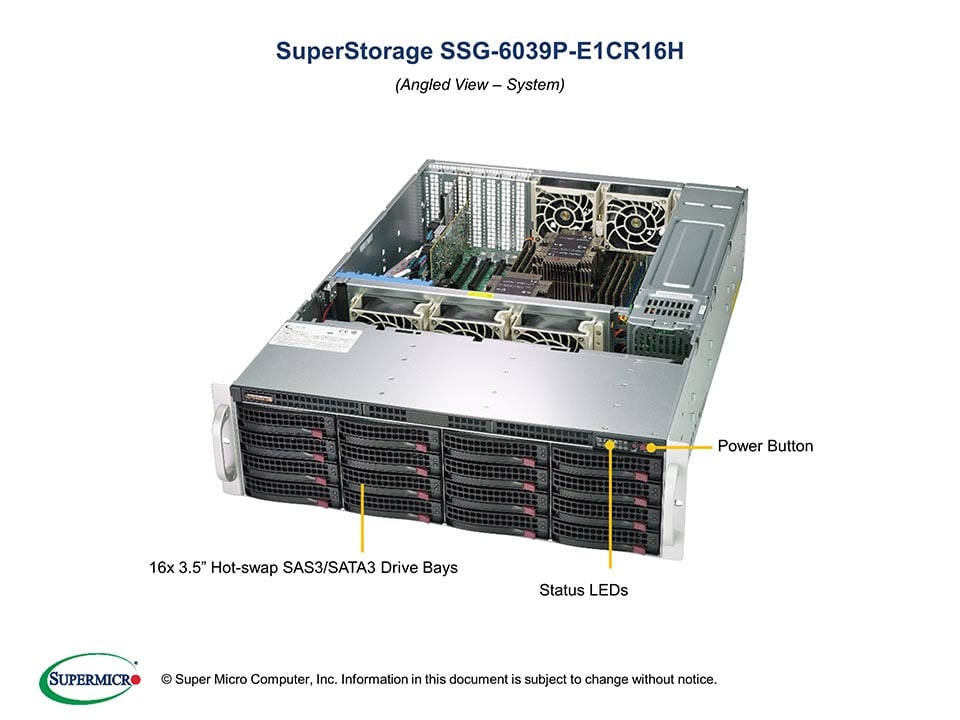

Views: | Angled View | Top View |

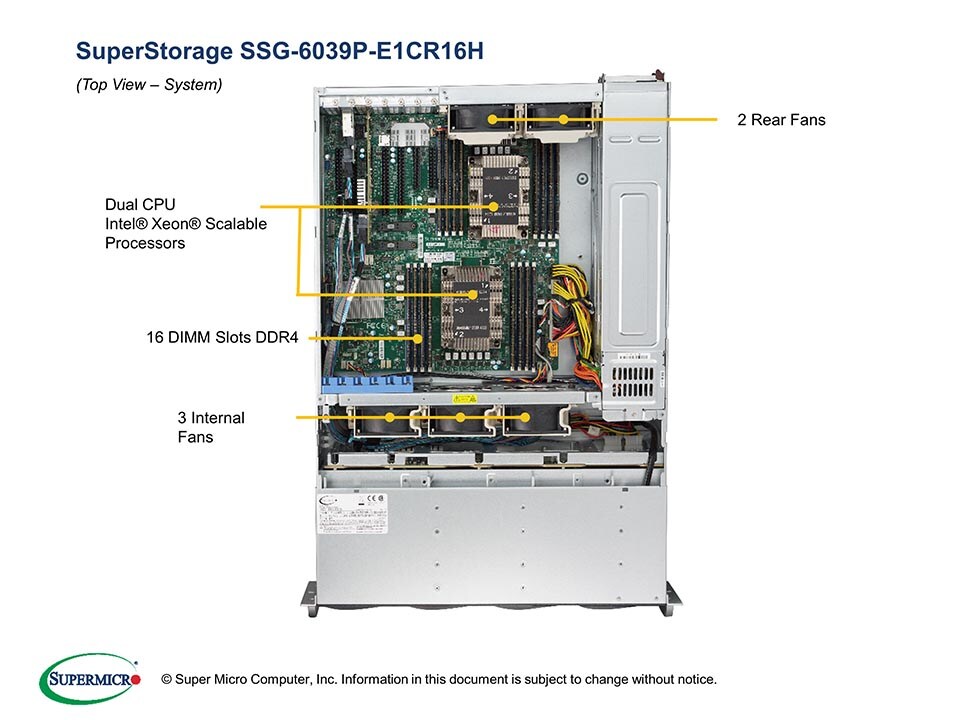

| Front View | Rear View |

 Key Features
  - Corporate Database
  - Database Processing & Storage
  - Enterprise Server
  - HPC, Data Center
  - iSCSI SAN

1. Dual Socket P (LGA 3647) support
    2nd Gen Intel® Xeon® Scalable
    processors (Cascade Lake/Skylake)‡
2. 16 DIMMs; up to 4TB 3DS ECC
    DDR4-2933MHz† RDIMM/LRDIMM,
    Supports Intel® Optane™ DCPMM††
3. 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
    (slot 2 & 3 occupied by controller
    and JBOD expansion port)
4. 16 Hot-swap 3.5" SAS3/SATA3
    drive bays; 2 hot-swap 2.5"
    SATA3 drive bays (rear),
    2 M.2 NVMe,
    Expander based backplane
5. Broadcom 3108 SAS3 AOC
6. 2x 10GBase-T LAN ports with
    Intel X722 + PHY Intel X557
7. Server remote management: IPMI 2.0
    / KVM over LAN / Media over LAN
8. 3 Hot-swap 8cm redundant PWM
    cooling fans, 2 hot-swap 8cm rear
    exhaust PWM fans PWM fans
9. 1200W Redundant Power Supplies
    Titanium Level (96%)

 Drivers & Utilities   BIOS   IPMI   Tested Memory  Tested M.2 List   Manuals    OS Certification Matrix    Drive Options

Product SKUs
SSG-6039P-E1CR16H
  • SuperStorage 6039P-E1CR16H (Black)

Motherboard

Super X11DPH-T

Processor/Cache
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
    3 UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices
Chipset
  • Intel® C622 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID
  • RAID 0, 1, 5, 6, 10, 50, 60
SATA
  • SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers
  • Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output
LAN
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports (rear)
  • 1 Type A
VGA
  • 1 VGA port
Serial Port / Header
  • 1 Fast UART 16550 port / 1 Header

System BIOS
BIOS Type
  • 256Mb AMI UEFI

Management
Software

PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 3U Rackmount
Model

Dimensions
Width
  • 17.2" (437mm)
Height
  • 5.2" (132mm)
Depth
  • 25.5" (648mm)
Weight
  • Gross Weight: 79 lbs (35.8 kg)
  • Net Weight: 48 lbs (21.8 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power status LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
  • Power fail LED

Expansion Slots
PCI-Express
  • 3 PCI-E 3.0 x16 slot
  • 4 PCI-E 3.0 x8 slots
  • Slot 2 & 3 occupied by controller and JBOD Expansion Port

Drive Bays
Hot-swap
  • 16 Hot-swap 3.5" SAS3/SATA3 drive bays
Optional
  • 2 Optional Onboard NVMe M.2

Backplane
SAS3 12Gbps single expander backplane, w/ 16x SAS3 3.5" drive slots and 2x mini-SAS HD connectors for JBOD expansion

System Cooling
Fans
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 2 Hot-swap 8cm rear exhaust PWM fans
  • Redundant cooling

Power Supply (76mm Width)
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 1000W/1200W
Dimension
(W x H x L)
  • 76 x 40 x 336 mm
Input
  • 100-127Vac / 15-12A / 50-60Hz
  • 200-240Vac / 8.5-7A / 50-60Hz
  • 200-240Vdc / 8.5-7A (for CCC only)
+12V
  • Max: 83A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+5Vsb
  • Max: 4A / Min: 0A
Output Type
  • 19 Pairs Gold Finger Connector
Certification Platinum Level Certified95%+ Titanium Level
  [ Test Report ]

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)

See Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11DPH-T
CSE-836BE1C-R1K23B 		1
1		 Super X11DPH-T Motherboard
3U Chassis
Add-on Card / Module AOC-S3108L-H8IR 1 LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 240HDD - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile
Add-on Card / Module AOM-SAS3-8I8E 1 8-port Mini SAS HD Int-to-Ext cable adapter w/FH bracket,HF,RoHS/REACH
Backplane BPN-SAS3-836EL1 1 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD
Cable 1 CBL-SAST-0531 4 MINI SAS HD,12G,INT,80CM,30AWG
Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
Heatsink / Retention SNK-P0068PS 2 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Rear Window MCP-220-83608-0N 1 Rear hot-swap drive bay for 2x 2.5" drives
* Power Supply PWS-1K23A-1R 2 AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
* Power Distributor PDB-PT826-8824 1 PDB with longer 24pin for SC826B
* Cable 2 CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
* Cable 3 CBL-0088L 1 4 PIN MIDDLE FAN POWER CABLE (PWM). 27cm, 24AWG
* FAN 1 FAN-0125L4 2 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
* FAN 2 FAN-0158L4 3 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
* Drive Tray(s) MCP-220-00023-01 1 Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
* Drive Tray(s) MCP-220-00075-0B 16 Black gen 5.5 hot-swap 3.5"; HDD tray
* Rear Window MCP-240-83605-0N 1 836B chassis rear window (to support the optional MCP-220-83605-0N)
* Peripheral Drive 1 MCP-290-00007-01 1 Black DVD dummy cover for SC825, 836
* Rail Set MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
* Parts MCP-290-83601-0V 1 set Silver chassis handles (left and right) for SC836/835
* Air Shroud MCP-310-39001-0N 1 SC835/836/936 Intel DP X9-X10 PC air shroud 1368x13/12x13MB
* Rail Set MCP-410-00007-0N 1 Rail screw bag
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.


Optional Parts List
  Part Number Qty Description
DVD Kit DVM-TEAC-DVDRW-SBT5 or
DVM-PLDS-DVDRW-SBT5
MCP-220-81502-0N
CBL-PWEX-0645
CBL-SAST-0388L-02		 1

1
1
1		 BLACK TEAC/PHILIPS SLIM BLACK DVD-RW SATA DRIVE

Slim SATA DVD mounting kit
Big 4 pin male to big 4 pin female, power extension 15cm
MINI SAS-4 SATA,INT,75/75/90/90CM,90CM SB,30AWG
Converter Trays MCP-220-00118-0B
MCP-220-00043-0N		 -
-		 Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray
Black hot-swap gen 4 3.5 to 2.5 HDD tray
3108 Cache Protection BTR-TFM8G-LSICVM02
BKT-BBU-BRACKET-05		 1
1		 SuperCap for SAS3108 controller
Mounting for SuperCap
Global Services & Support OS4HR3/2/1
OSNBD3/2/1		 -
-		 3/2/1-year onsite 24x7x4 service
3/2/1-year onsite NBD service
Software SFT-OOB-LIC • 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
Hide Parts List
