SuperServer SYS-120C-TN10R (Complete System Only)

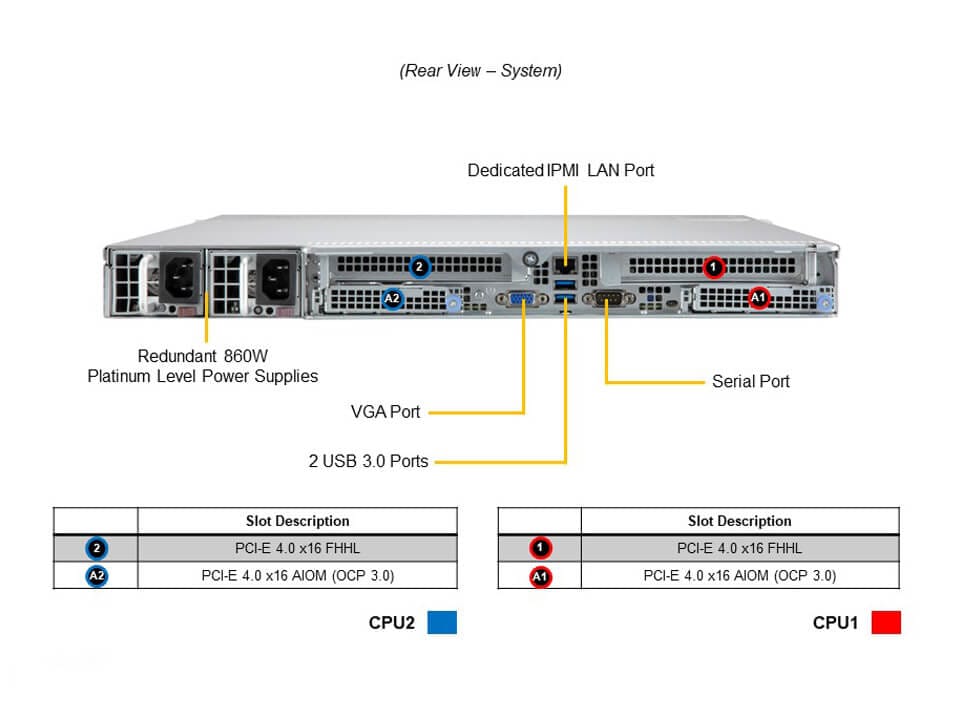

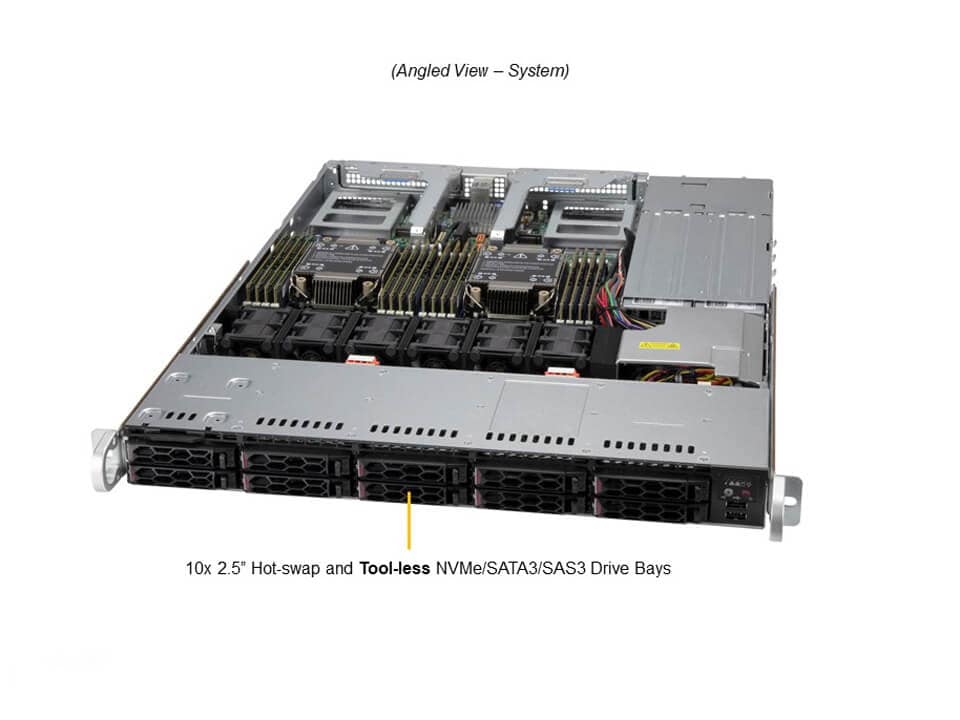

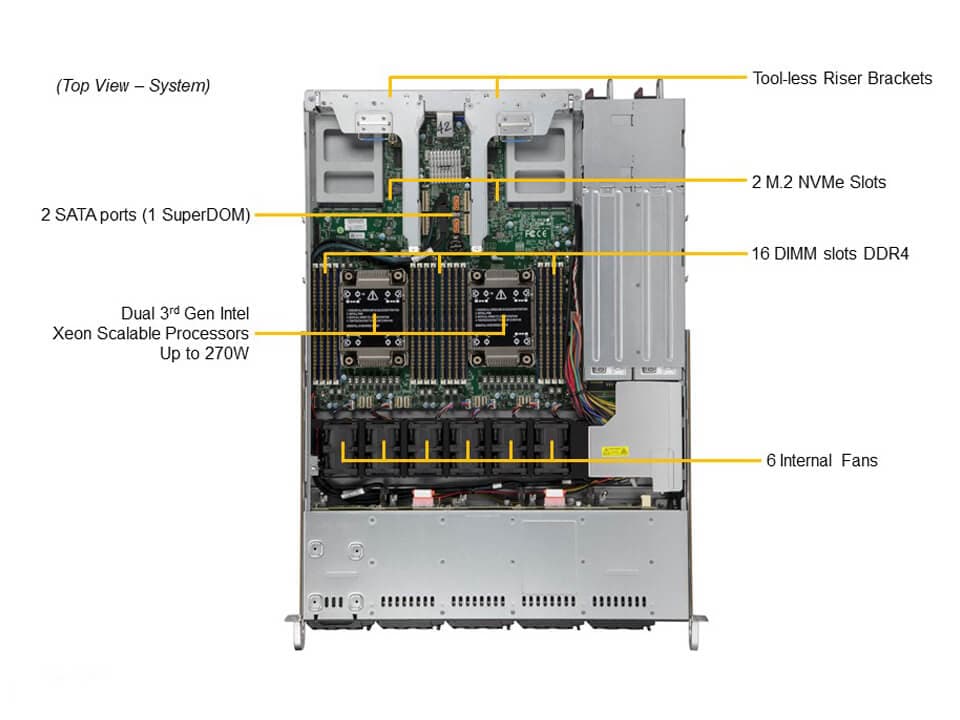

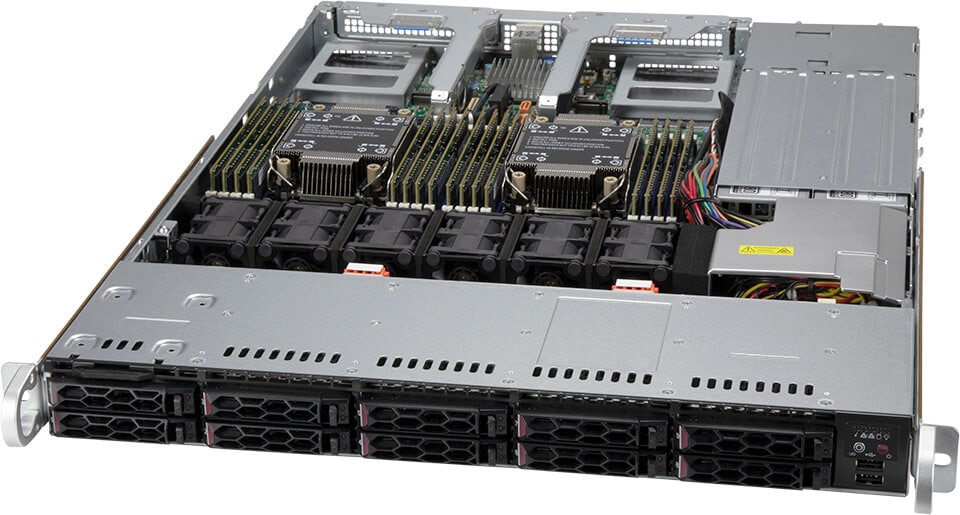

SYS-120C-TN10R Main SYS-120C-TN10R Angle SYS-120C-TN10R Top SYS-120C-TN10R Front SYS-120C-TN10R Rear
Integrated Board: X12DDW-A6
Learn more

Key Applications

  • Web Server, Firewall Application
  • Data Center Optimized, Value IaaS
  • Cloud Computing, Compact Server
  • DNS & Gateway Servers, Firewall Application
  • CDN, Edge Nodes

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  2. Intel® C621A Chipset
  3. 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM
  4. 2 PCIe 4.0 x16 FHHL;
    2 PCIe 4.0 x16 AIOM (OCP 3.0);
    2 PCIe 3.0 x2 NVMe M.2
  5. Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
  6. 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  7. 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
  8. 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
  9. 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (front)
...
...
Specifications Resources Parts List
Specifications
Product SKUs
SuperServer SYS-120C-TN10R Standard version (Black) with PWS-860P-1R2 (Platinum Level)
SuperServer SYS-120C-TN10R-EU European version (Black) with PWS-861A-1R (Titanium Level)
Motherboard
Super X12DDW-A6
Processor
CPU
  • Dual Socket P4 (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 185W only supported under specific conditions. Contact a Supermicro representative for details.​
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPU(s)
Supported GPU
Certification
System Memory
Memory
  • Memory Capacity: 16 DIMM slots
  • Up to 4TB: 16x 256 GB DRAM and 8x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support ((*VROC is required))
Chipset
  • Intel® C621A
Network Connectivity
  • Via Slim-AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 port(s) (2 front)
  • 2 USB 3.0 port(s) (2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 1 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
Power Configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitorin
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U
Model
Dimensions and Weight
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 23.5" (597mm)
Package
  • 7.7" (H) x 23.7" (W) x 31.8" (D)
Weight
  • Gross Weight: 40 lbs (18.14 kg)
Available Color
  • Black

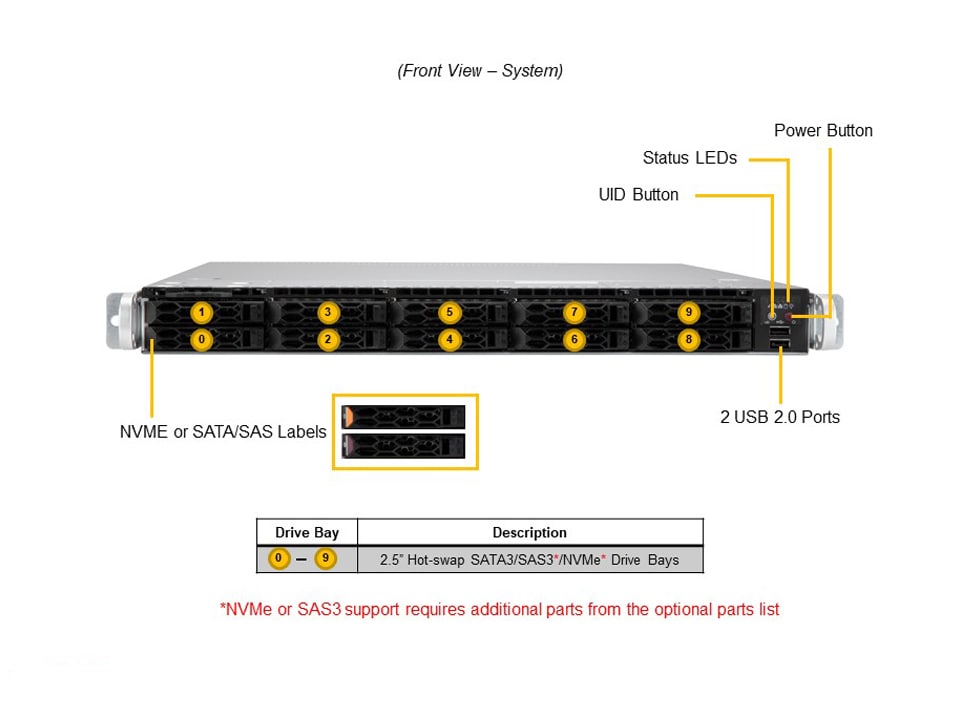

Front Panel
Buttons
  • Power On/Off button
  • Unit Identification (UID) button
LEDs
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
  • Unit Identification (UID) LED
Port
  • USB 2.0 Port(s)
Expansion Slots
PCI-Express (PCIe)
  • 2 PCIe 4.0 x16 FHHL slot(s)
Drive Bays / Storage
Hot-swap
  • 10x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" NVMe hybrid) (NVMe drives require additional cables from the optional parts list.)
M.2
  • 2 M.2 NVMe
  • M-Key, 2280
System Cooling
Fans
  • 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Power Supply
860W Redundant Platinum Level power supplies
Note: SYS-120C-TN10R-EU (European) SKU uses PWS-861A-1R (Titanium Level)
Dimension

(W x H x L)
  • 54.5 x 40.25 x 322 mm
AC Input
  • 800W: 100-127Vac
  • 800W: 100-127Vac / 50-60Hz
  • 860W: 200-240Vac
  • 860W: 200-240Vdc / 50-60Hz
  • 860W: 200-240Vac / 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)
  • Max: 71.6A / Min: 0A (200Vdc-240Vdc)
  • Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification Platinum Level Certified94%+   Platinum Level



  [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)


Resources
Component Options
AIOM MatrixCompatible GPU ListDrive OptionsNVMe OptionsTested AOC ListTested M.2 ListTested Memory
Documentation
ManualsQuick Reference Guide
Software
BIOS DownloadBMC DownloadDrivers & UtilitiesOS Certification
Parts List
Standard Parts (Parts Included)
Part Number Qty Description
Motherboard / Chassis MBD-X12DDW-A6

CSE-LB16AC10-R860AW 		1

1 		Super X12DDW-A6 Motherboard

1U Chassis
Backplane BPN-SAS3-LB16A-N10 1 1U 10-Slot SFF Hybrid Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors
Cable CBL-SAST-1274LP-100 1 SlimlineLP x8 (LE) to 2x Slimline x4 (STR),68/76CM,100 O
CBL-SAST-1285LP-100 1 SlimlineLP x4 (STR) to Slimline x4 (STR),57CM,100 OHM,Ro
CBL-CDAT-0680-55 1 NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Fan FAN-0101L4 6 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
Parts MCP-150-00015-0B 6 Rubber pad, 3.0mm H, 10x10mm
MCP-160-00028-0B 1 Mylar Cable Channel for Cloud-DC, X12 DDW
MCP-320-00067-0B 1 Chassis base Air Foam block set (L+R) for Cloud-DC
Air Shroud MCP-310-00105-0B 2 Mylar Air Shroud for LA15-AW,LB13-AW,LB16-AW + X12DDW
Manual MNL-2332-QRG 1 120C-TN10R/120C-TN10R-EU Quick Reference Guide
Riser Card RSC-D-6G4 1 1U LHS DCO Riser card with one PCIe 4.0 x16 slot,HF,RoHS
RSC-DR-6G4 1 1U RHS DCO Riser card with one PCIe 4.0 x16 slot,HF,RoHS
Software SFT-OOB-LIC 1 License key for enabling OOB BIOS management
Heatsink / Retention SNK-P0077P 2 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
*Power Supply PWS-860P-1R2 2 1U 860W, Redundant power supply, 54.5mm width, Platinum with
MCP-250-00009-0N 1 SC113 Redundant Power Distributor Cover
*Power Distributor PDB-PT116-SL8824 1 Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
*Front Panel FPB-FP116 1 Front control board for SC116 (USB 2.0 x 2)
*Drive Tray(s) MCP-220-00188-0B 10 Black gen-5.5 tool-less cost-effective 2.5
*Rear Window MCP-240-00173-0N 1 1U X12 AWIO Rear window for LA15,LB16,LB13 Redundant PWS
*Rail Set MCP-290-00016-0N 1 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
MCP-290-00063-0N 1set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
*Fan Holder MCP-320-00056-0B 24 40X56 rubber fan pin for SC819U, SC119U,RoHS/REACH
MCP-320-00066-0B 1 Fan holder with cable channel, 40X56mm fan, for LA15,LB16,LB13
MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Optional Parts List
Part Number Qty Description
3108 CacheVault BTR-CV3108-1U1 1 CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray.
Recommended to add only if all PCIe, drive and AIOM locations are occupied. It will replace one fan in the system.
BTR-TFM8G-LSICVM02 1 CacheVault for Broadcom 3108 (requires a SuperCap mount)
3108 RAID Card CBL-SAST-1260-100 1 MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM
AOC-S3108L-H8IR-16DD • 1 Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60;
3108/3908/3916 SuperCap Mount MCP-240-21747-0N 1 SuperCap mounting card for AIOM location
MCP-240-00203-0N 1 SuperCap mounting bracket for PCIe location
MCP-240-00127-0N 1 SuperCap mounting tray for 2.5" drive location
3808 HBA Card CBL-SAST-1276F-100 • 1 Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
Alternative: CBL-SAST-1264F-100 (64 CM)
AOC-S3808L-L8IT 1 Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD; HBA;
3816 HBA Card CBL-SAST-1265F-100 1 Slimline x8 (STR) to Slimline x4 (STR),64CM
AOC-S3816L-L16IT 1 Standard LP, 16 internal ports (12Gb/s) Gen-4, 122HDD; HBA;
CBL-SAST-1276F-100 • 1 Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
Alternative: CBL-SAST-1264F-100 (64 CM)
3908 RAID Card AOC-S3908L-H8IR-16DD 1 Standard LP, 8 internal ports (12Gb/s) Gen-4, 122HDD; RAID 0, 1, 5, 6, 10, 50, 60;
CBL-SAST-1276F-100 • 1 Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
Alternative: CBL-SAST-1264F-100 (64 CM)
3908/3916 CacheVault BTR-CVPM05 1 CacheVault for Broadcom 3908/3916 (requires a SuperCap mount)
3916 RAID Card CBL-SAST-1265F-100 1 Slimline x8 (STR) to Slimline x4 (STR),64CM
AOC-S3916L-H16IR-32DD 1 Standard LP, 16 internal ports (12Gb/s) Gen-4, 32HDD; RAID 0, 1, 5, 6, 10, 50, 60;
CBL-SAST-1276F-100 • 1 Slimline x8 (LE) to 2x Slimline x4 (STR),76/76CM
Alternative: CBL-SAST-1264F-100 (64 CM)
Add-on card for additional M.2 AOC-SLG3-2SM2 - Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 SATA Modules; RAID 0,1
AOC-SLG3-2NM2 - Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules; RAID 0,1
AOC-SLG3-2M2 - Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules
AIOM Network Card(s) AOC-A25G-i2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCIe x8,Intel E810-XXVAM2
AOC-A100G-b2CM - OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCIe 4.0 x16, Broadcom® BCM57508
AOC-AG-i4SM - OCP 3.0 AIOM NIC, 4x 1GbE SFP, PCIe 2.1 x4, Intel® i350-AM4
AOC-AG-i4M - OCP 3.0 AIOM NIC, 4x 1GbE RJ45, PCIe 2.1 x4, Intel® i350-AM4
AOC-ATG-i4SM - OCP 3.0 AIOM NIC, 4x 10GbE SFP+, PCIe 3.0 x8, Intel® XL710-BM1
AOC-AH25G-m2S2TM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28 & 2x 10GbE RJ45, PCIe x8/x4, Mellanox® CX4 Lx EN & Intel® X550-AT2
(Add 1x MCP-310-00107-0B per card to support this NIC)
AOC-AG-i2M - OCP 3.0 AIOM NIC, 2x 1GbE RJ45, PCIe 2.1 x4, Intel® i350-AM2
AOC-ATG-i2TM - OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCIe 3.0 x4, Intel® X550-AT2
AOC-A25G-m2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCIe x8, Mellanox® CX-6 LX
AOC-ATG-i2T2SM - OCP 3.0 AIOM NIC, 4x 10GbE RJ45 & SFP+, PCIe x8, Intel® X710-TM4
AOC-A25G-b2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCIe x8, Broadcom® BCM57414
AOC-ATG-i2SM - OCP 3.0 AIOM NIC, 2x 10GbE SFP+, PCIe 3.0 x8, Intel® X710-BM2
AOC-A100G-m2CM - OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCIe 4.0 x16, Mellanox® CX-6 DX
AOC-ATGC-i2TM - OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCIe 3.0 x4, Intel X710-AT2
Cable Management Arm MCP-290-00152-0N • 1 1U Supermicro Cable Management Arm 2nd Gen
Fan Upgrade FAN-0163L4 • 6 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
Inlet Temp Sensor MCP-280-00033-0N 1 Universal Thermal sensor kit with 80cm I2C cable
Intel VROC Key AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
AOC-VROCPREMOD • 1 Intel VROC Premium, RAID 0, 1, 5, 10
AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
NVMe Cables Kit CBL-KIT-120C-TN10R-10 1 Supports 10 NVMe drives. Kit includes:
4x CBL-SAST-1219LP-85 (NVMe drive slots # 0-3, 6-9)
1x CBL-SAST-1234FLP-85 (NVMe drive slots # 4-5)
Power Supply Upgrade PWS-1K27A-1R • 2 1000W/1200W 1U 54.5Wx322Lx40H mm redundant Titanium
Software SFT-DCMS-Single 1 Supermicro System Managment Software License
SFT-SDDC-SINGLE 1 Supermicro Data Center Monitor License
TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller; vertical form factor
AOM-TPM-9670V-S-FIPS 1 SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS; vertical form factor
AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
CloudDC SuperServer SYS-120C-TN10R (Complete System Only )
